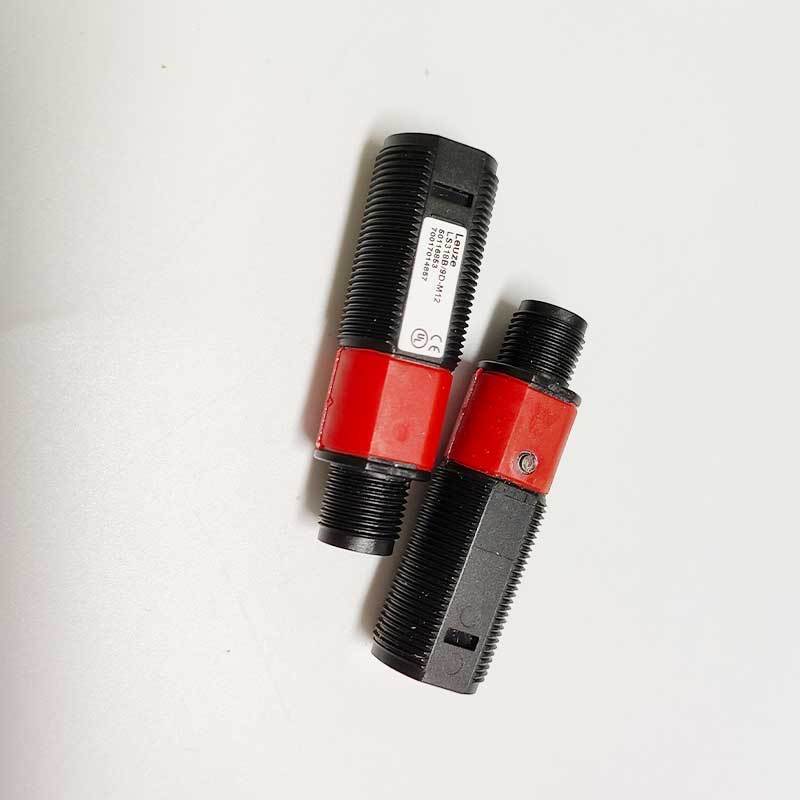

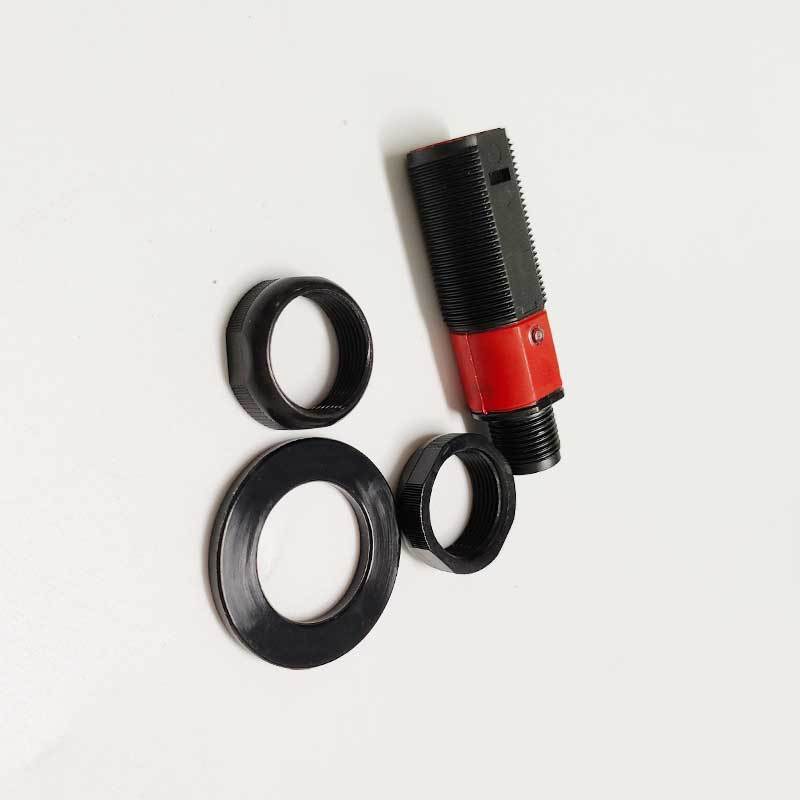

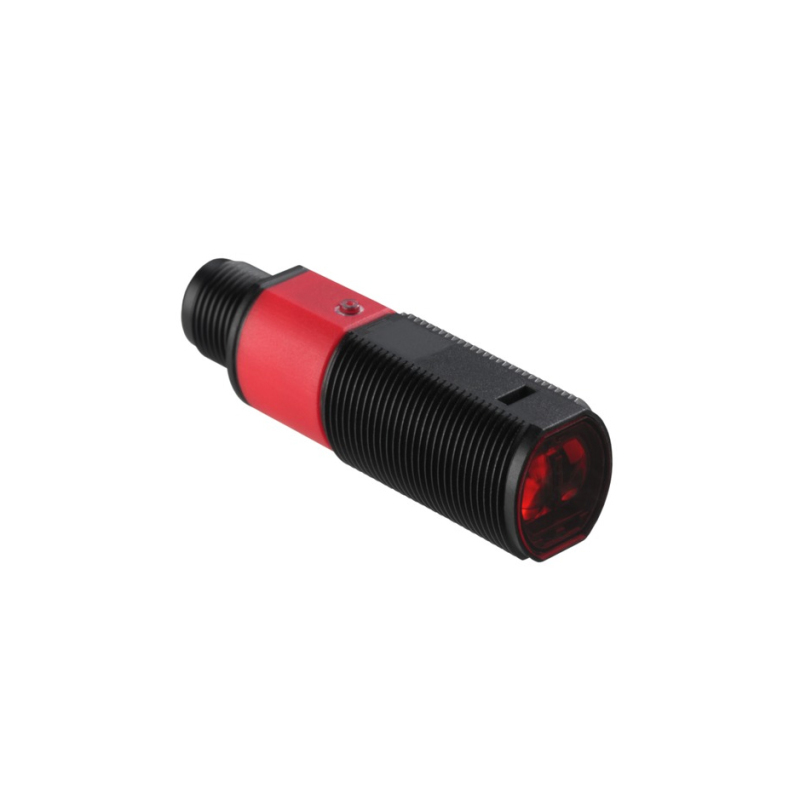

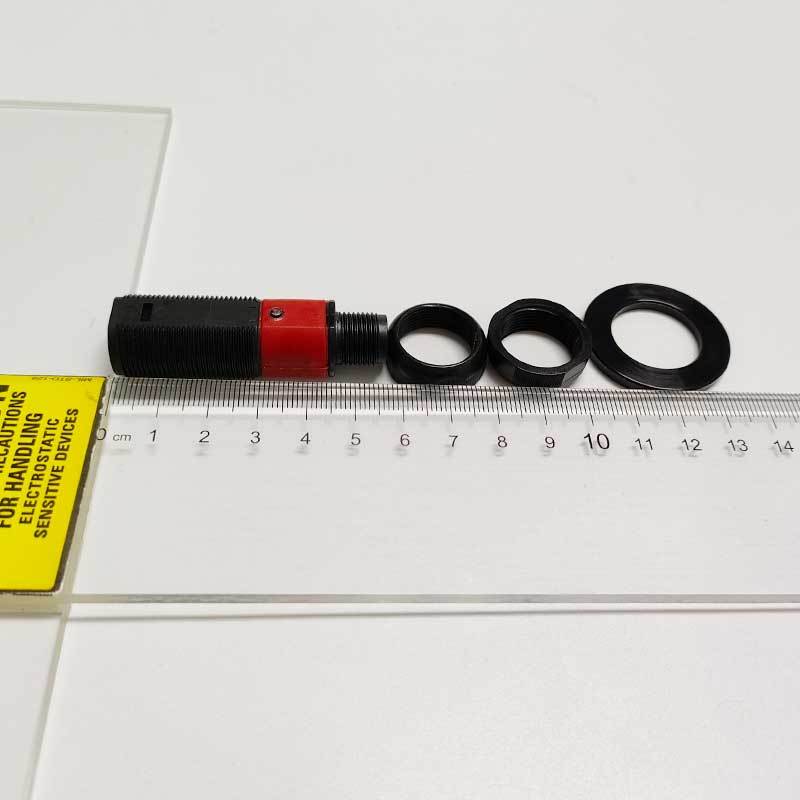

In Stock ! Leuze Throughbeam photoelectric sensor transmitter LS318B/9D-M12

Part no.: 50116853

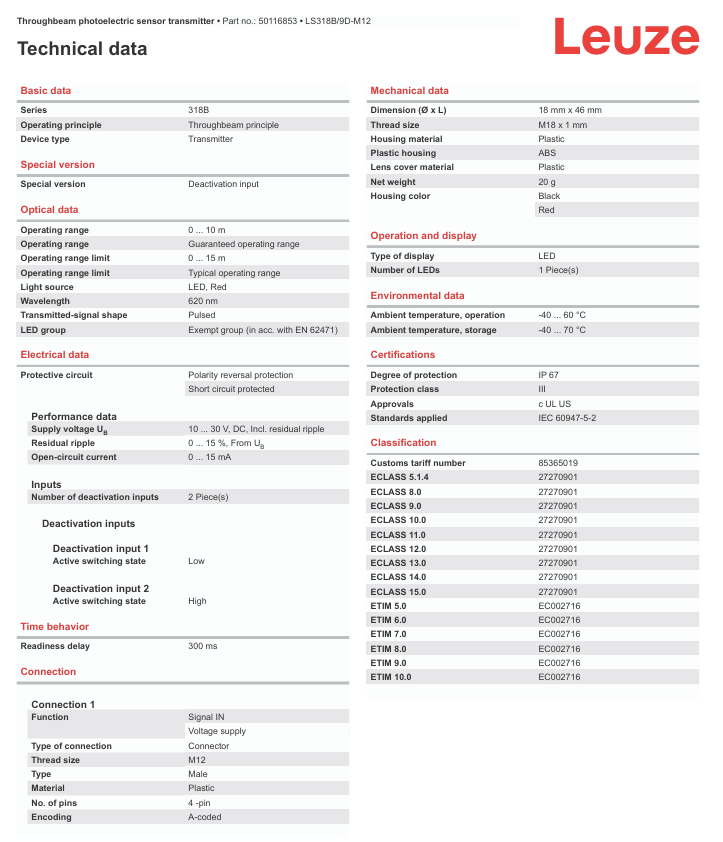

Features：

Operating range：0 ... 10 m

Operating range：Guaranteed operating range

Operating range limit：0 ... 15 m

Operating range limit：Typical operating range

Light source：LED, Red

Wavelength：620 nm

LED group：Exempt group (in acc. with EN 62471)

Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple

Residual ripple：0 ... 15 %, From UB

Open-circuit current：0 ... 15 mA

Readiness delay：300 ms

Dimension (Ø x L)：18 mm x 46 mm

Thread size：M18 x 1 mm

Housing material：Plastic

Plastic housing：ABS

Lens cover material：Plastic

Net weight：20 g

Housing color：Black  Red

Ambient temperature, operation：-40 ... 60 °C

Ambient temperature, storage：-40 ... 70 °C

Degree of protection：IP 67

Protection class：III

Optical sensors

Optical sensors use light in various forms to perform their detection tasks. An extensive product line is available with reliable and efficient sensor solutions for all applications that can be solved optically. Object detection for different surfaces, object sizes and colors requires various function principles, such as a throughbeam photoelectric sensor, a retro-reflective photoelectric sensor or a diffuse reflection sensor. All different operating principles are usually available in a given series (size). Universal series are also available with extended models and additional useful functions.

Throughbeam photoelectric sensors

Separate transmitter and receiver opposite one another

Reliable standard photoelectric sensors

With high function reserves and operating ranges up to 150 m

Retro-reflective photoelectric sensors

Transmitter and receiver in the same housing, opposing reflector

Special sensors for transparent media or extremely small objects

Models for foil-wrapped pallets or highly accurate positioning

Diffuse sensors

Object detection in front of a background

Available in a variety of special designs

Red-light and infrared models, solutions with IO-Link for format changeover

Sensors for Ex applications

Universal sensors for use in potentially explosive areas

Certified in accordance with ATEX and IECEx directives

Devices with type examination certificates for zone 2 and 22, as well as zone 1 and 21
