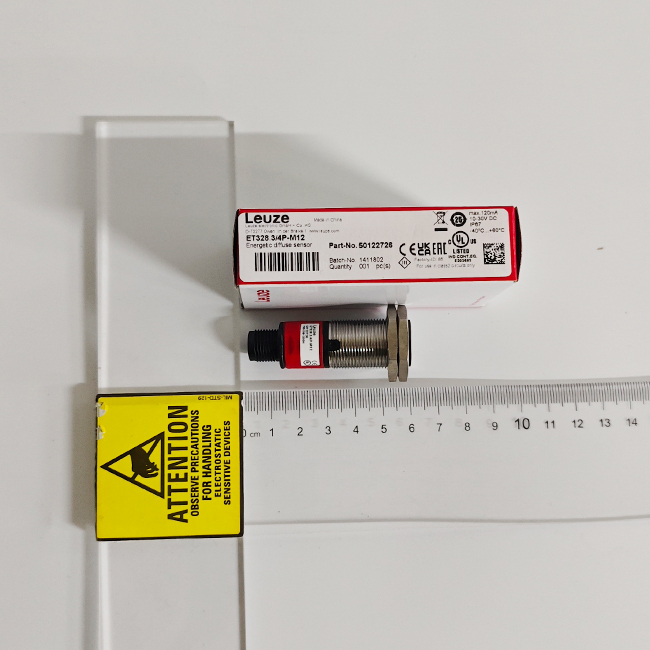

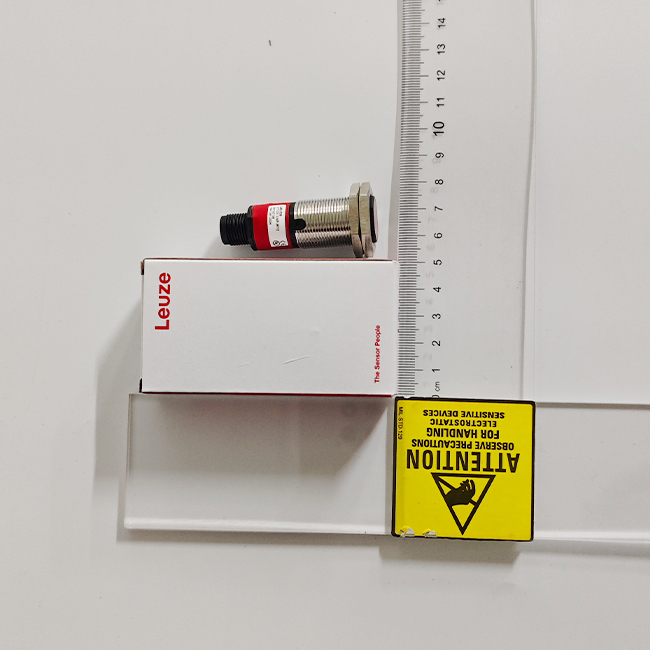

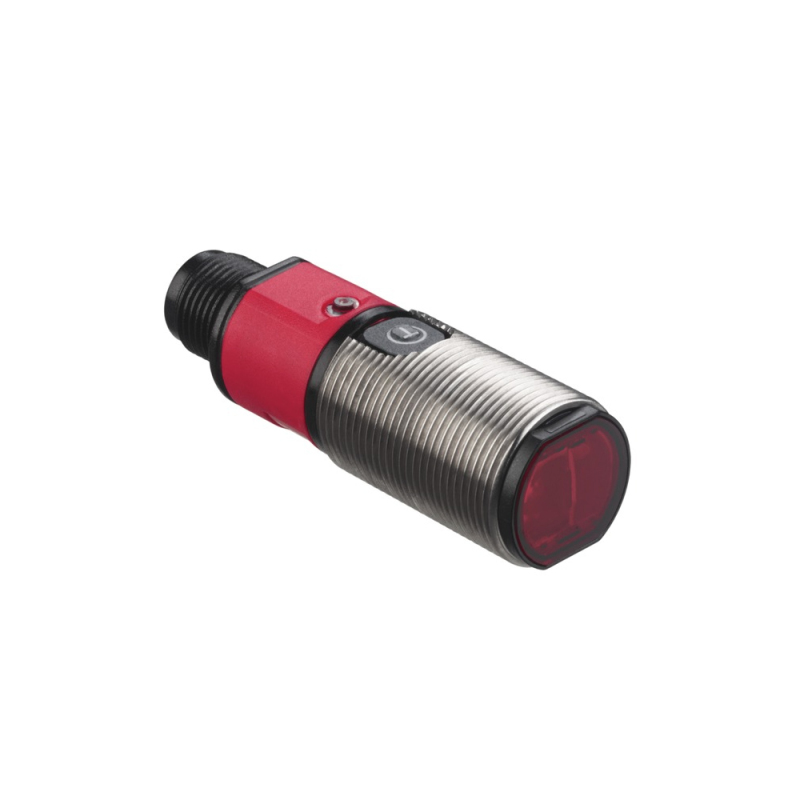

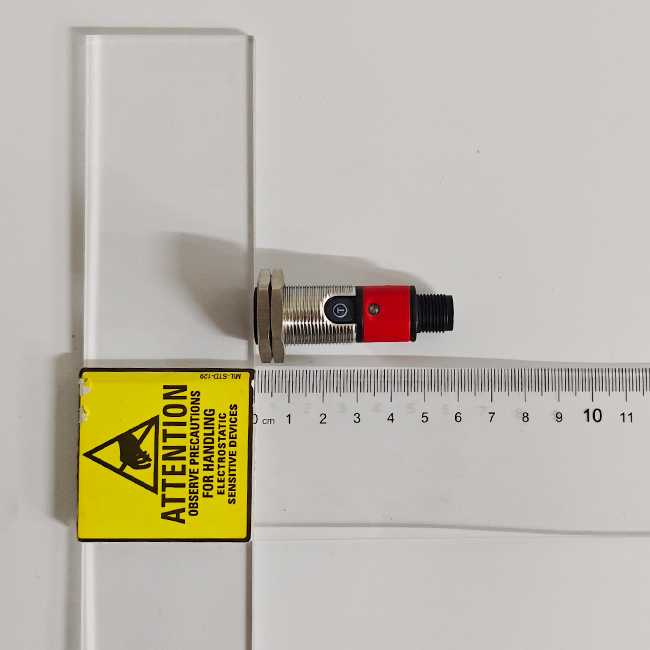

In Stock ! Leuze Energetic diffuse sensor ET328.3/4P-M12

Part no.: 50122726

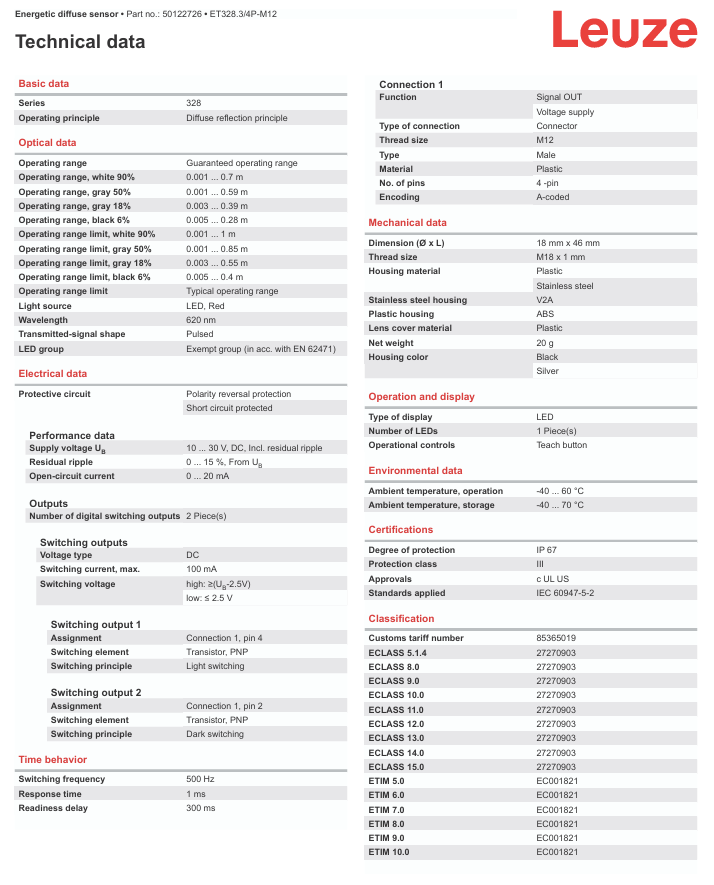

Features：

Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple

Residual ripple：0 ... 15 %, From UB

Open-circuit current：0 ... 20 mA

Switching frequency：500 Hz

Response time：1 ms

Readiness delay：300 ms

Function：Signal OUT

Voltage supply

Type of connection：Connector

Thread size：M12

Type：Male

Material：Plastic

No. of pins：4 -pin

Encoding：A-coded

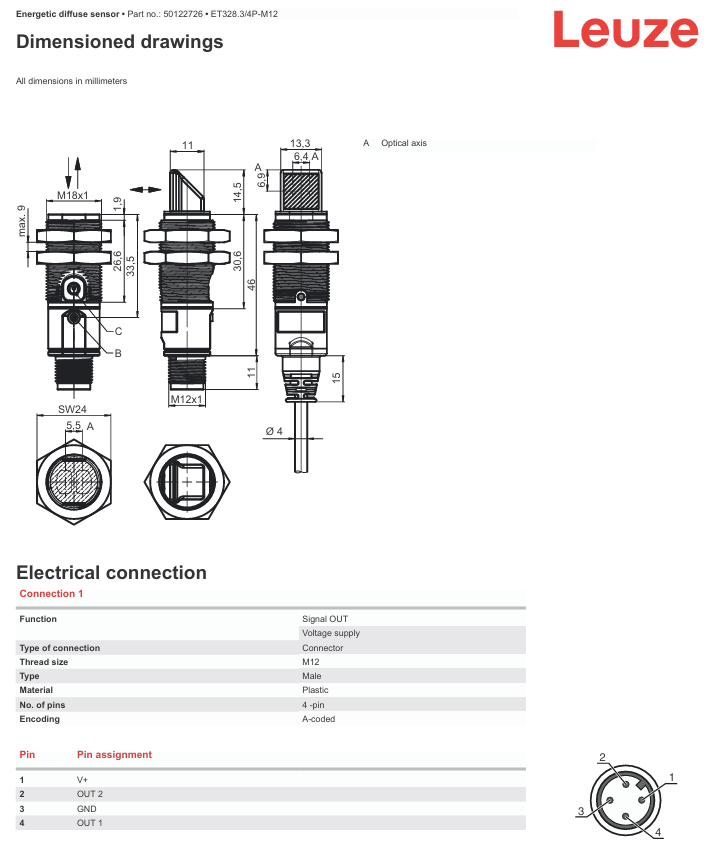

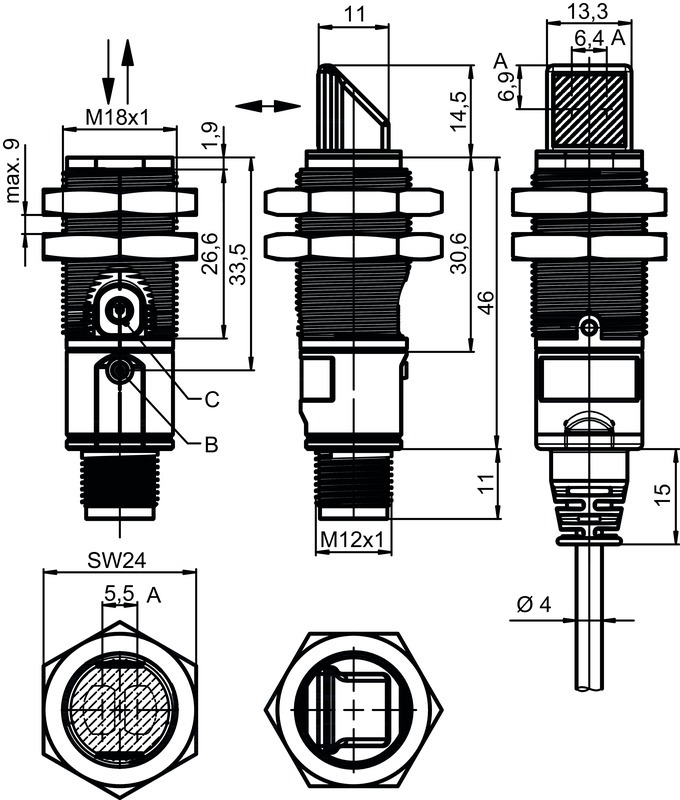

Dimension (Ø x L)：18 mm x 46 mm

Thread size：M18 x 1 mm

Housing material：Plastic

Stainless steel

Stainless steel housing：V2A

Plastic housing：ABS

Lens cover material：Plastic

Net weight：20 g

Housing color：Black/Silver

Ambient temperature, operation：-40 ... 60 °C

Ambient temperature, storage：-40 ... 70 °C

Degree of protection：IP 67

Protection class：III

Diffuse sensors

Transmitter and receiver in one housing: Detection performed by detecting the light reflected by the object.

Diffuse sensors with background suppression

Reliable detection of objects while simultaneously suppressing the background

Operating ranges up to 3 m

Intuitive adjustment of the operating range by means of spindle and teach button

Energetic diffuse sensors

Detection of objects by detecting the diffused light

Operating ranges up to 1 m

Adjustment via teach button

Dynamic reference diffuse sensors

Object-independent detection through teaching of the background

Operating range up to 450 mm

Optimum adjustment to ambient conditions through various teach levels
