| Brand | LEUZE |
| Date Code | 25+ |
| Packing | Box |
| Package | Sensor |
| Minimum Packing | 1pcs |

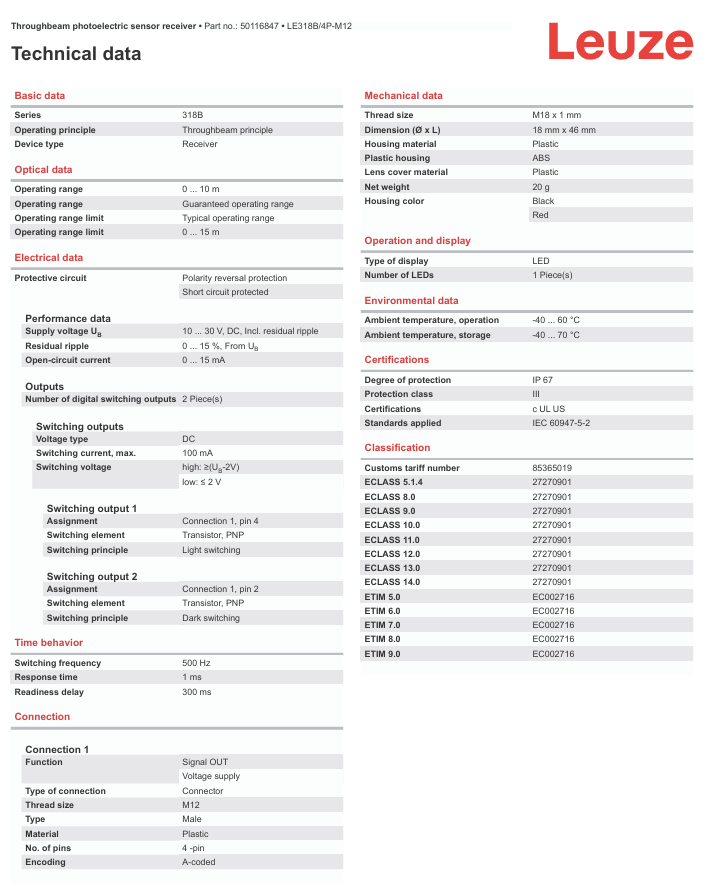

Part no.: 50116847
Features：
Operating range：0 ... 10 m
Operating range：Guaranteed operating range
Operating range limit：0 ... 15 m
Operating range limit：Typical operating range
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 15 mA
Switching frequency：500 Hz
Response time：1 ms
Readiness delay：300 ms

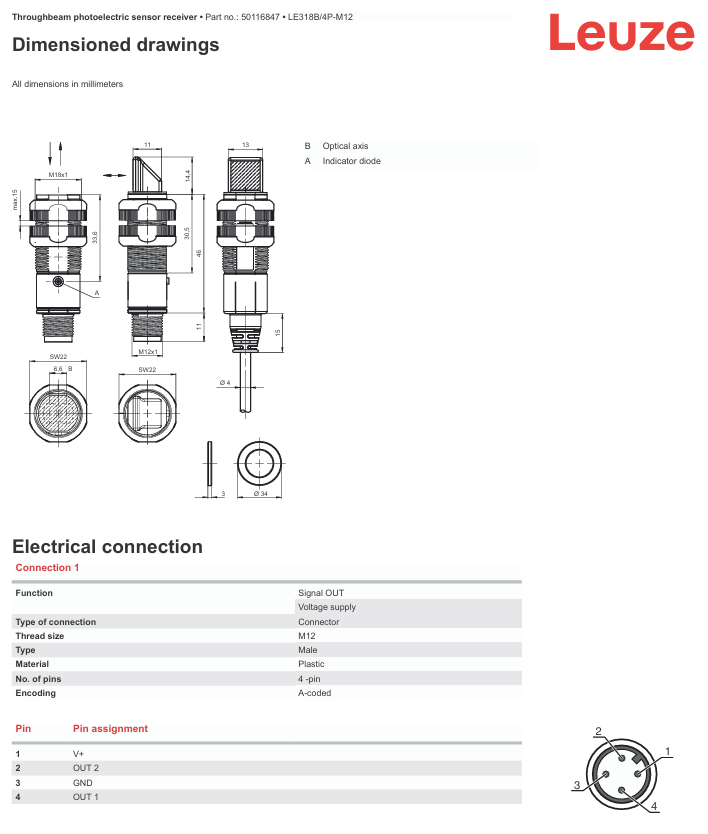

Dimension (Ø x L)：18 mm x 46 mm
Thread size：M18 x 1 mm
Housing material：Plastic
Plastic housing：ABS
Lens cover material：Plastic
Net weight：20 g
Type of display：LED
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67
Protection class：III

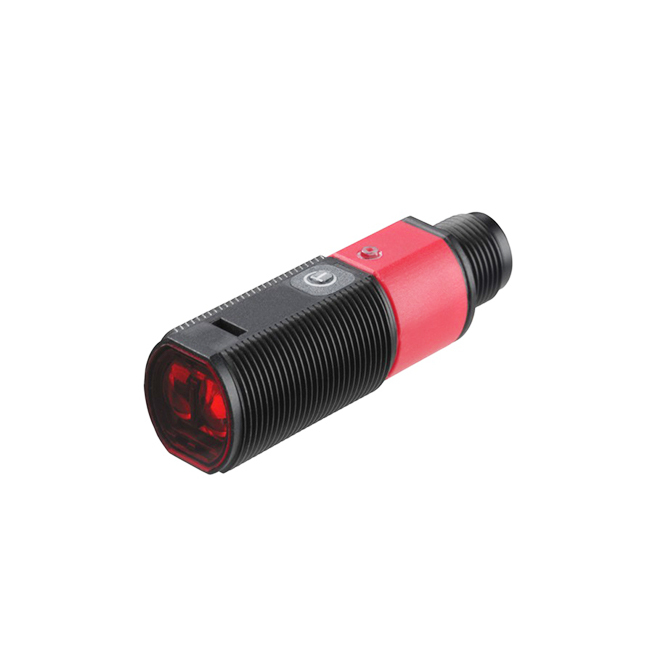

Throughbeam photoelectric sensors
Throughbeam photoelectric sensors always consist of a sensor and receiver. With ranges up to 150 m (800 m for object radiation). Cubic and cylindrical designs.
The most powerful throughbeam photoelectric sensor on the market: LS25CI
Super powerful and highly flexible: LS25CI throughbeam photoelectric sensors for transilluminating packaging films
In the packaging industry, products are packaged in different films. To seal the film and then separate the individual packages, the position of the product inside the film must be reliably detected. Detection becomes more difficult, the more opaque the film is. Metalized films in particular make transillumination difficult. To solve this problem, we offer our customers a throughbeam photoelectric sensor which is by far the most powerful on the market and which can transilluminate even dark, metalized films. The infrared light used by the sensor is powerful enough to transilluminate a human hand, but is at the same time completely harmless and eye-safe. Furthermore, the photoelectric sensor can be adjusted so sensitively that it can detect individual transparent films. This wide range of capabilities makes it a real problem solver when it comes to film transillumination.
Advantages for you
The most powerful throughbeam photoelectric sensor on the market can transilluminate any type of packaging film and reliably detect objects inside
Both the transmitter power and the receiver sensitivity can be adjusted quickly and intuitively via potentiometers
The robust housing has degrees of protection IP67 and IP69K. It has been ECOLAB-certified for use in harsh environments where frequent cleaning is necessary.
For metalized and extremely strongly absorbing films, there is the even more powerful LS25CI.XX super power transmitter model that does not require any adjustment.
The used infrared light is harmless and eye-safe
