In Stock ! Leuze Diffuse sensor with background suppression HT46CI/4P-M12

Part no.: 50127061

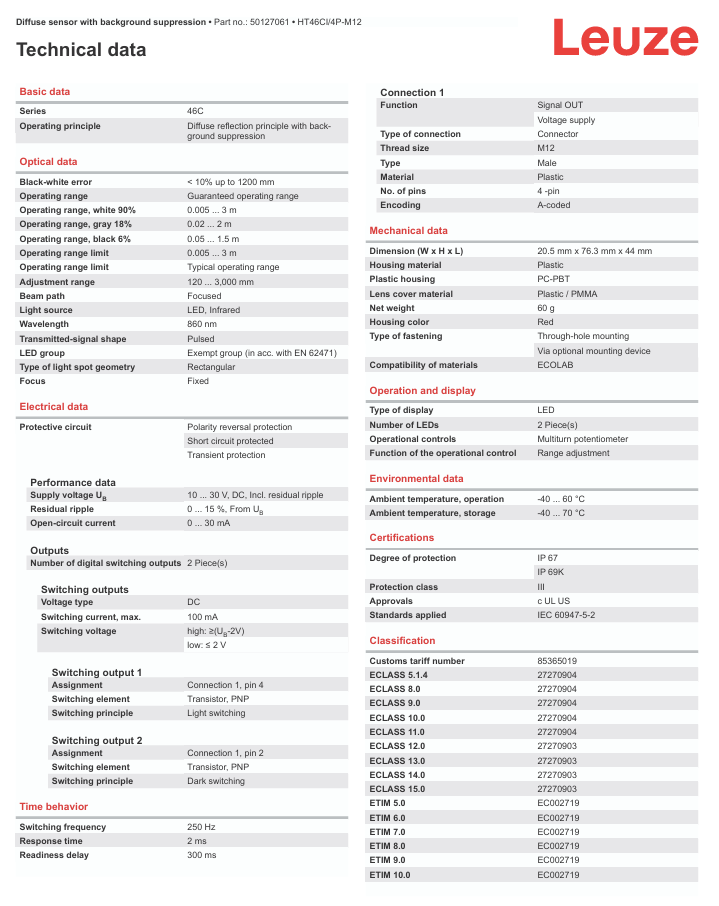

Features：

Black-white error：< 10% up to 1200 mm

Operating range：Guaranteed operating range

Operating range, white 90%：0.005 ... 3 m

Operating range, gray 18%：0.02 ... 2 m

Operating range, black 6%：0.05 ... 1.5 m

Operating range limit：0.005 ... 3 m

Operating range limit：Typical operating range

Adjustment range：120 ... 3,000 mm

Beam path：Focused

Light source：LED, Infrared

Wavelength：860 nm

LED group：Exempt group (in acc. with EN 62471)

Type of light spot geometry：Rectangular

Focus：Fixed

Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple

Residual ripple：0 ... 15 %, From UB

Open-circuit current：0 ... 30 mA

Switching frequency：250 Hz

Response time：2 ms

Readiness delay：300 ms

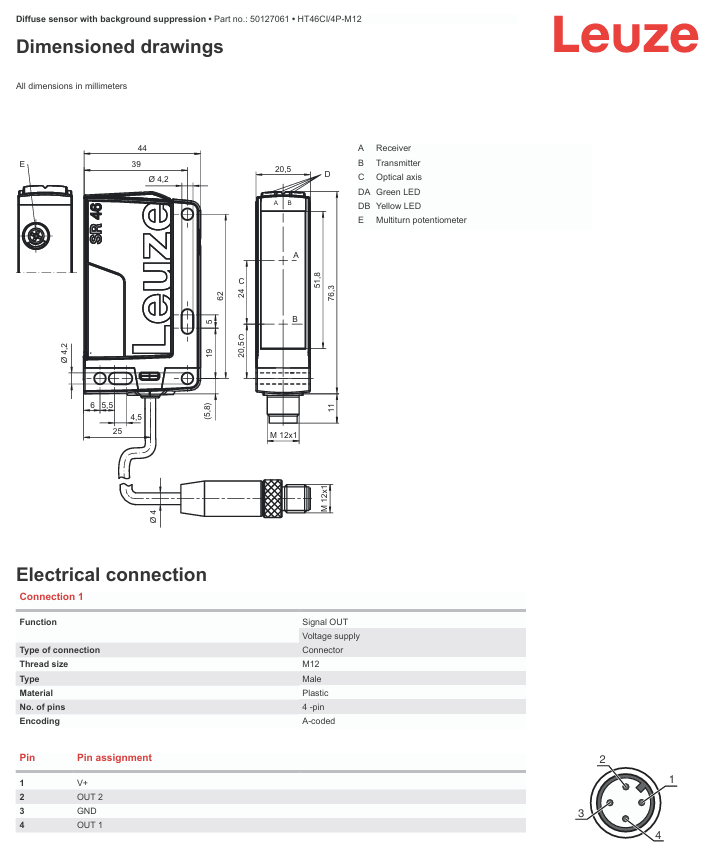

Dimension (W x H x L)：20.5 mm x 76.3 mm x 44 mm

Housing material：Plastic

Plastic housing：PC-PBT

Lens cover material：Plastic / PMMA

Net weight：60 g

Housing color：Red

Ambient temperature, operation：-40 ... 60 °C

Ambient temperature, storage：-40 ... 70 °C

Degree of protection：IP 67  IP 69K

Protection class：III

Diffuse sensors with background suppression

Reliable detection of objects while simultaneously suppressing the background, operating ranges up to 3 m, intuitive adjustment of the operating range by means of spindle and teach button.

Standard models (LED and laser)

Red-light background sensors for simple and fast alignment

Infrared diffuse sensors also detect objects with different color with the slightest offset

Laser diffuse sensors for the detection of the smallest objects or with beam guidance though an opening

Extra large and small light spots

Diffuse red light sensors with small light spot detect small objects in situations where lasers cannot be used

Background sensors with long light spot reliably bridge object openings

A reliable solution for area monitoring as well

Optimized for high-gloss and polished objects

Sensors with a V-configuration detect even transparent objects

Are equipped with foreground and background suppression

Sensors with a V-configuration and long light spot are also suitable for the detection of bottles
