| Brand | LEUZE |
| Date Code | 24+ |
| Packing | Box |
| Package | Sensor |
| Minimum Packing | 1pcs |

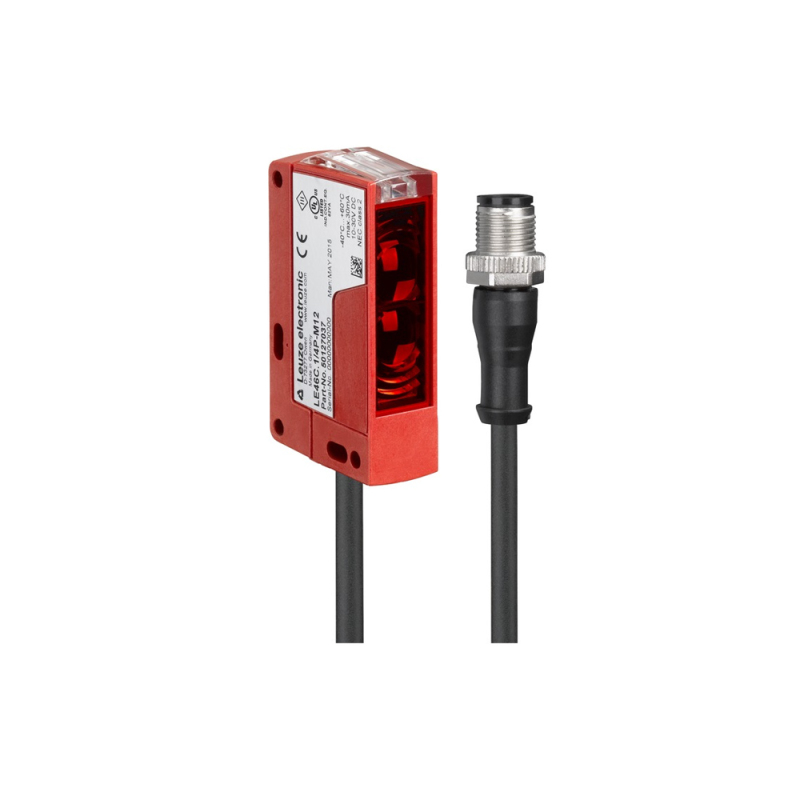

Part no.: 50129751
Features：
Similar Models:

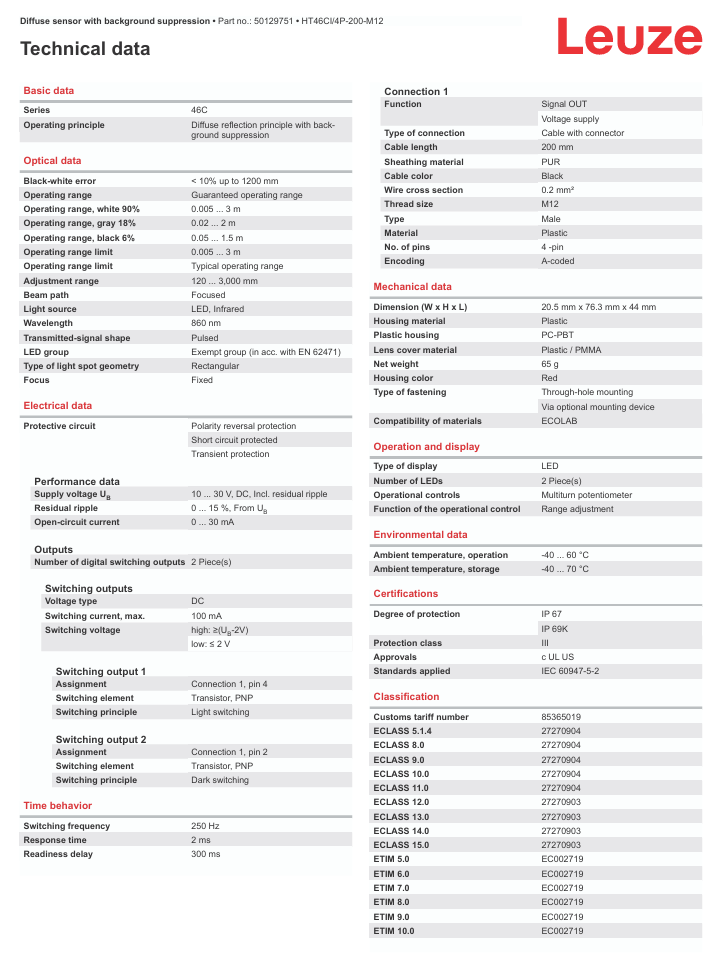

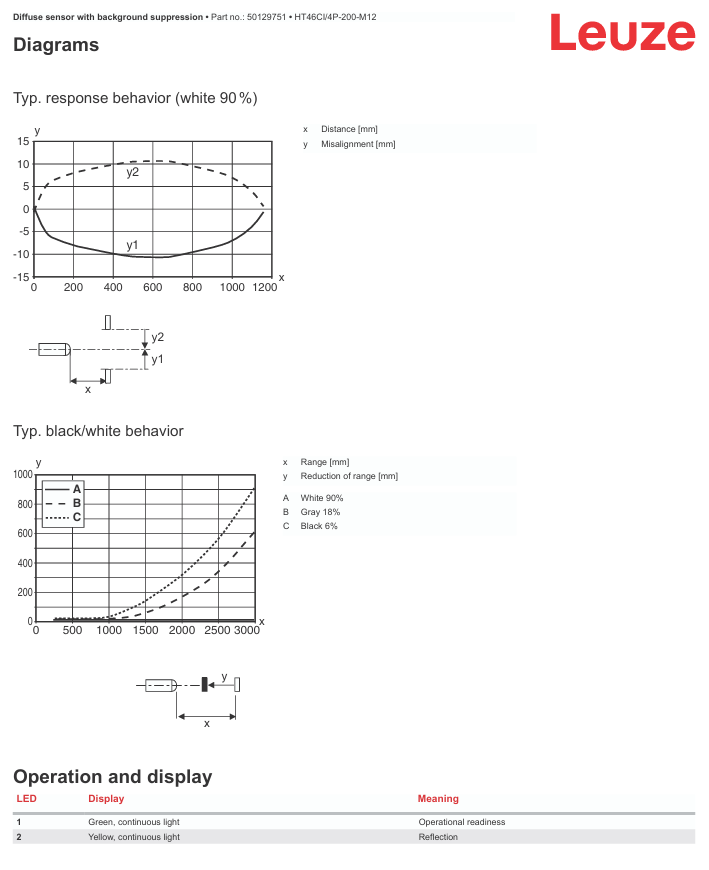

Black-white error：< 10% up to 1200 mm
Operating range：Guaranteed operating range
Operating range, white 90%：0.005 ... 3 m
Operating range, gray 18%：0.02 ... 2 m
Operating range, black 6%：0.05 ... 1.5 m
Operating range limit：0.005 ... 3 m
Operating range limit：Typical operating range
Adjustment range：120 ... 3,000 mm
Beam path：Focused
Light source：LED, Infrared
Wavelength：860 nm
LED group：Exempt group (in acc. with EN 62471)
Type of light spot geometry：Rectangular
Focus：Fixed
Switching frequency：250 Hz
Response time：2 ms
Readiness delay：300 ms

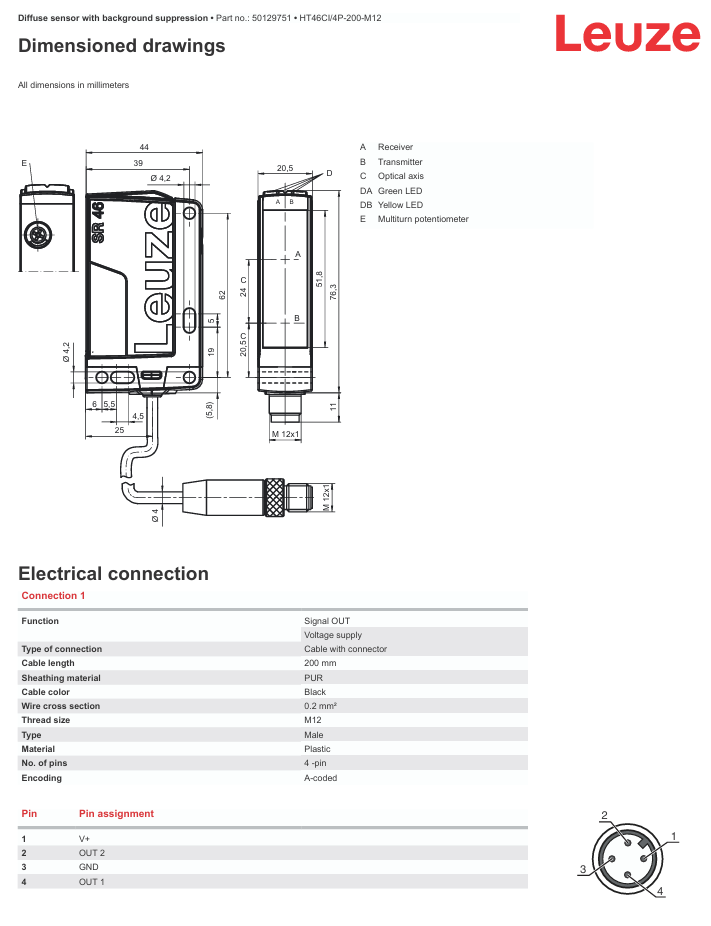

Dimension (W x H x L)：20.5 mm x 76.3 mm x 44 mm
Housing material：Plastic
Plastic housing：PC-PBT
Lens cover material：Plastic / PMMA
Net weight：65 g
Housing color：Red
Type of fastening：Through-hole mounting
Via optional mounting device
Compatibility of materials：ECOLAB
Type of display：LED
Operational controls：Multiturn potentiometer
Function of the operational control：Range adjustment
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 IP 69K
Protection class：III
Black-white error：< 10% up to 1200 mm
Operating range：Guaranteed operating range
Operating range, white 90%：0.005 ... 3 m
Operating range, gray 18%：0.02 ... 2 m
Operating range, black 6%：0.05 ... 1.5 m
Operating range limit：0.005 ... 3 m
Operating range limit：Typical operating range
Adjustment range：120 ... 3,000 mm
Beam path：Focused
Light source：LED, Infrared
Wavelength：860 nm
LED group：Exempt group (in acc. with EN 62471)
Type of light spot geometry：Rectangular
Focus：Fixed
Switching frequency：250 Hz
Response time：2 ms
Readiness delay：300 ms
Dimension (W x H x L)：20.5 mm x 76.3 mm x 44 mm
Housing material：Plastic
Plastic housing：PC-PBT
Lens cover material：Plastic / PMMA
Net weight：65 g
Housing color：Red
Type of fastening：Through-hole mounting
Via optional mounting device
Compatibility of materials：ECOLAB
Type of display：LED
Operational controls：Multiturn potentiometer
Function of the operational control：Range adjustment
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 IP 69K
Protection class：III
Standards applied：IEC 60947-5-2
Diffuse sensors with background suppression
Reliable detection of objects while simultaneously suppressing the background, operating ranges up to 3 m, intuitive adjustment of the operating range by means of spindle and teach button.
Standard models (LED and laser)
Red-light background sensors for simple and fast alignment
Infrared diffuse sensors also detect objects with different color with the slightest offset
Laser diffuse sensors for the detection of the smallest objects or with beam guidance though an opening
Extra large and small light spots
Diffuse red light sensors with small light spot detect small objects in situations where lasers cannot be used
Background sensors with long light spot reliably bridge object openings
A reliable solution for area monitoring as well
Optimized for high-gloss and polished objects
Sensors with a V-configuration detect even transparent objects
Are equipped with foreground and background suppression
Sensors with a V-configuration and long light spot are also suitable for the detection of bottles
