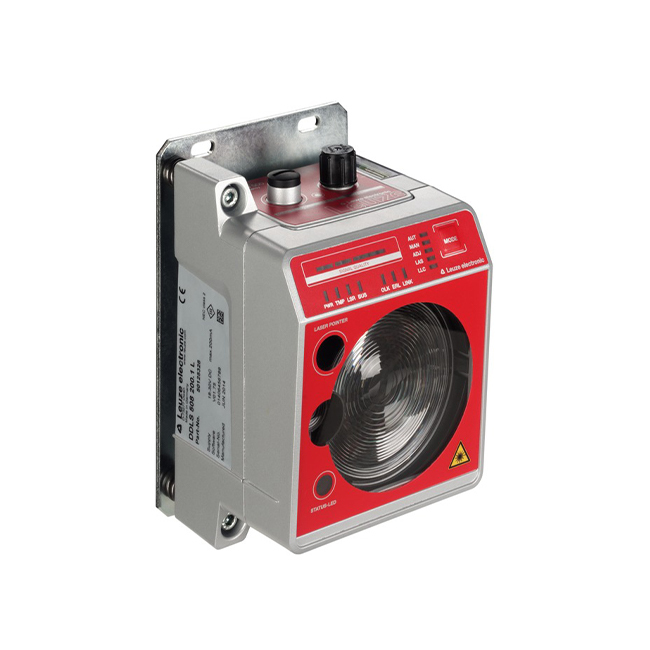

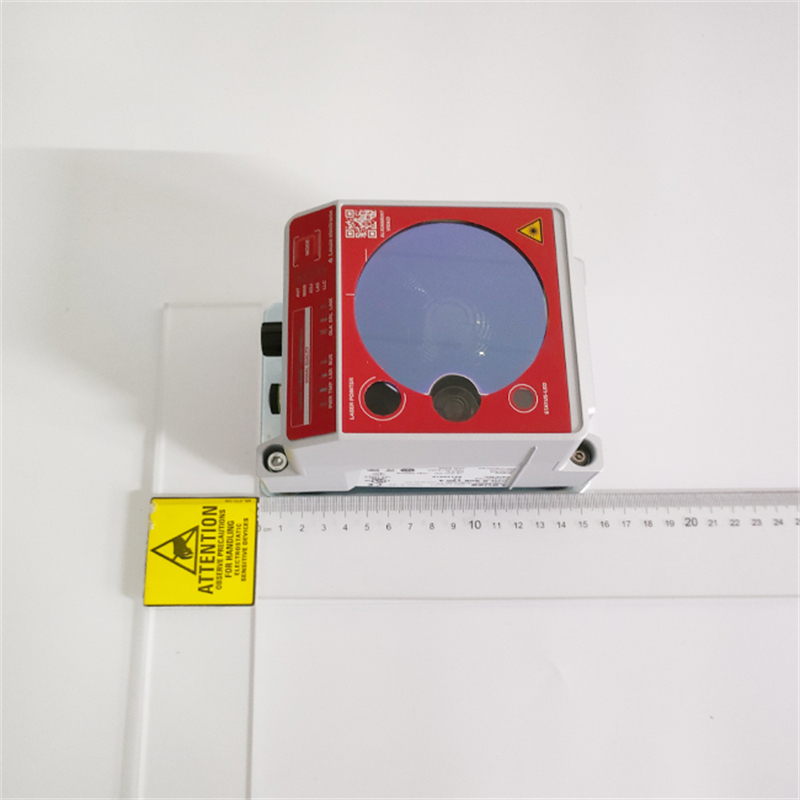

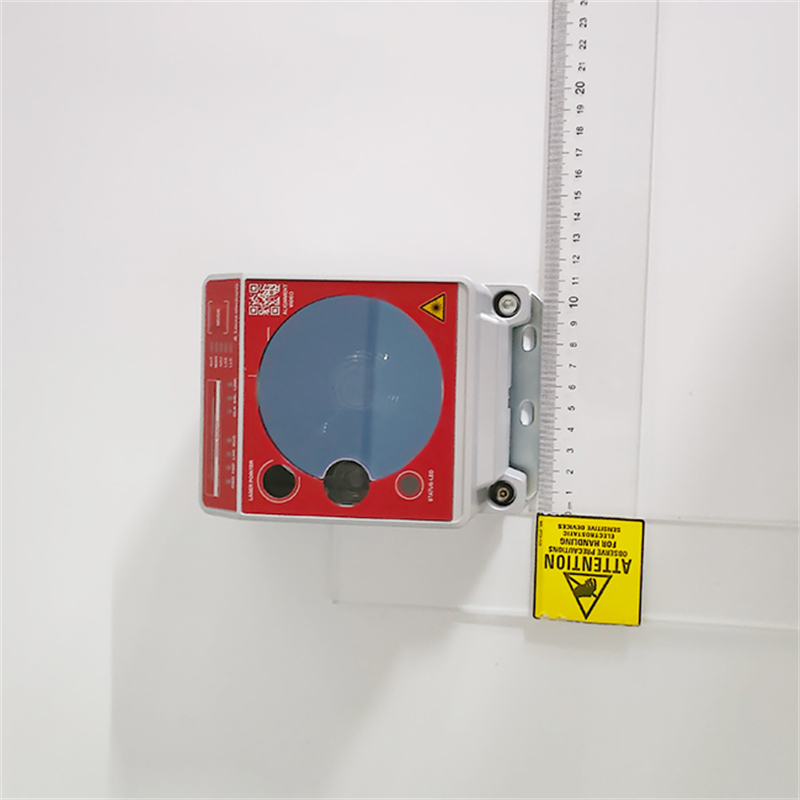

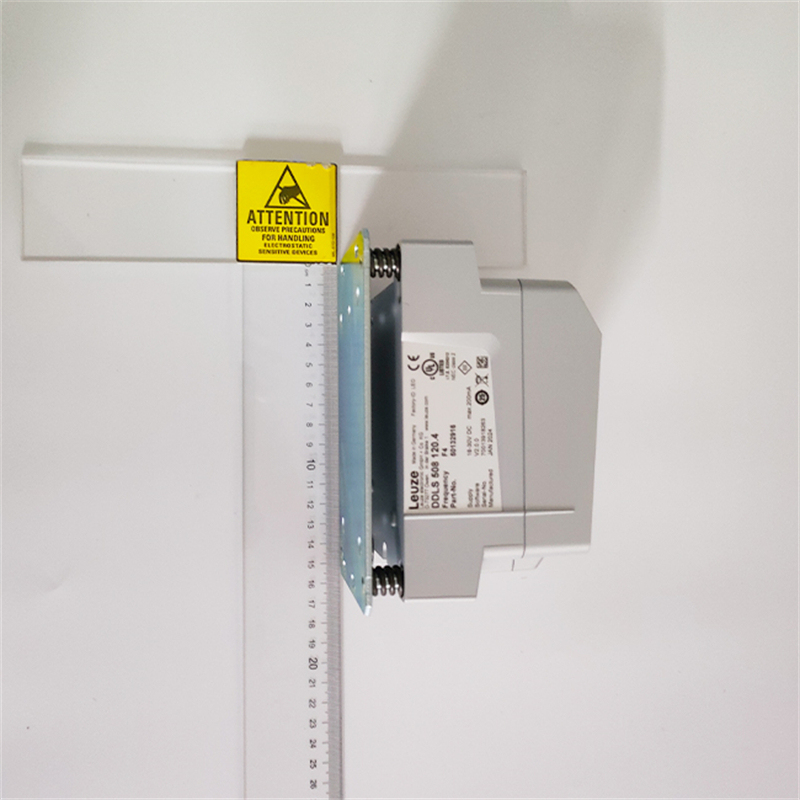

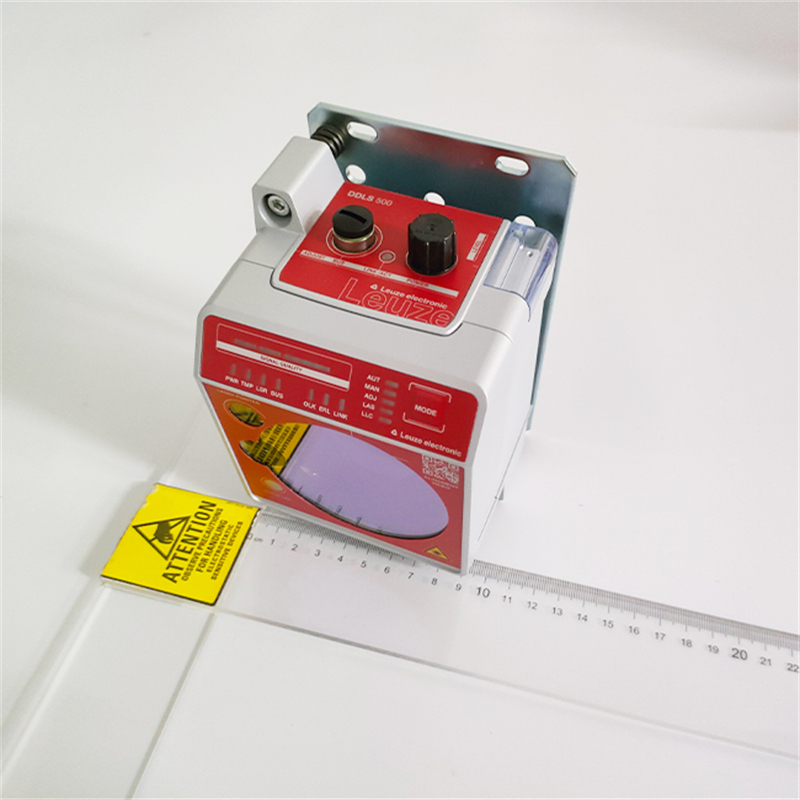

In Stock ! Leuze Optical data transmission DDLS 508 120.4

Part no.: 50132916

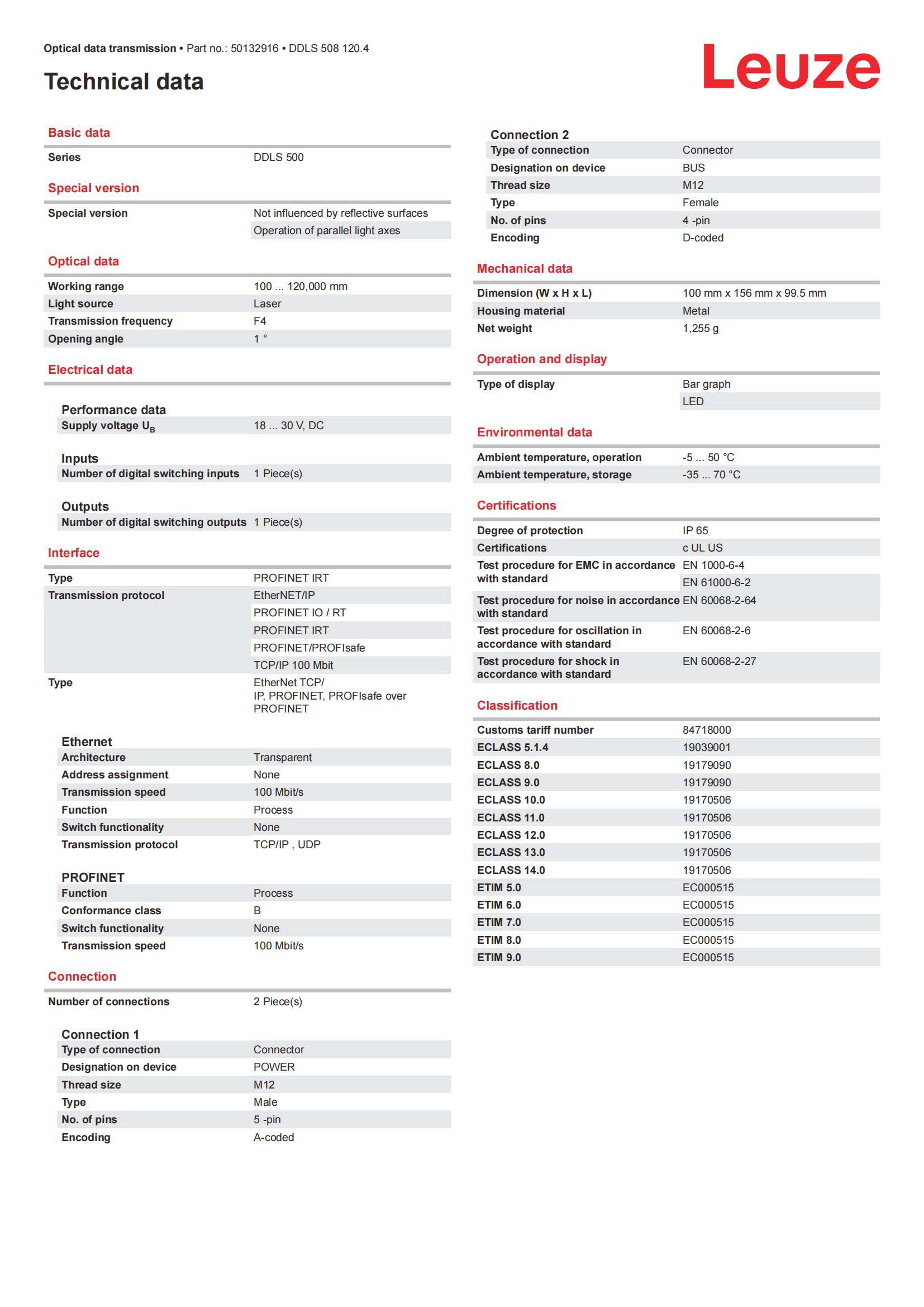

Features：

Working range：100 ... 120,000 mm

Light source：Laser, Infrared

Transmission frequency：F4

Opening angle：1 °

Supply voltage UB：18 ... 30 V, DC

Architecture：Transparent

Address assignment：None

Transmission speed：100 Mbit/s

Function：Process

Switch functionality：None

Transmission protocol：TCP/IP , UDP

Function：Process

Conformance class：B

Switch functionality：None

Transmission speed：100 Mbit/s

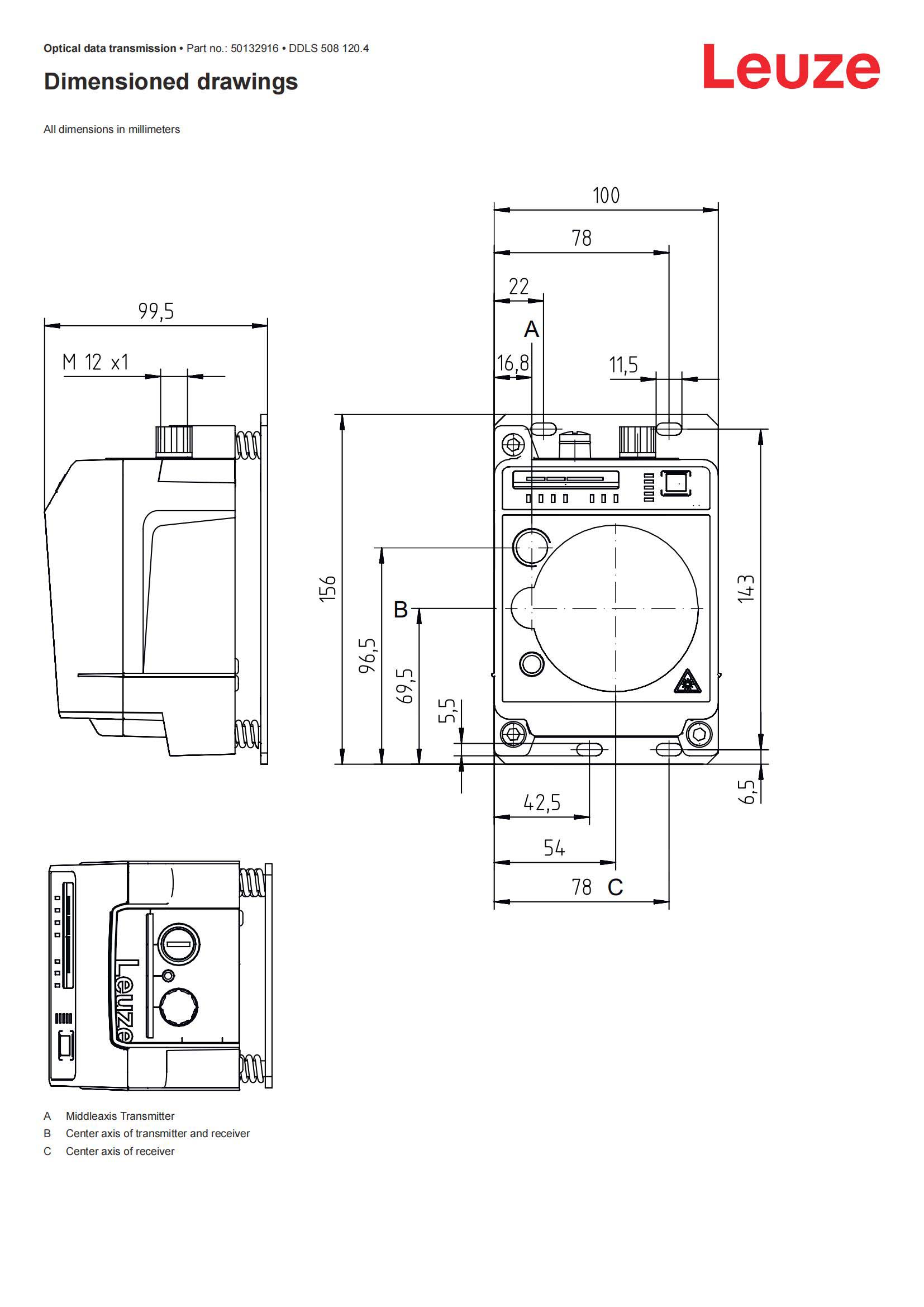

Dimension (W x H x L)：100 mm x 156 mm x 99.5 mm

Housing material：Metal

Net weight：1,255 g

Ambient temperature, operation：-5 ... 50 °C

Ambient temperature, storage：-35 ... 70 °C

Degree of protection：IP 65

Optical data transmission

Data within a network is transferred in different ways. Optical data transmission photoelectric sensors use the ‘air’ medium to transfer data invisibly, contactlessly and wear-free over a distance of up to 300 m. This is a leading technology in plant engineering and combines efficiency with cost effectiveness.

DDLS 500 with 100 Mbit/s real-time transmission

For industrial Ethernet interfaces with 100 Mbit/s

Staggered operating ranges up to 200 m

Location-independent remote diagnosis via integrated web server

DDLS 200 with 2 Mbit/s transmission rate

For fieldbuses and RS interfaces

Staggered operating ranges up to 300 m

Data transmission of up to 2 Mbit/s
