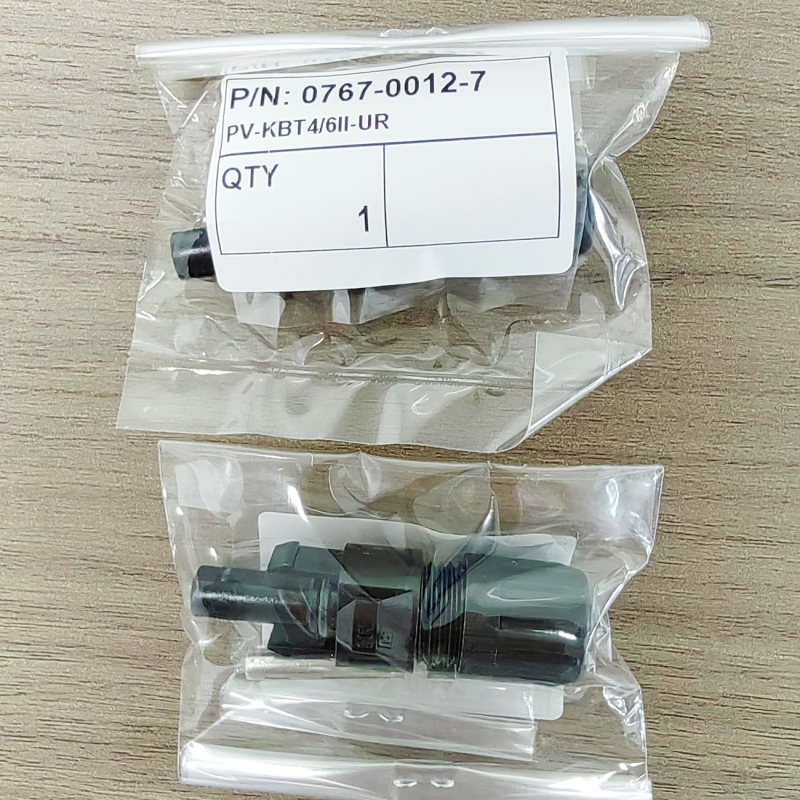

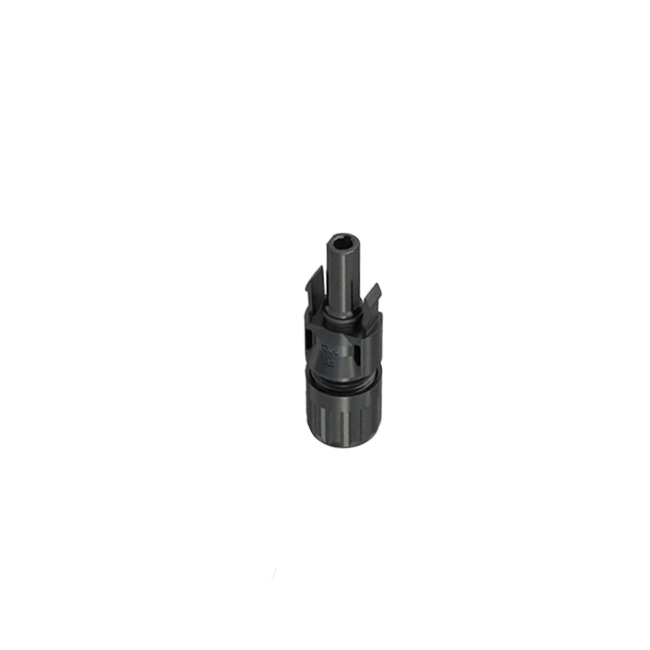

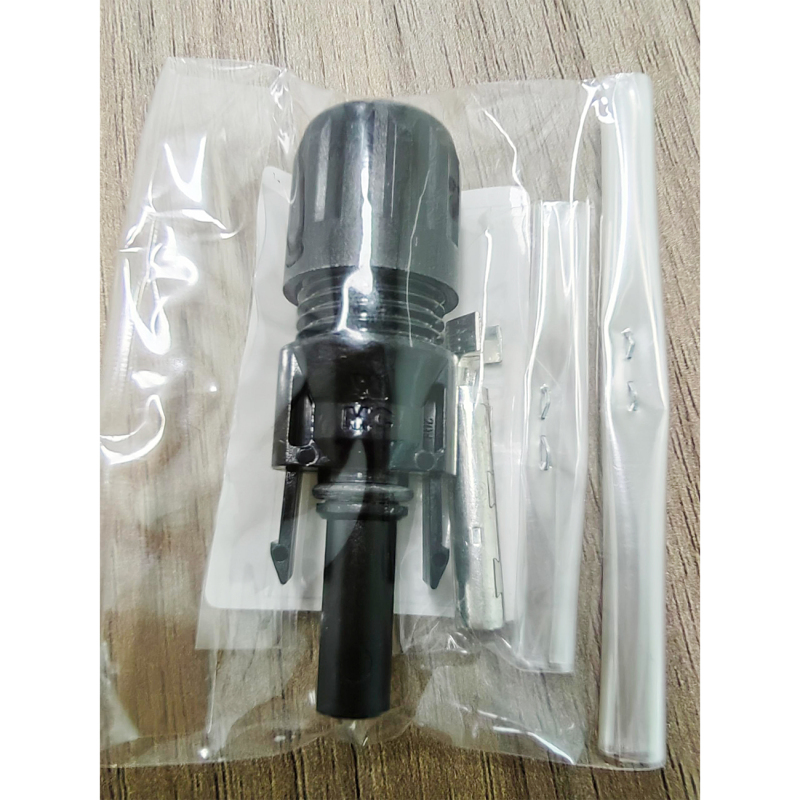

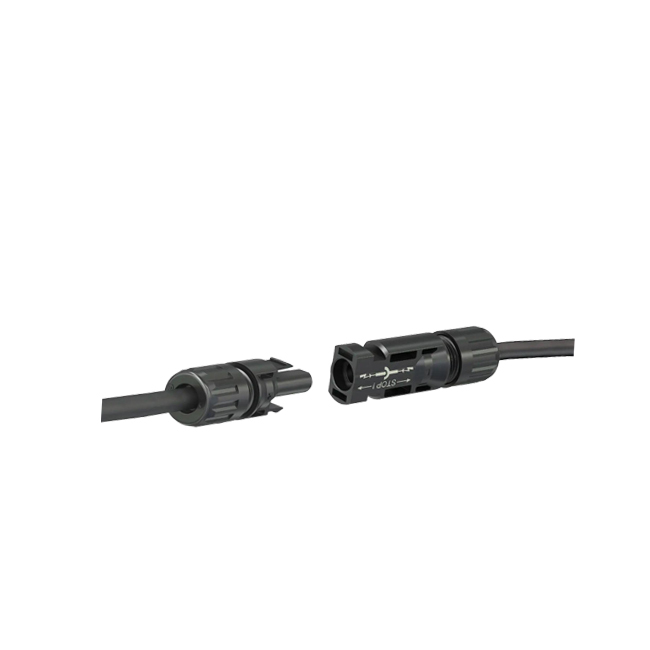

In Stock ! Staubli PV-KBT4/6II-UR

Value Proposition
MULTILAM-contact technology, contact resistance ≤ 0.25 mΩ → ultra-low power loss over the entire lifetime.
IP68 sealing (1 m / 1 h), UV- and ammonia-resistant → reliable in desert, coastal and agricultural PV plants.
Target Applications
DC routing between PV modules and string inverters; industrial power distribution and automation cabinets.

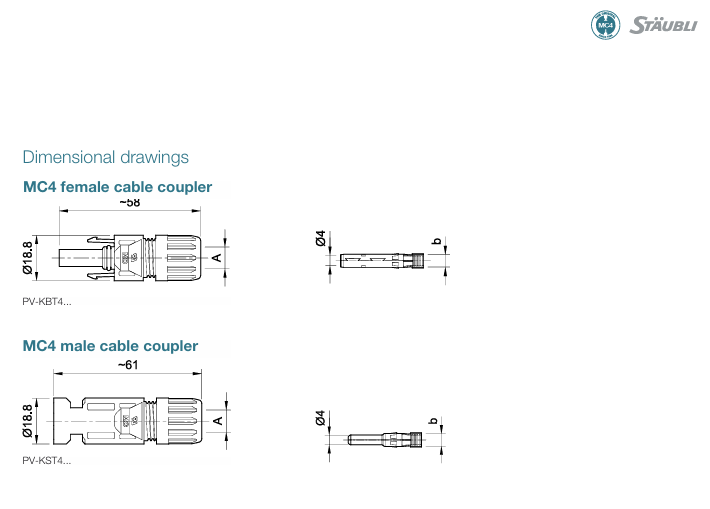

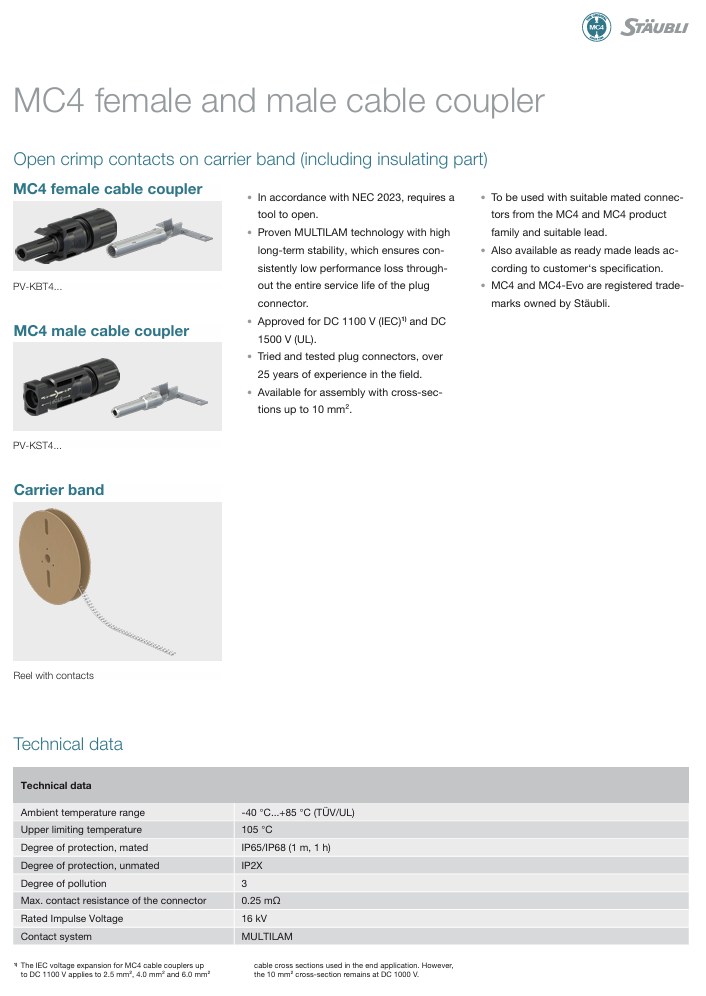

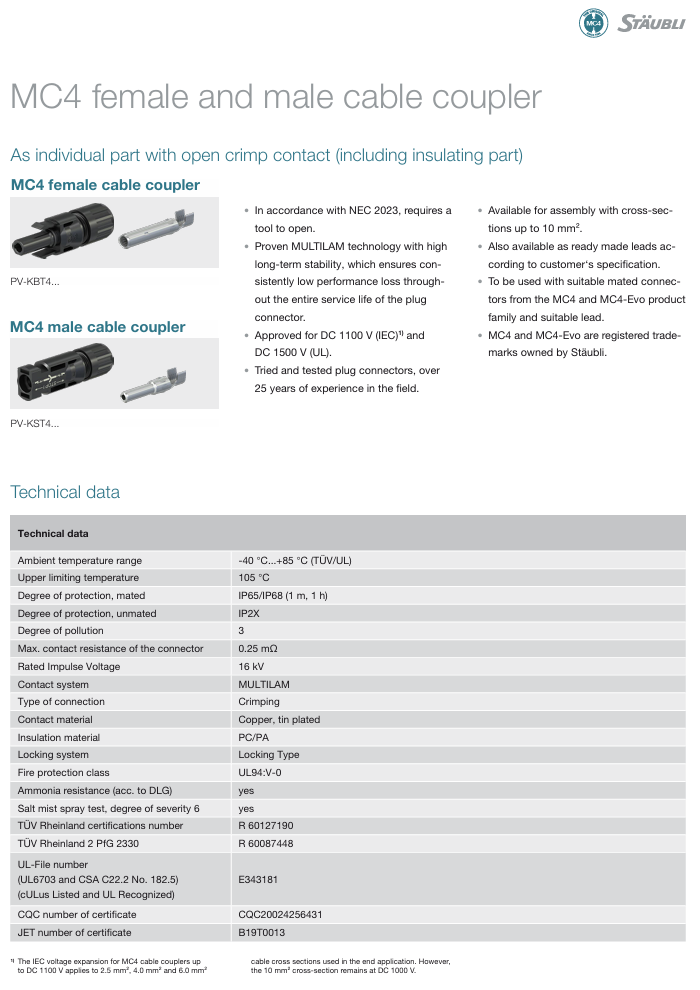

MC4 Male & Female Cable Connectors
Reeled stamped contacts with pre-moulded insulation for high-speed automated crimping.
Technical Highlights
NEC-2023 compliant, tool-required locking (tamper-proof).
MULTILAM lattice maintains constant contact force; stable low-loss performance verified > 15 years in field PV arrays.
Wire range up to 10 mm² (AWG 8).
100 % mateable with standard MC4 cable assemblies and Y- or T-branch harnesses.
Custom cable-set service (cut, strip, crimp, test, label) available on request.



Similar Models:

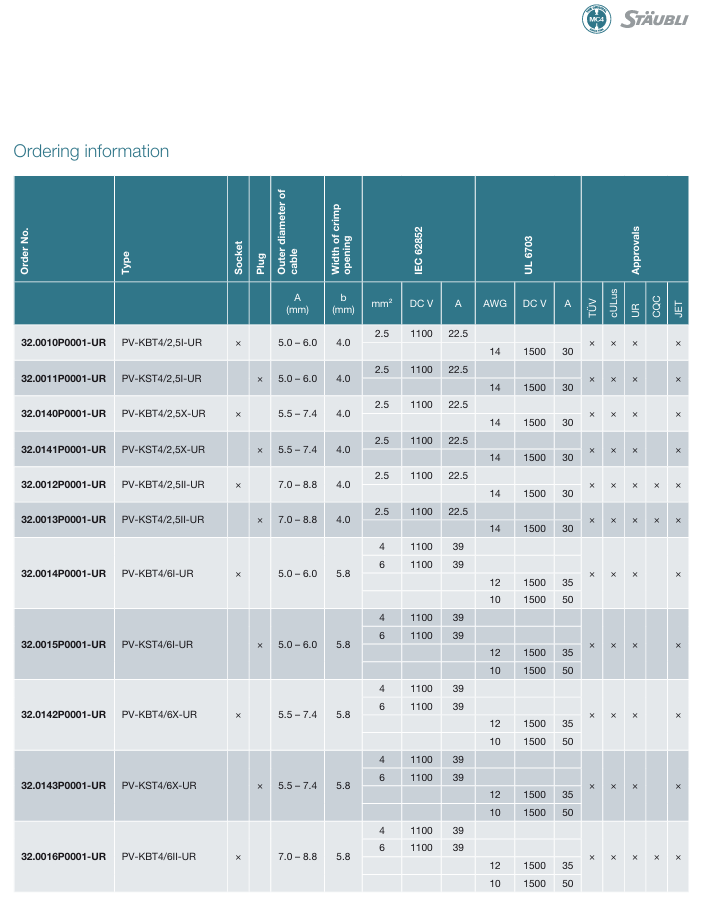

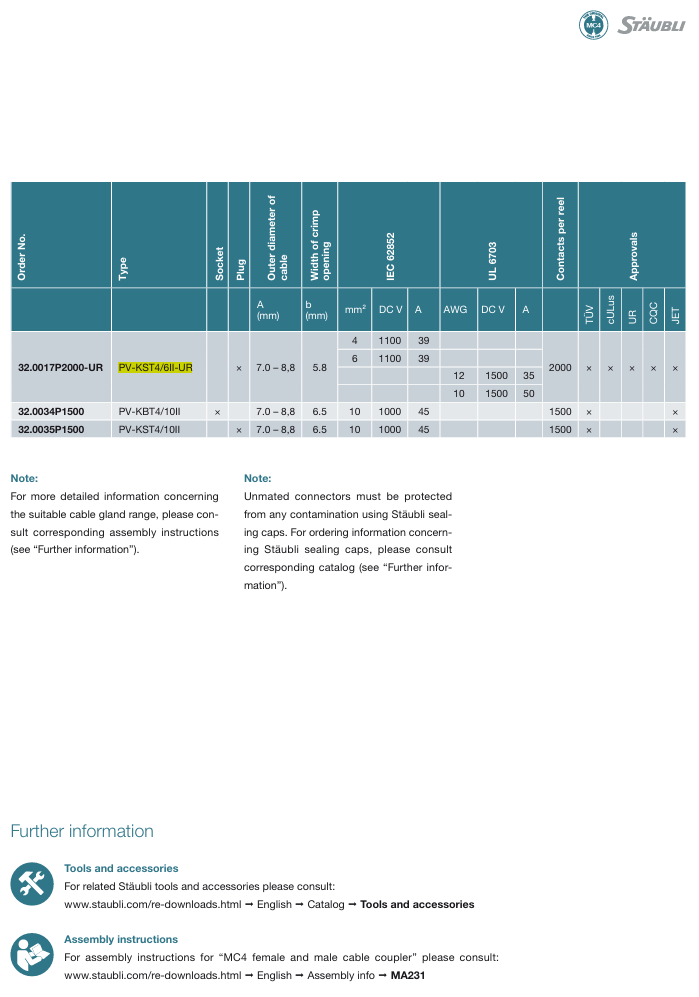

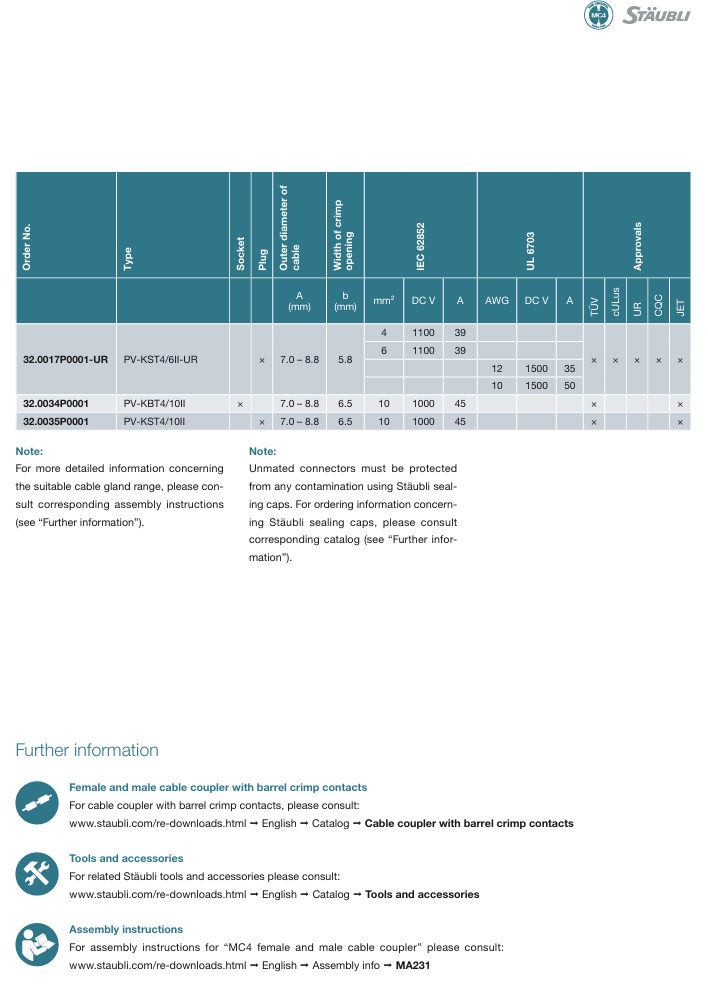

32.0010P0001-UR PV-KBT4/2,5I-UR 32.0011P0001-UR PV-KST4/2,5I-UR 32.0140P0001-UR PV-KBT4/2,5X-UR 32.0141P0001-UR PV-KST4/2,5X-UR 32.0012P0001-UR PV-KBT4/2,5II-UR 32.0013P0001-UR PV-KST4/2,5II-UR 32.0014P0001-UR PV-KBT4/6I-UR 32.0015P0001-UR PV-KST4/6I-UR 32.0142P0001-UR PV-KBT4/6X-UR 32.0143P0001-UR PV-KST4/6X-UR 32.0016P0001-UR PV-KBT4/6II-UR 32.0017P0001-UR PV-KST4/6II-UR 32.0034P0001 PV-KBT4/10II 32.0035P0001 PV-KST4/10II  32.0010P2000-UR PV-KBT4/2,5I-UR 32.0011P2000-UR PV-KST4/2,5I-UR 32.0140P2000-UR PV-KBT4/2,5X-UR 32.0141P2000-UR PV-KST4/2,5X-UR 32.0012P2000-UR PV-KBT4/2,5II-UR 32.0013P2000-UR PV-KST4/2,5II-UR 32.0014P2000-UR PV-KBT4/6I-UR 32.0015P2000-UR PV-KST4/6I-UR  32.0142P2000-UR PV-KBT4/6X-UR 32.0143P2000-UR PV-KST4/6X-UR 32.0016P2000-UR PV-KBT4/6II-UR 32.0034P1500 PV-KBT4/10II 32.0035P1500 PV-KST4/10II 32.0076P0001-UR PV-ADBP4-S2-UR/2,5 32.0077P0001-UR PV-ADSP4-S2-UR/2,5 32.0078P0001-UR PV-ADBP4-S2-UR/6 32.0079P0001-UR PV-ADSP4-S2-UR/6 32.0150P0001 PV-ADBP4-S2/10 32.0151P0001 PV-ADSP4-S2/10 32.0076P2000-UR PV-ADBP4-S2-UR/2,5 32.0077P2000-UR PV-ADSP4-S2-UR/2,5 32.0078P2000-UR PV-ADBP4-S2-UR/6 32.0079P2000-UR PV-ADSP4-S2-UR/6 32.0150P1500 PV-ADBP4-S2/10 32.0151P1500 PV-ADSP4-S2/10
