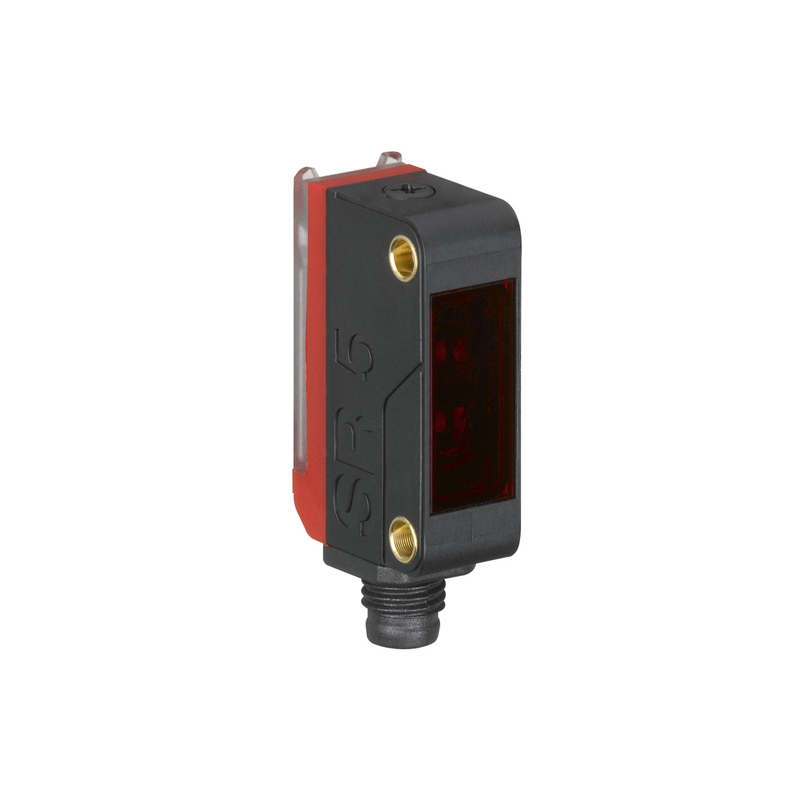

In Stock ! LEUZE HT5B/4X-M8 Diffuse Sensor With Background Suppression

Name: In Stock ! LEUZE HT5B/4X-M8 Diffuse Sensor With Background Suppression
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 37.5 USD
Availability: InStock

Brand : LEUZE
Date Code : 25+
Packing : Box
Package : Sensor
Minimum Packing : 1pcs

$37.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

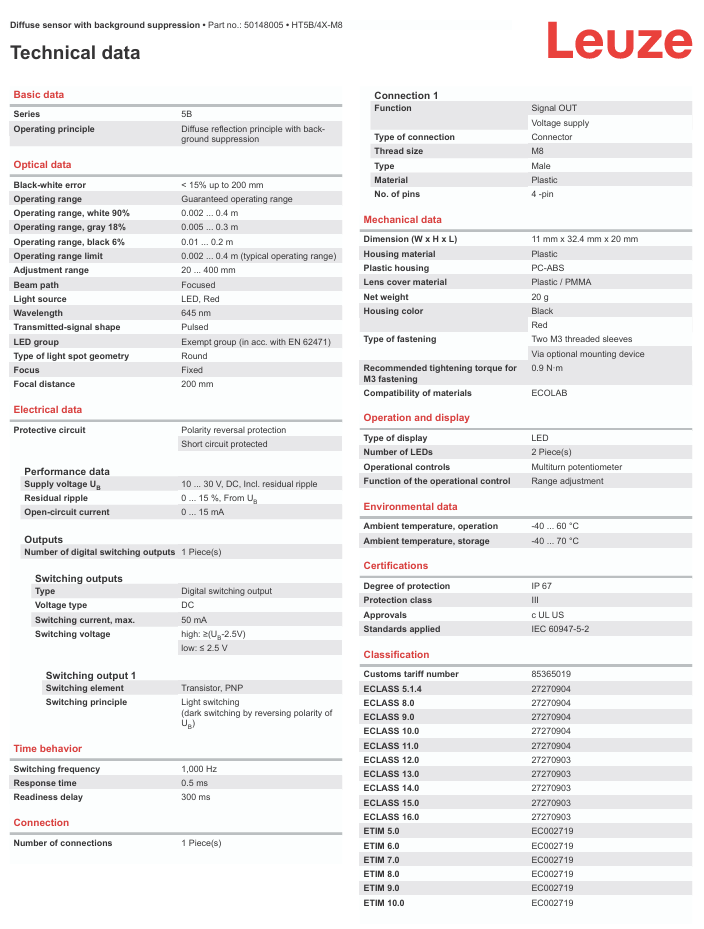

Description

Black-white error：< 15% up to 200 mm
Operating range：Guaranteed operating range
Operating range, white 90%：0.002 ... 0.4 m
Operating range, gray 18%：0.005 ... 0.3 m
Operating range, black 6%：0.01 ... 0.2 m
Operating range limit：0.002 ... 0.4 m (typical operating range)
Adjustment range：20 ... 400 mm
Beam path：Focused
Light source：LED, Red
Wavelength：645 nm
Focal distance：200 mm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 15 mA
Switching frequency：1,000 Hz
Response time：0.5 ms
Readiness delay：300 ms

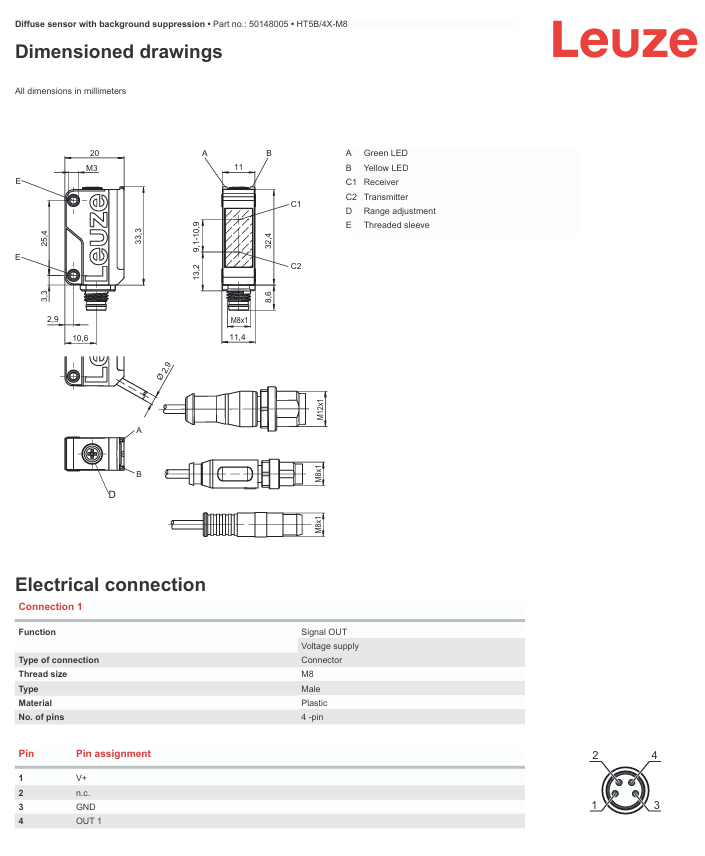

Dimension (W x H x L)：11 mm x 32.4 mm x 20 mm
Net weight：20 g
Housing color：Black Red
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67
