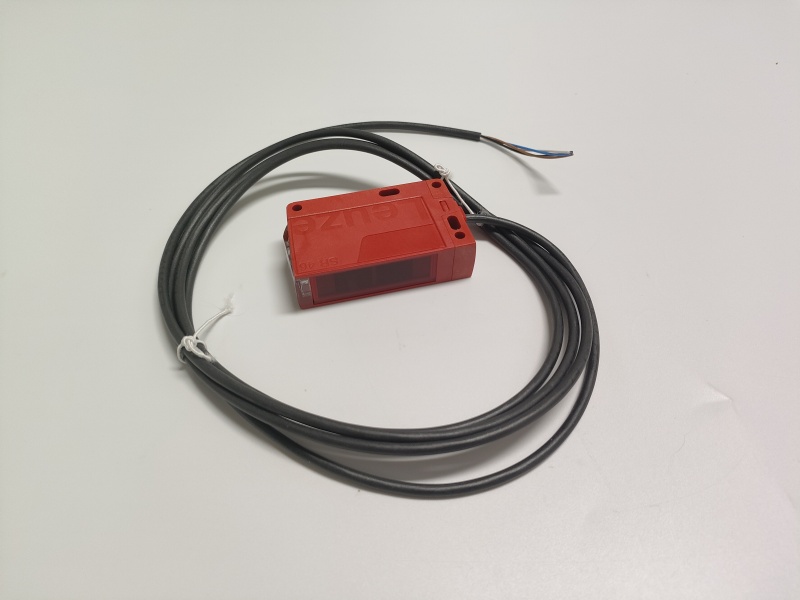

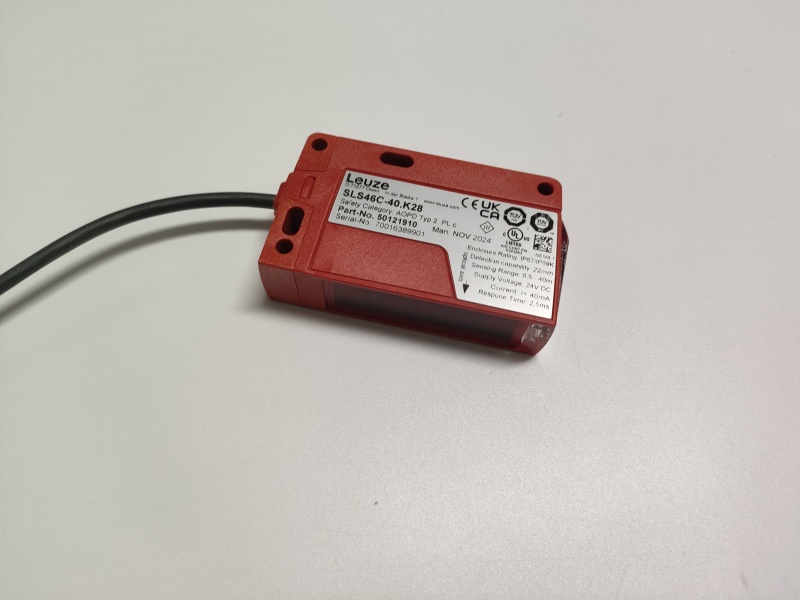

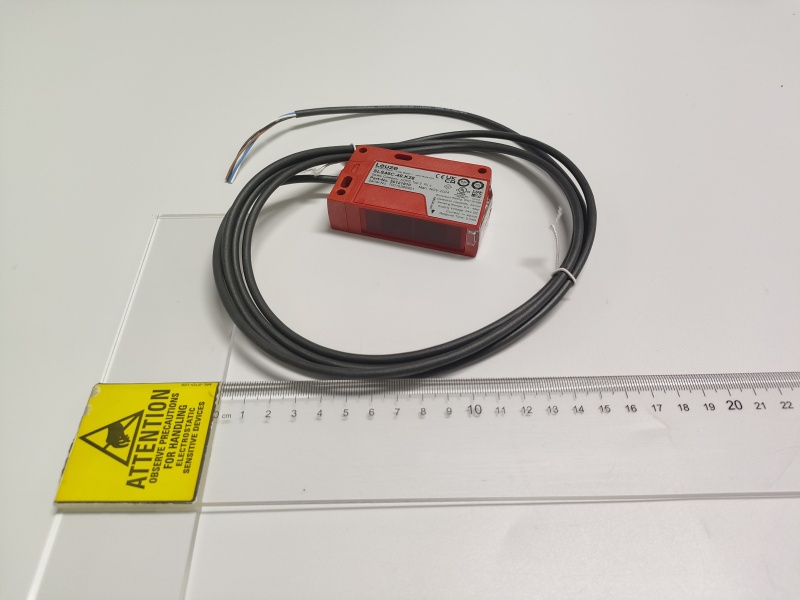

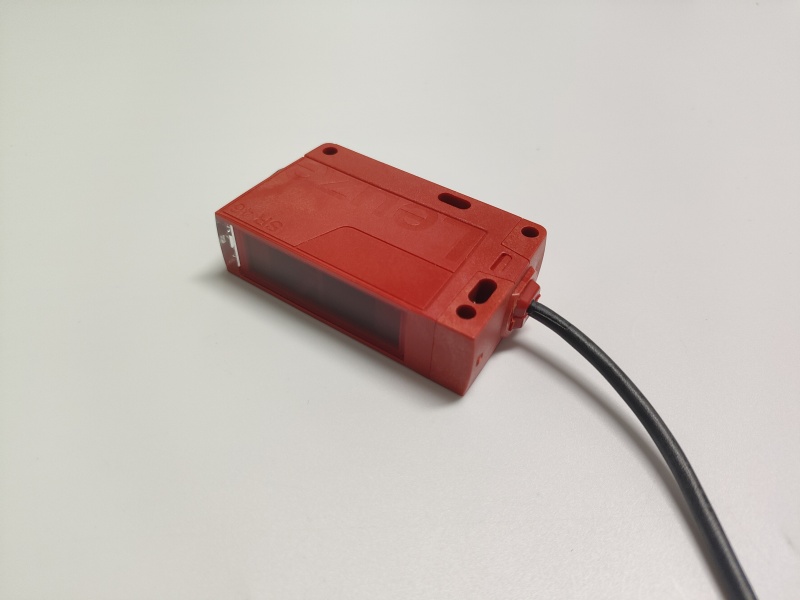

In Stock ! Leuze Single light beam safety device transmitter SLS46C-40.K28

Part no.: 50121910

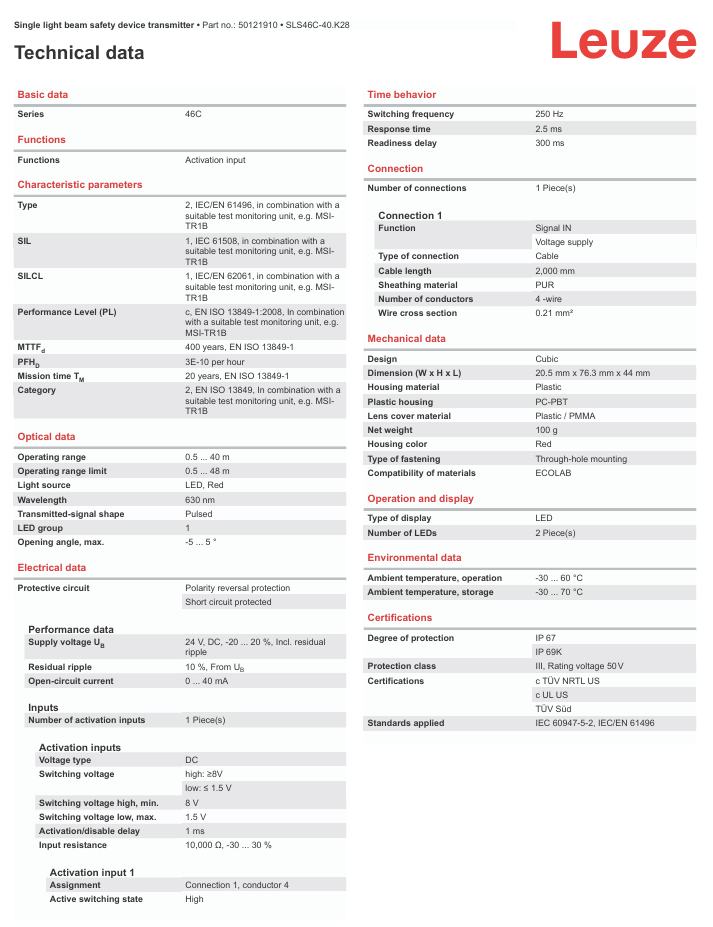

Features：

Operating range：0.5 ... 40 m

Operating range limit：0.5 ... 48 m

Light source：LED, Red

Wavelength：630 nm

Transmitted-signal shape：Pulsed

LED group：1

Opening angle, max.：-5 ... 5 °

Supply voltage UB：24 V, DC, -20 ... 20 %, Incl. residual ripple

Residual ripple：10 %, From UB

Open-circuit current：0 ... 40 mA

Voltage type：DC

Switching voltage：high: ≥8V

low: ≤ 1.5 V

Switching voltage high, min.：8 V

Switching voltage low, max.：1.5 V

Activation/disable delay：1 ms

Input resistance：10,000 Ω, -30 ... 30 %

Switching frequency：250 Hz

Response time：2.5 ms

Readiness delay：300 ms

Design：Cubic

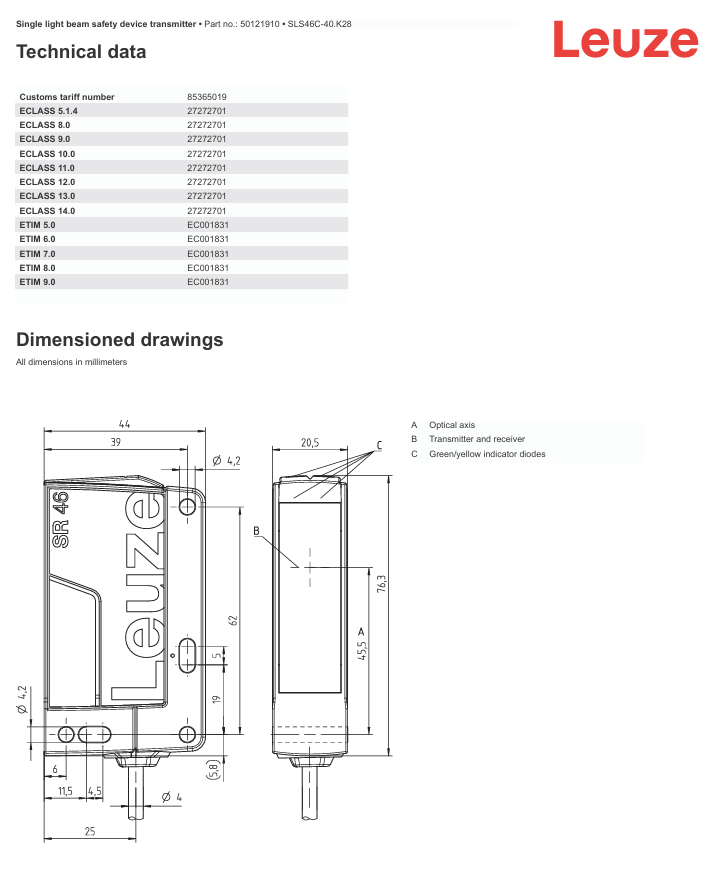

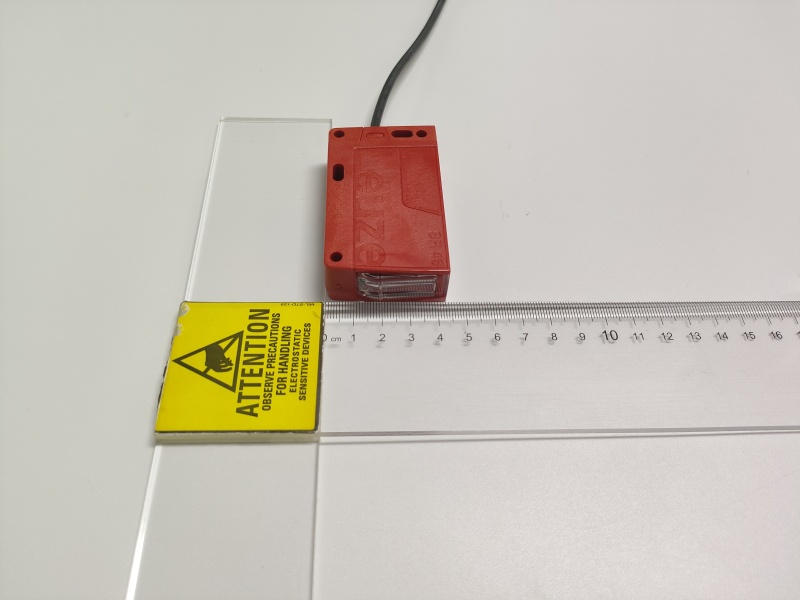

Dimension (W x H x L)：20.5 mm x 76.3 mm x 44 mm

Housing material：Plastic

Plastic housing：PC-PBT

Lens cover material：Plastic / PMMA

Net weight：100 g

Housing color：Red

Type of display：LED

Ambient temperature, operation：-30 ... 60 °C

Ambient temperature, storage：-30 ... 70 °C

Degree of protection：IP 67  IP 69K

Single light beam safety devices

Single light beam safety devices can be integrated flexibly into machine concepts – particularly in constrained spaces or where no flat mounting surfaces exist. They are used for point of operation and access guarding as well as for collision avoidance. The safety sensors are available as type 2 and type 4 devices with external monitoring as well as self-monitoring type 4 devices.

Type 4/PLe

Operated in combination with an MSI-TRM monitoring device

Compact housing dimensions

Operating ranges up to 70 m

Type 4/PLe with integrated testing

Self-monitoring through integrated testing

Operating range up to 100 m

Type 2/PLc

Operated in combination with a suitable test unit

Compact housing dimensions

Operating ranges up to 70 m
