| Brand | LEUZE |
| Date Code | 25+ |
| Packing | Box |
| Package | Sensor |
| Minimum Packing | 1pcs |

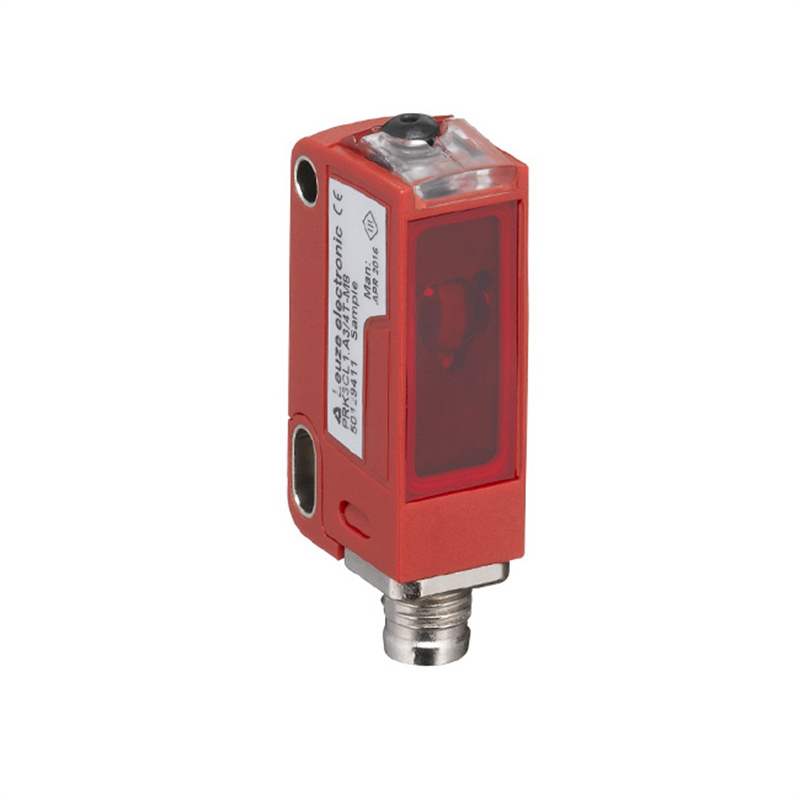

Part no.: 50137061

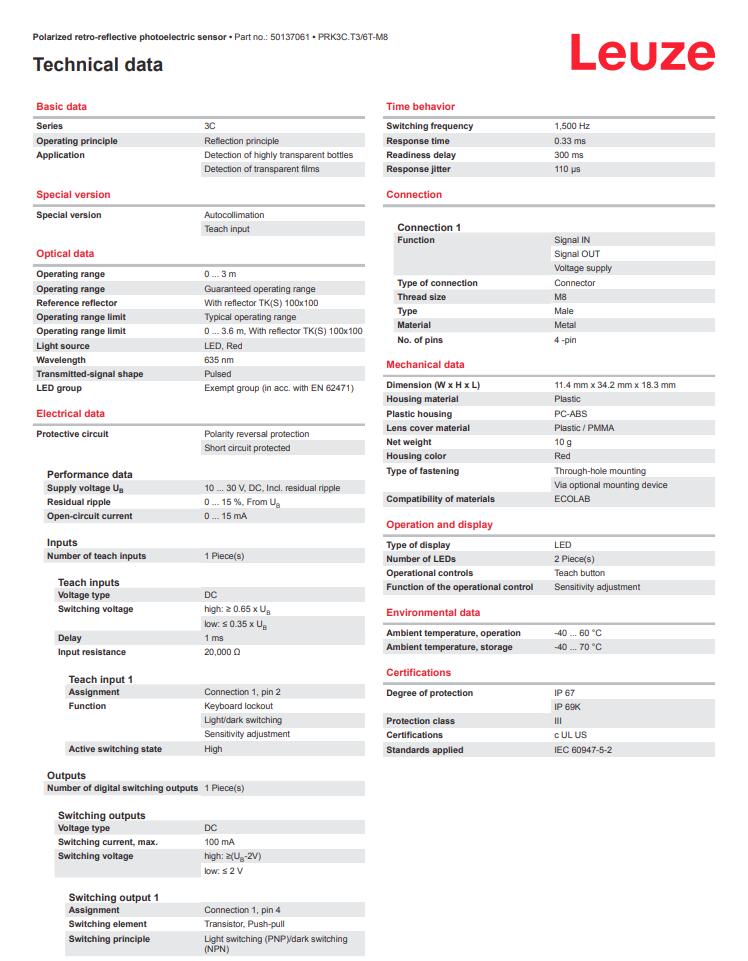

Features：
Operating range：0 ... 3 m, With reflector TK(S) 100x100
Operating range：Guaranteed operating range
Operating range limit：0 ... 3.6 m, With reflector TK(S) 100x100
Operating range limit：Typical operating range
Light source：LED, Red
Wavelength：635 nm
LED group：Exempt group (in acc. with EN 62471)
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 15 mA
Switching frequency：1,500 Hz
Response time：0.33 ms
Readiness delay：300 ms

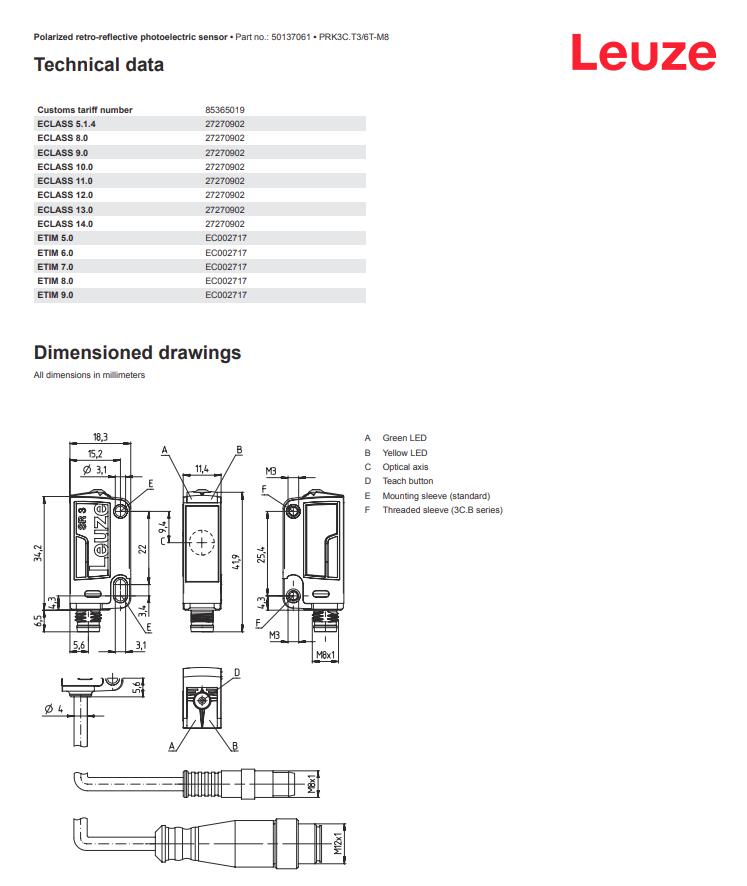

Dimension (W x H x L)：11.4 mm x 34.2 mm x 18.3 mm
Housing material：Plastic
Plastic housing：PC-ABS
Lens cover material：Plastic / PMMA
Net weight：10 g
Housing color：Red
Type of display：LED
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 IP 69K
Retro-reflective photoelectric sensors
With reflection principle: Transmitter and receiver in the same housing, opposing reflector.
Standard models (LED and laser)
Reliable detection, even with reflective objects
Operating ranges up to 24 m
Highly accurate positioning through extremely small laser light spot
Optimized for transparent objects
Reliable detection of highly transparent objects
Operating ranges up to 6 m
Contamination compensation through integrated tracking
Optimized for reflective objects
Reliable detection of foil-wrapped, strongly scattering objects
Operating ranges up to 16 m
Sensitivity adjustable for the detection of transparent packages
Optimiert für unregelmäßige Objekte, Paletten und Polybags
Continuous detection of perforated, irregular and flat objects
Operating ranges up to 4 m
Different sensitivity levels via teach button on the device
Minimum detection height from 3 mm
