| Brand | LEUZE |
| Date Code | 24+ / 25+ |
| Packing | Box |
| Package | Sensor |
| Minimum Packing | 1pcs |
Part no.: 50129412

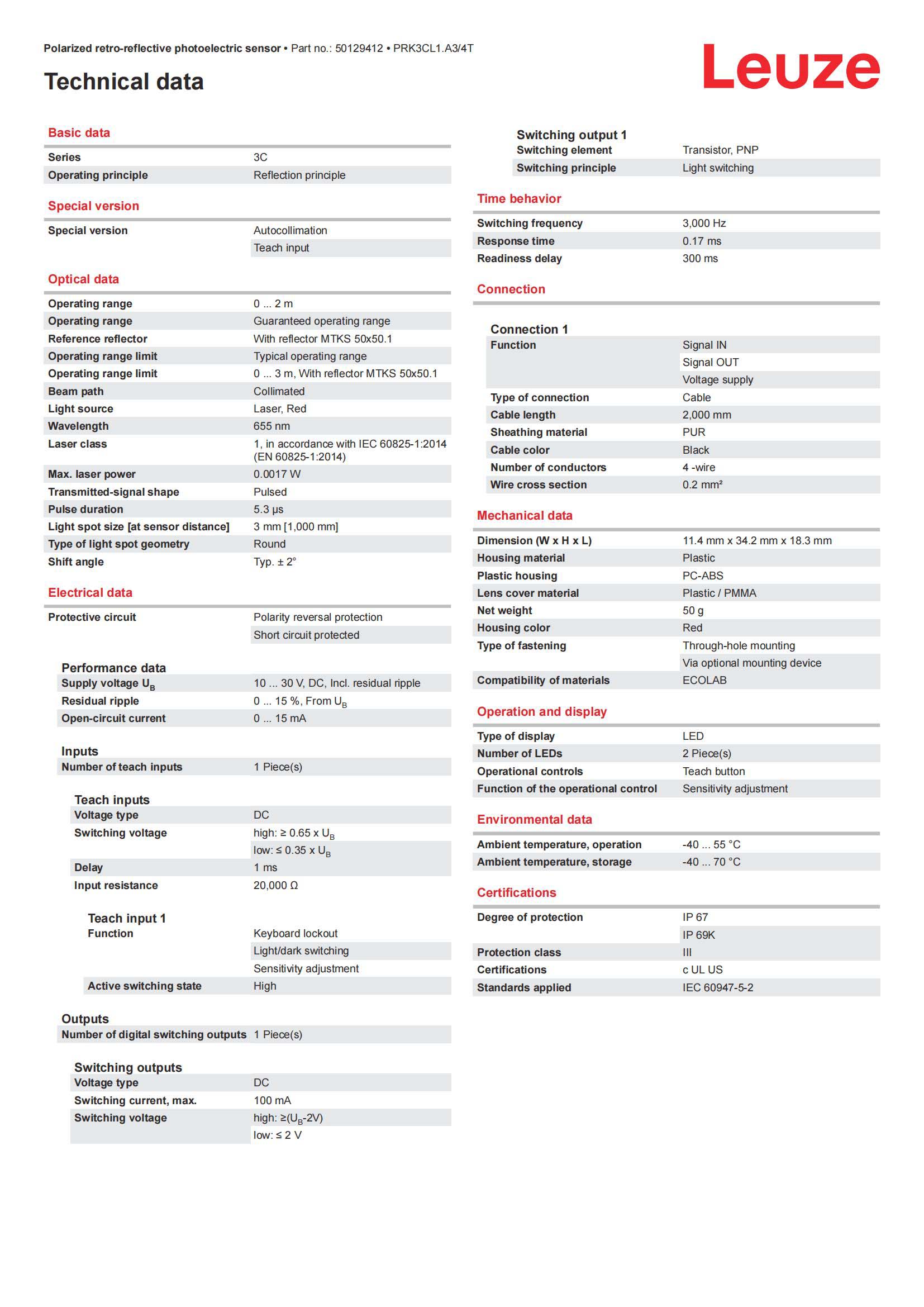

Features：
Operating range：0 ... 2 m, With reflector MTKS 50x50.1
Operating range：Guaranteed operating range
Operating range limit：0 ... 3 m, With reflector MTKS 50x50.1
Operating range limit：Typical operating range
Beam path：Collimated
Light source：Laser, Red
Wavelength：655 nm
Laser class：1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014)
Light spot size [at sensor distance]：3 mm [1,000 mm]
Type of light spot geometry：Round
Shift angle：Typ. ± 2°
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 15 mA
Switching frequency：3,000 Hz
Response time：0.17 ms
Readiness delay：300 ms

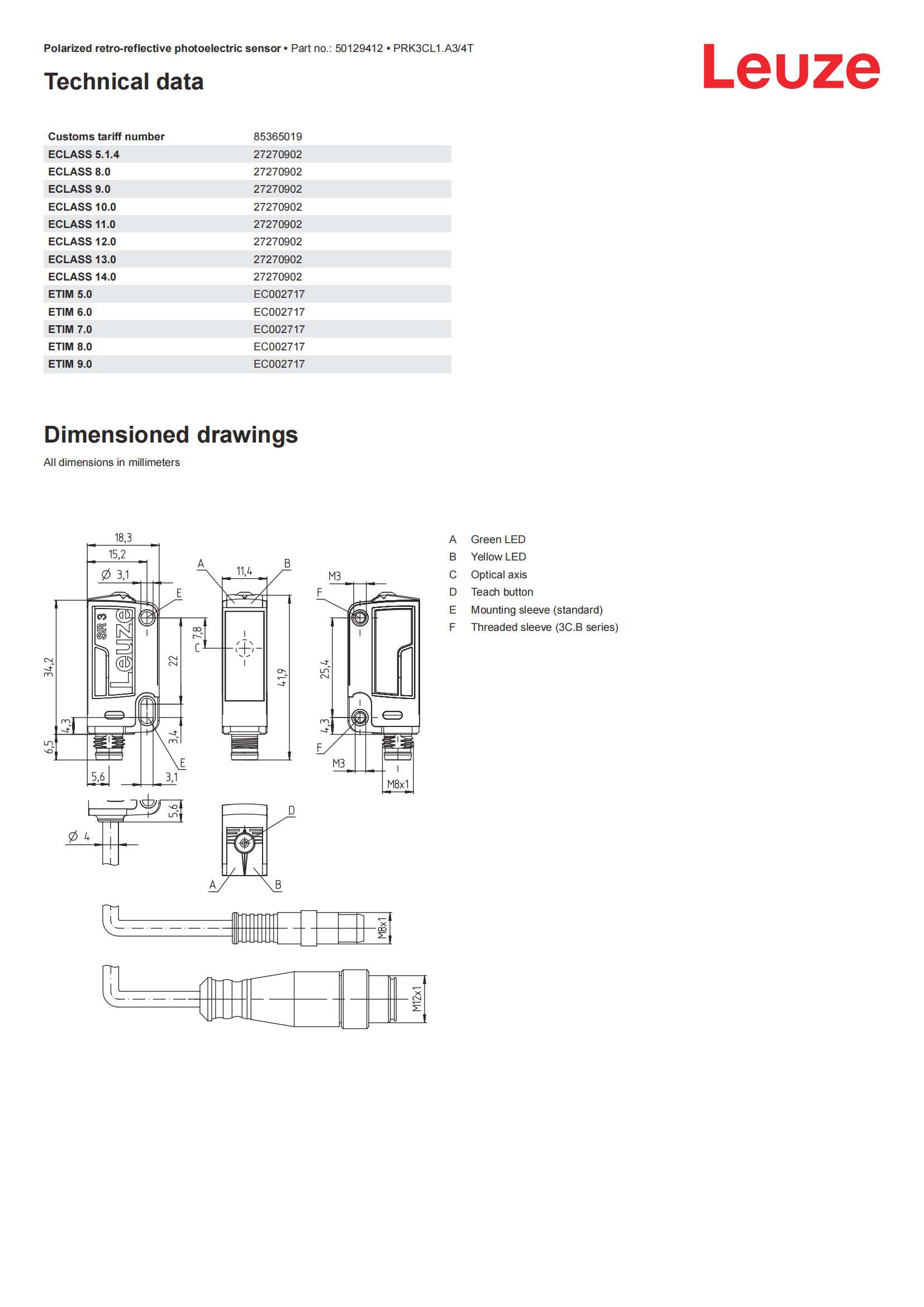

Dimension (W x H x L)：11.4 mm x 34.2 mm x 18.3 mm
Housing material：Plastic
Plastic housing：PC-ABS
Lens cover material：Plastic / PMMA
Net weight：50 g
Housing color：Red
Ambient temperature, operation：-40 ... 55 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 IP 69K
Protection class：III
Retro-reflective photoelectric sensors
With reflection principle: Transmitter and receiver in the same housing, opposing reflector.
Standard models (LED and laser)
Reliable detection, even with reflective objects
Operating ranges up to 24 m
Highly accurate positioning through extremely small laser light spot
Optimized for transparent objects
Reliable detection of highly transparent objects
Operating ranges up to 6 m
Contamination compensation through integrated tracking
Optimized for reflective objects
Reliable detection of foil-wrapped, strongly scattering objects
Operating ranges up to 16 m
Sensitivity adjustable for the detection of transparent packages
Optimiert für unregelmäßige Objekte, Paletten und Polybags
Continuous detection of perforated, irregular and flat objects
Operating ranges up to 4 m
Different sensitivity levels via teach button on the device
Minimum detection height from 3 mm
