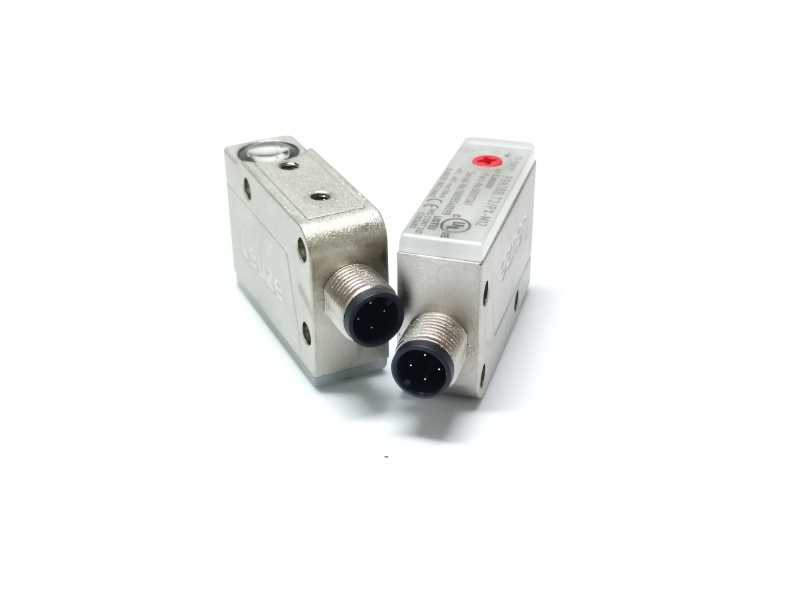

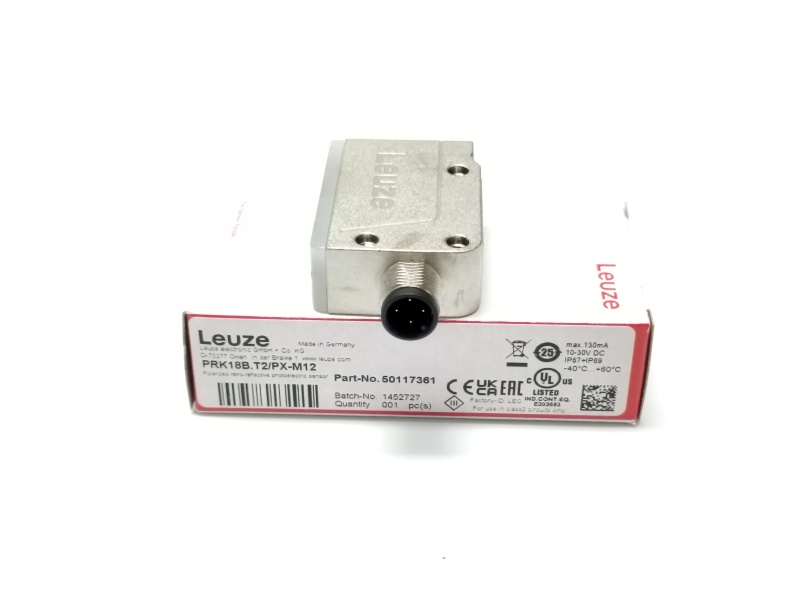

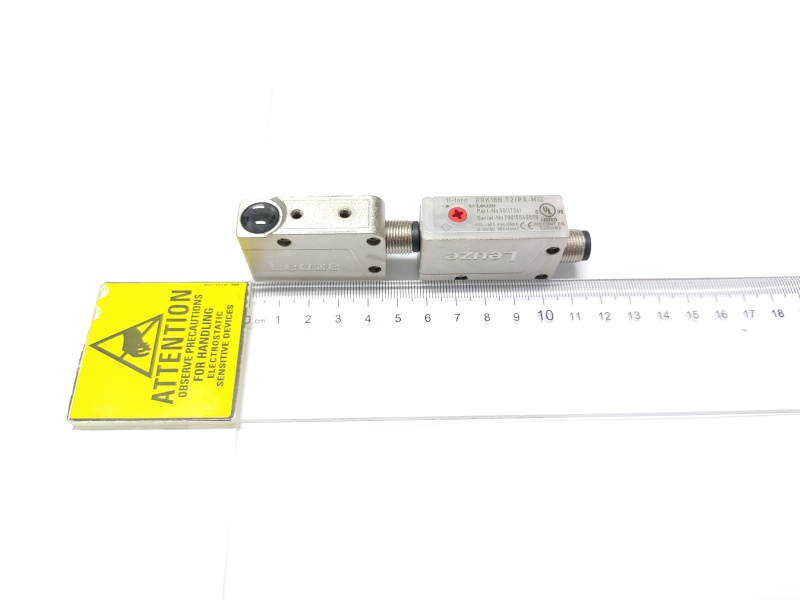

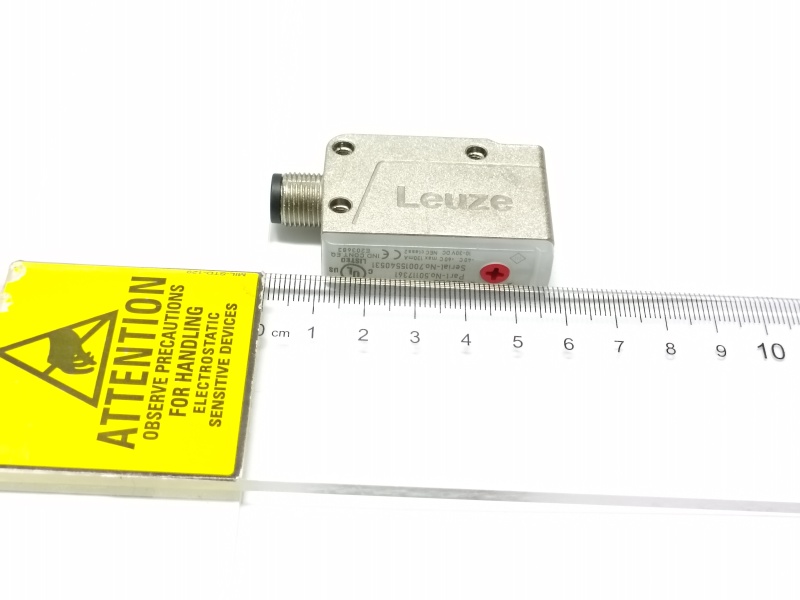

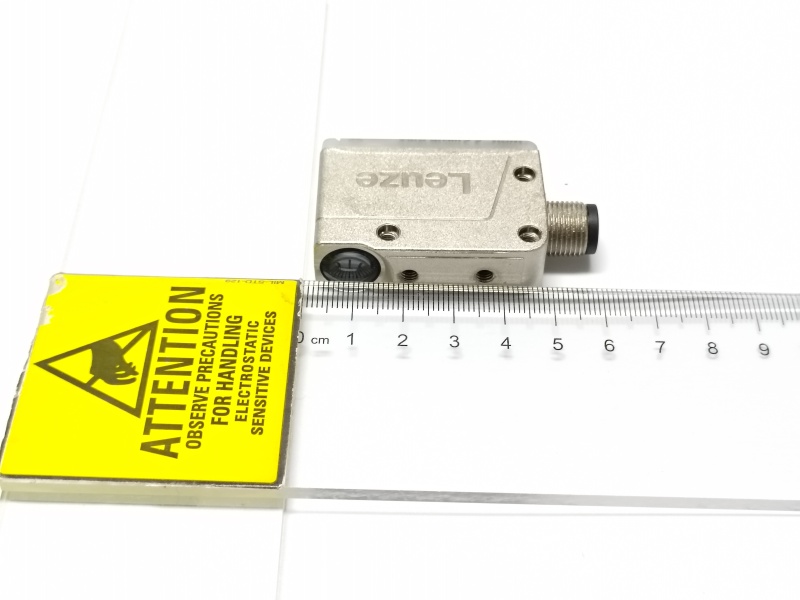

In Stock ! Leuze Polarized retro-reflective photoelectric sensor PRK18B.T2/PX-M12

Part no.: 50117361

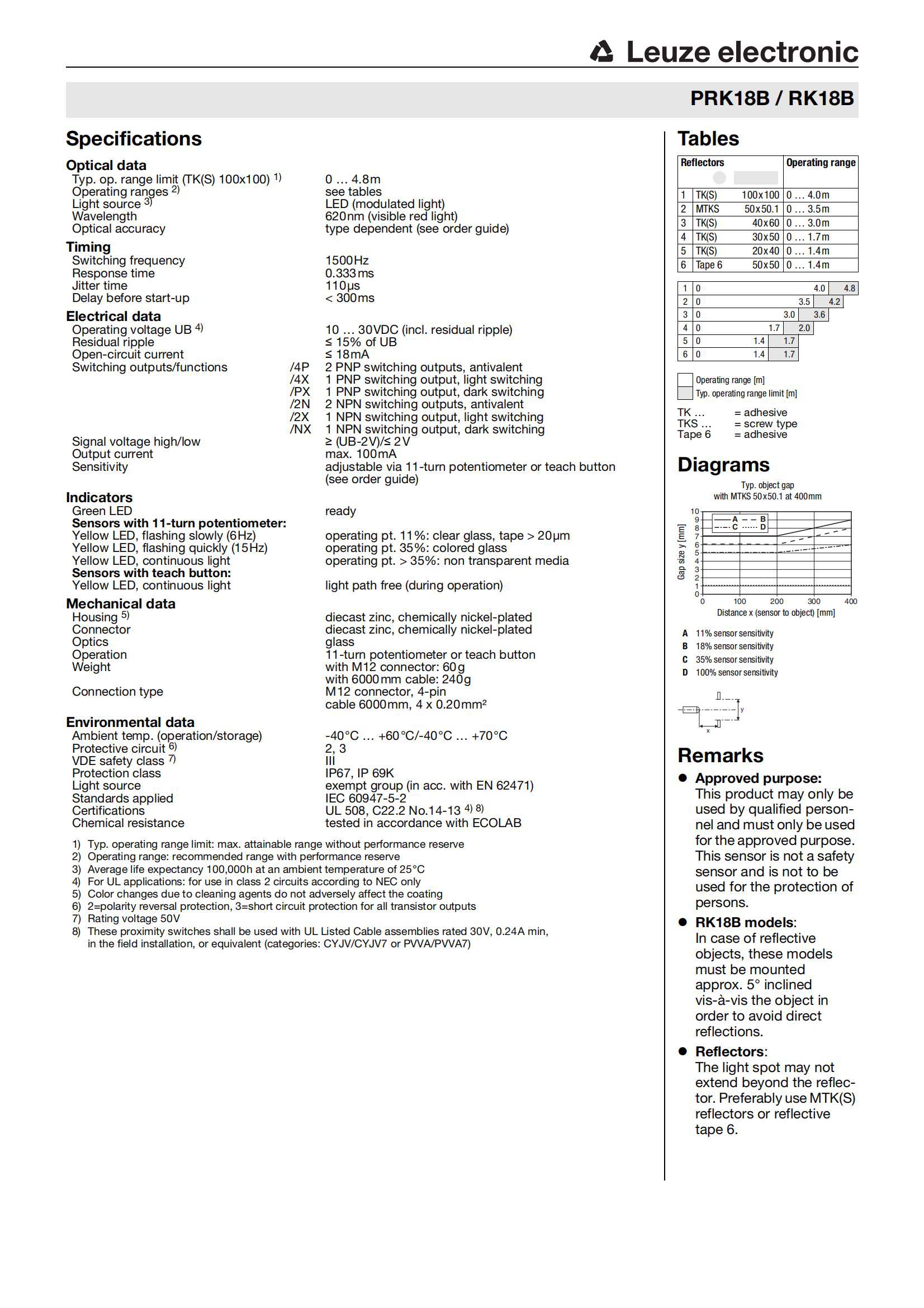

Features：

Operating range：0 ... 4 m

Operating range：Guaranteed operating range

Operating range limit：0 ... 4.8 m

Operating range limit：Typical operating range

Light source：LED, Red

Wavelength：620 nm

LED group：1

Supply voltage UB：10 ... 30 V, DC

Residual ripple：0 ... 15 %, From UB

Open-circuit current：0 ... 18 mA

Switching frequency：1,500 Hz

Response time：0.333 ms

Readiness delay：300 ms

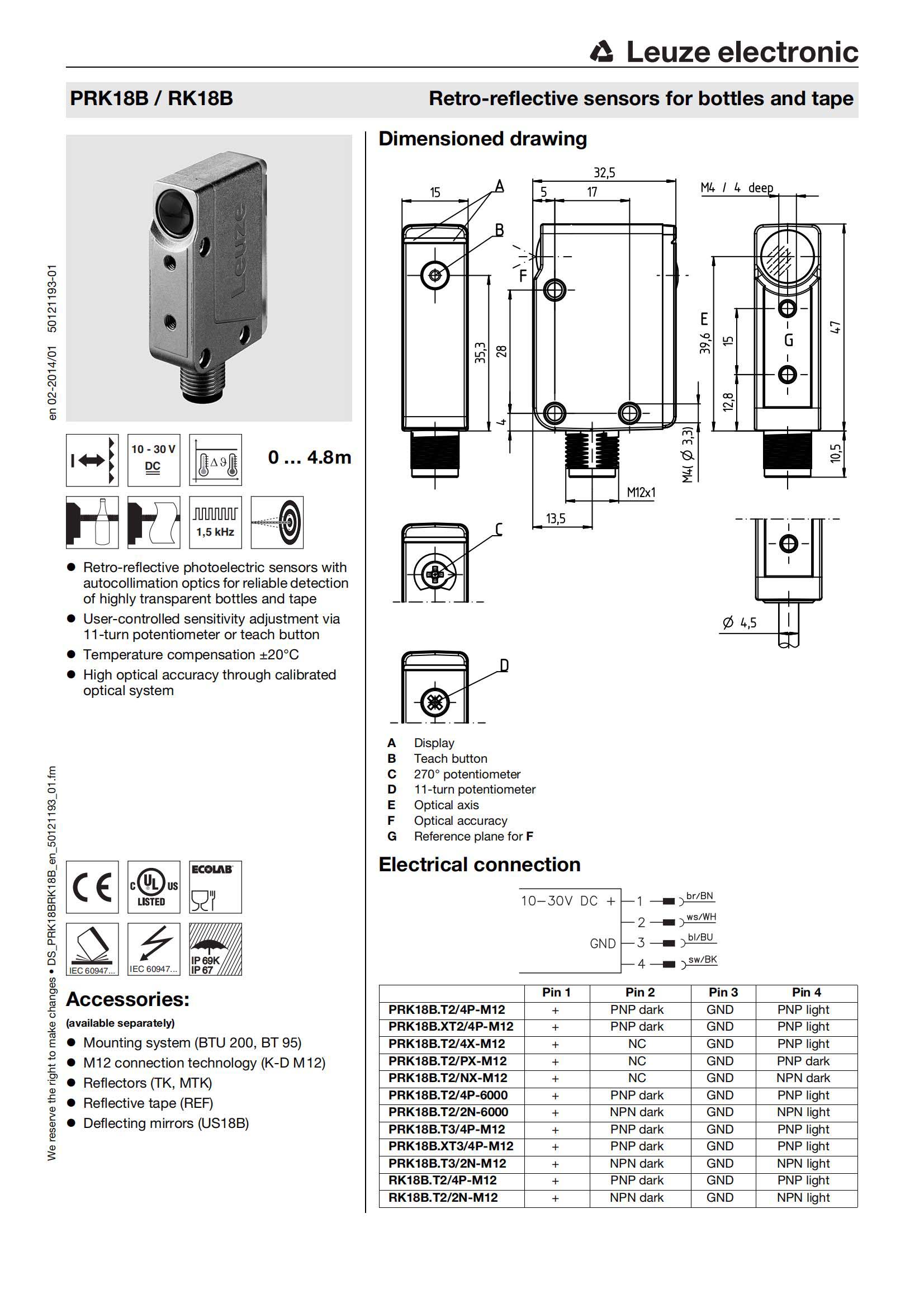

Dimension (W x H x L)：15 mm x 47 mm x 32.5 mm

Housing material：Metal

Metal housing：Diecast zinc

Lens cover material：Glass

Net weight：60 g

Housing color：Silver

Ambient temperature, operation：-40 ... 60 °C

Ambient temperature, storage：-40 ... 70 °C

Degree of protection：IP 67; IP 69K

Protection class：III

Retro-reflective photoelectric sensors

With reflection principle: Transmitter and receiver in the same housing, opposing reflector.

Standard models (LED and laser)

Reliable detection, even with reflective objects

Operating ranges up to 24 m

Highly accurate positioning through extremely small laser light spot

Optimized for transparent objects

Reliable detection of highly transparent objects

Operating ranges up to 6 m

Contamination compensation through integrated tracking

Optimized for reflective objects

Reliable detection of foil-wrapped, strongly scattering objects

Operating ranges up to 16 m

Sensitivity adjustable for the detection of transparent packages

Optimiert für unregelmäßige Objekte, Paletten und Polybags

Continuous detection of perforated, irregular and flat objects

Operating ranges up to 4 m

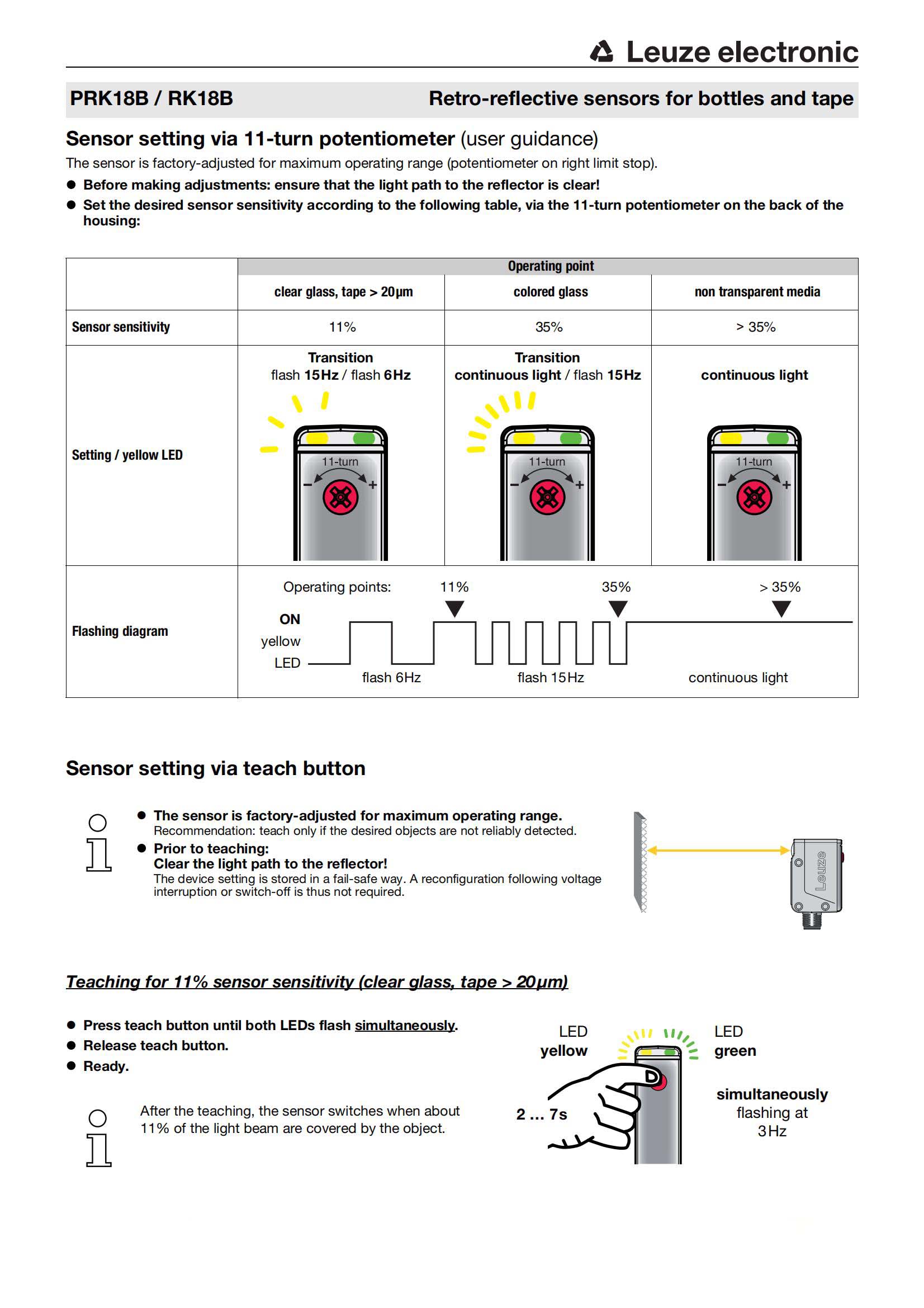

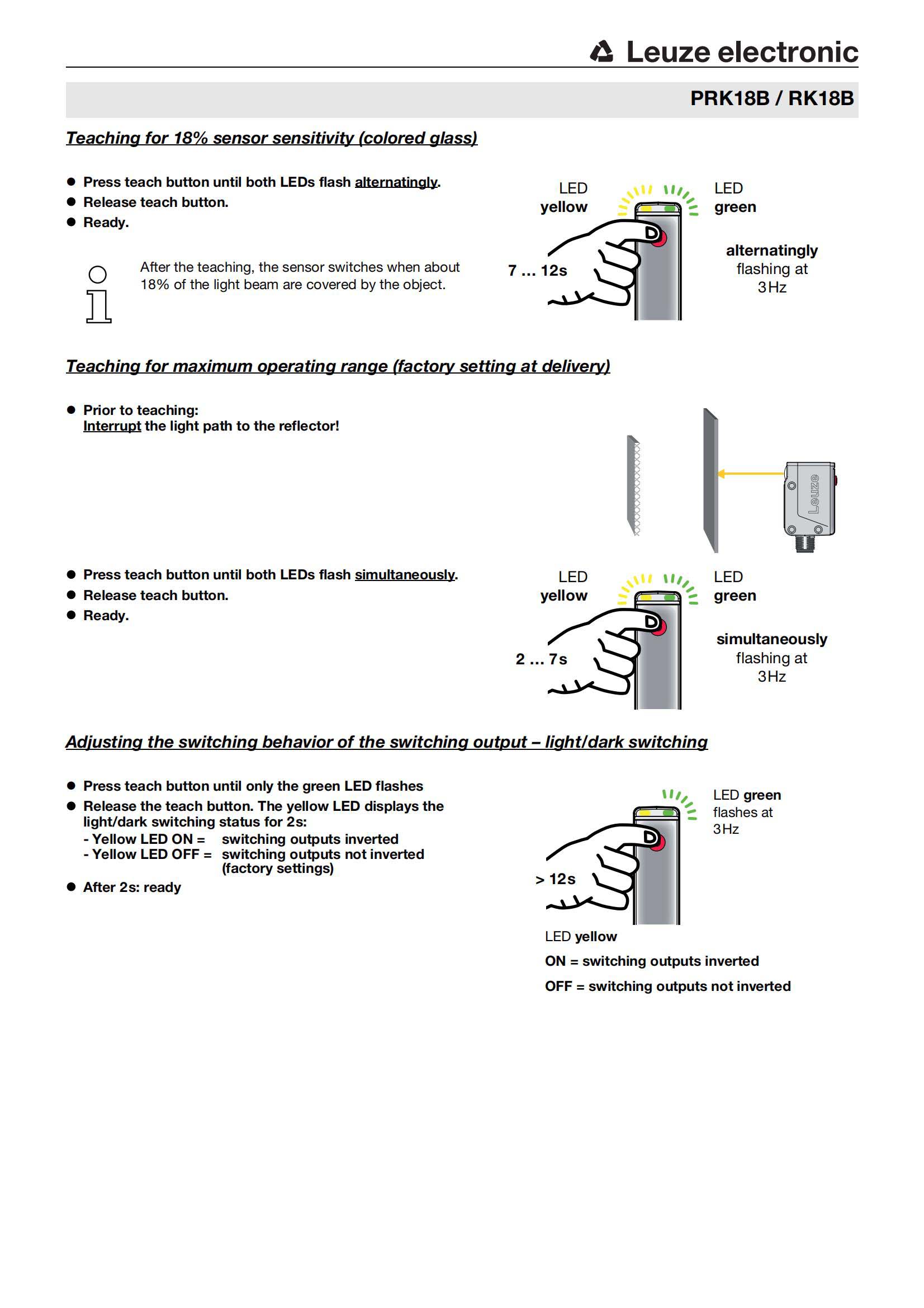

Different sensitivity levels via teach button on the device

Minimum detection height from 3 mm
