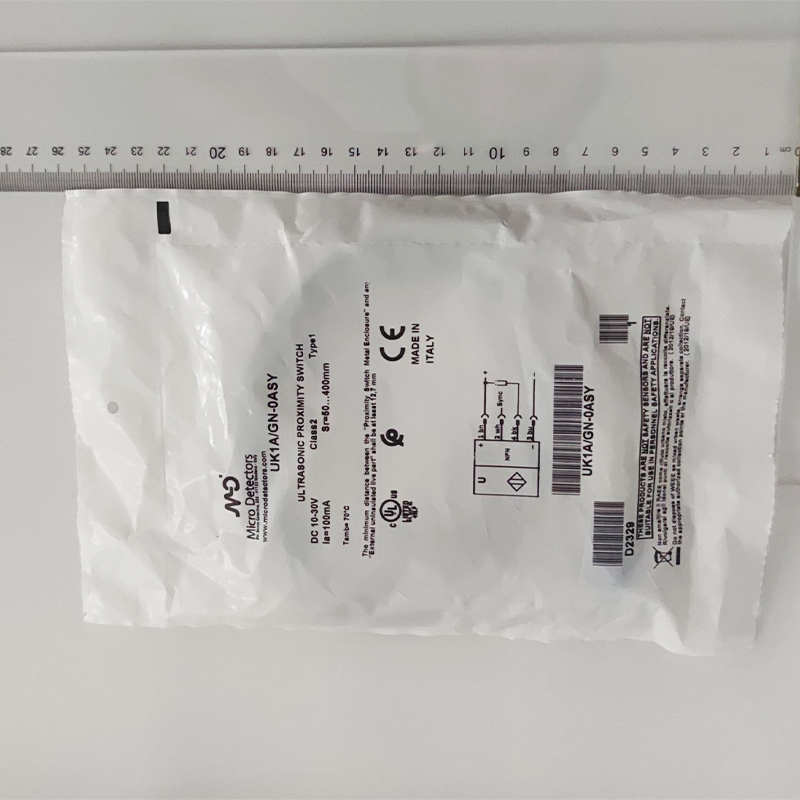

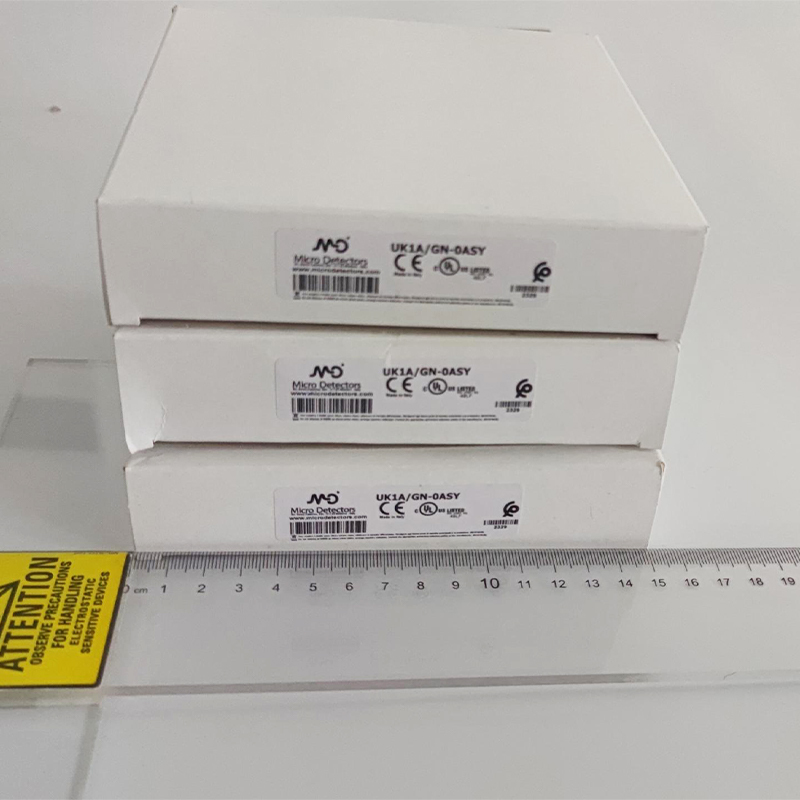

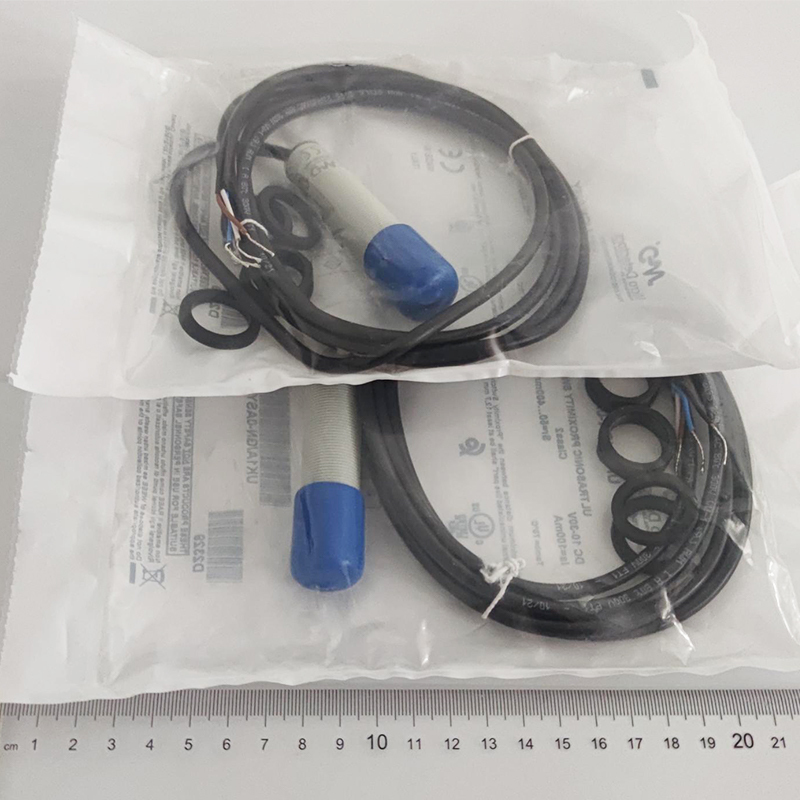

UK1A/GN-0ASY MICRO DETECTORS Ultrasonic sensor M18 NPN NO/NC 50-400 mm cable 2m with teach-in button, plasti..
Description:Ultrasonic sensor M18 NPN NO/NC 50-400 mm cable 2m with teach-in button, plastic, cULus
Nominal sensing distance：400mm
Thermal drift of Sr：±2%
Repeat Accuracy：0,50%
Beam angle：10° ± 2°
Resolution：≤3mm
Sensitivity adjustment：Teach-in button
Hysteresis：1%
thermal compensation：Yes
Minimum sensing distance (blind zone)：50mm
Linearity error：1%
Output type：1x NPN
Output Function：NO/NC
Switching frequency：10Hz
Response time：500ms
Operating Voltage：10 - 30Vdc
No-Load supply current：≤50mA
Load current：100mA
Leakage current：10μA @ 30Vcc
Output voltage drop：2,2Vmax. @ IL=100 mA
Max ripple content：5%
LED indicators：green: echo - yellow: output
Time delay before availability：≤300ms
Dimensions：M18 x 1 / L = 83,6mm
Weight：110g
Housing Material：PBT housing
Connections：2 mt cable
Tightening torque：1Nm
Operating temperature：- 20°C…+ 70°C
Storage temperature：- 35°C…+ 80° C without freeze
Transducer Frequency：300kHz
Degree of protection：IP67
