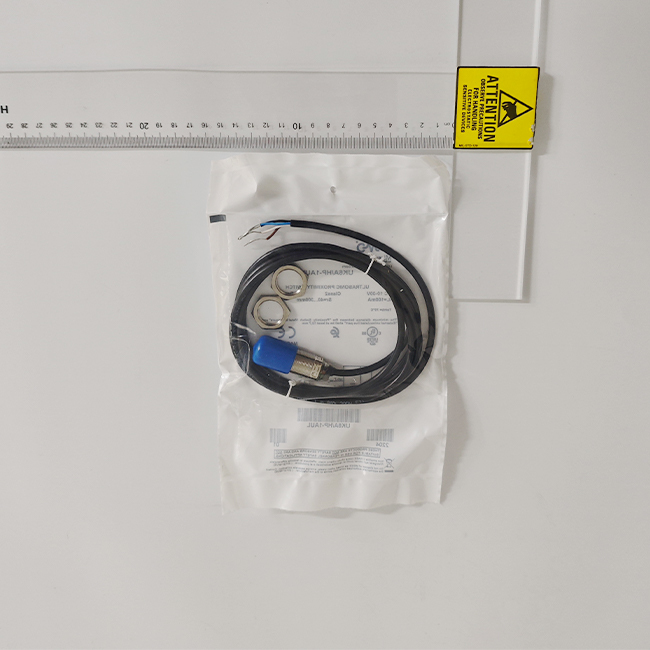

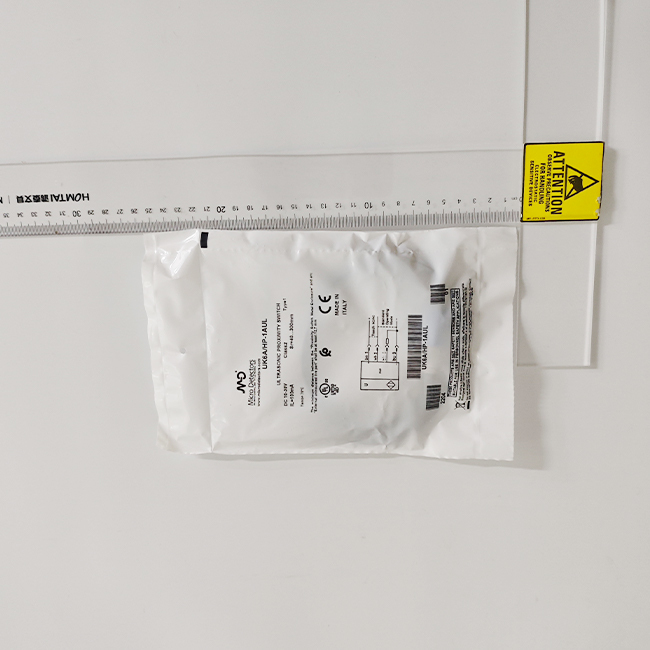

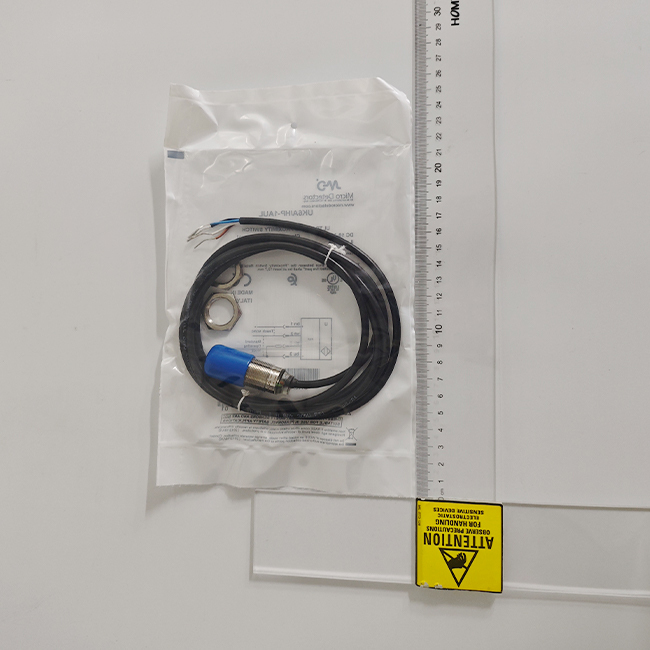

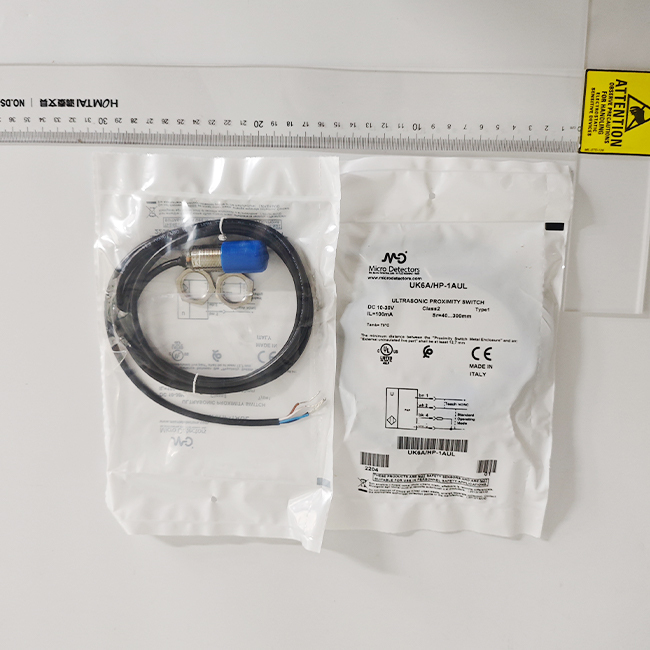

UK6A/HP-1AUL MICRO DETECTORS Ultrasonic sensor M18 PNP NO/NC 40-300 mm cable 2m, with teach-in cable, AISI31..
Description:Ultrasonic sensor M18 PNP NO/NC 40-300 mm cable 2m, with teach-in cable, AISI316L stainless steel housing, cULus

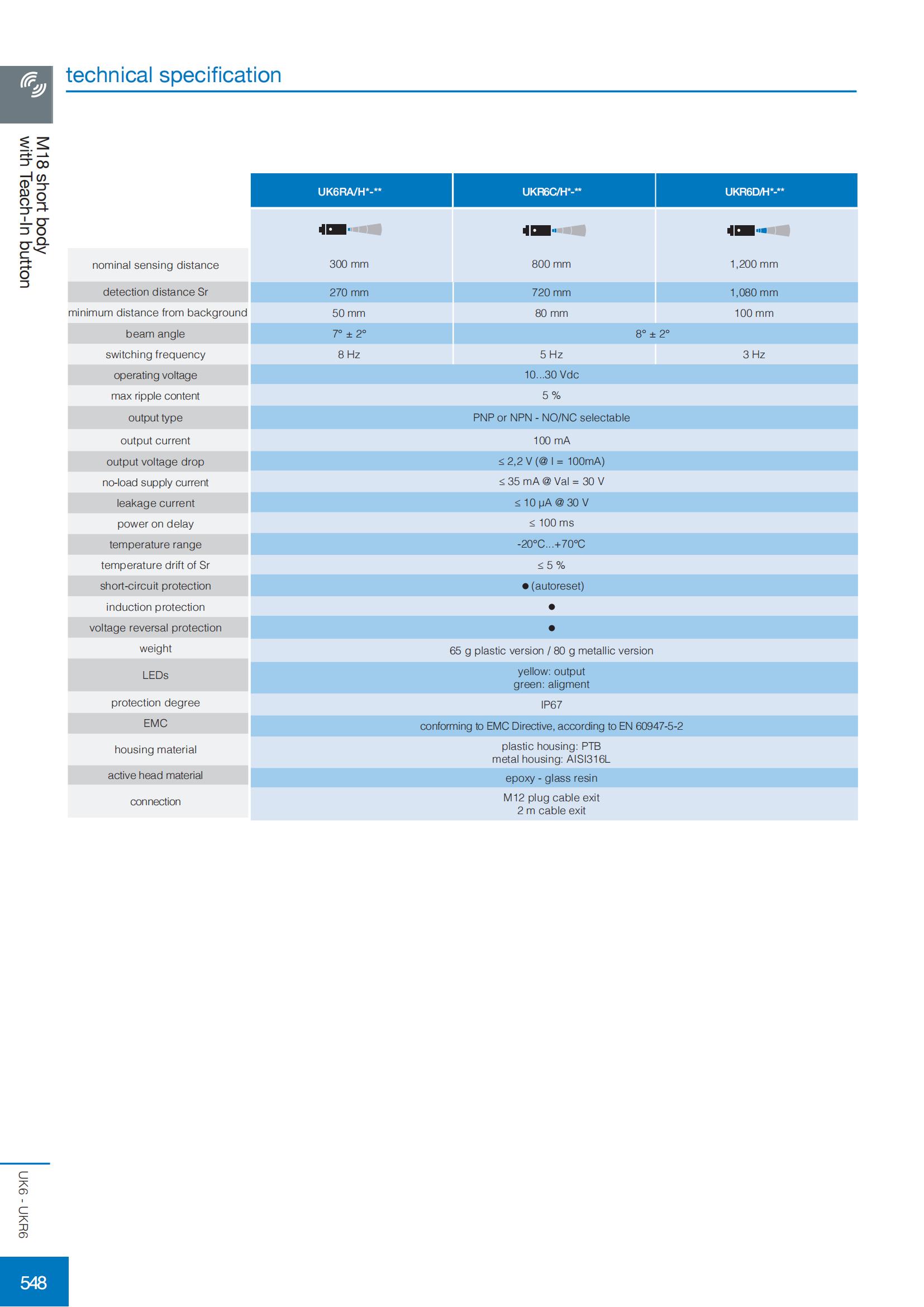

Nominal sensing distance：300mm
Thermal drift of Sr：≤2%
Repeat Accuracy：0,50%
Beam angle：7° ± 2°
Resolution：≤2mm
Sensitivity adjustment：Teach-in by wire
Hysteresis：1%
thermal compensation：Yes
Minimum sensing distance (blind zone)：40mm
Linearity error：1%
Output type：1x PNP
Switching frequency：8Hz
Response time：400ms
Operating Voltage：10 - 30Vdc
No-Load supply current：≤35mA @Val = 30V
Load current：100mA
Leakage current：10μA @ 30Vcc
Output voltage drop：2,2Vmax. @ IL=100 mA
Max ripple content：5%
LED indicators：green: echo - yellow: output
Time delay before availability：≤300ms
Short-circuit protection：Yes
Reverse Polarity Protection：Yes
Impulsive Overvoltage Protection：Yes

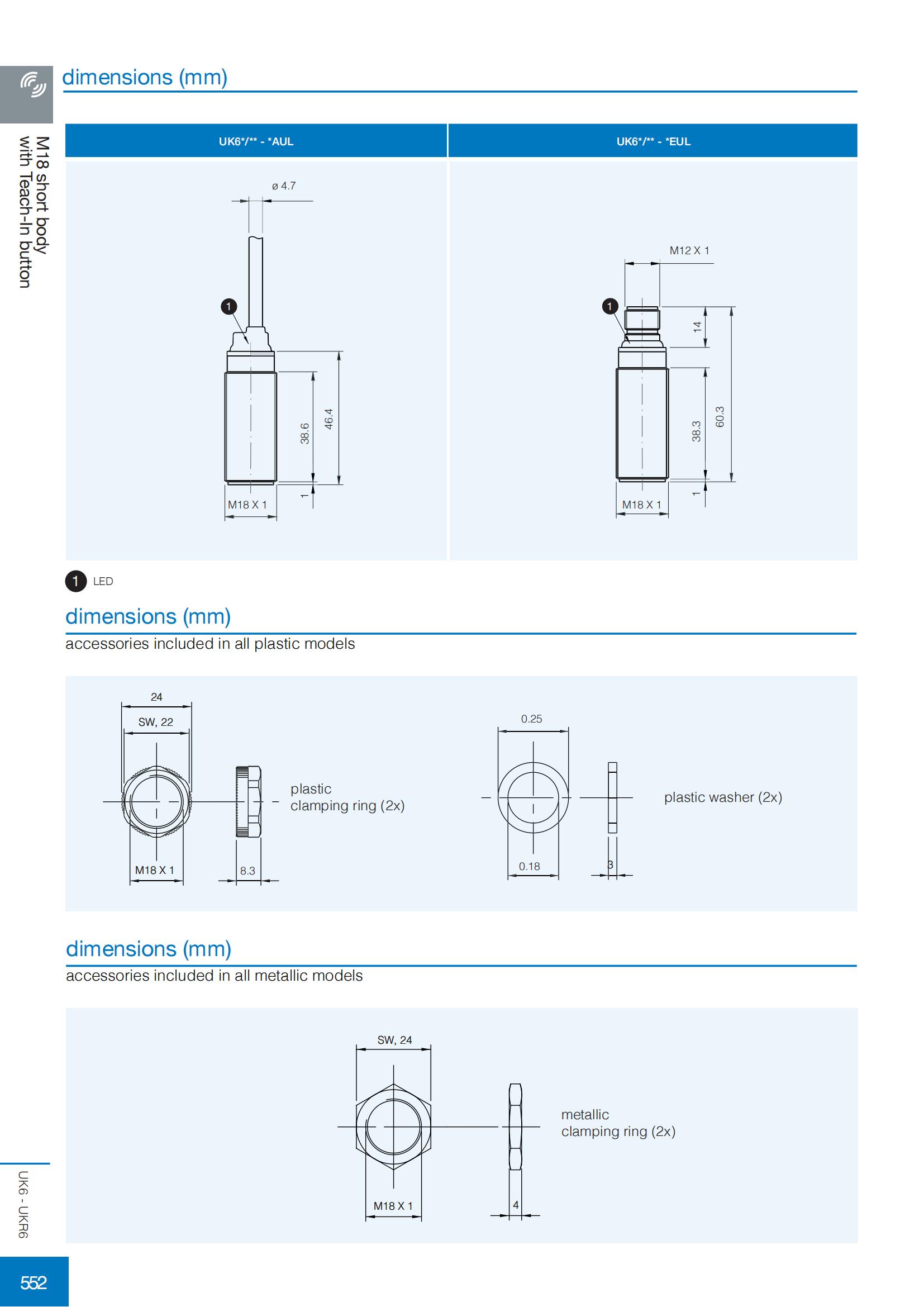

Dimensions：M18 x 1 / L = 46,4mm
Weight：140g
Housing Material：stainless steel AISI 316L
Connections：cable exit 2mt
Tightening torque：50Nm
Operating temperature：- 20°C…+ 70°C
Storage temperature：- 35°C…+ 80° C without freeze
Transducer Frequency：300kHz
Degree of protection：IP67

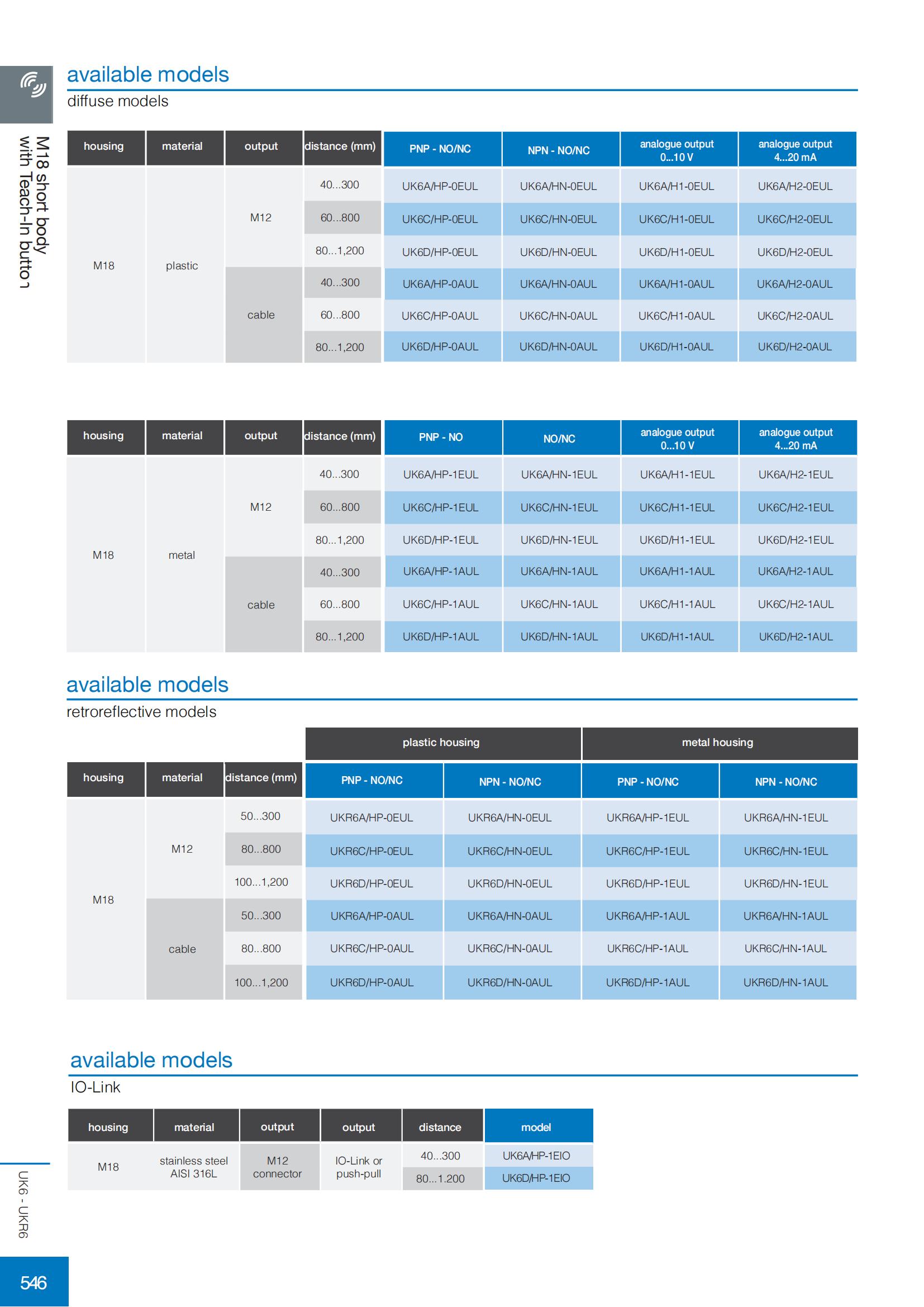

Similar Models:UK6A/H1-0AUL UK6A/H1-0EUL UK6A/H1-1AUL UK6A/H1-1EUL UK6A/H2-0AUL UK6A/H2-0EUL UK6A/H2-1AUL UK6A/H2-1EUL UK6A/HN-0AUL UK6A/HN-0EUL UK6A/HN-1AUL UK6A/HN-1EUL UK6A/HP-0AUL UK6A/HP-1EUL UK6C/H1-0AUL UK6C/H1-0EUL UK6C/H1-1AUL UK6C/H1-1EUL UK6C/H2-0AUL UK6C/H2-0EUL UK6C/H2-1AUL UK6C/H2-1EUL UK6C/HN-0AUL UK6C/HN-0EUL UK6C/HN-1AUL UK6C/HN-1EUL UK6C/HP-0AUL UK6C/HP-0EUL UK6C/HP-1AUL UK6C/HP-1EUL UK6D/H1-0AUL UK6D/H1-0EUL UK6D/H1-1AUL UK6D/H1-1EUL UK6D/H2-0AUL UK6D/H2-0EUL UK6D/H2-1AUL UK6D/H2-1EUL UK6D/HN-0AUL UK6D/HN-0EUL UK6D/HN-1AUL UK6D/HN-1EUL UK6D/HP-0AUL UK6D/HP-0EUL UK6D/HP-1AUL UK6D/HP-1EUL UKR6A/HP-0EUL UKR6A/HP-1EUL UKR6C/HP-1AUL UKR6D/HP-1AUL
