| Brand | ADI |
| Date Code | 2149 |
| Packing | Tube |
| Package | UMAX-10 |
| Minimum Packing | 50pcs |

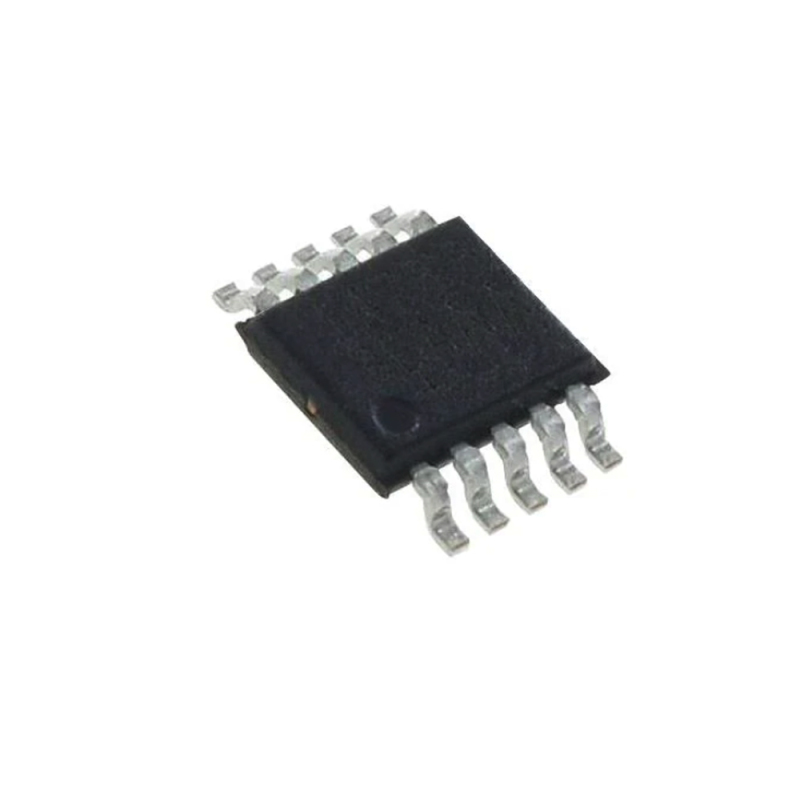

Analog to Digital Converters - ADC 16-Bit, 250ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin MAX
Features：
High DC/AC Accuracy Improves Measurement Quality
16-Bit Resolution with No Missing Codes
250ksps Throughput Rates without Pipeline Delay/Latency
93.2dB SNR and -105dB THD at 10kHz
0.38 LSBRMS Transition Noise
±0.2 LSB DNL (typ) and ±0.5 LSB INL (typ)
Wide Supply Range and Low Power Simplify Power-Supply Design
+5V Analog Supply
+2.3V to +5V Digital Supply
19mW Power Consumption at 250ksps
10µA in Shutdown Mode
Multi-Industry Standard Serial Interface and Small Package Reduce Size
SPI/QSPI™ MICROWIRE®/DSP-Compatible Serial Interface
3mm x 5mm Tiny 10-Pin µMAX Package

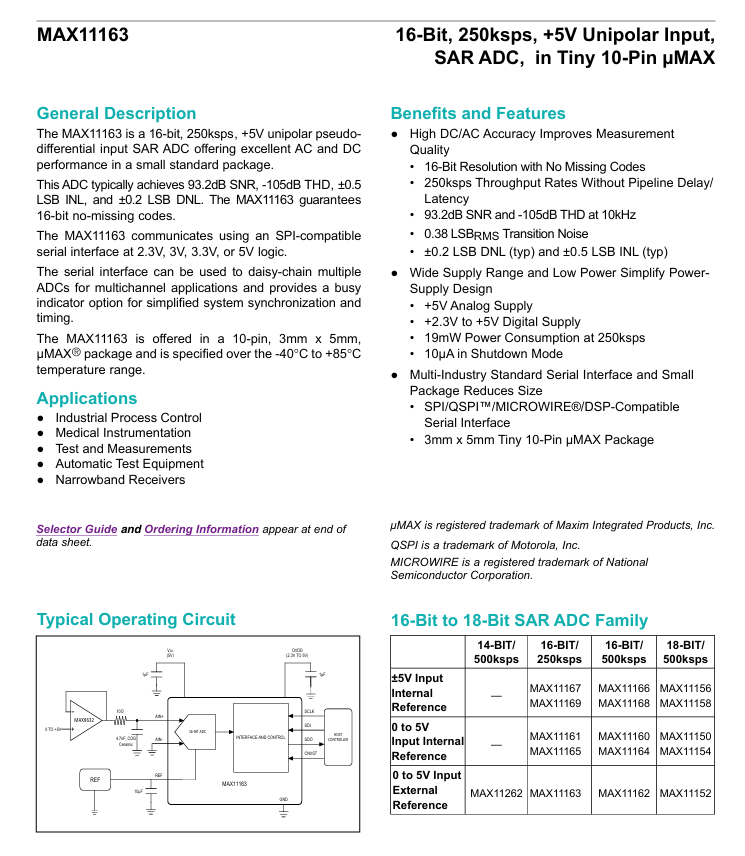

The MAX11163 is a 16-bit, 250ksps, +5V unipolar pseudo-differential input SAR ADC offering excellent AC and DC performance in small standard package.
This ADC typically achieves 93.2dB SNR, -105dB THD, ±0.5 LSB INL, and ±0.2 LSB DNL. The MAX11163 guarantees 16-bit no-missing codes.
The MAX11163 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic.
The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.
The MAX11163 is offered in a 10-pin, 3mm x 5mm, µMAX® package and is specified over the -40°C to +85°C temperature range.
Applications
Automatic Test Equipment
Industrial Process Control
Medical Instrumentation
Narrowband Receivers
Test and Measurements
