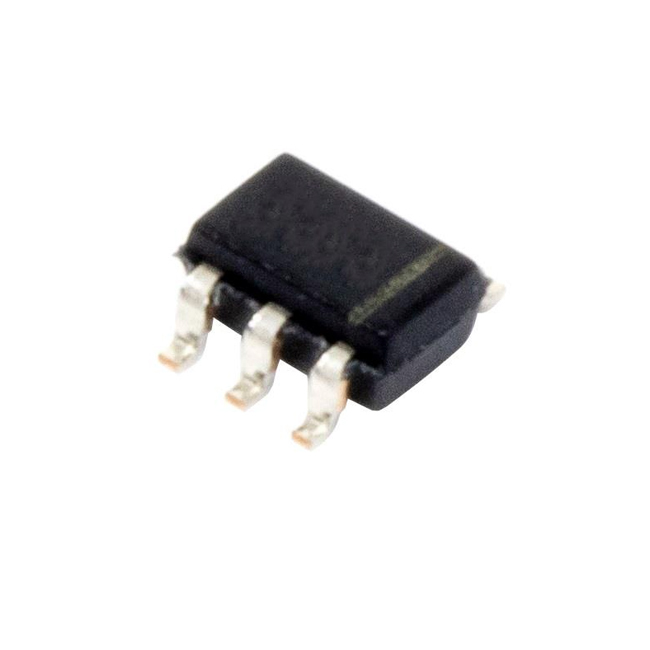

In Stock ! ADI LTC2630HSC6-HZ10#TRMPBF Digital to Analog Converters - DAC

Name: In Stock ! ADI LTC2630HSC6-HZ10#TRMPBF Digital to Analog Converters - DAC
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 11.22 USD
Availability: InStock

Brand : ADI
Date Code : 2323
Packing : Reel
Package : SC-70-6
Minimum Packing：500pcs

$11.22

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

Description

Digital to Analog Converters - DAC 1x 12-/10-/8-B R2R DACs w/ Int Ref in SC

Resolution:10 bit
Number of Channels:1 Channel
Settling Time:4.4 us
Output Type:Voltage
Interface Type:3‑Wire, Microwire, SPI
Minimum Operating Temperature:-40 ℃
Maximum Operating Temperature:+125 ℃
Mounting Style:SMD/SMT
Package / Case:SC‑70‑6
Packaging:Reel
Development Kit:DC1074A
DNL‑Differential Nonlinearity:0.5 LSB
Features:Double Buffered Data Latches, Integrated Precision Reference
INL‑Integral Nonlinearity:1 LSB
Number of Converters:1 Converter
Operating Supply Current:200 uA
Pd‑Power Dissipation:480 uW
Reference Voltage:4.096 V
Shutdown:No Shutdown
Factory Pack Quantity:500
Subcategory:Data Converter ICs
Supply Voltage‑Max:5.5 V
Supply Voltage‑Min:4.5 V
Type:Rail‑to‑Rail
