Features：250ksps Throughput Rate
±2LSB INL (Max)
Guaranteed 16-Bit No Missing Codes
Low Power: 3.25mW at 250ksps, 13μW at 1ksps
92dB SNR (typ) at fIN = 20kHz
Extended Acquisition Time of 3.25μs Allows Use of Lower Power Drivers
Guaranteed Operation to 125°C
2.5V Supply
Fully Differential Input Range ±2.5V
External 2.5V Reference Input
No Pipeline Delay, No Cycle Latency
1.8V to 5V I/O Voltages
SPI-Compatible Serial I/O with Daisy-Chain Mode
Internal Conversion Clock
16-pin MSOP and 4mm × 3mm DFN Packages

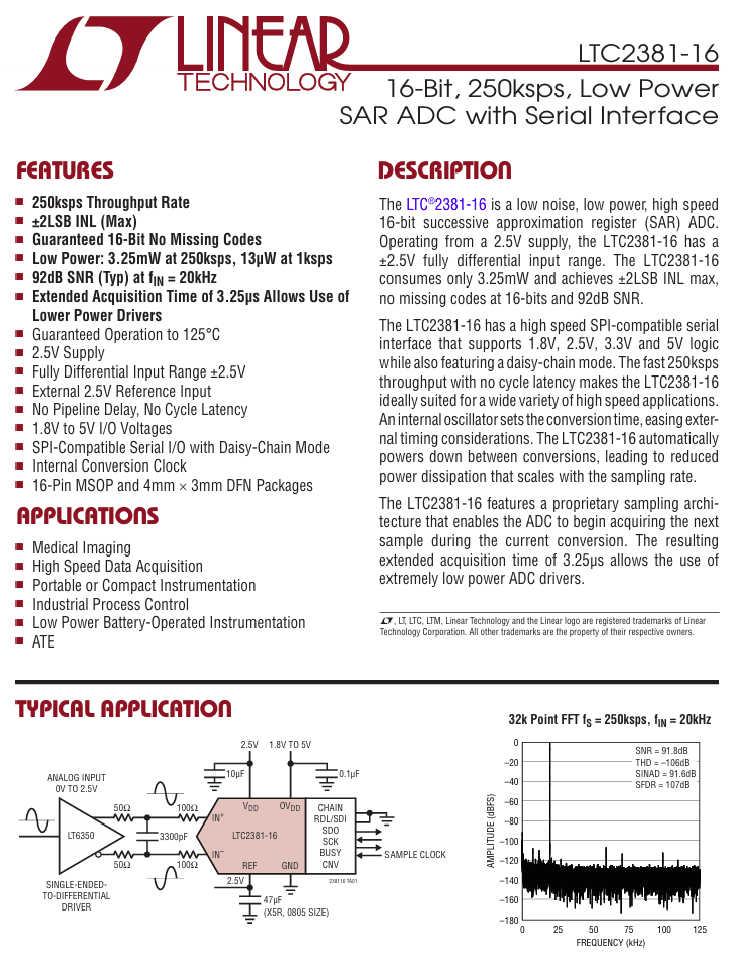

The LTC2381-16 is a low noise, low power, high speed 16-bit successive approximation register (SAR) ADC. Operating from a 2.5V supply, the LTC2381-16 has a ±2.5V fully differential input range. The LTC2381-16 consumes only 3.25mW and achieves ±2LSB INL max, no missing codes at 16-bits and 92dB SNR.
The LTC2381-16 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V and 5V logic while also featuring a daisychain mode. The fast 250ksps throughput with no cycle latency makes the LTC2381-16 ideally suited for a wide variety of high speed applications. An internal oscillator sets the conversion time, easing external timing considerations. The LTC2381-16 automatically powers down between conversions, leading to reduced power dissipation that scales with the sampling rate.
The LTC2381-16 features a proprietary sampling architecture that enables the ADC to begin acquiring the next sample during the current conversion. The resulting extended acquisition time of 3.25μs allows the use of extremely low power ADC drivers.
ApplicationsMedical Imaging
High Speed Data Acquisition
Portable or Compact Instrumentation
Industrial Process Control
Low Power Battery-Operated Instrumentation
ATE
LTC2381IMS-16#PBF Datasheet
