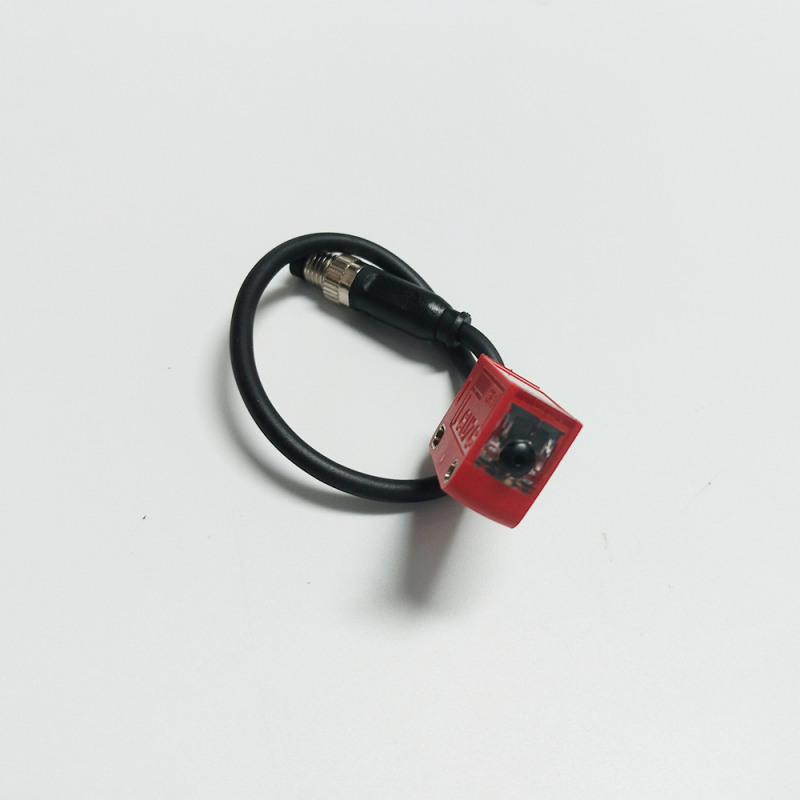

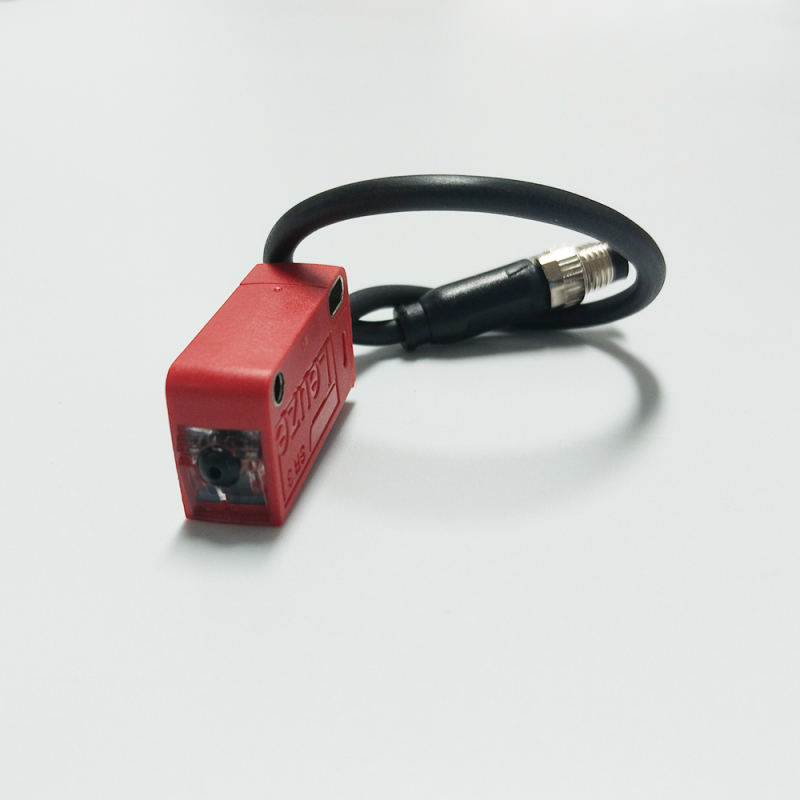

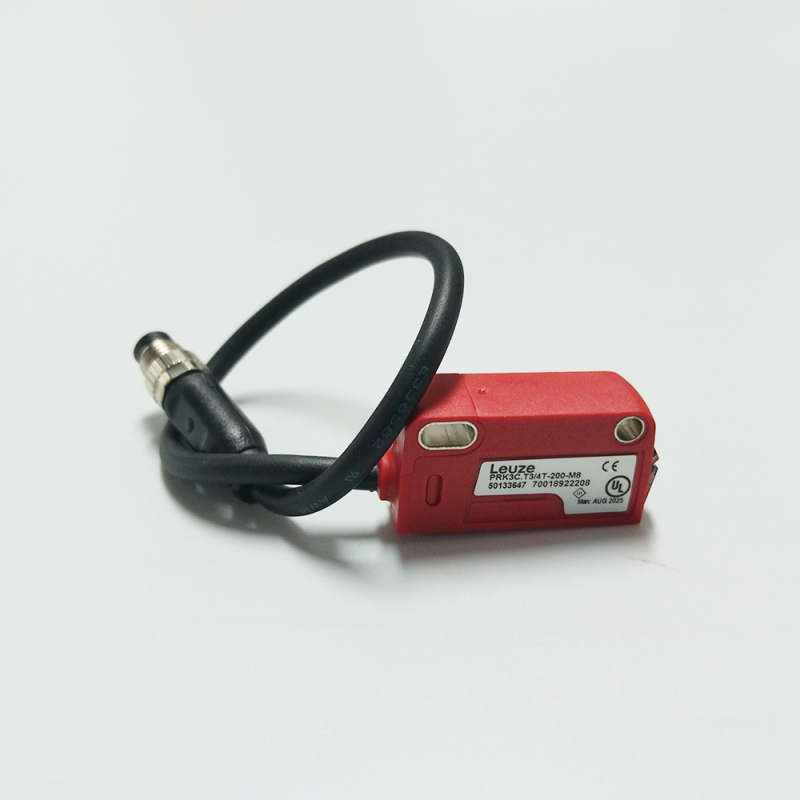

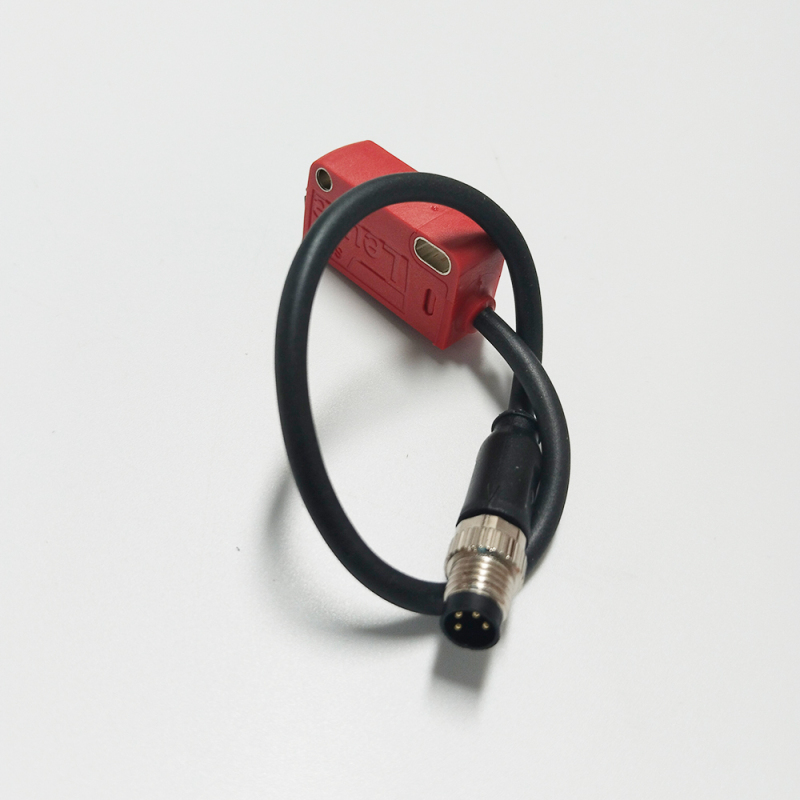

In Stock ! LEUZE Retro-reflective photoelectric sensors PRK3C.T3/4T-200-M8

Special version : Autocollimation
Operating range : 0 ... 3 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit : 0 ... 3.6 m (typical operating range), With reflector TK(S) 100x100
Light source : LED, Red
Wavelength : 635 nm
Transmitted-signal shape : Pulsed
LED group : Exempt group (in acc. with EN 62471)
Protective circuit : Polarity reversal protection
Short circuit protected
Supply voltage UB : 10 ... 30 V, DC, Incl. residual ripple
Residual ripple : 0 ... 15 %, From UB
Open-circuit current : 0 ... 15 mA
Number of teach inputs : 1 Piece(s)
Type : Teach input
Function : Keyboard lockout
Light/dark switching
Sensitivity adjustment
Number of digital switching outputs : 1 Piece(s)
Type : Digital switching output
Switching element : Transistor, PNP
Switching principle : Light switching
Switching frequency : 1,500 Hz
Response time : 0.33 ms
Readiness delay : 300 ms
Response jitter : 110 µs
Number of connections : 1 Piece(s)
Function : Signal IN
Signal OUT
Voltage supply
Type of connection : Cable with connector
Cable length : 200 mm
Sheathing material : PUR
Cable color : Black
Wire cross section : 0.2 mm²
Thread size : M8
Type : Male
Material : Metal
No. of pins : 4 -pin
Dimension (W x H x L) : 11.4 mm x 34.2 mm x 18.3 mm
Housing material : Plastic
Plastic housing : PC-ABS
Lens cover material : Plastic / PMMA
Net weight : 20 g
Housing color : Red

Retro-reflective photoelectric sensors
With reflection principle: Transmitter and receiver in the same housing, opposing reflector.

Standard models (LED and laser)
Reliable detection, even with reflective objects
Operating ranges up to 24 m
Highly accurate positioning through extremely small laser light spot

Optimized for transparent objects
Reliable detection of highly transparent objects
Operating ranges up to 6 m
Contamination compensation through integrated tracking

Optimized for reflective objects
Reliable detection of foil-wrapped, strongly scattering objects
Operating ranges up to 16 m
Sensitivity adjustable for the detection of transparent packages

Optimized for irregular objects, pallets and polybags
Continuous detection of perforated, irregular and flat objects
Operating ranges up to 4 m
Different sensitivity levels via teach button on the device
Minimum detection height from 3 mm
