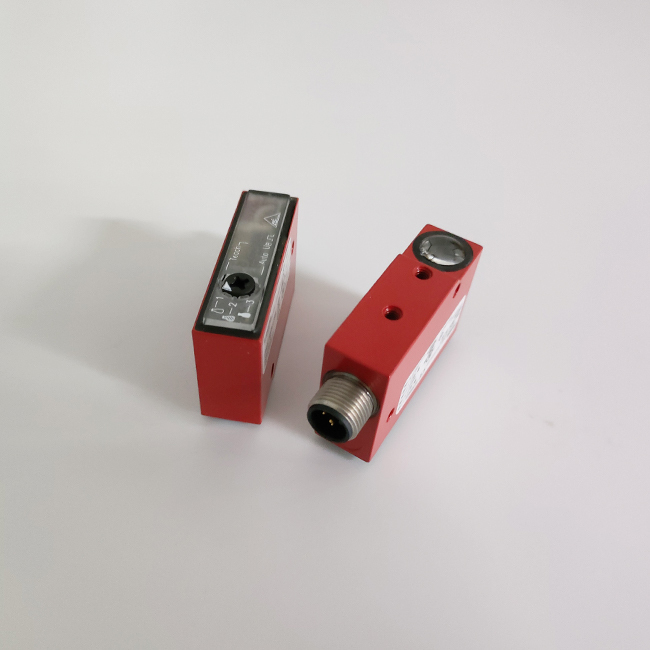

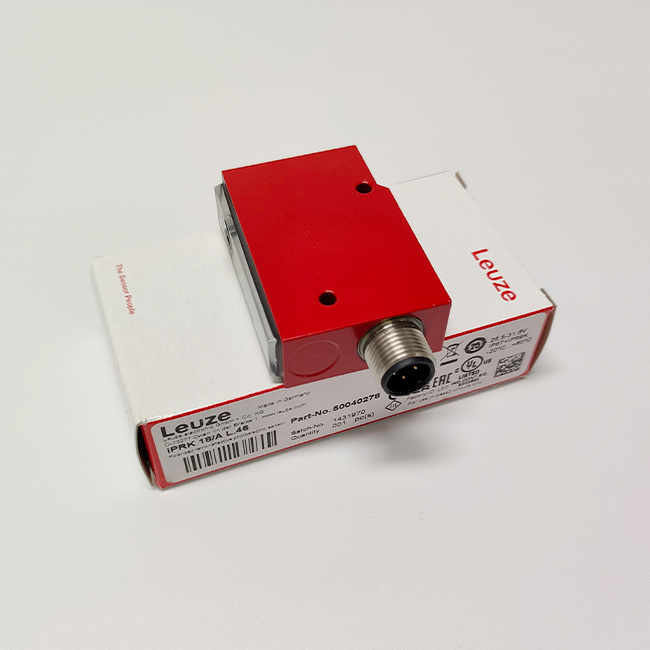

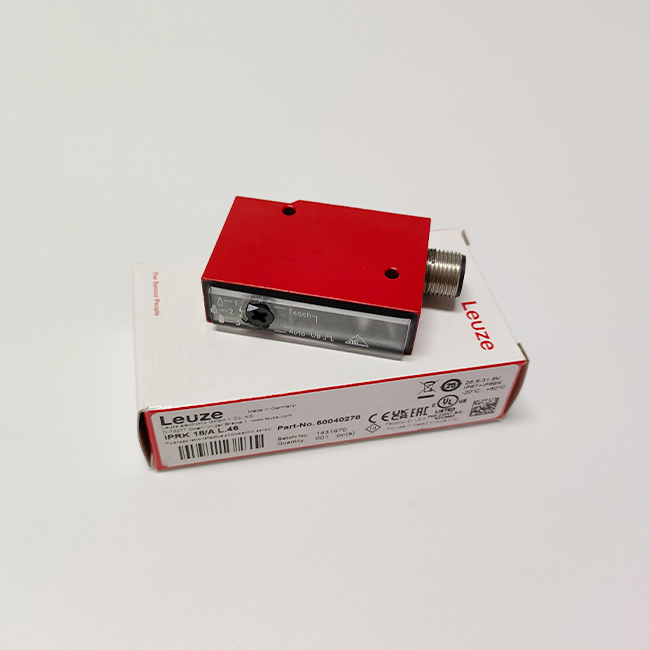

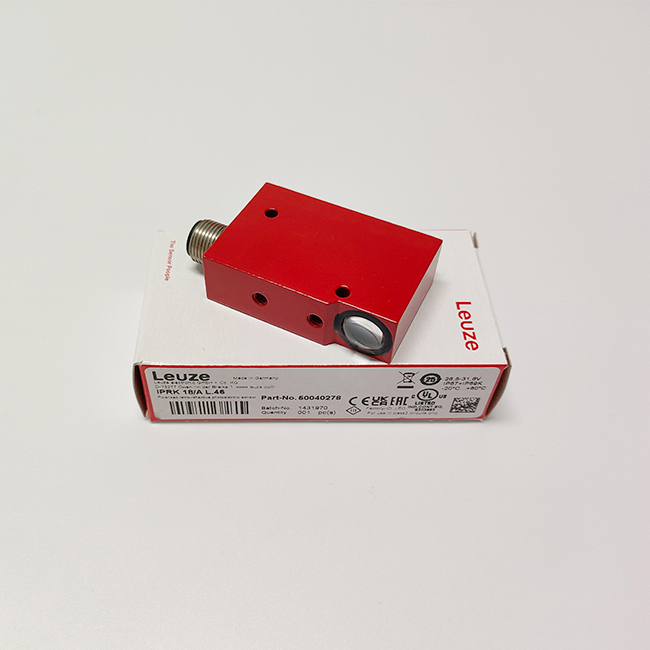

Polarized retro-reflective photoelectric sensor
Part no.: 50040278
Series : 18
Operating range : 0 ... 2.4 m (guaranteed operating range)
Operating range limit : 0 ... 3 m (typical operating range)
Light source : LED, Red
Wavelength : 660 nm
Transmitted-signal shape : Pulsed
LED group : 1
Type of light spot geometry : Round
Protective circuit : Polarity reversal protection
Short circuit protected
Supply voltage UB : 26.5 ... 31.6 V
Open-circuit current : 0 ... 35 mA
Number of L/D changeover inputs : 1 Piece(s)
Type : L/D switching
Switching frequency : 1,000 Hz
Response time : 0.5 ms
Readiness delay : 300 ms
Type : AS-Interface IO
Number of connections : 1 Piece(s)
Function : AS-i interface
Voltage supply
Type of connection : Connector
Thread size : M12
Type : Male
Material : Stainless steel
No. of pins : 5 -pin
Encoding : A-coded
Dimension (W x H x L) : 15 mm x 50 mm x 33 mm
Housing material : Metal
Metal housing : Zinc
Lens cover material : Glass
Net weight : 75 g
Housing color : Red
Type of fastening : Mounting thread
Through-hole mounting
Type of display : LED
Number of LEDs : 5 Piece(s)
Operational controls : Step switch
Ambient temperature, operation : -25 ... 55 °C
Ambient temperature, storage : -40 ... 70 °C
Degree of protection : IP 67 IP 69K
Retro-reflective photoelectric sensors
With reflection principle: Transmitter and receiver in the same housing, opposing reflector.
Standard models (LED and laser)
Reliable detection, even with reflective objects
Operating ranges up to 24 m
Highly accurate positioning through extremely small laser light spot
Optimized for transparent objects
Reliable detection of highly transparent objects
Operating ranges up to 6 m
Contamination compensation through integrated tracking
Optimized for reflective objects
Reliable detection of foil-wrapped, strongly scattering objects
Operating ranges up to 16 m
Sensitivity adjustable for the detection of transparent packages
Optimized for irregular objects, pallets and polybags
Continuous detection of perforated, irregular and flat objects
Operating ranges up to 4 m
Different sensitivity levels via teach button on the device
Minimum detection height from 3 mm
