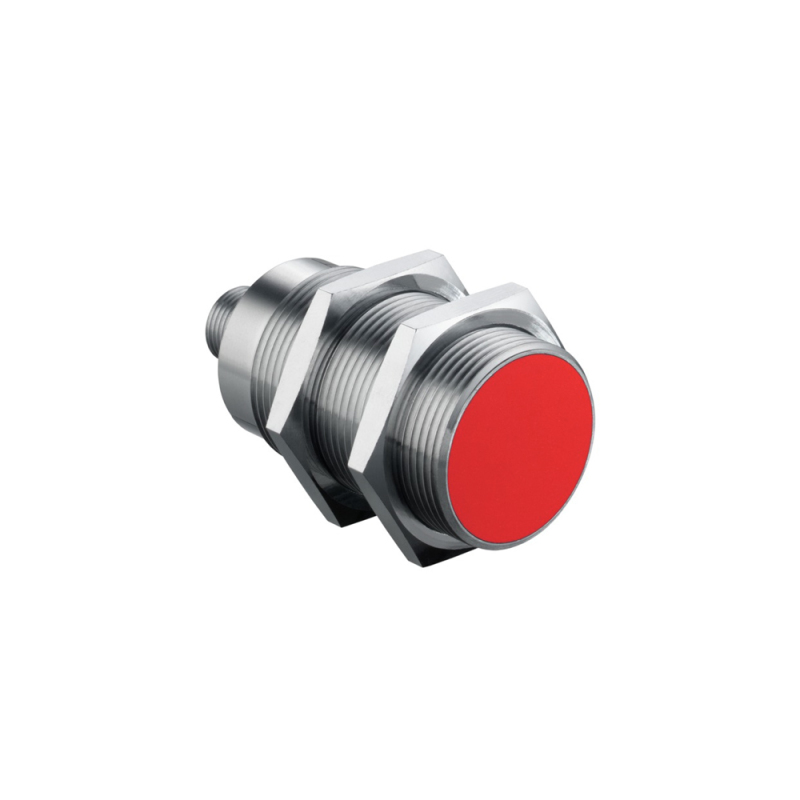

In Stock ! Leuze Inductive switch IS 130MM/4NO-16E-M12

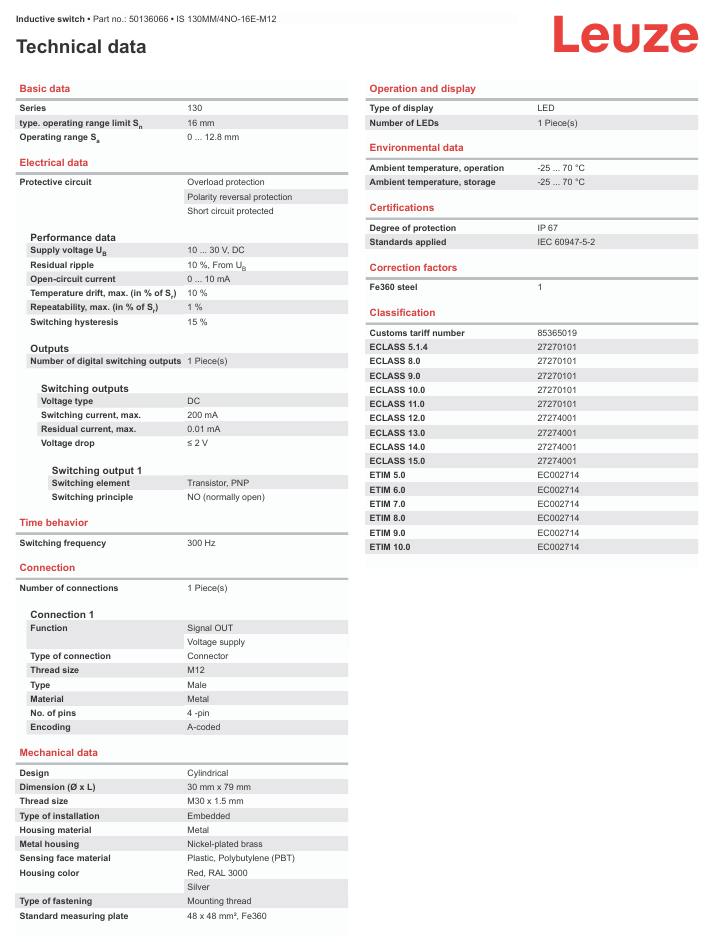

Features：

Series：130

type. operating range limit Sn：16 mm

Operating range Sa：0 ... 12.8 mm

Supply voltage UB：10 ... 30 V, DC

Residual ripple：10 %, From UB

Open-circuit current：0 ... 10 mA

Temperature drift, max. (in % of Sr)：10 %

Repeatability, max. (in % of Sr)：1 %

Switching hysteresis：15 %

Voltage type：DC

Switching current, max.：200 mA

Residual current, max.：0.01 mA

Voltage drop：≤ 2 V

Switching frequency：300 Hz

Design：Cylindrical

Dimension (Ø x L)：30 mm x 79 mm

Thread size：M30 x 1.5 mm

Type of installation：Embedded

Housing material：Metal

Metal housing：Nickel-plated brass

Sensing face material：Plastic, Polybutylene (PBT)

Net weight：153 g

Inductive switches

Inductive sensors are the industrial standard for the contactless detection of metallic objects.
The Leuze product range includes a wide variety of standard and special sensors that are available in many different designs and have already been tried and tested millions of times by our customers.
In particular our extremely robust all stainless steel sensors, sensors with extended switching distance or miniature sensors for extremely constrained spaces have again and again proven to be ideal for challenging applications.

Basic sensors

Extensive portfolio with cubic and cylindrical designs

Short and long designs

Sensors with basic performance

Standard sensors

Popular standard portfolio for a wide range of applications in all industries

Outstanding price-performance ratio

Up to 2x switching distance

Cylindric designs with external thread

UL-certified

Advanced sensors

Extensive portfolio with cubic and cylindrical designs

Short and normal designs

Sensors with high-end performance and UL certification

Up to 3x switching distance and antivalent sensors available

Special sensors

Sensors with an extra level of performance

All stainless steel sensors for extreme requirements

10-320V AC/DC 2-wire sensors
