| Brand | LEUZE |
| Date Code | 24+ |
| Packing | Box |
| Package | Sensor |
| Minimum Packing | 1pcs |

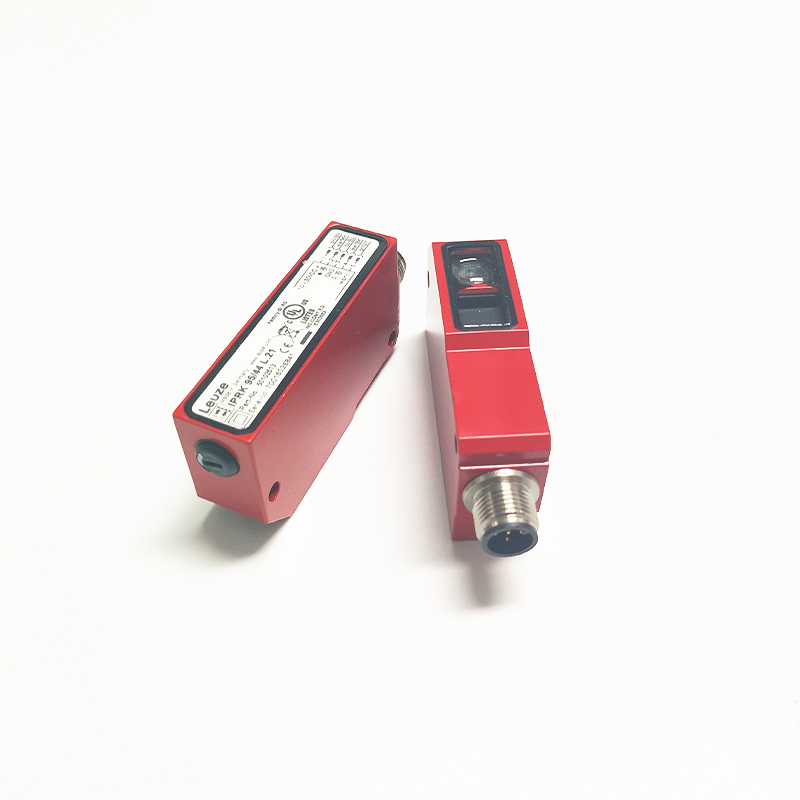

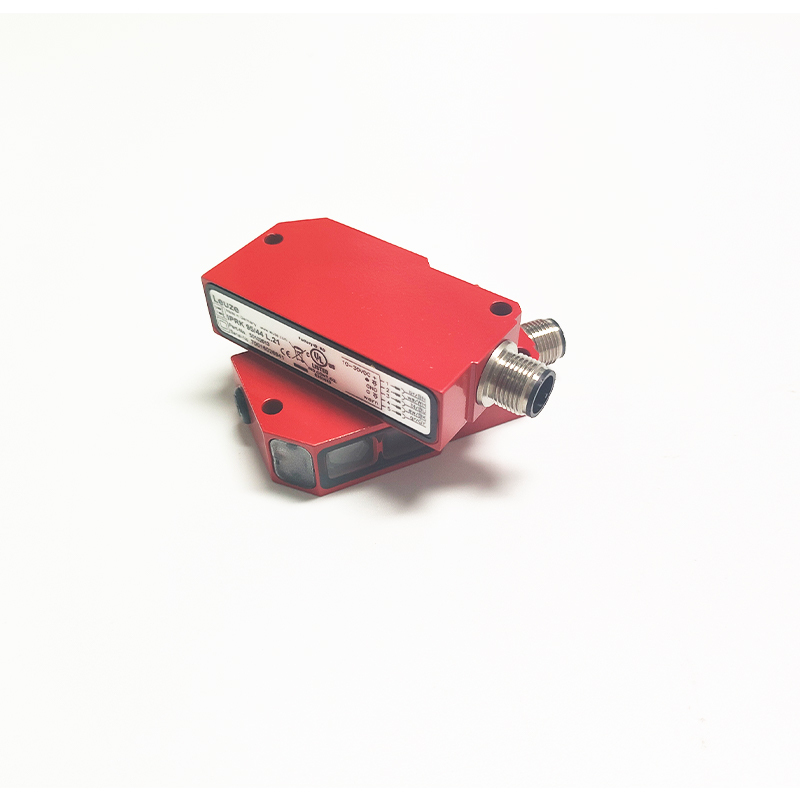

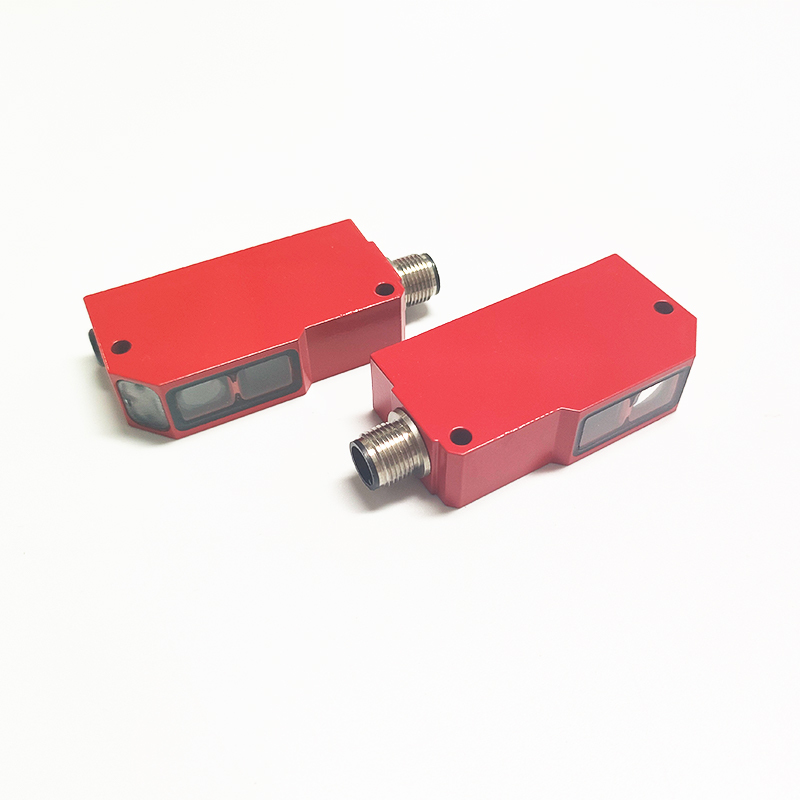

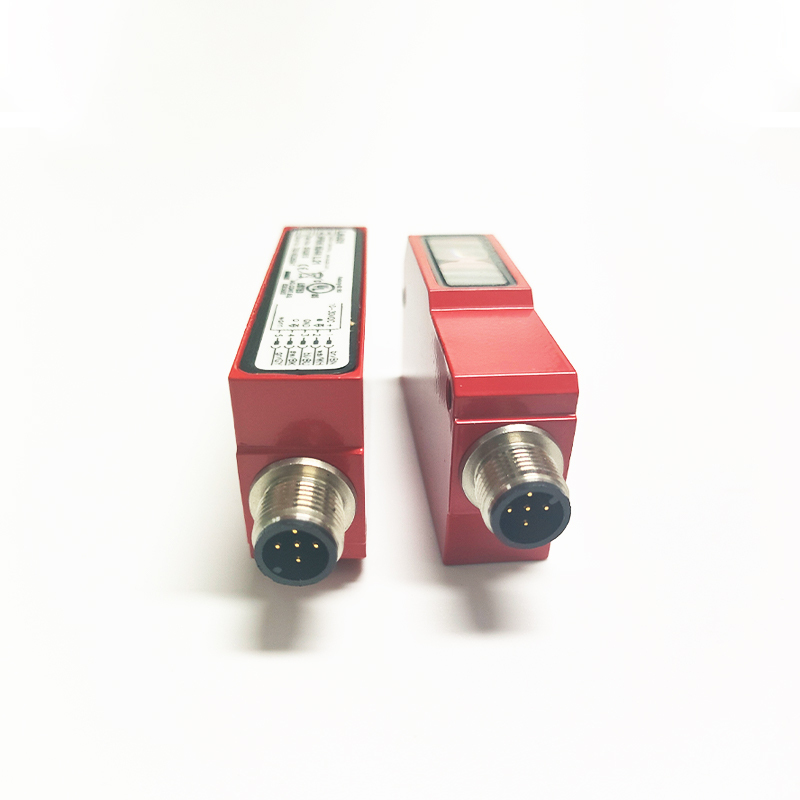

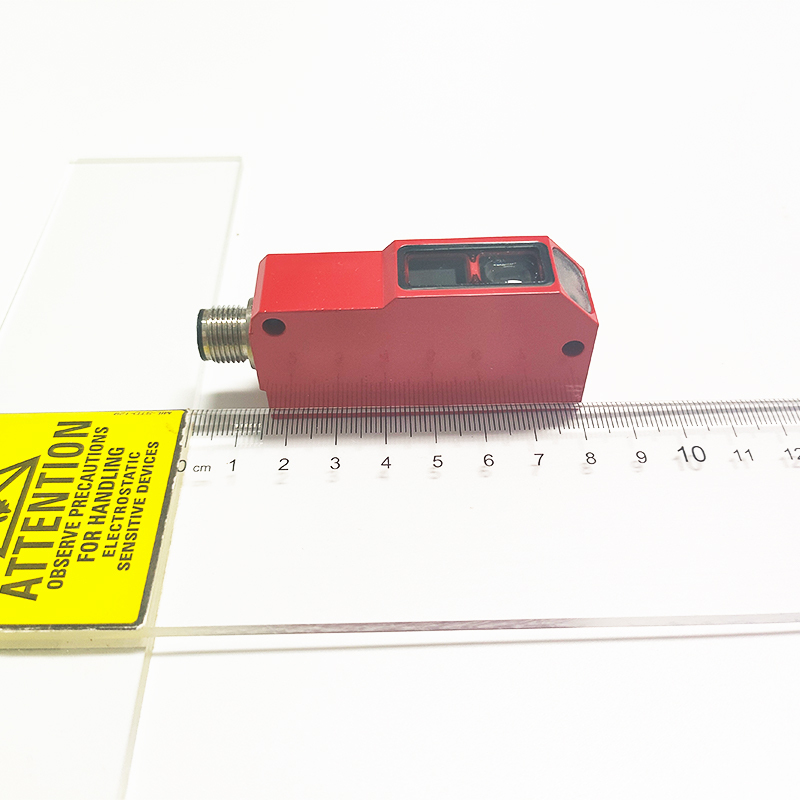

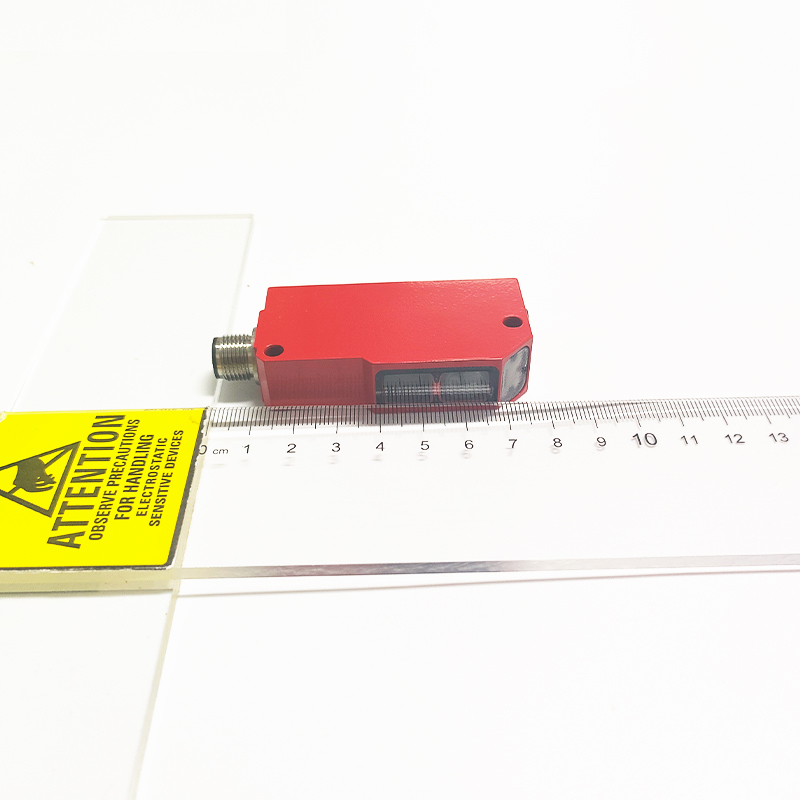

Part no.: 50102613

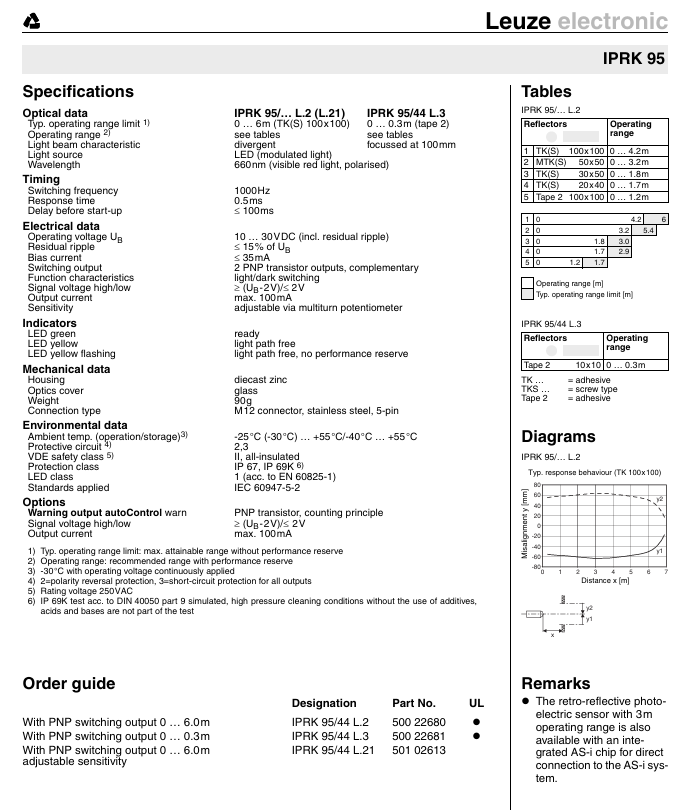

Features：
Operating range：0 ... 4.2 m
Operating range：Guaranteed operating range
Operating range limit：0 ... 6 m
Operating range limit：Typical operating range
Light source：LED, Red
Wavelength：660 nm
LED group：1
Type of light spot geometry：Round
Supply voltage UB：10 ... 30 V, DC
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 35 mA
Switching frequency：1,000 Hz
Response time：0.5 ms
Readiness delay：100 ms

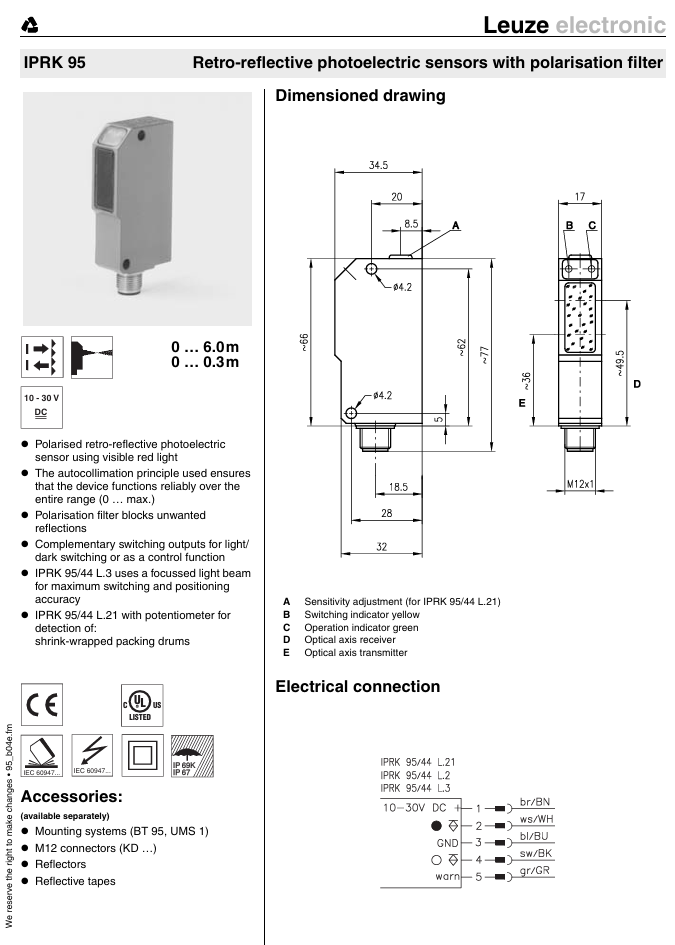

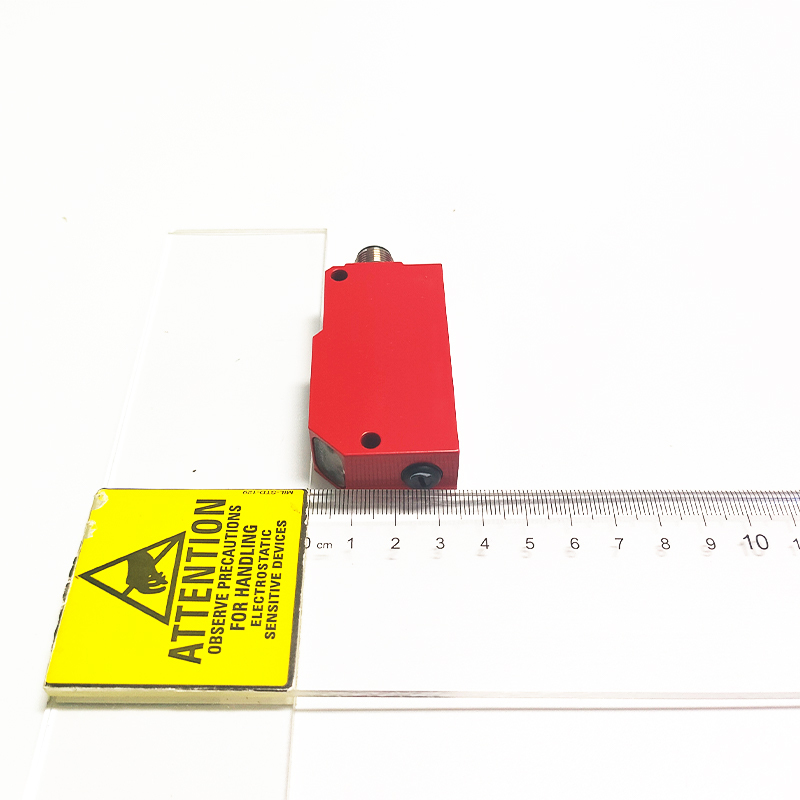

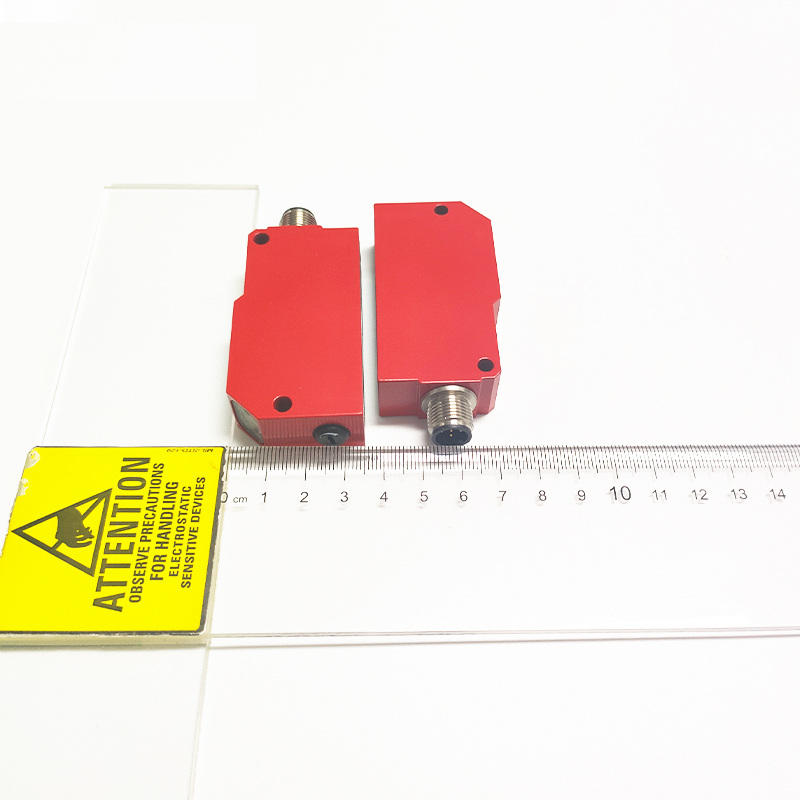

Dimension (W x H x L)：17 mm x 66 mm x 35 mm
Housing material：Metal
Metal housing：Zinc
Lens cover material：Glass
Net weight：90 g
Housing color：Red
Ambient temperature, operation：-25 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67
Protection class：II
Retro-reflective photoelectric sensors
With reflection principle: Transmitter and receiver in the same housing, opposing reflector.
Standard models (LED and laser)
Reliable detection, even with reflective objects
Operating ranges up to 24 m
Highly accurate positioning through extremely small laser light spot
Optimized for transparent objects
Reliable detection of highly transparent objects
Operating ranges up to 6 m
Contamination compensation through integrated tracking
Optimized for reflective objects
Reliable detection of foil-wrapped, strongly scattering objects
Operating ranges up to 16 m
Sensitivity adjustable for the detection of transparent packages
Optimiert für unregelmäßige Objekte, Paletten und Polybags
Continuous detection of perforated, irregular and flat objects
Operating ranges up to 4 m
Different sensitivity levels via teach button on the device
Minimum detection height from 3 mm
Similar Models:
IPRK 95/44 L.21 50102613 IPRK 95/44 L.5 50034512 PRK 95/44 L 50034511 PRK 95/4 L.2 50027993 IPRK 95/44 L.3 50022681 IPRK 95/44 L.2 50022680
