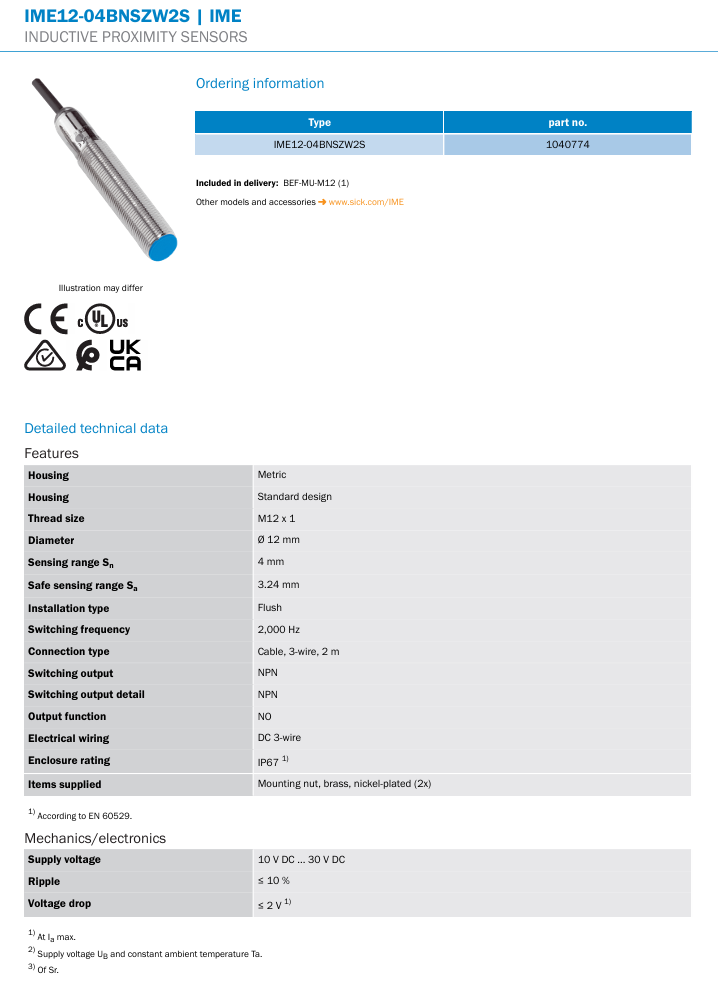

Housing：Metric
Housing：Standard design
Thread size：M12 x 1
Diameter：Ø 12 mm
Sensing range Sn：4 mm
Safe sensing range Sa：3.24 mm
Installation type：Flush
Switching frequency：2,000 Hz
Supply voltage：10 V DC ... 30 V DC
Ripple：≤ 10 %
Voltage drop：≤ 2 V 1)

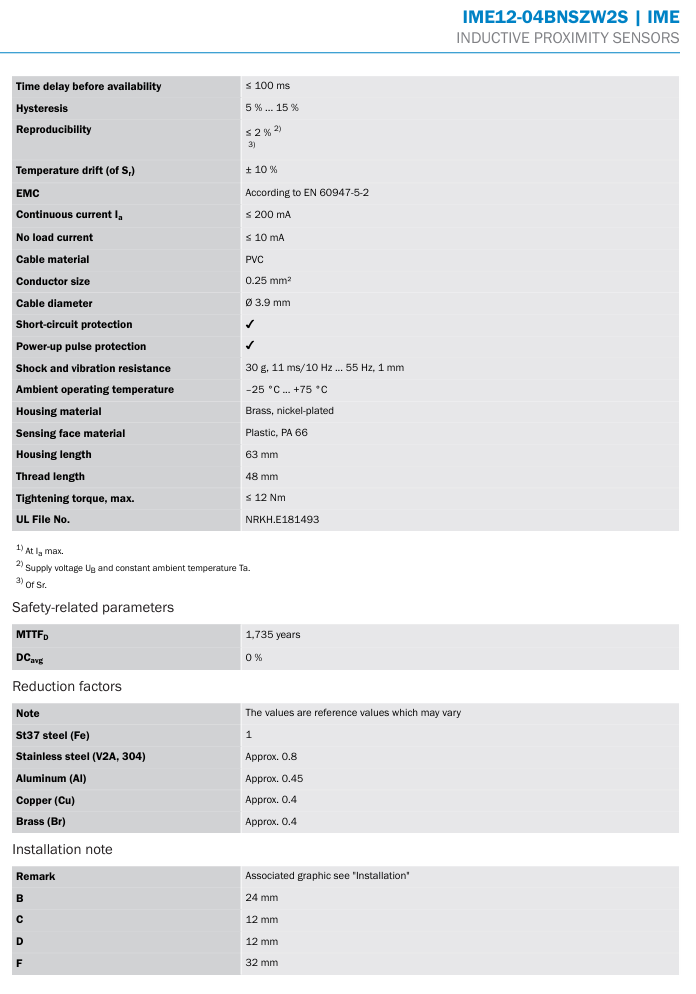

Time delay before availability：≤ 100 ms
Hysteresis：5 % ... 15 %
Reproducibility：≤ 2 %
Temperature drift (of Sr)：± 10 %
EMC：According to EN 60947-5-2
Continuous current Ia：≤ 200 mA
No load current：≤ 10 mA
Cable material：PVC
Conductor size：0.25 mm²
Cable diameter：Ø 3.9 mm
Shock and vibration resistance：30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature：–25 °C ... +75 °C
Housing material：Brass, nickel-plated
Sensing face material：Plastic, PA 66

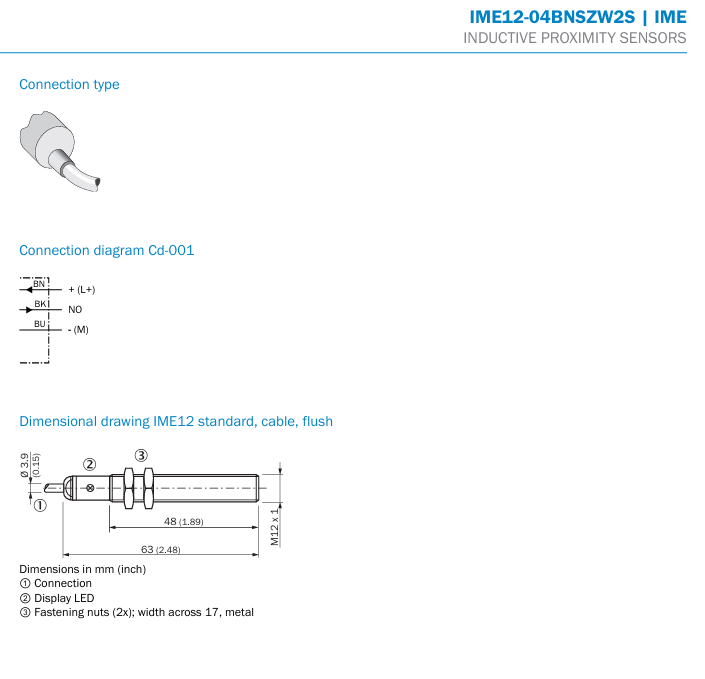

Housing length：63 mm
Thread length：48 mm
Tightening torque, max.：≤ 12 Nm

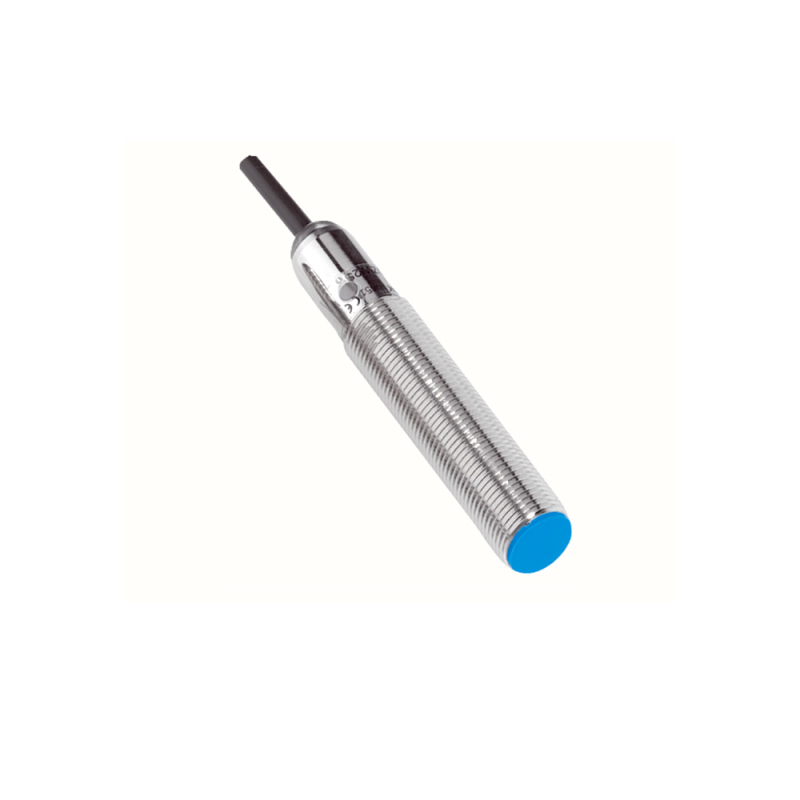

Inductive proximity sensors
IME
Inductive standard sensors for economical use in industrial environments
SICK’s inductive sensors offer precise detection, less downtime and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values – for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.
Benefits
High machine availability thanks to rugged design
Highly cost-efficient thanks to low purchase costs
Wide selection available thanks to extensive standard portfolio
High positioning accuracy thanks to precise switching behavior
Features
Types: M8 to M30
Extended sensing ranges: 1.5 mm to 38 mm
Electrical configuration: DC 3-/4-wire, DC 2-wire
Enclosure rating: IP67
Temperature range: –25 °C to +75 °C
Nickel-plated brass housing; plastic sensing face
