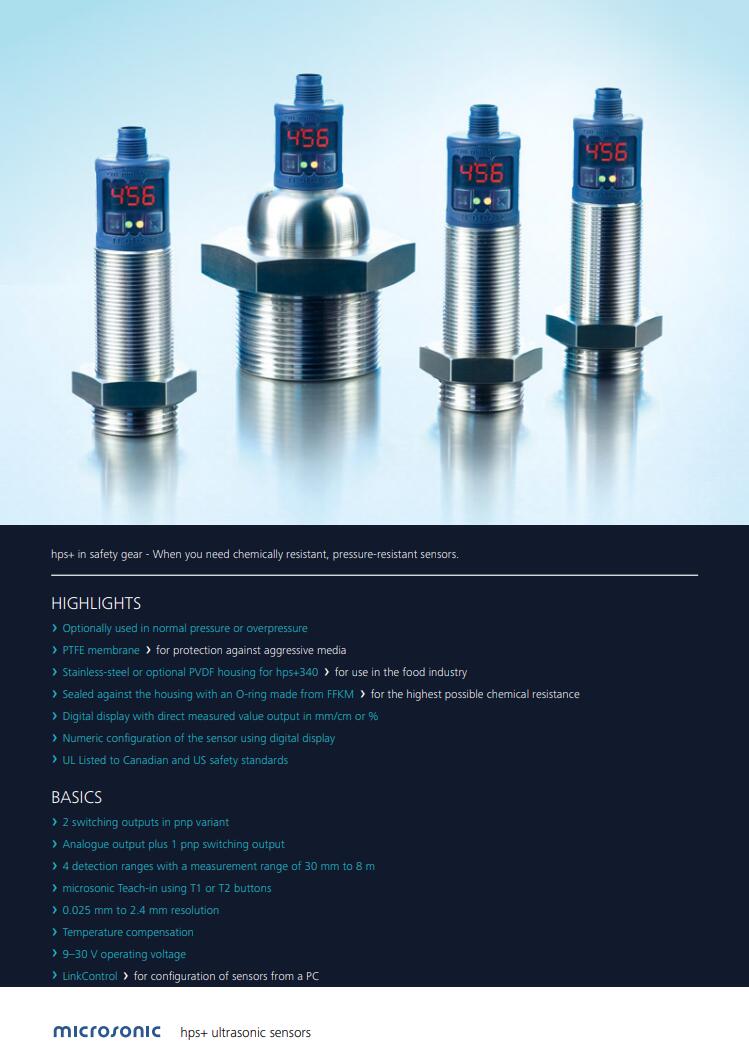

HighlightsOptionally used in normal pressure or overpressure
PTFE membrane for protection against aggressive media
Stainless-steel or optional PVDF housing for hps+340 for use in the food industry
Sealed against the housing with an O-ring made from FFKM for the highest possible chemical resistance
Digital display with direct measured value output in mm/cm or %
Numeric configuration of the sensor using digital display
UL Listed to Canadian and US safety standards
Basics2 switching outputs in pnp variant
Analogue output plus 1 pnp switching output
4 detection ranges with a measurement range of 30 mm to 8 m
microsonic Teach-in using T1 or T2 buttons
0.025 mm to 2.4 mm resolution
Temperature compensation
9–30 V operating voltage
LinkControl for configuration of sensors from a PC
Similar Models:hps+130/DIU/TC/E/G1 hps+25/DD/TC/E/G1 hps+25/DIU/TC/E/G1 hps+340/DD/TC/E/G2 hps+340/DD/TC/G2 hps+340/DIU/TC/E/G2 hps+340/DIU/TC/G2 hps+35/DD/TC/E/G1 hps+35/DIU/TC/E/G1 crm+130/D/TC/E crm+130/DD/TC/E crm+130/IU/TC/E crm+25/D/TC/E crm+25/DD/TC/E crm+25/IU/TC/E crm+340/D/TC/E crm+340/DD/TC/E crm+340/IU/TC/E crm+35/D/TC/E crm+35/DD/TC/E crm+35/IU/TC/E crm+600/D/TC/E crm+600/DD/TC/E crm+600/IU/TC/E ucs-15/CDD/QM ucs-15/CEE/QM ucs-24/CDD/QM ucs-24/CEE/QM
