| Brand | SICK |
| Date Code | 21+ |
| Packing | Box |
| Package | SWITCH |
| Minimum Packing | 1pcs |

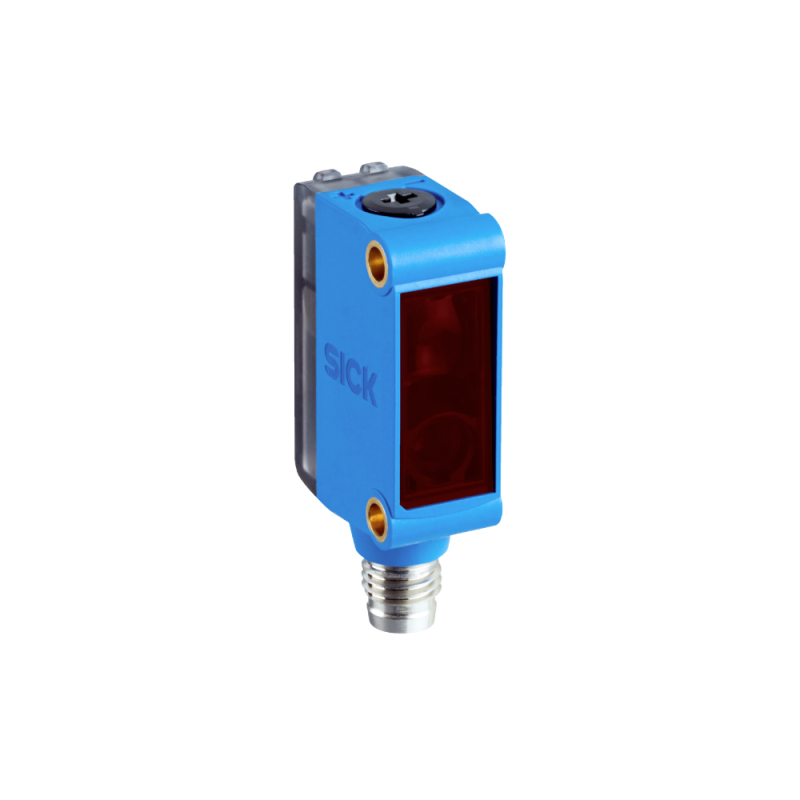

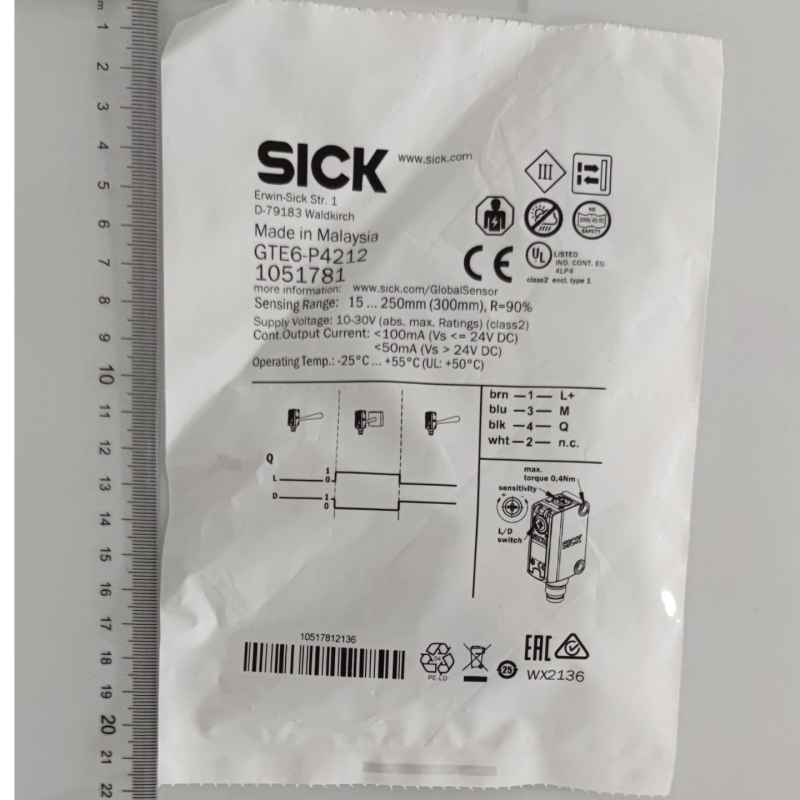

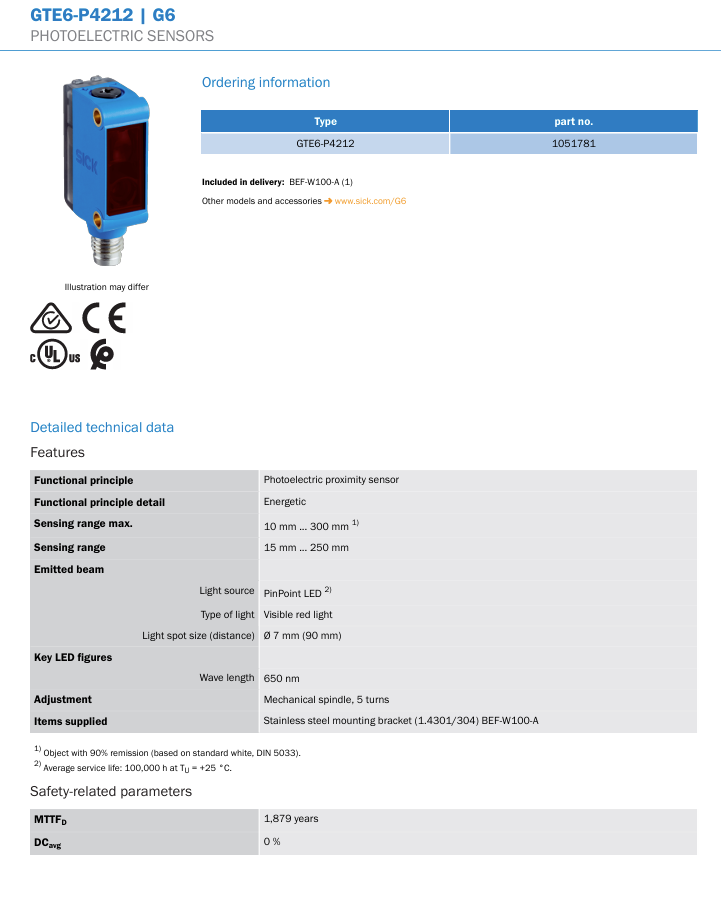

Part no.: 1051781
Features：
Functional principle：Photoelectric proximity sensor
Functional principle detail：Energetic

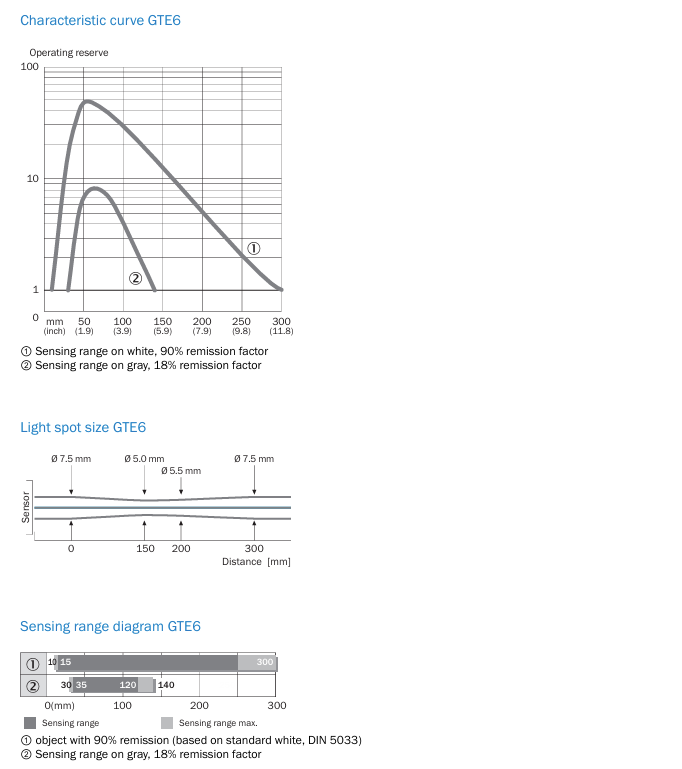

Sensing range max.：10 mm ... 300 mm
Sensing range：15 mm ... 250 mm
Emitted beam：
Light source：PinPoint LED
Type of light：Visible red light
Light spot size (distance)：Ø 7 mm (90 mm)
Key LED figures：
Wave length：650 nm
Adjustment：Mechanical spindle, 5 turns

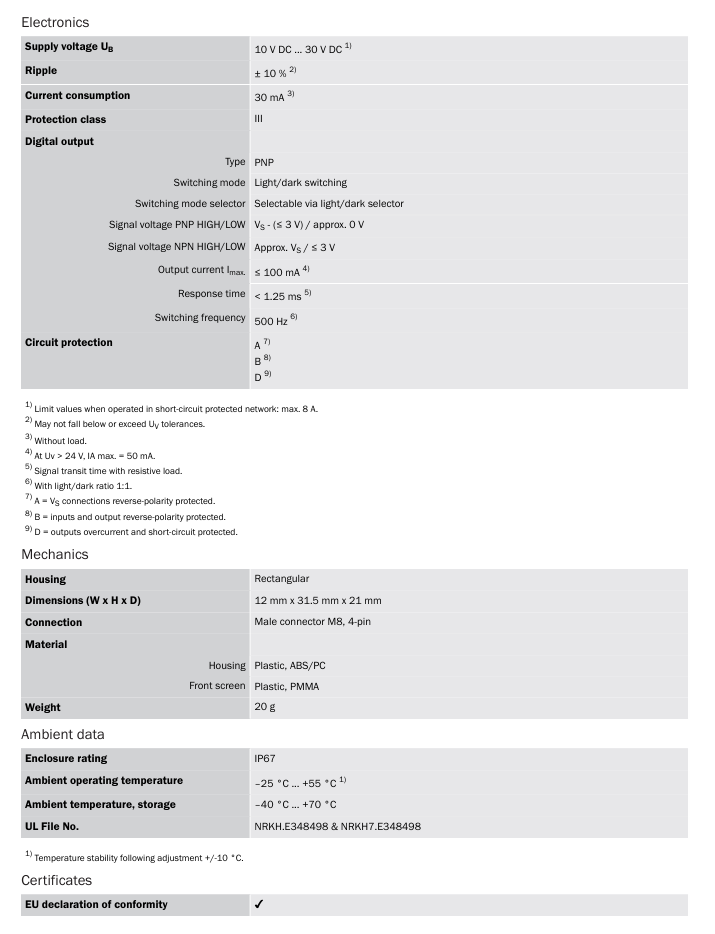

Supply voltage UB：10 V DC ... 30 V DC
Ripple：± 10 %
Current consumption：30 mA
Protection class：III
Digital output：
Type：PNP
Switching mode：Light/dark switching
Switching mode selector：Selectable via light/dark selector
Signal voltage PNP HIGH/LOW：VS - (≤ 3 V) / approx. 0 V
Signal voltage NPN HIGH/LOW：Approx. VS / ≤ 3 V
Output current Imax.：≤ 100 mA
Response time：< 1.25 ms
Switching frequency：500 Hz
Housing：Rectangular

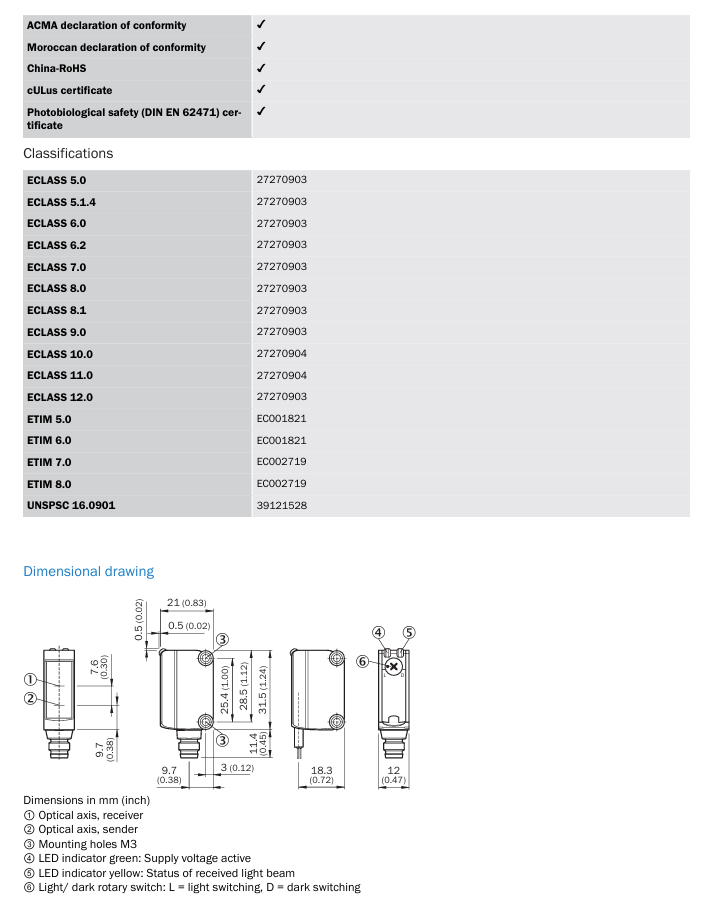

Dimensions (W x H x D)：12 mm x 31.5 mm x 21 mm

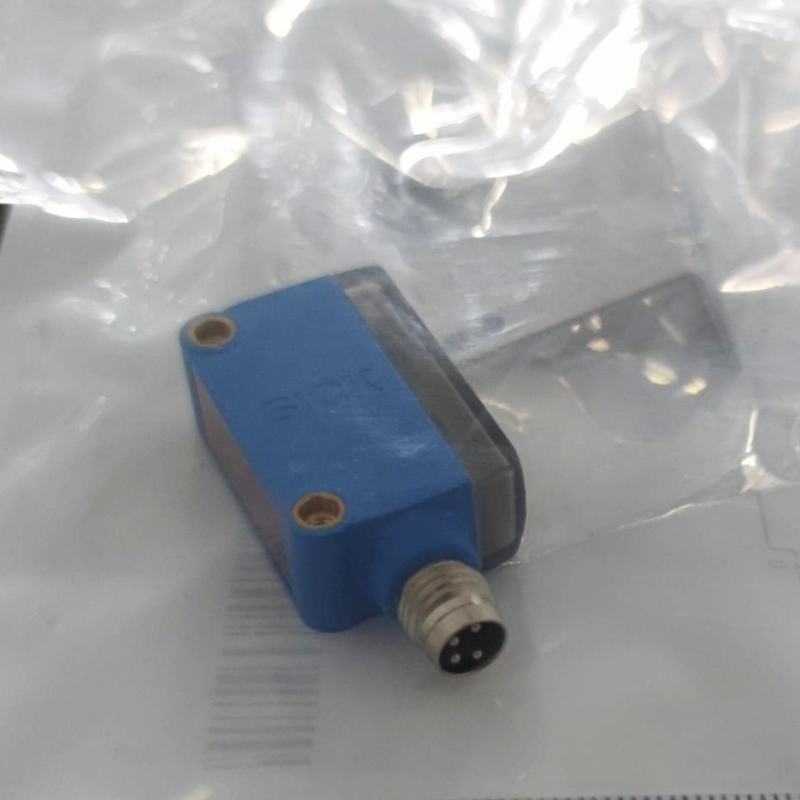

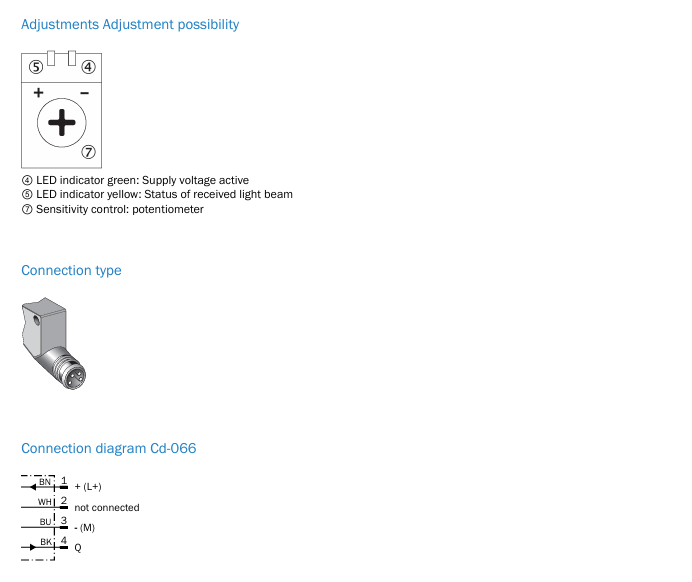

Connection：Male connector M8, 4-pin
Enclosure rating：IP67
Ambient operating temperature：–25 °C ... +55 °C
Ambient temperature, storage：–40 °C ... +70 °C
Photoelectric sensors
G6Way above the standard – the economic way to business class
The photoelectric sensors in the G6 product family with their miniature housings will impress you across the board with both their standard mounting configuration of 1-inch spaced holes and also their functional characteristics. The variants with a stainless steel 1.4404 (316L) housing are especially resistant to chemicals and cleaning agents in washdown applications. With PinPoint LED and laser technology, metal inserts for mounting, large and bright indicator LEDs, user-friendly adjustment screws, IP67 and IP69K enclosure ratings, as well as the very latest ASIC technology from SICK, the G6 series far exceeds the current standard.
