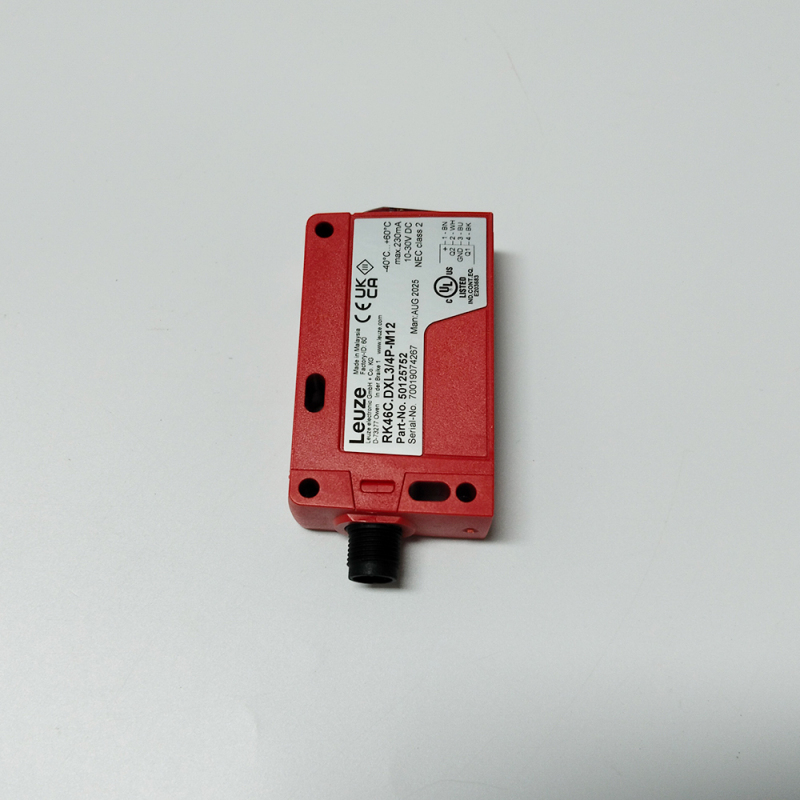

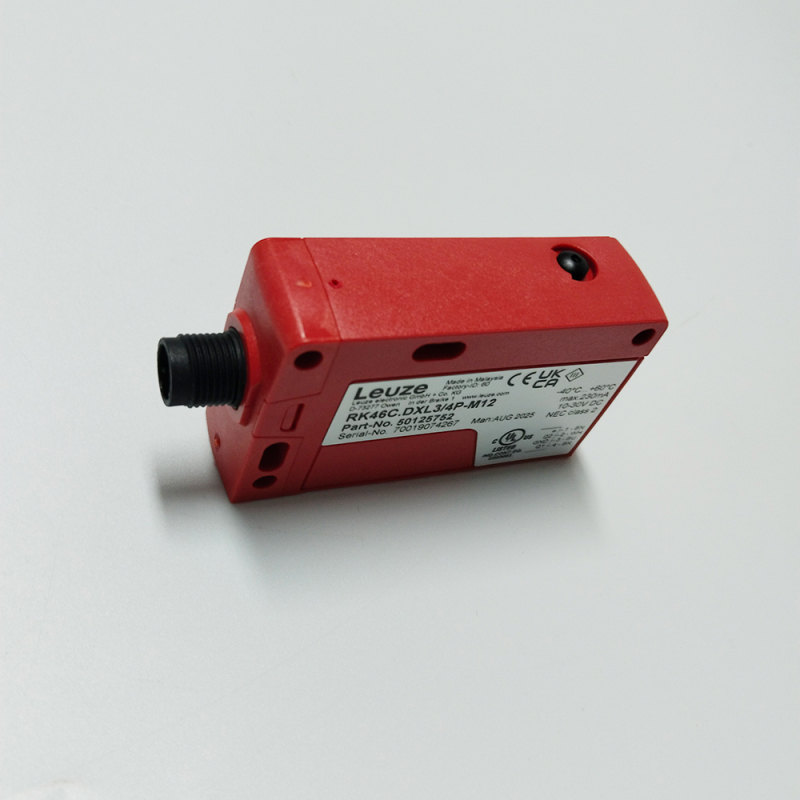

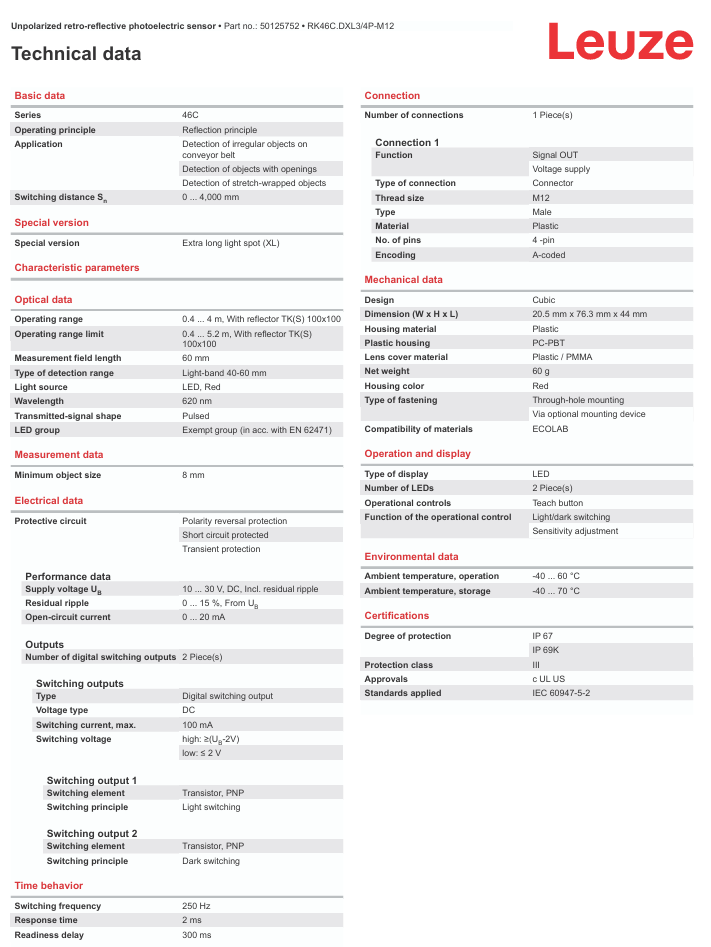

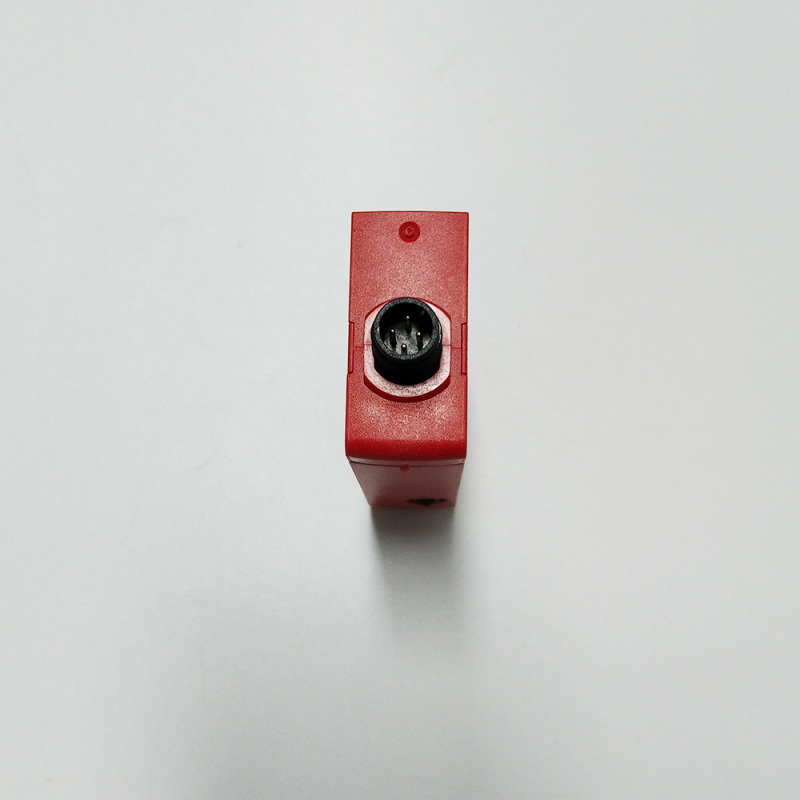

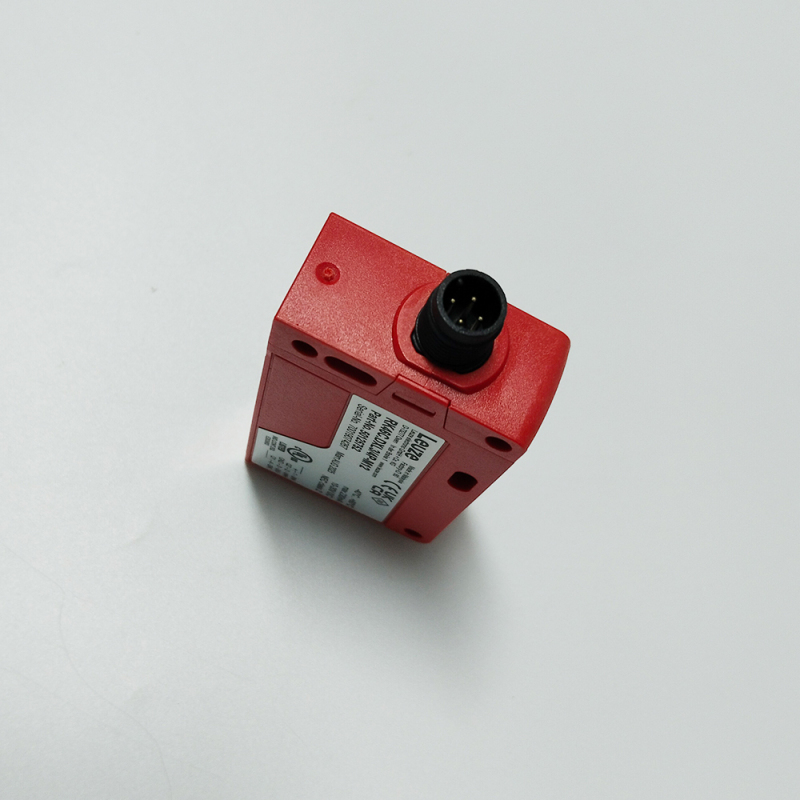

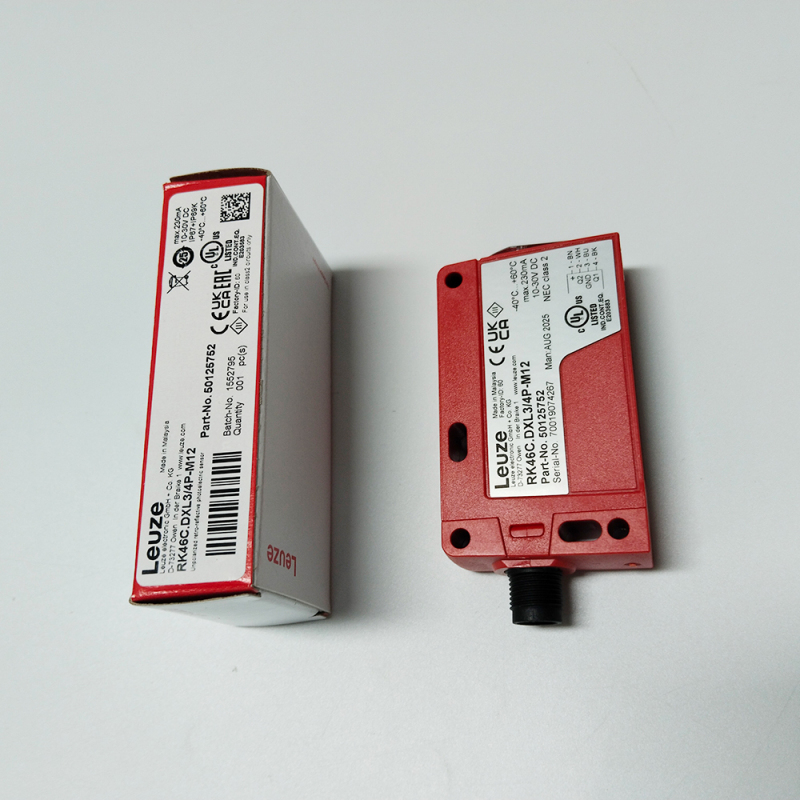

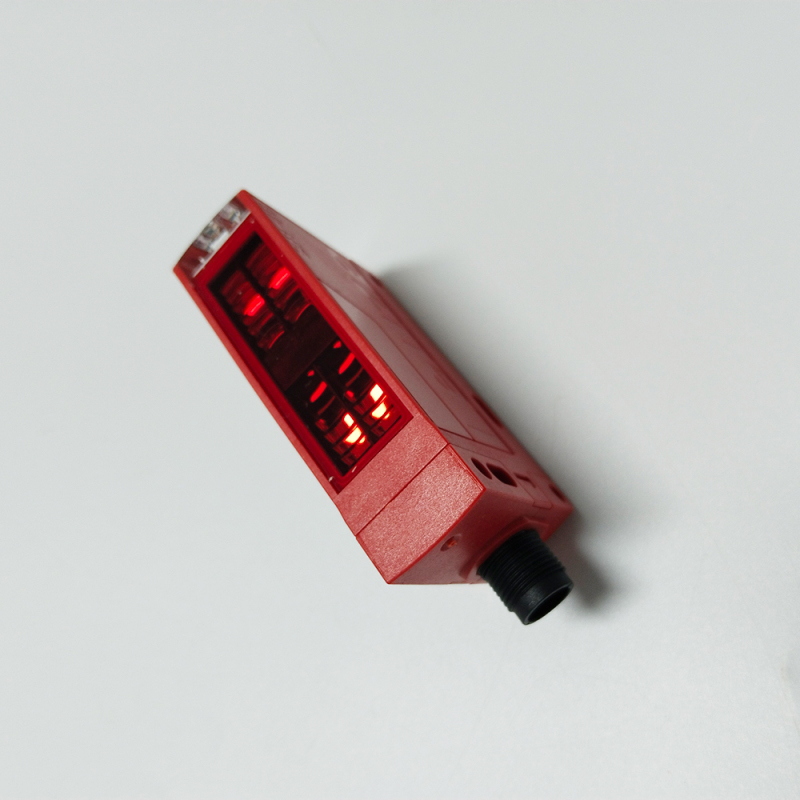

Unpolarized retro-reflective photoelectric sensor
Series：46C
Operating principle：Reflection principle
Switching distance Sn：0 ... 4,000 mm
Operating range：0.4 ... 4 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit：0.4 ... 5.2 m (typical operating range), With reflector TK(S) 100x100
Measurement field length：60 mm
Type of detection range：Light-band 40-60 mm
Light source：LED, Red
Wavelength：620 nm
Minimum object size：8 mm
Switching current, max.：100 mA
Switching voltage：high: ≥(UB-2V)
low: ≤ 2 V
Switching frequency：250 Hz
Response time：2 ms
Readiness delay：300 ms
Design：Cubic

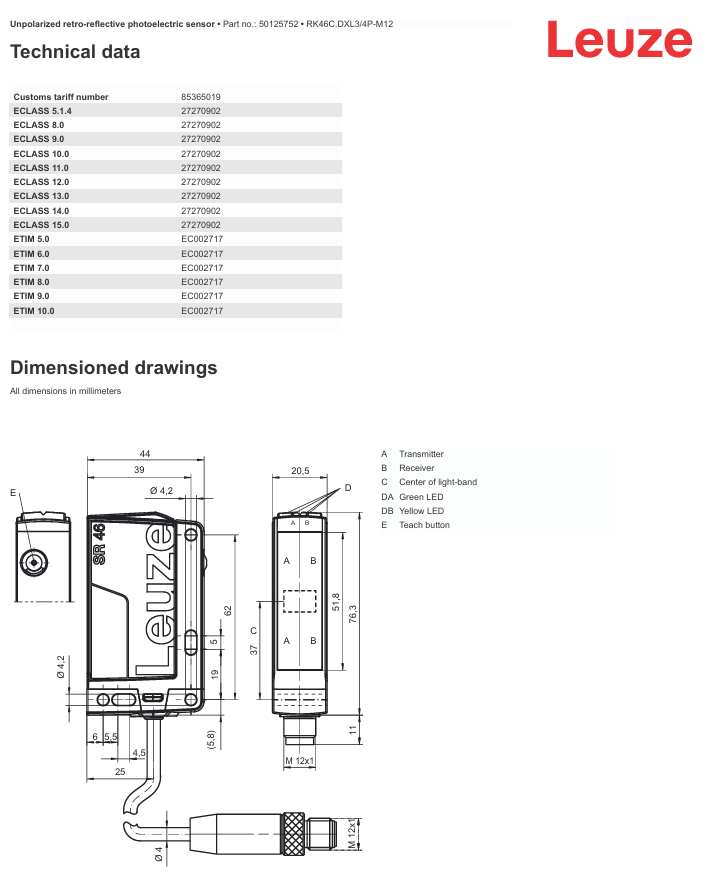

Dimension (W x H x L)：20.5 mm x 76.3 mm x 44 mm
Housing material：Plastic
Plastic housing：PC-PBT
Lens cover material：Plastic / PMMA
Net weight：60 g
Housing color：Red
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 / IP 69K
Protection class：III
Light curtains
Switching light curtains are perfect for monitoring large measurement fields. They react as soon as anything or anyone penetrates this field. Their fast configuration and simple handling save time and money compared to imaging processes. Thanks to different beam spacings and measurement field lengths, switching light curtains can be used to solve a range of application problems.
Narrow design
Space-saving housing, just 10 mm wide.
Beam spacings between 5 and 100 mm
5 m operating range and measurement field lengths up to 3100 mm
Standard design
4 configurable inputs/outputs and IO-Link interface
Response time of just 30 μs for very fast processes
Lateral housing groove enables very flexible mounting
Reflection principle
Reflection principle with operating range up to 700 mm
Detection of small objects (e.g., 10 x 10 x 1 mm) at up to 3.5 m/s
Readjustment when soiled, warning output for prefailure messages
