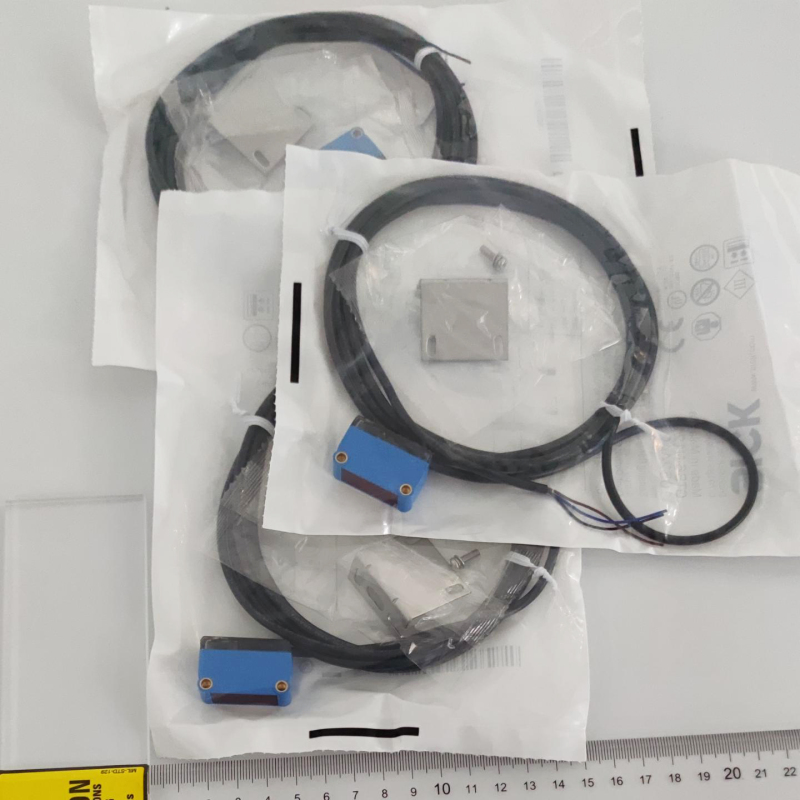

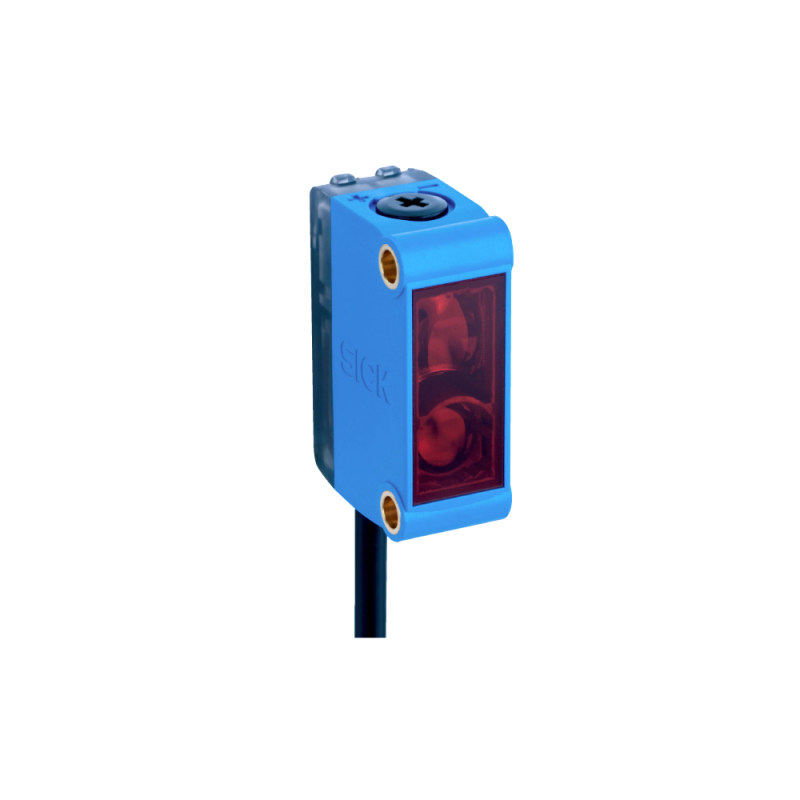

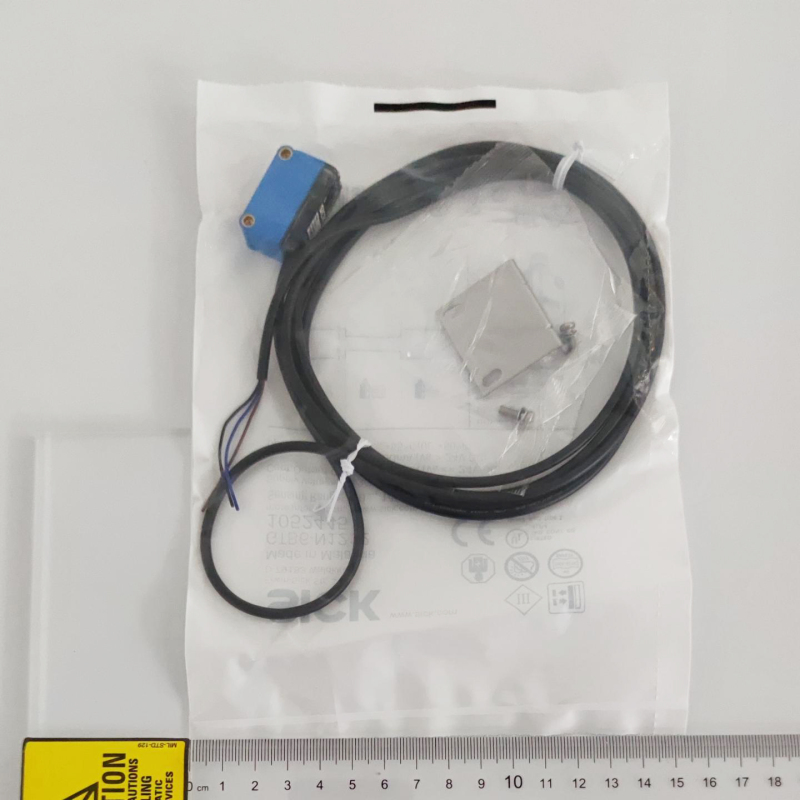

In Stock ! SICK Photoelectric sensors GTB6-N1212

Brand SICK
Date Code 2301/2241/2401/2352/2405
Packing Bag
Package Sensor
Minimum Packing 1pcs
$0.00 $13.40
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $10.00 OFF ON ORDERS OVER $100.00
Quantity
-
+
0 In Stock ; Ship In 48 Hours
  • SICK Photoelectric sensors GTB6-N1212
  • SICK Photoelectric sensors GTB6-N1212
  • SICK Photoelectric sensors GTB6-N1212
  • SICK Photoelectric sensors GTB6-N1212
  • SICK Photoelectric sensors GTB6-N1212
  • SICK Photoelectric sensors GTB6-N1212
1/1
  • SICK Photoelectric sensors GTB6-N1212
  • SICK Photoelectric sensors GTB6-N1212
  • SICK Photoelectric sensors GTB6-N1212
  • Description

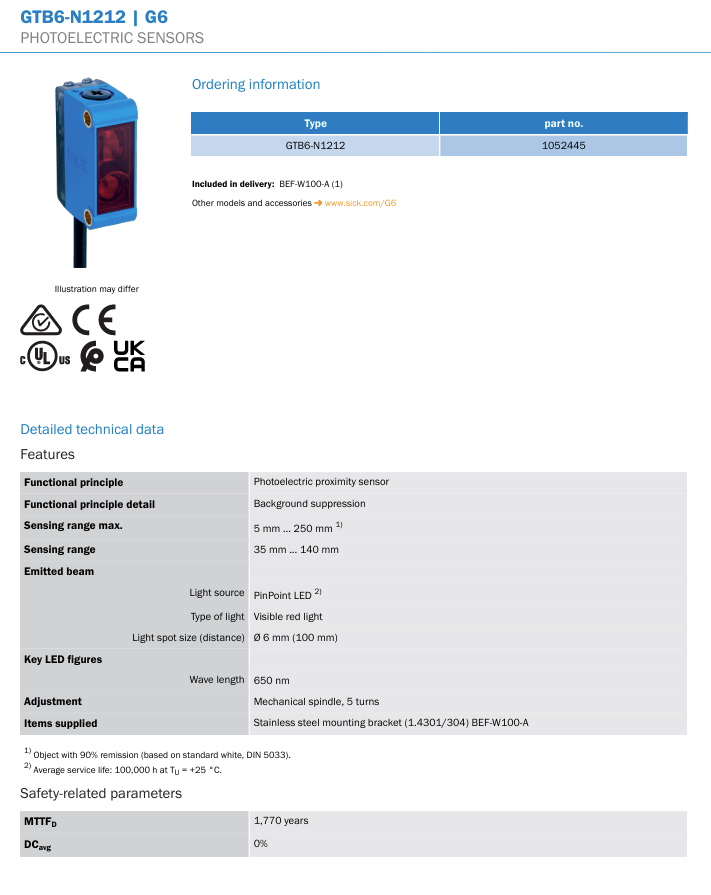

Part no.: 1052445



Features:

Functional principle:Photoelectric proximity sensor

Functional principle detail:Background suppression

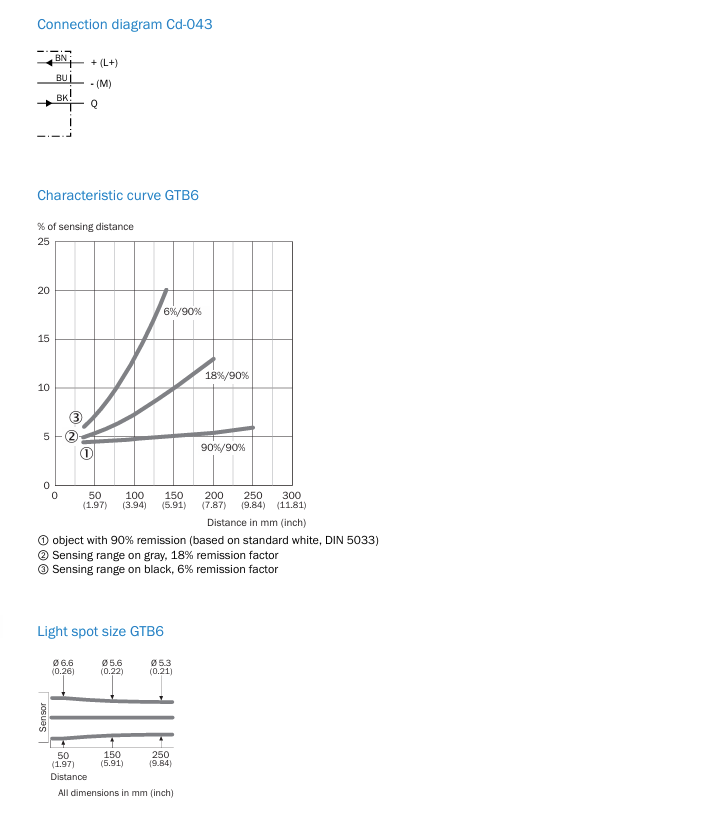

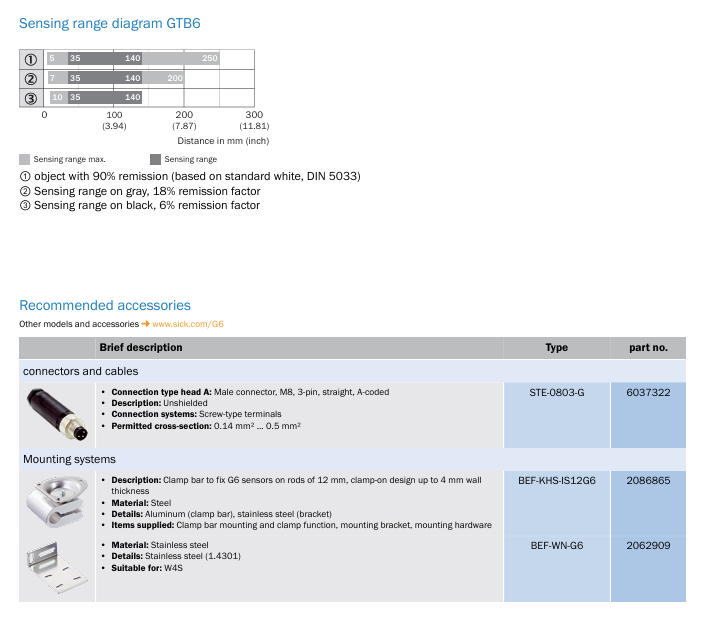

Sensing range max.:5 mm ... 250 mm

Sensing range:35 mm ... 140 mm

Emitted beam:

Light source:PinPoint LED

Type of light:Visible red light

Light spot size (distance):Ø 6 mm (100 mm)

Key LED figures:

Wave length:650 nm

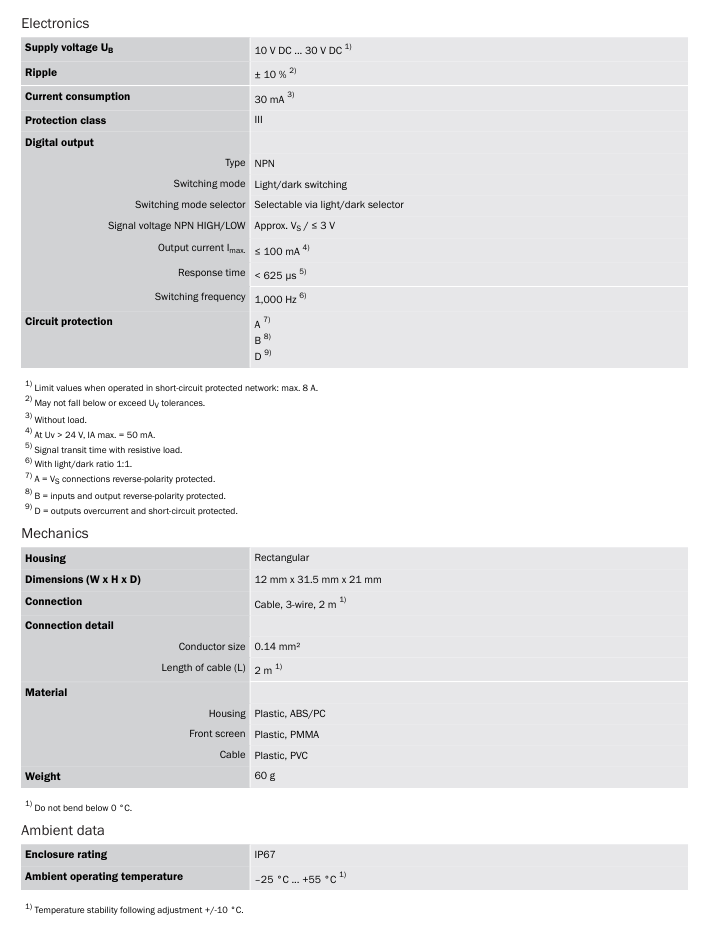

Supply voltage UB:10 V DC ... 30 V DC

Ripple:± 10 %

Current consumption:30 mA

Protection class:III

Housing:Rectangular

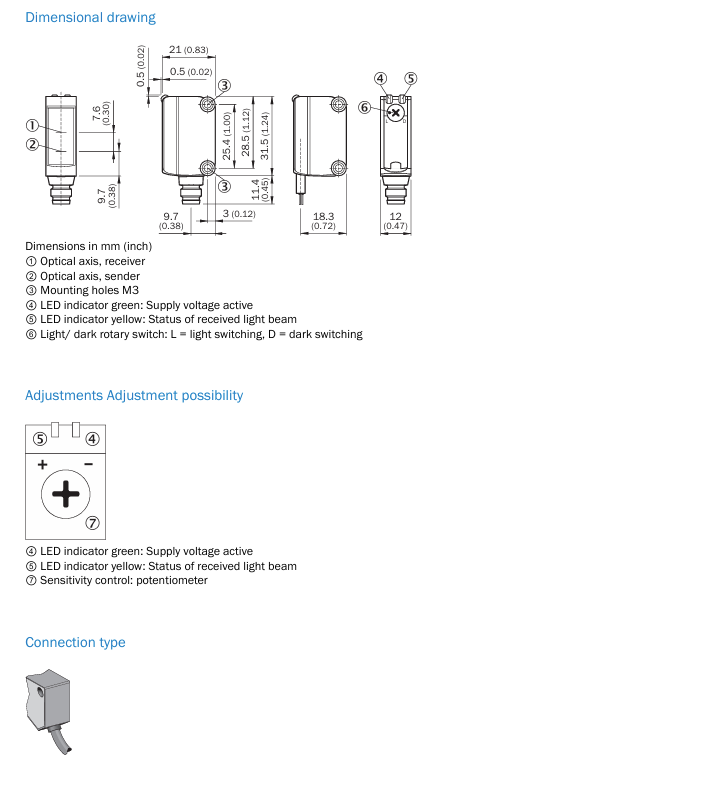

Dimensions (W x H x D):12 mm x 31.5 mm x 21 mm

Connection:Cable, 3-wire, 2 m

Connection detail:

Conductor size:0.14 mm²

Length of cable (L):2 m

Weight:60 g

Enclosure rating:IP67

Ambient operating temperature:–25 °C ... +55 °C

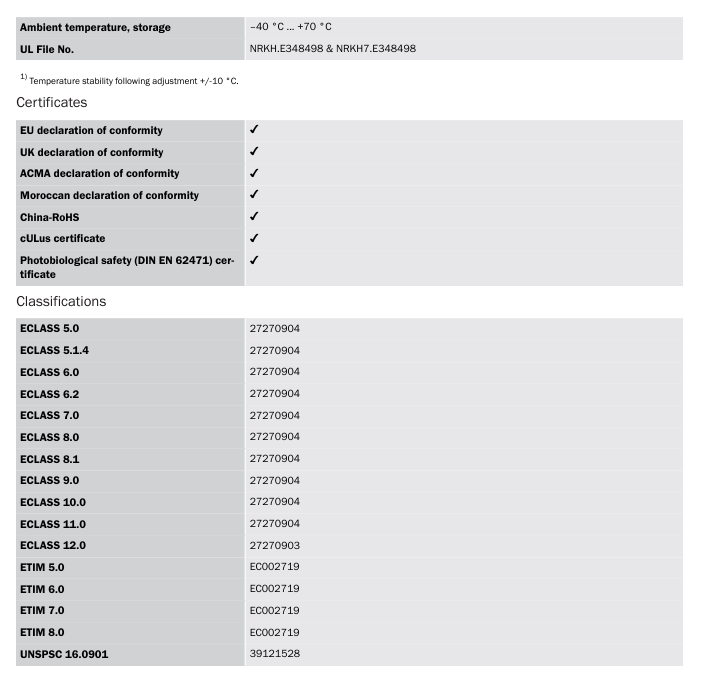

Ambient temperature, storage:–40 °C ... +70 °C



Photoelectric sensors

G6Way above the standard – the economic way to business class

The photoelectric sensors in the G6 product family with their miniature housings will impress you across the board with both their standard mounting configuration of 1-inch spaced holes and also their functional characteristics. The variants with a stainless steel 1.4404 (316L) housing are especially resistant to chemicals and cleaning agents in washdown applications. With PinPoint LED and laser technology, metal inserts for mounting, large and bright indicator LEDs, user-friendly adjustment screws, IP67 and IP69K enclosure ratings, as well as the very latest ASIC technology from SICK, the G6 series far exceeds the current standard.





Similar models:

GTB6-F7411V 1084096 GTB6-P0211S50 1070574 GTB6-P5211 1059333 GTB6-P5211S78 1093698 GTB6-P0211S52 1073737 GTB6-P0211S54 1075587 GTB6-P0211S55 1075662 GTB6-P0211S60 1081533 GTB6-P3211   1084646 GTB6-F4211 1101441 GTB6-F4411V 1084092 GTB6-P4211 1052438 GTB6-P4211S66 1086856 GTB6-P4211S83 1096868 GTB6-P4212 1052442 GTB6-F2411V 1084088 GTB6-P6211 1059320 GTB6-P1211 1052440 GTB6-P1212 1052444 GTB6-P0211S74 1089252 GTB6-P0211S57 1077853 GTB6-N1211S44 1068476 GTB6-P3431V 1097497 GTB6-E2431V 1084443 GTB6-N1231 1077714 GTB6-P0231S68 1087744 GTB6-F7431V 1094259 GTB6-F4431V 1086172

GTB6-P4231 1079712 GTB6-P0231S79 1095116 GTB6-P0231S100 1117156 GTB6-P1231 1074135 GTB6-P5441S73 1088429 GTB6-P3441 1080971 GTB6-P4441 1082824 GTB6-P6441 1087334 GTB6-P1441S46 1069066 GTB6-N5241 1097461 GTB6-N1241 1082905 GTB6-P4241 1082863 GTB6-P1241 1097680 GTB6-P0041S103 1118025 GTB6-P7441S56 1077541 GTB6-F7441S76 1090968 GTB6-F7441S82 1096774 GTB6-P5441 1081388
