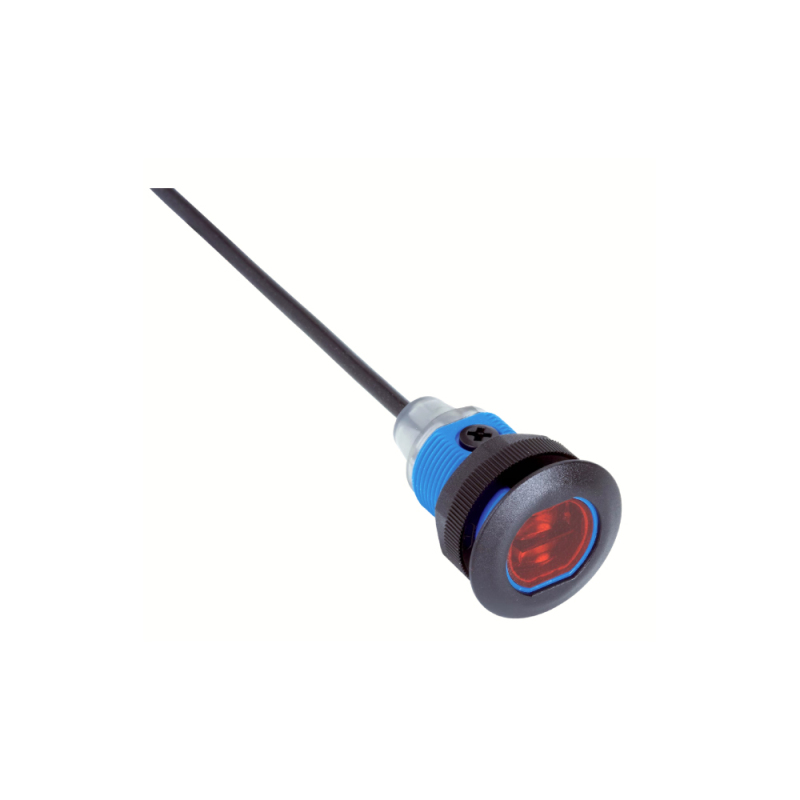

In Stock ! SICK Photoelectric sensors GRL18SG-P1137

Part no.: 1066421

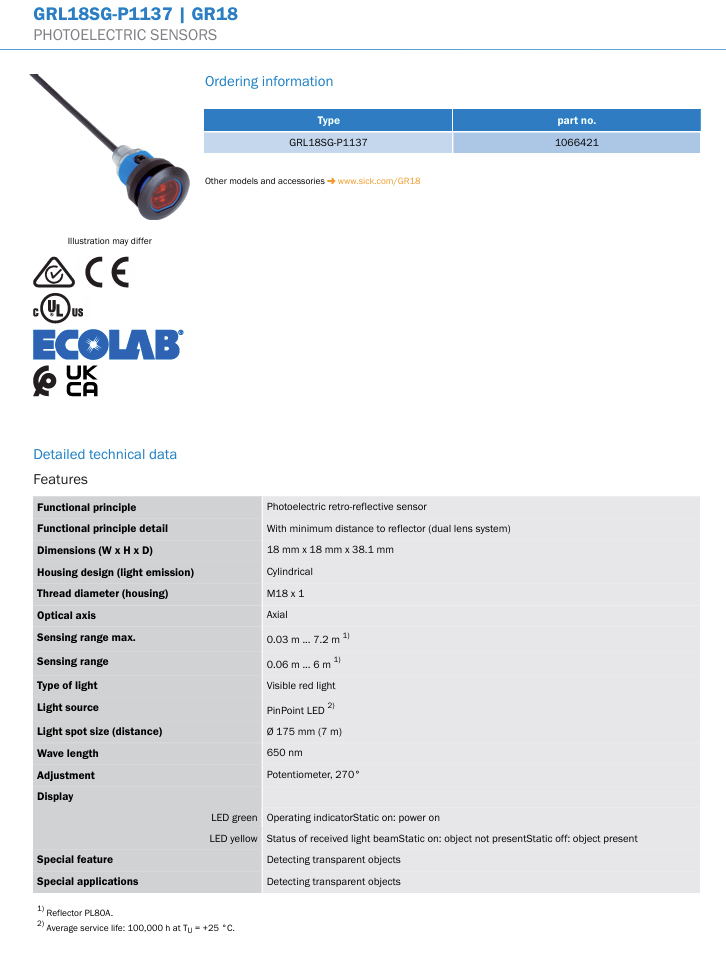

Features：

Functional principle：Photoelectric retro-reflective sensor

Functional principle detail：With minimum distance to reflector (dual lens system)

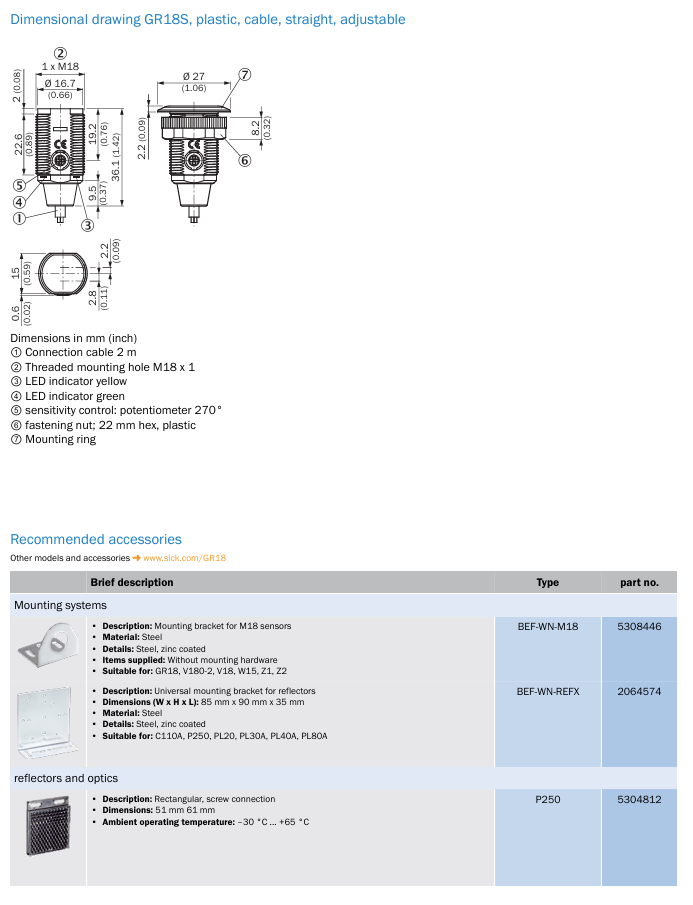

Dimensions (W x H x D)：18 mm x 18 mm x 38.1 mm

Housing design (light emission)：Cylindrical

Thread diameter (housing)：M18 x 1

Optical axis：Axial

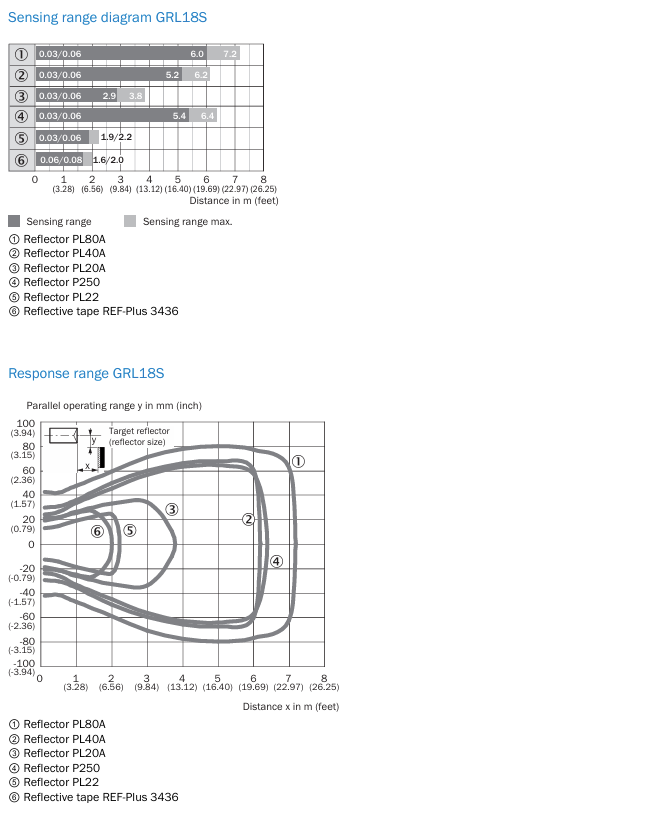

Sensing range max.：0.03 m ... 7.2 m

Sensing range：0.06 m ... 6 m

Type of light：Visible red light

Light source：PinPoint LED

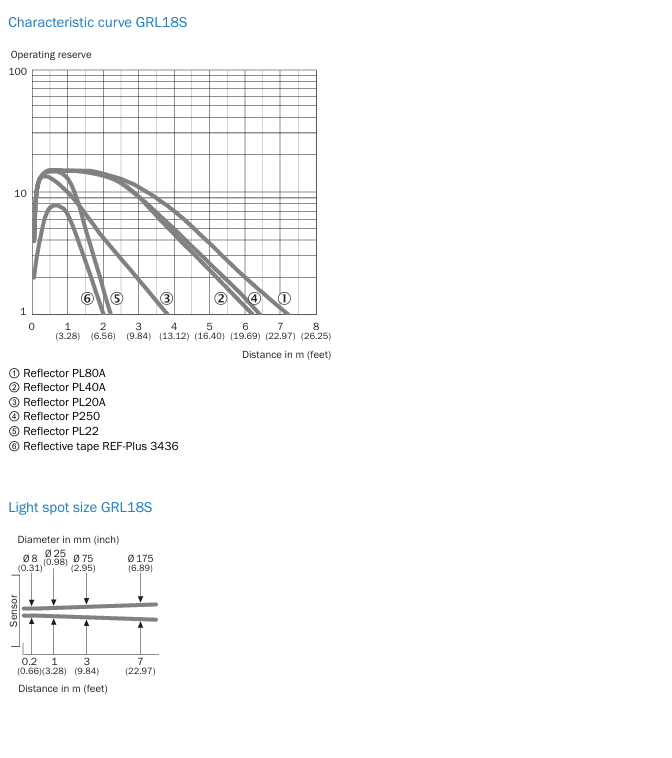

Light spot size (distance)：Ø 175 mm (7 m)

Wave length：650 nm

Adjustment：Potentiometer, 270°

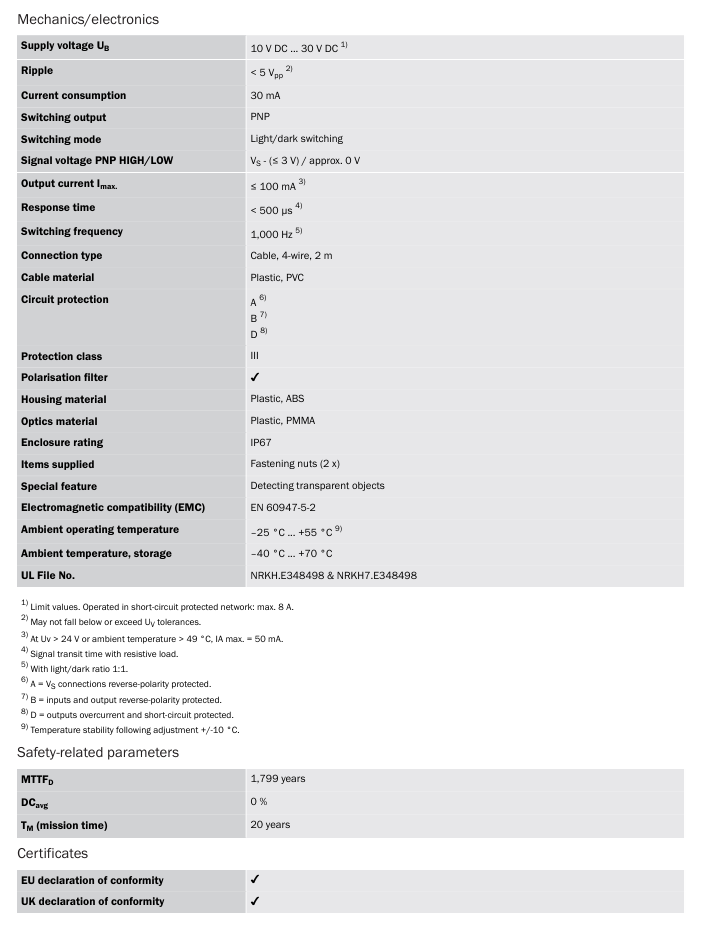

Supply voltage UB：10 V DC ... 30 V DC

Ripple：< 5 Vpp

Current consumption：30 mA

Switching output：PNP

Switching mode：Light/dark switching

Signal voltage PNP HIGH/LOW：VS - (≤ 3 V) / approx. 0 V

Output current Imax.：≤ 100 mA

Response time：< 500 µs

Switching frequency：1,000 Hz

Enclosure rating：IP67

Ambient operating temperature：–25 °C ... +55 °C

Ambient temperature, storage：–40 °C ... +70 °C
