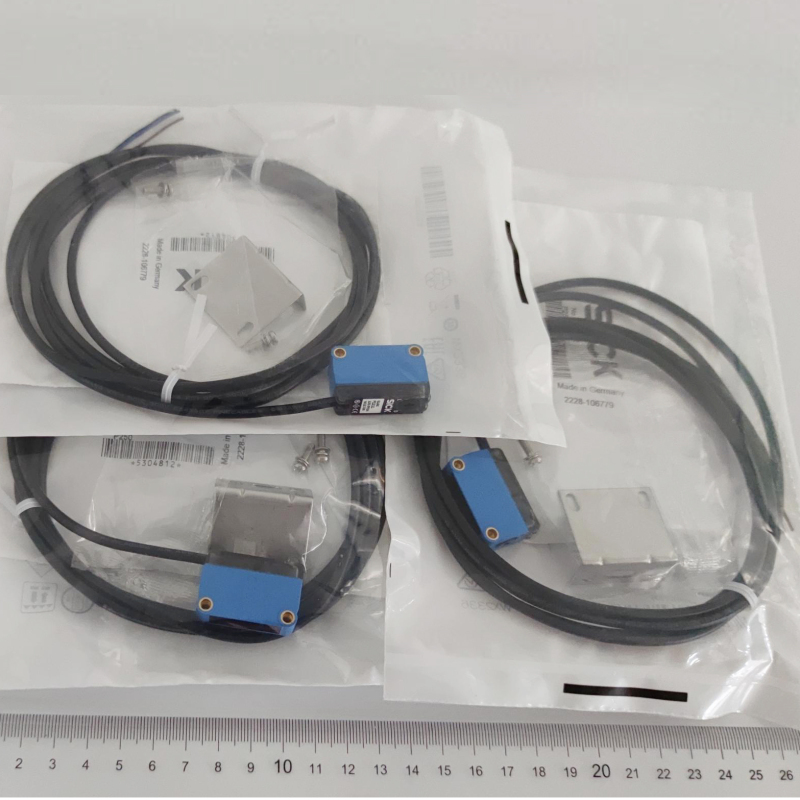

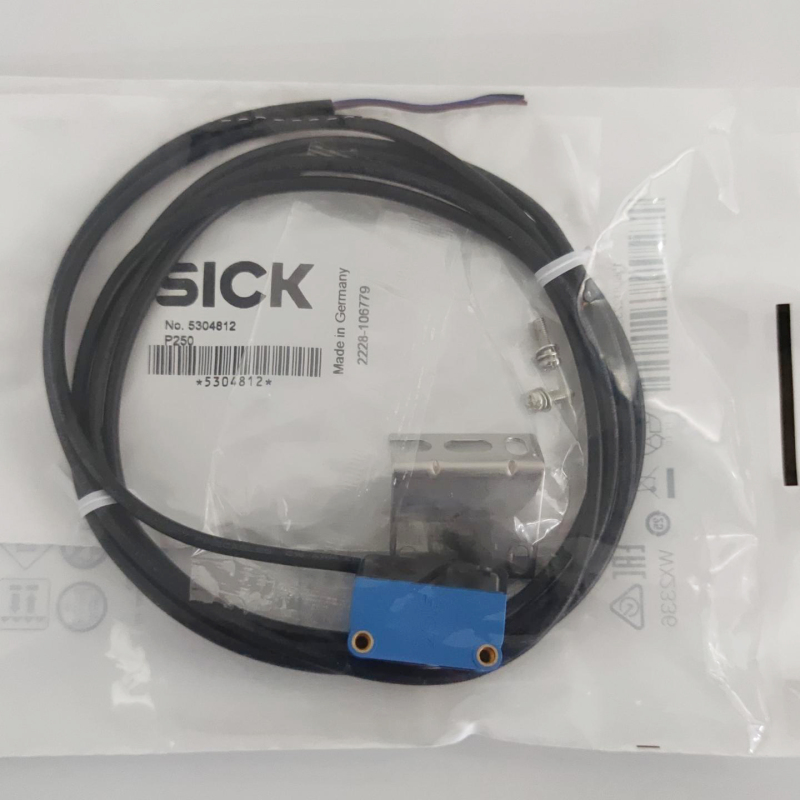

In Stock ! SICK Photoelectric sensors GL6G-P1212

Part no.: 1060812

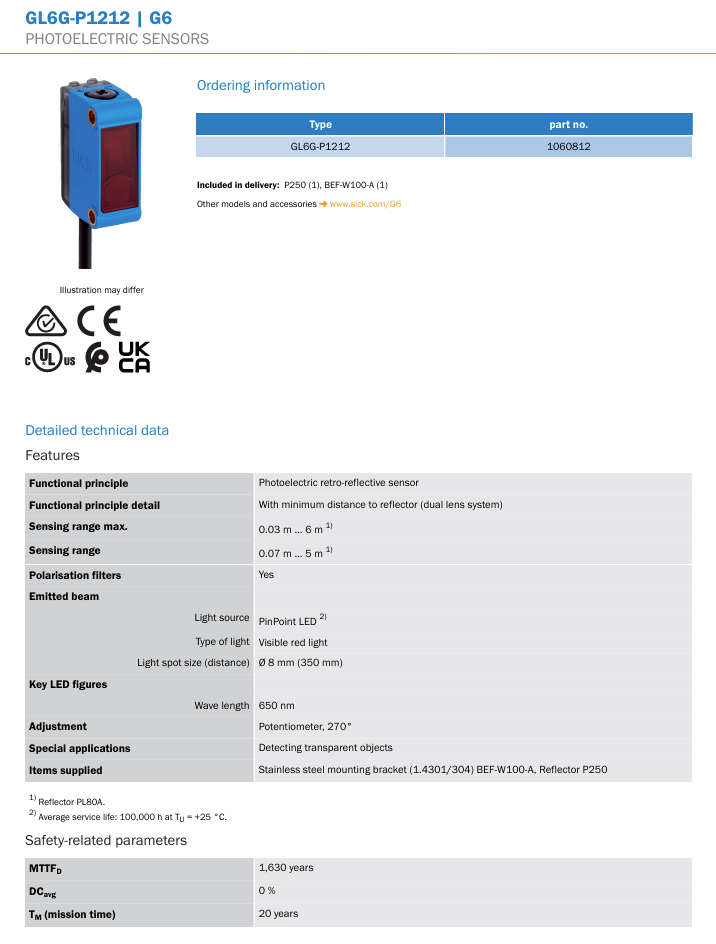

Features：

Functional principle：Photoelectric retro-reflective sensor

Functional principle detail：With minimum distance to reflector (dual lens system)

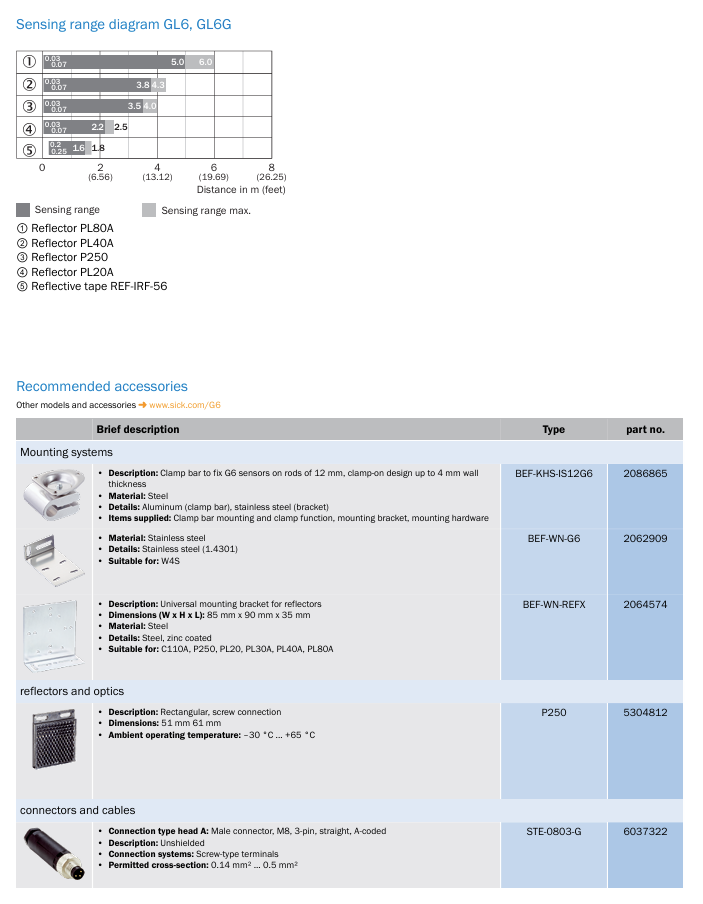

Sensing range max.：0.03 m ... 6 m

Sensing range：0.07 m ... 5 m

Polarisation filters：Yes

Emitted beam：

Light source：PinPoint LED

Type of light：Visible red light

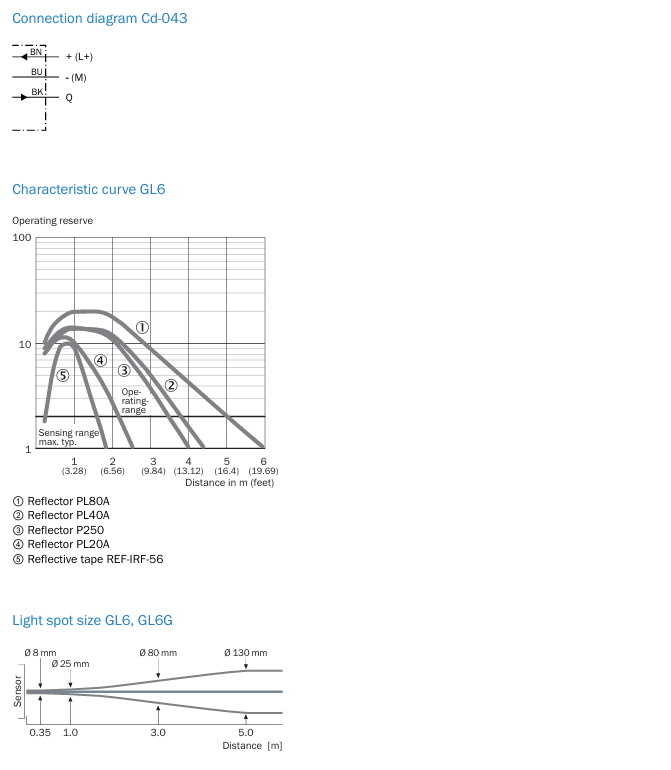

Light spot size (distance)：Ø 8 mm (350 mm)

Key LED figures：

Wave length：650 nm

Adjustment：Potentiometer, 270°

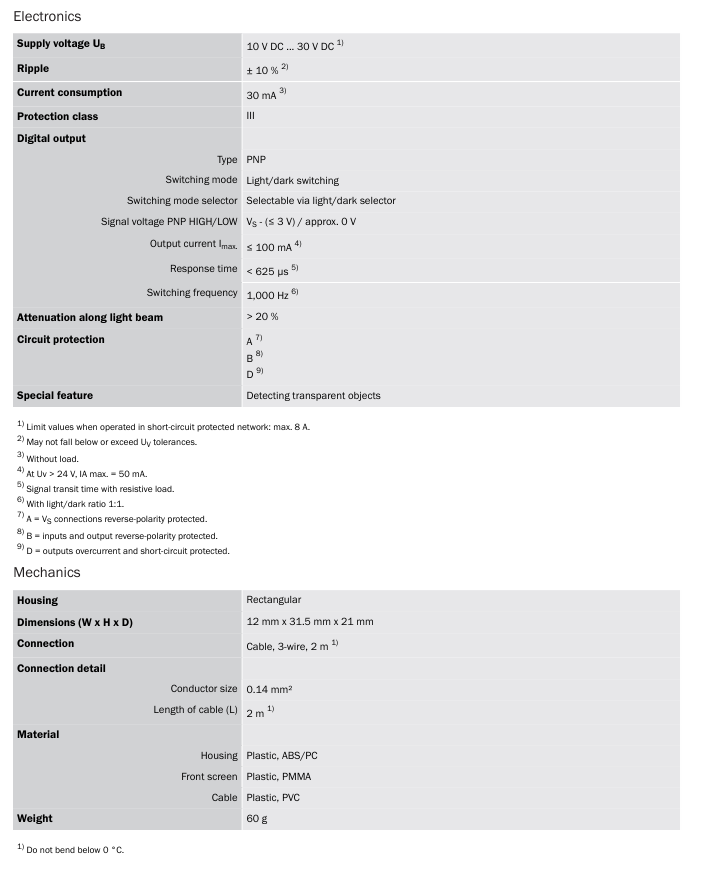

Supply voltage UB：10 V DC ... 30 V DC

Ripple：± 10 %

Current consumption：30 mA

Protection class：III

Digital output：

Type：PNP

Switching mode：Light/dark switching

Switching mode selector：Selectable via light/dark selector

Signal voltage PNP HIGH/LOW：VS - (≤ 3 V) / approx. 0 V

Output current Imax.：≤ 100 mA

Response time：< 625 µs

Switching frequency：1,000 Hz

Attenuation along light beam：> 20 %

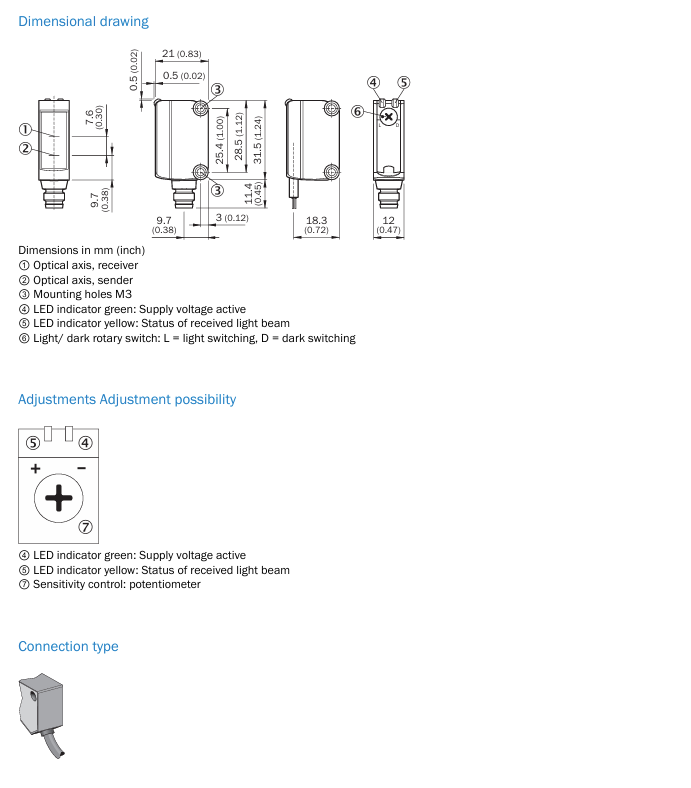

imensions (W x H x D)：12 mm x 31.5 mm x 21 mm

Conductor size：0.14 mm²

Length of cable (L)：2 m

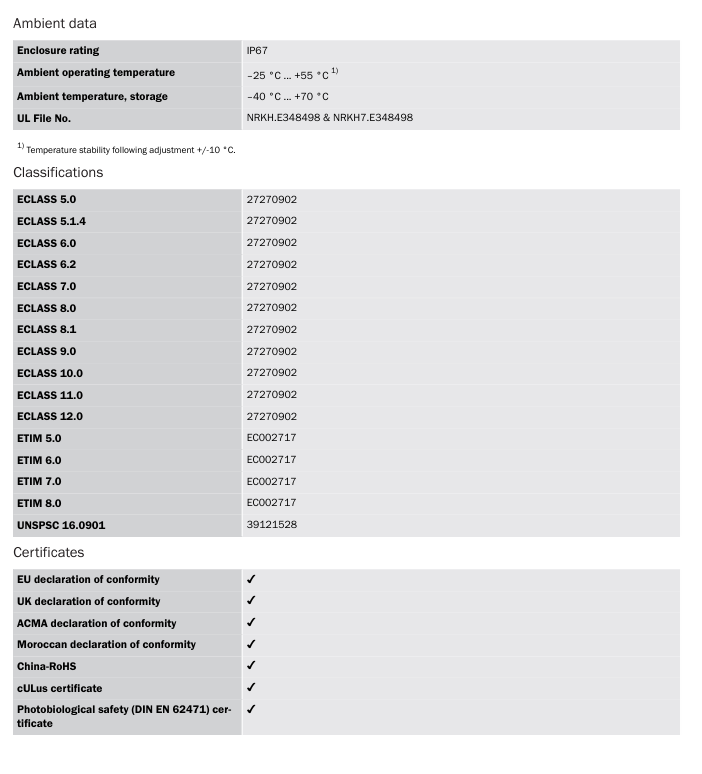

Enclosure rating：IP67

Ambient operating temperature：–25 °C ... +55 °C

Ambient temperature, storage：–40 °C ... +70 °C

Similar models:

GL6-F0311S47 1069245 GL6-P0211S105 1113475 GL6-P0211S69 1081522 GL6-P6211 1058851 GL6-P6212 1062753 GL6-P6111 1060234 GL6-P6112 1060235 GL6-P0211S78 1089462 GL6-P0211S23 1062586 GL6-P1111 1050708 GL6-P1112 1051779 GL6-P1112S06 1116648 GL6-P1112S84 1094532 GL6-P1211 1059922 GL6-P1212 1060815 GL6G-P1211 1059924 GL6G-P1212 1060812 GL6-P0112S52 1071362 GL6-P0112S54 1071368 GL6-P0211S77 1089461 GL6-N1311S22 1062692 GL6-P0311S66 1079226 GL6-P7311 1066207 GL6-P7312 1066208 GL6G-P0411S45 1068944 GL6-P0311S40 1066976 GL6-P0312P08 1081349 GL6-P3311 1081007 GL6-F4311 1066751 GL6-V6311 1101833 GL6-V6411 1100566 GL6-P0311S114 1119915 GL6-P1311 1079225 GL6-P4511S73 1086558 GL6-N4111S06 1054676 GL6-P0111S25 1062887 GL6-P0111S09 1058698 GL6-P0111S62 1073739 GL6-P0111S61 1073738 GL6-F4611S55 1072662 GL6-P4111S46 1069178 GL6-P1111S57 1073479 GL6-P1311S41 1067706 GL6-E4411V 1084104 GL6-E2411V 1084102 GL6-F7411V 1084105 GL6-F4411V 1084103 GL6-P4111 1050706 GL6G-F4411V 1101719
