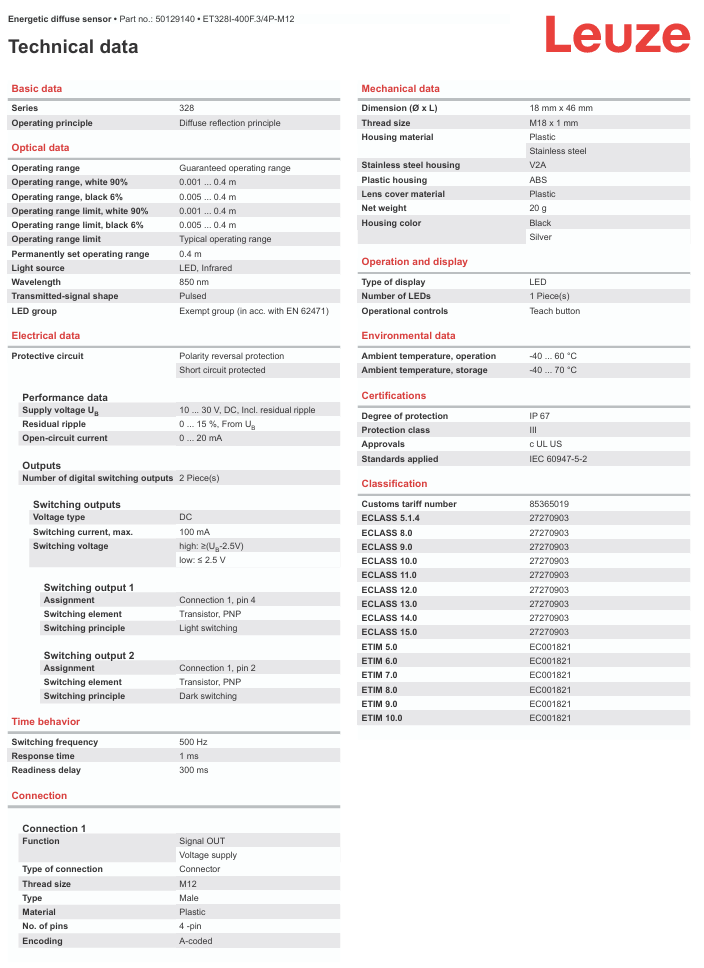

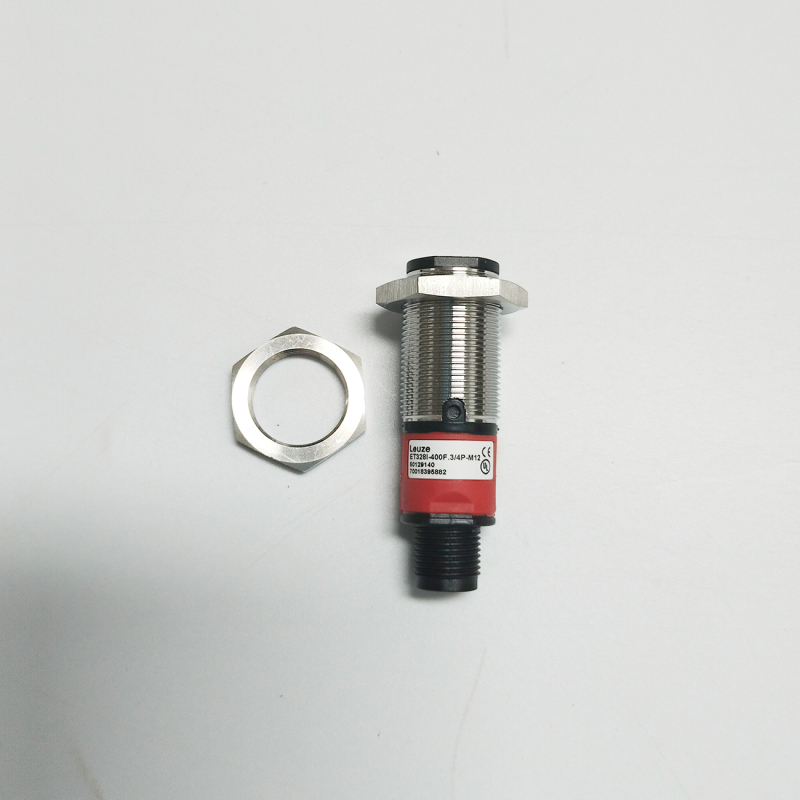

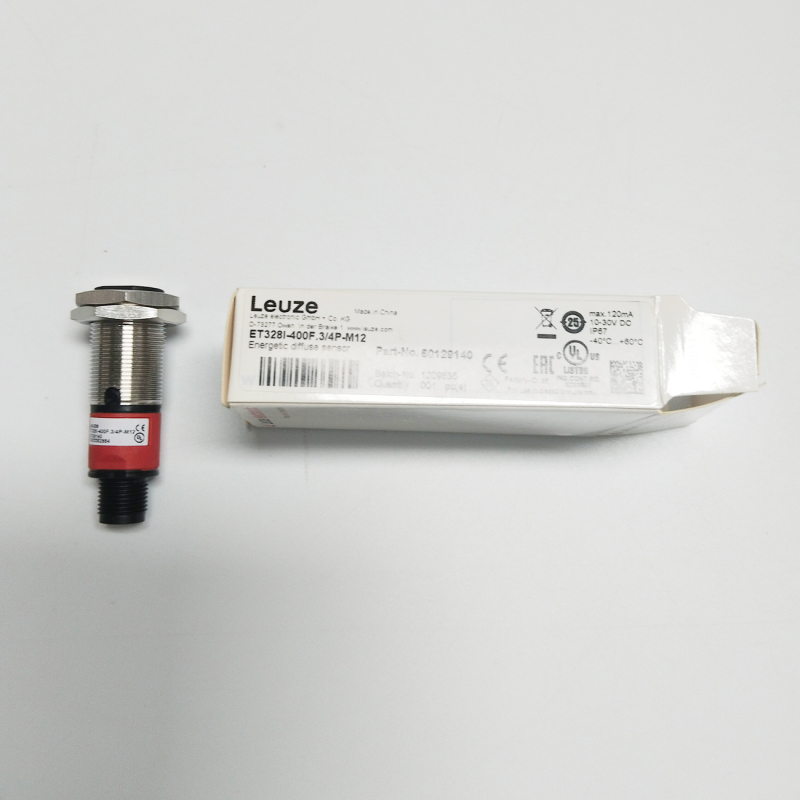

Part no.: 50129140
Features：Operating range：Guaranteed operating range
Operating range, white 90%：0.001 ... 0.4 m
Operating range, black 6%：0.005 ... 0.4 m
Operating range limit, white 90%：0.001 ... 0.4 m
Operating range limit, black 6%：0.005 ... 0.4 m
Operating range limit：Typical operating range
Permanently set operating range：0.4 m
Light source：LED, Infrared
Wavelength：850 nm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 20 mA
Switching frequency：500 Hz
Response time：1 ms
Readiness delay：300 ms
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67
