| Brand | ADI |
| Date Code | 2309 |
| Packing | Reel |

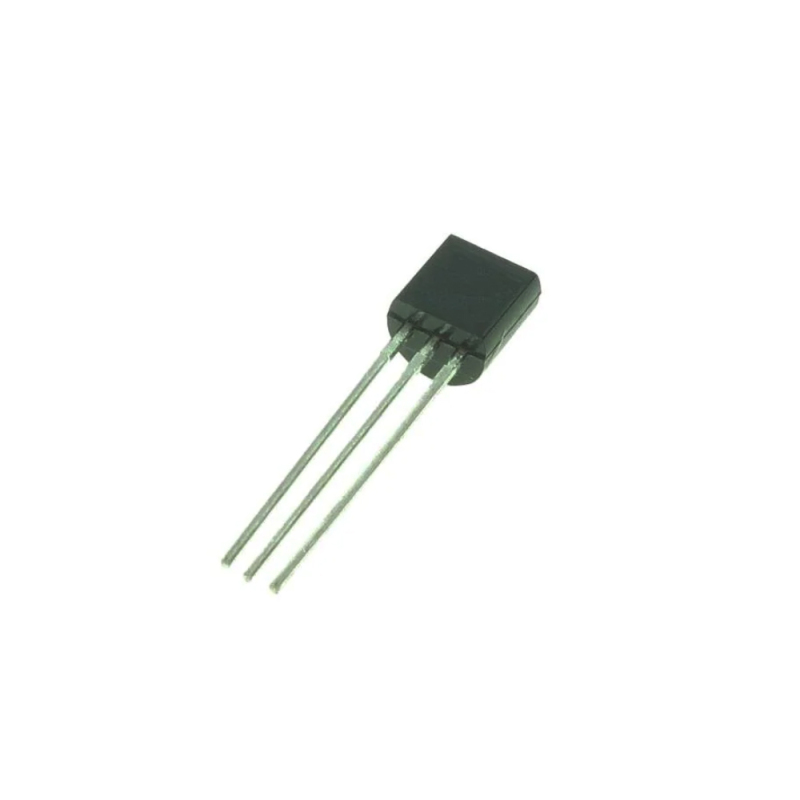

| Package | TO-92-3 |
| Minimum Packing | 2000pcs |
EEPROM 1-WIRE 4KB EEPROM W/200K WRITE/ERASE CYC
Features：
4096 Bits of Nonvolatile EEPROM Partitioned Into Sixteen 256-Bit Pages
Read and Write Access is Highly Backward-Compatible to the DS2433
256-Bit Scratchpad with Strict Read/Write Protocols Ensures Integrity of Data Transfer
Unique, Factory-Programmed, 64-Bit Registration Number Ensures Error-Free Device Selection and Absolute Part Identity
Switchpoint Hysteresis to Optimize Performance in the Presence of Noise
Communicates to Host at 15.4kbps or 125kbps Using 1-Wire Protocol
Low-Cost Through-Hole and SMD Packages

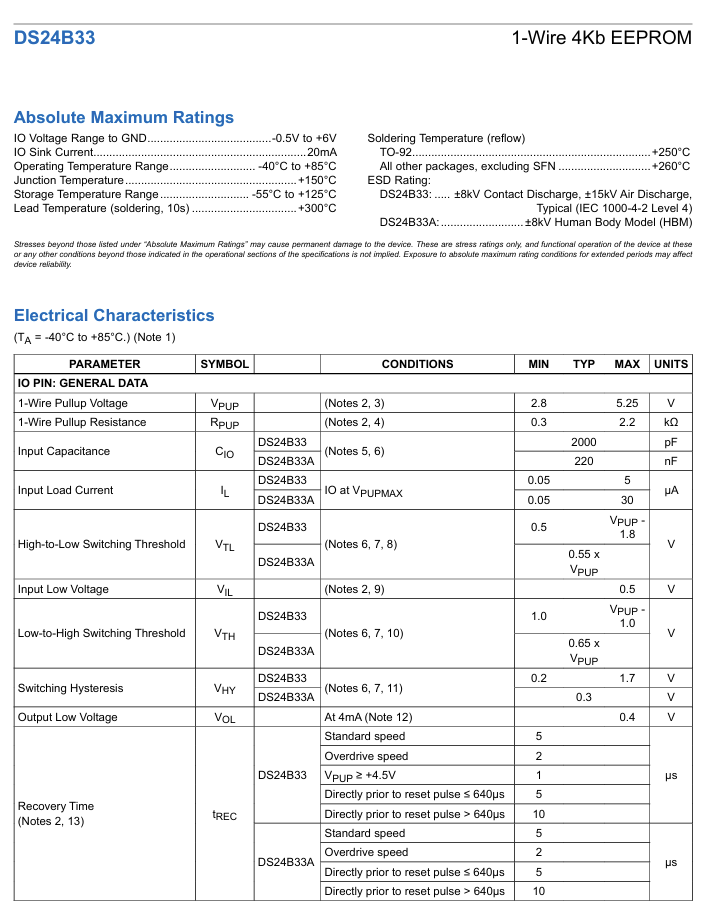

Operating Range: +2.8V to +5.25V, -40°C to +85°C
IEC 1000-4-2 Level 4 ESD Protection (±8kV Contact, ±15kV Air, Typical) for IO Pin

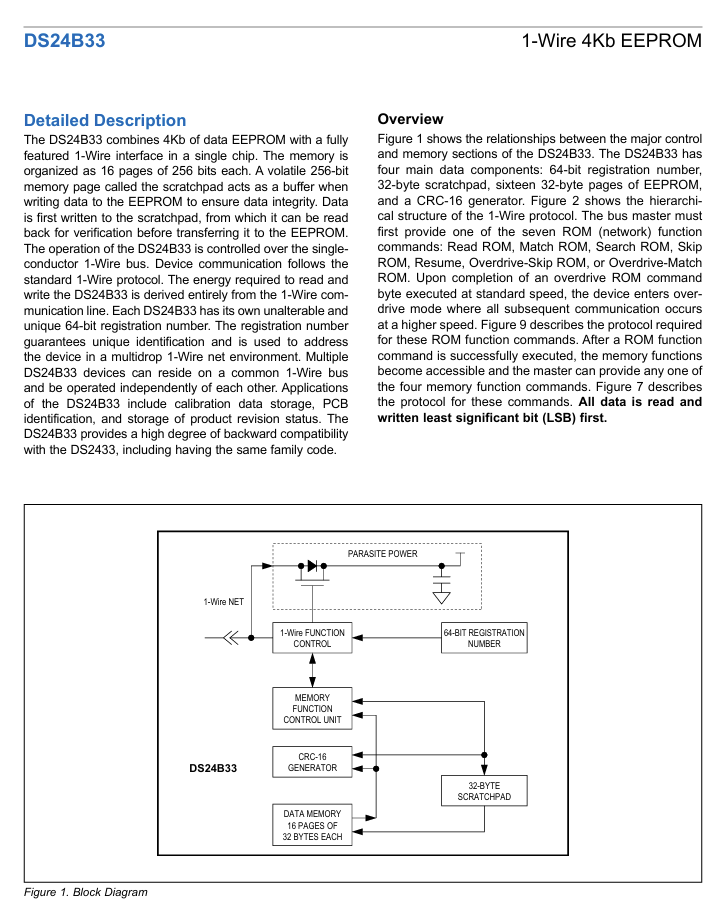

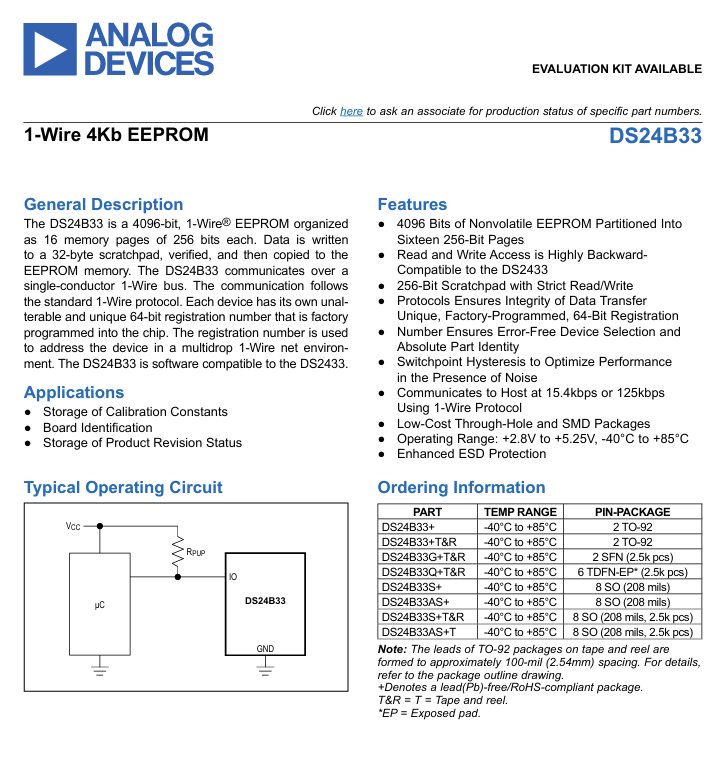

The DS24B33 is a 4096-bit, 1-Wire® EEPROM organized as 16 memory pages of 256 bits each. Data is written to a 32-byte scratchpad, verified, and then copied to the EEPROM memory. The DS24B33 communicates over a single-conductor 1-Wire bus. The communication follows the standard 1-Wire protocol. Each device has its own unalterable and unique 64-bit registration number that is factory programmed into the chip. The registration number is used to address the device in a multidrop 1-Wire net environment. The DS24B33 is software compatible to the DS2433.
APPLICATIONS
Board Identification
Medical Sensor Calibration Data Storage
Smart Cables
Storage of Calibration Constants
Storage of Product Revision Status
