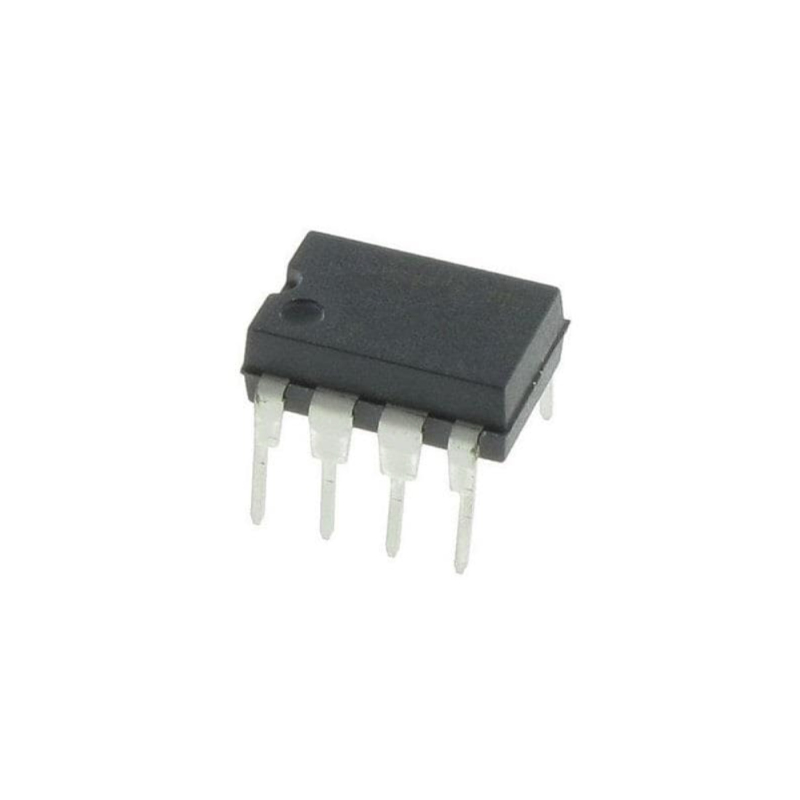

In Stock ! Microchip EEPROM 25LC128-I/P

Name: In Stock ! Microchip EEPROM 25LC128-I/P
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 1.8 USD
Availability: InStock

Brand：Microchip
Date Code：2422
Packing：Tube
Package：PDIP-8
Minimum Packing：60pcs

$1.80

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

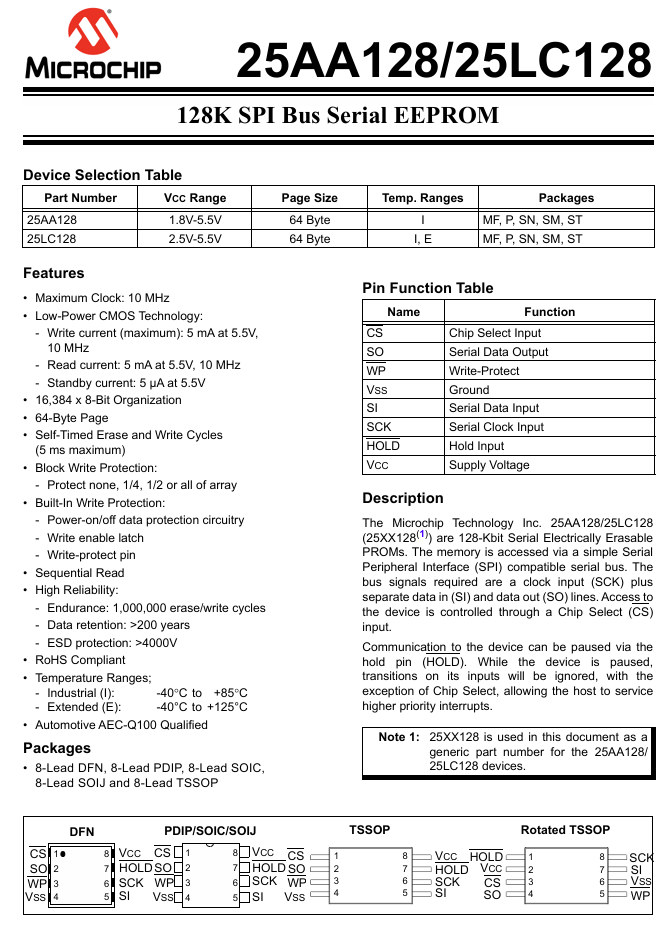

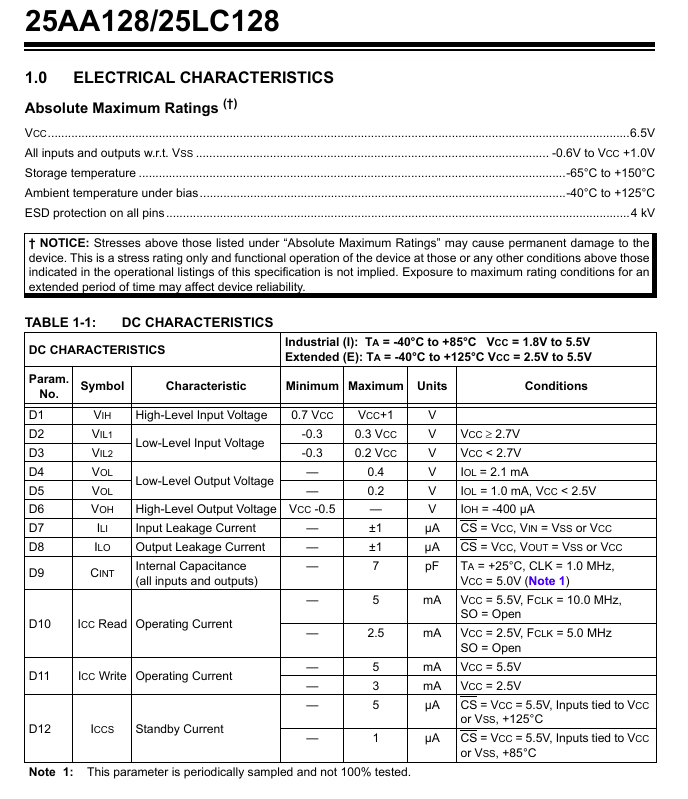

EEPROM 128k 16Kx8 2.5V SER EE IND

Features：

Product Attribute	Attribute Value
Maximum Clock Frequency:	10 MHz
Organization:	16 k x 8
Package / Case:	PDIP-8
Access Time:	50 ns
Supply Voltage - Min:	2.5 V
Supply Voltage - Max:	5.5 V
Data Retention:	200 Year
Minimum Operating Temperature:	- 40°C
Maximum Operating Temperature:	+ 85°C
Active Read Current - Max:	5 mA
Height:	3.3 mm
Length:	9.4 mm
Operating Supply Current:	5 mA
Operating Supply Voltage:	2.5 V to 5.5 V
Supply Current - Max:	5 mA
Width:	6.35 mm
Unit Weight:	0.032805 oz
