| Brand | ADI |
| Date Code | 23+ / 2345 |
| Packing | Tube |
| Package | SSOP-28 |
| Minimum Packing | 47pcs |
Digital to Analog Converters - DAC QUAD 16-BIT DAC
Features：

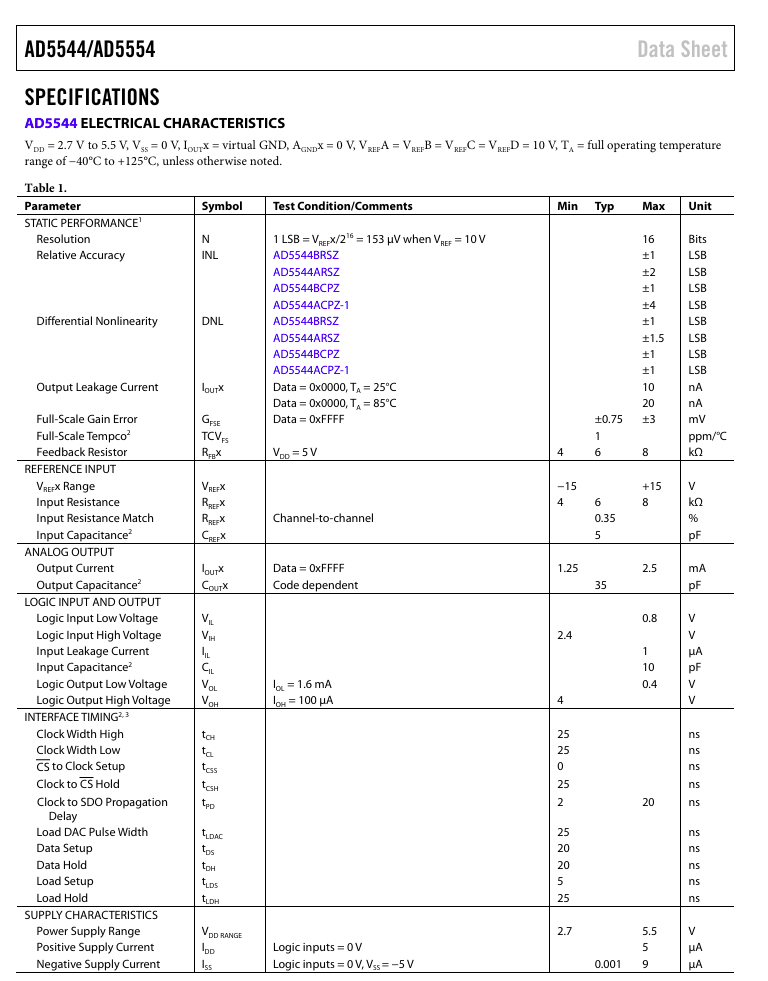

16-bit resolution INL of ±1 LSB (B Grade)
2 mA full-scale current ± 20%, with VREF = ±10 V

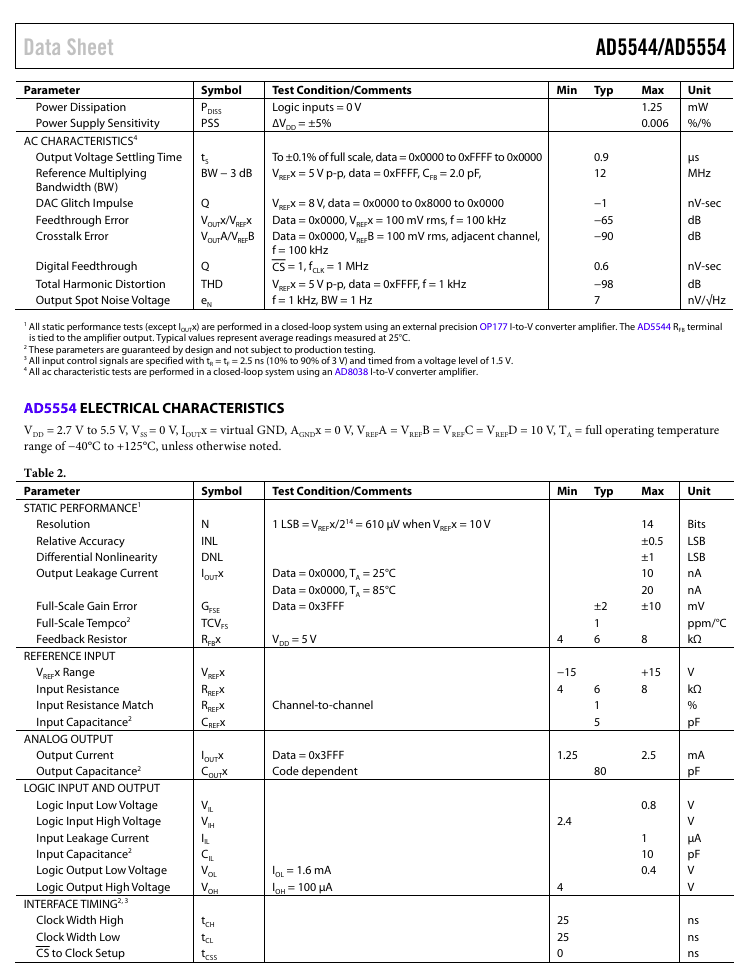

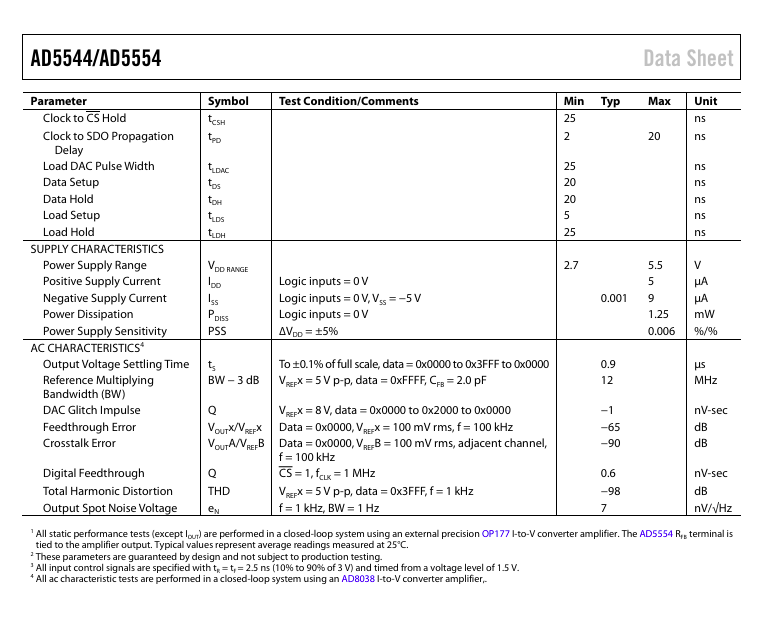

0.9 μs settling time to ±0.1%
12 MHz multiplying bandwidth
Midscale glitch of −1 nV-sec
Midscale or zero-scale reset
Four separate, 4-quadrant multiplying reference inputs
Compact 28-lead SSOP and 32-lead LFCSP
See data sheet for additional features
AD5544-EP supports defense and aerospace applications (AQEC standard)

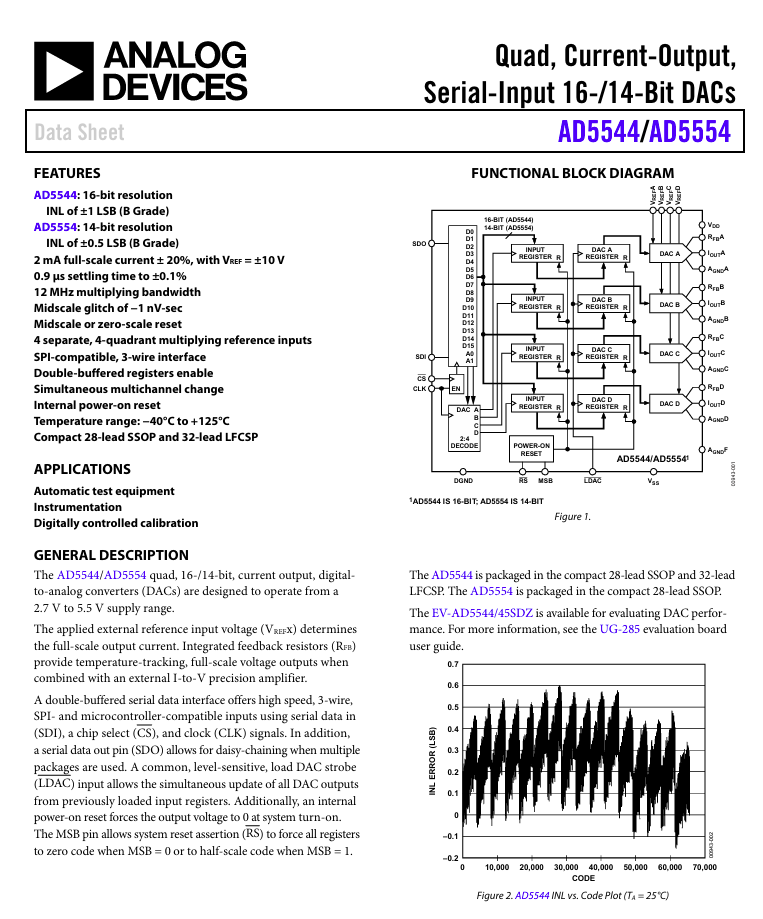

Download AD5544-EP Data Sheet(pdf)

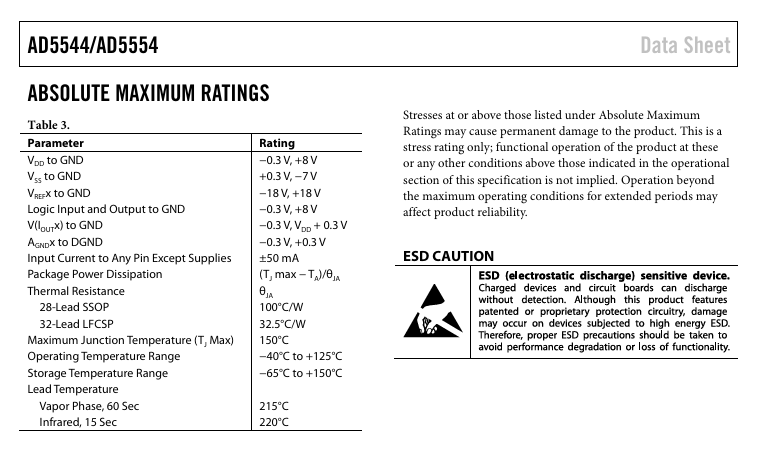

Military temperature range (−55°C to +125°C)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request
V62/12663 DSCC Drawing Number
The AD5544/AD5554 quad, 16-/14-bit, current output, digital-to-analog converters (DACs) are designed to operate from 2.7 V to 5.5 V supply range.
The applied external reference input voltage (VREFX) determines the full-scale output current. Integrated feedback resistors (RFB) provide temperature-tracking, full-scale voltage outputs when combined with an external I-to-V precision amplifier.

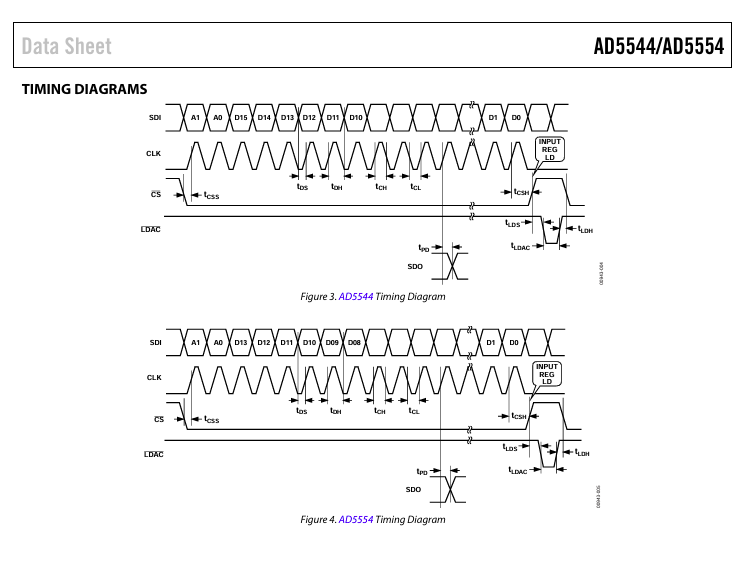

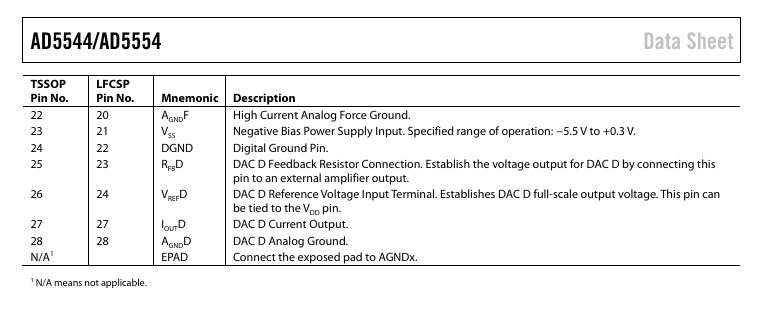

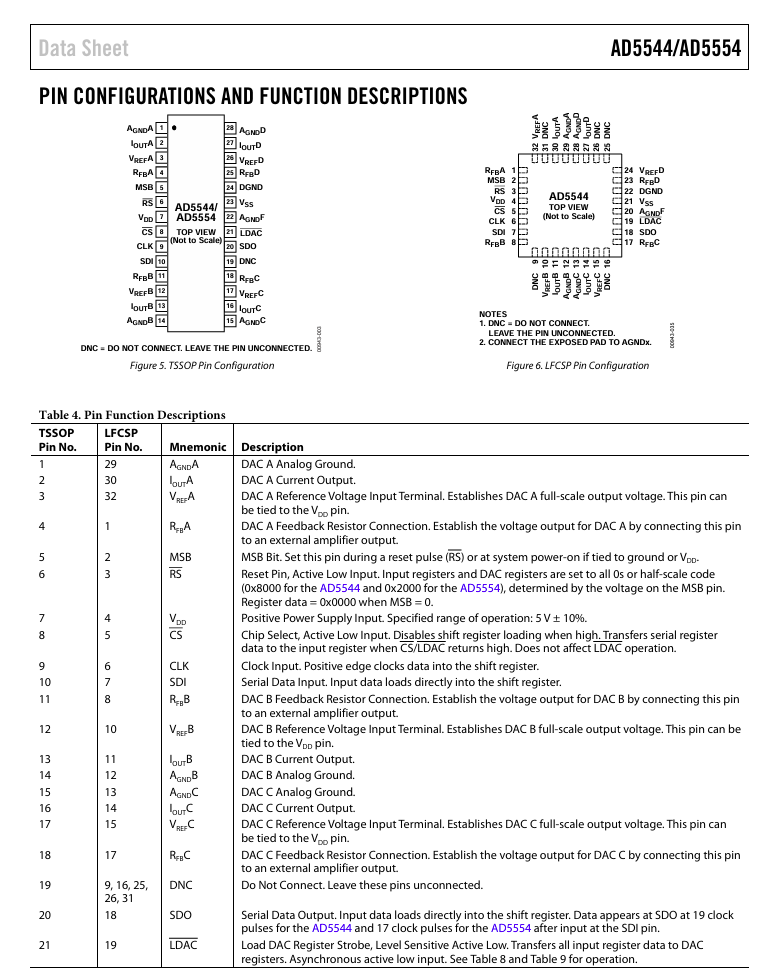

A double-buffered serial data interface offers high speed, 3-wire, SPI- and microcontroller-compatible inputs using serial data in (SDI), a chip select (CS), and clock (CLK) signals. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. A common, level-sensitive, load DAC strobe (LDAC) input allows the simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to 0 at system turn-on. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0, or to half-scale code when MSB = 1.

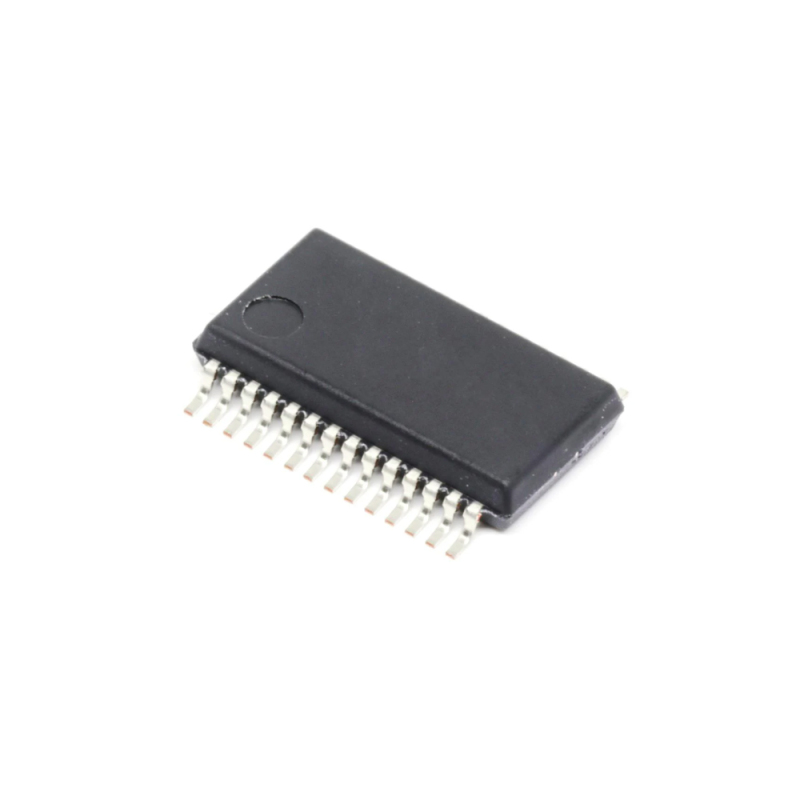

The AD5544 is packaged in the compact 28-lead SSOP and 32-lead LFCSP. The AD5554 is packaged in the compact 28-lead SSOP.
Applications
Automatic test equipment
Instrumentation
Digitally controlled calibration
