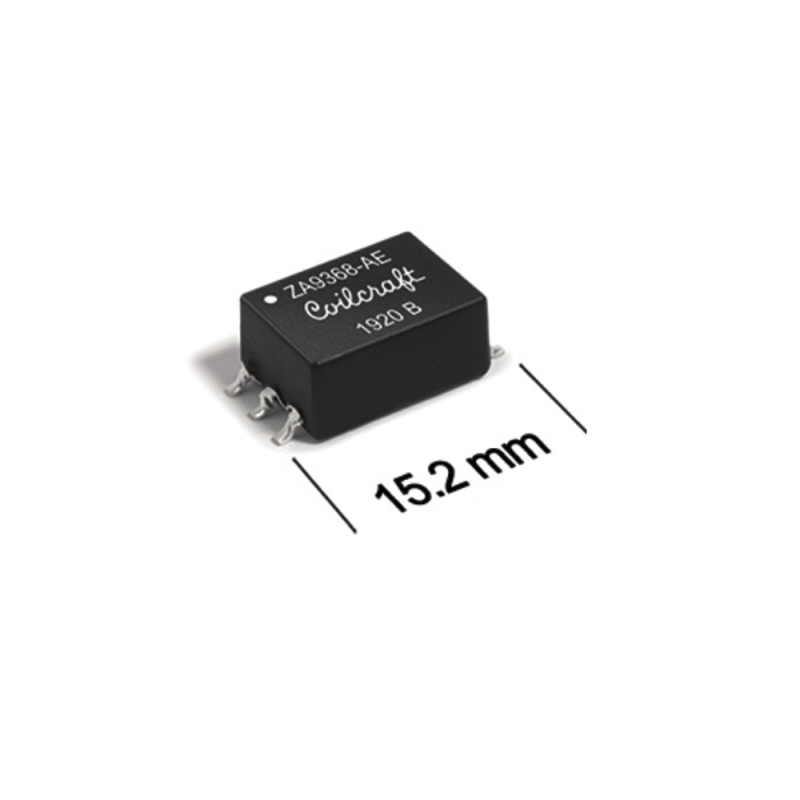

256µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1.75 Surface Mount
Features：
Optimized for Texas instrument SN6505 transformer driver
Designed to meet UL/CSA/IEC 60950 Reinforced Insulation Class with 8 mm creepage and 4.5 mm clearance
Low profile and center-tapped push-pull transformers for isolated power supply
3500 Vrms, one minute high isolation (hipot) winding to winding
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Inductance |
256µH |
|
ET (Volt-Time) |
16VµS |
|
Turns Ratio - Primary:Secondary |
1:1.75 |
|
Mounting Type |
Surface Mount |
|
Height - Seated (Max) |
0.220" (5.60mm) |
|
Operating Temperature |
-40°C ~ 125°C |
