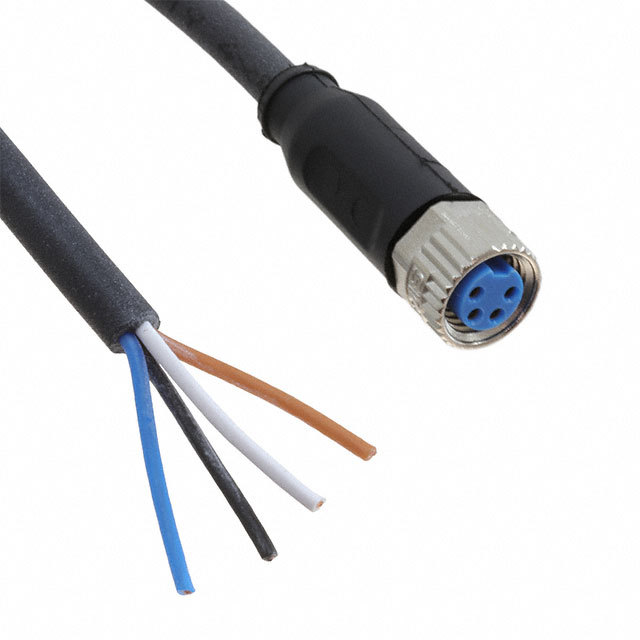

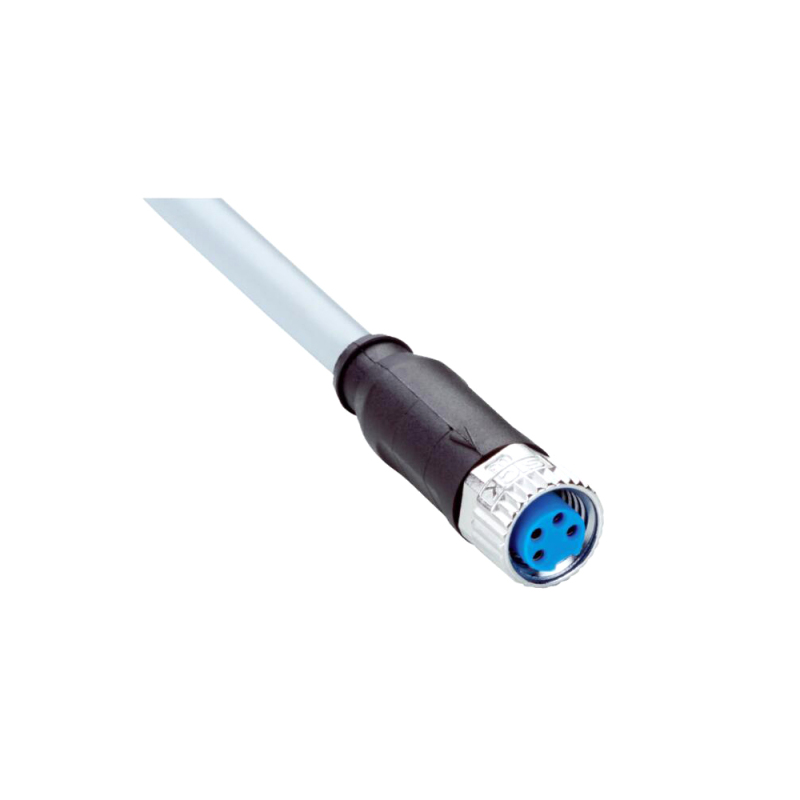

In Stock ! SICK Connectors and cables YF8U14-050VA3XLEAX

Part no.: 2095889

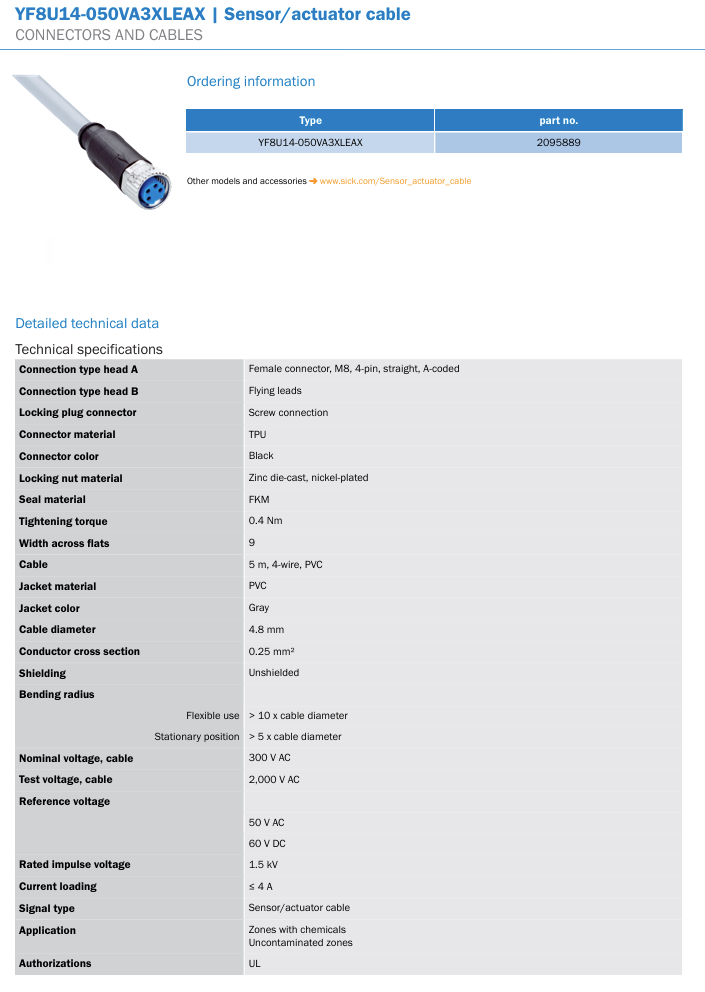

Features：

Locking plug connector：Screw connection

Connector material：TPU

Connector color：Black

Locking nut material：Zinc die-cast, nickel-plated

Seal material：FKM

Tightening torque：0.4 Nm

Width across flats：9

Cable：5 m, 4-wire, PVC

Jacket material：PVC

Jacket color：Gray

Cable diameter：4.8 mm

Conductor cross section：0.25 mm²

Shielding：Unshielded

Bending radius：

Flexible use：> 10 x cable diameter

Stationary position：> 5 x cable diameter

Nominal voltage, cable：300 V AC

Test voltage, cable：2,000 V AC

Reference voltage：50 V AC，60 V DC

Rated impulse voltage：1.5 kV

Current loading：≤ 4 A

Signal type：Sensor/actuator cable

Application：Zones with chemicals，Uncontaminated zones

Authorizations：UL

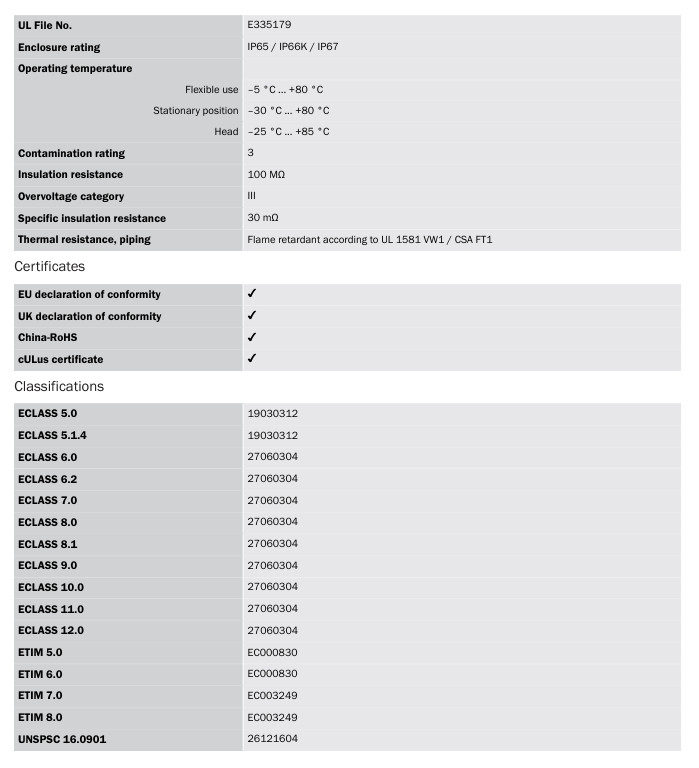

UL File No.：E335179

Enclosure rating：IP65 / IP66K / IP67

Operating temperature：

Flexible use：–5 °C ... +80 °C

Stationary position：–30 °C ... +80 °C

Head：–25 °C ... +85 °C

Contamination rating：3

Insulation resistance：100 MΩ

Overvoltage category：III

Specific insulation resistance：30 mΩ

Connectors and cables

Sensor/actuator cableSensor/actuator cables for signal transmission in industrial applications

Industrial automation not only places stringent demands on sensor solutions, the cable assemblies used must also be able to meet the challenges of a variety of industrial applications.

Sensor/actuator cables offer reliable signal transmission in demanding environments and are therefore an indispensable component in automation engineering.

With their high reliably, strong performance and attractive design, they are the ideal addition to a variety of sensor solutions.

Encapsulated M8 and M12 plug connectors

A, L and T coding

Various cable sheath materials: halogen-free PUR, PVC and PP

LED indicator

Enclosure rating up to IP69

High-quality stainless steel knurled nuts

3- to 17-pin plug connectors
