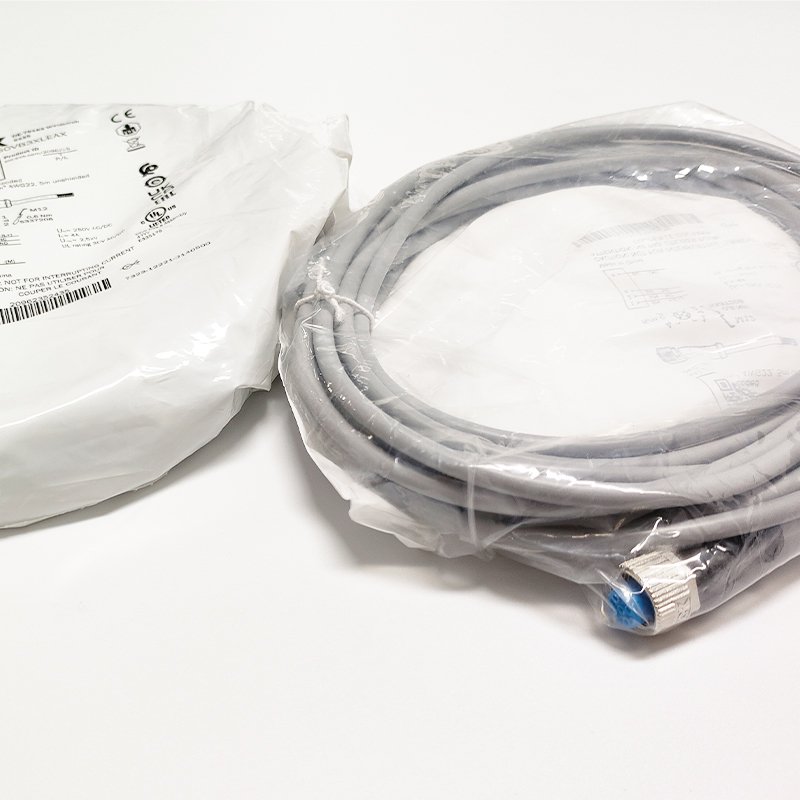

In Stock ! SICK Connectors and cables YF2A14-050VB3XLEAX

Part no.: 2096235

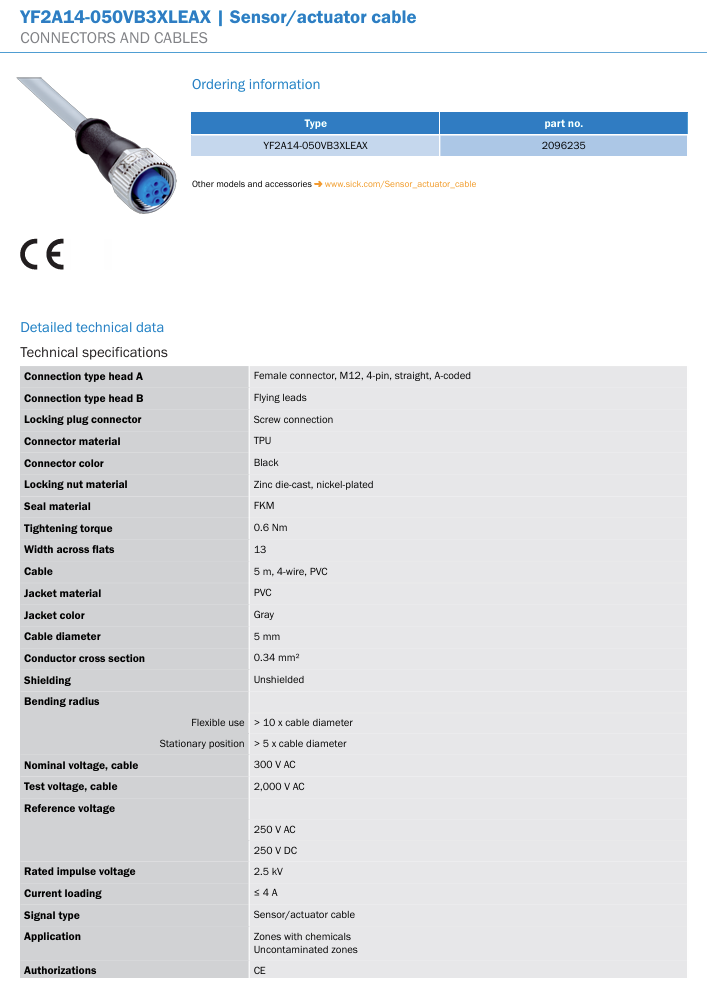

Features：

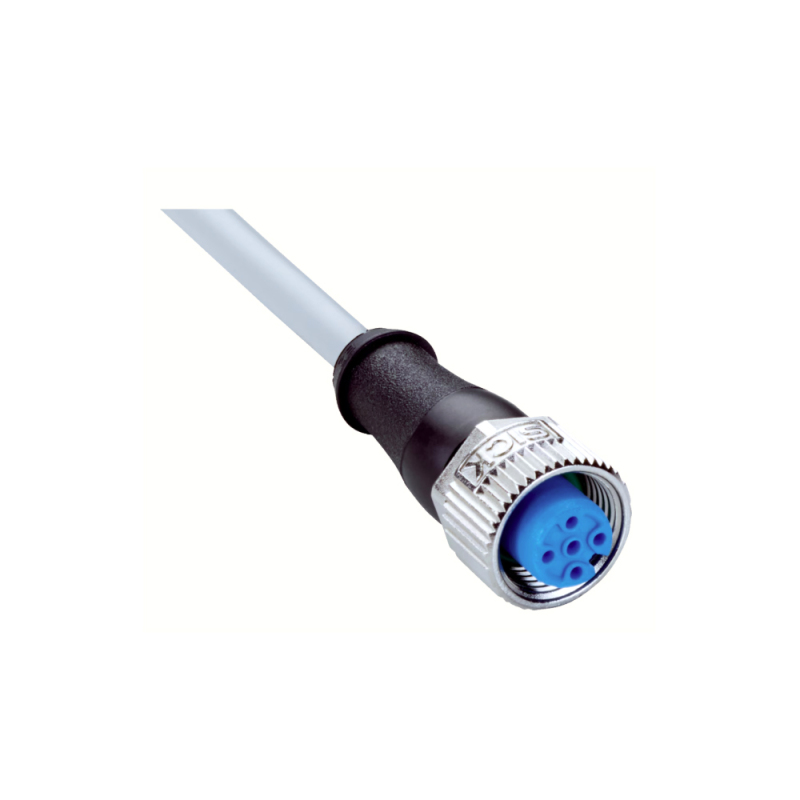

Connection type head A：Female connector, M12, 4-pin, straight, A-coded

Connection type head B：Flying leads

Locking plug connector：Screw connection

Connector material：TPU

Connector color：Black

Locking nut material：Zinc die-cast, nickel-plated

Seal material：FKM

Tightening torque：0.6 Nm

Width across flats：13

Cable：5 m, 4-wire, PVC

Jacket material：PVC

Jacket color：Gray

Cable diameter：5 mm

Conductor cross section：0.34 mm²

Shielding：Unshielded

Bending radius：

Flexible use：> 10 x cable diameter

Stationary position：> 5 x cable diameter

Nominal voltage, cable：300 V AC

Test voltage, cable：2,000 V AC

Reference voltage：250 V AC  250 V DC

Rated impulse voltage：2.5 kV

Current loading：≤ 4 A

Signal type：Sensor/actuator cable

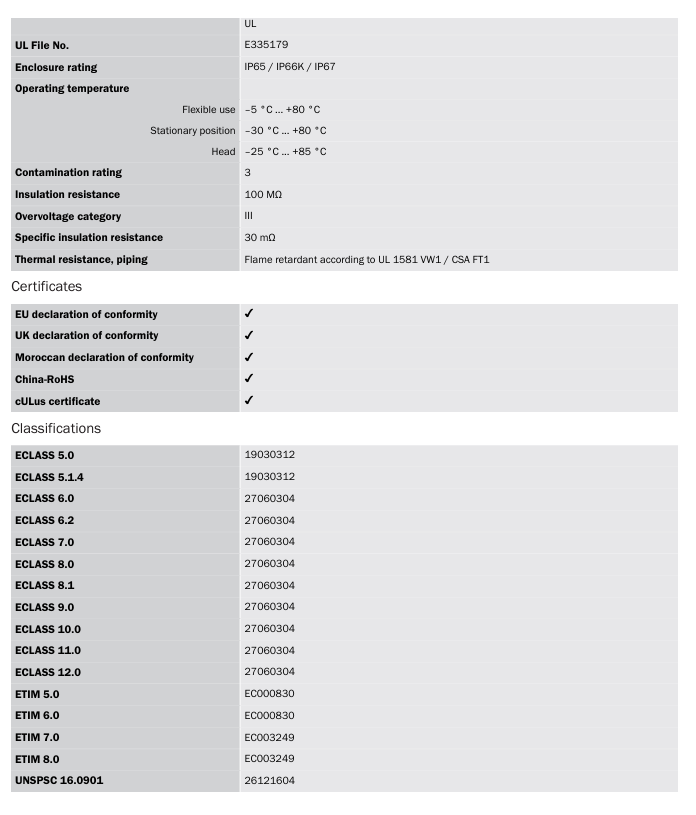

UL File No.：E335179

Enclosure rating：IP65 / IP66K / IP67

Operating temperature：

Flexible use：–5 °C ... +80 °C

Stationary position：–30 °C ... +80 °C

Head：–25 °C ... +85 °C

Contamination rating：3

Insulation resistance：100 MΩ

Overvoltage category：III

Specific insulation resistance：30 mΩ

Connectors and cables

Sensor/actuator cable

Sensor/actuator cables for signal transmission in industrial applications

Industrial automation not only places stringent demands on sensor solutions, the cable assemblies used must also be able to meet the challenges of a variety of industrial applications.

Sensor/actuator cables offer reliable signal transmission in demanding environments and are therefore an indispensable component in automation engineering.

With their high reliably, strong performance and attractive design, they are the ideal addition to a variety of sensor solutions.

Benefits

Flexibility – Numerous standardized products as the basis for customer-specific solutions

Ruggedness – Broad portfolio of cable materials, resistant to a variety of substances, mechanical stresses and environmental influences

Safety – Tested and certified product solutions for high system efficiency

Encapsulated M8 and M12 plug connectors

A, L and T coding

Various cable sheath materials: halogen-free PUR, PVC and PP

LED indicator

Enclosure rating up to IP69

High-quality stainless steel knurled nuts

3- to 17-pin plug connectors
