| Brand | Coilcraft |
| Date Code | 25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 250pcs |
1 µH Shielded Molded Inductor 22 A 2.9mOhm Max Nonstandard
Features：

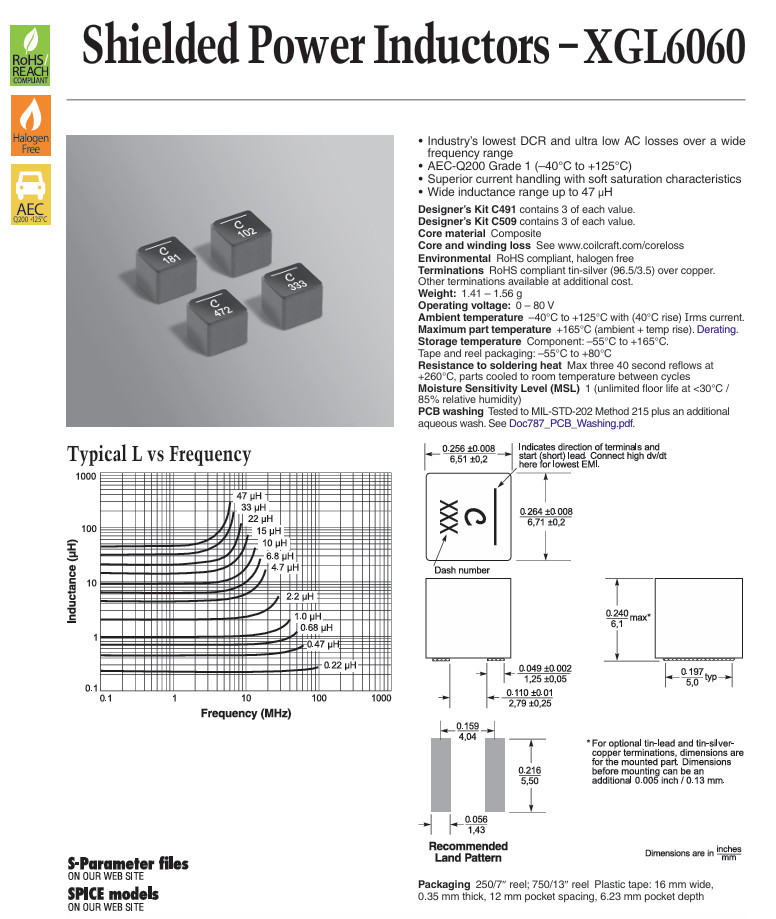

XGL6060 molded power inductors offer our lowest DC losses and extremely low AC losses for a wide range of DC-DC converters. Additional performance benefits include a wider range of inductance values and improved Irms current ratings.
Industry's lowest DCR and ultra low AC losses over a wide frequency range

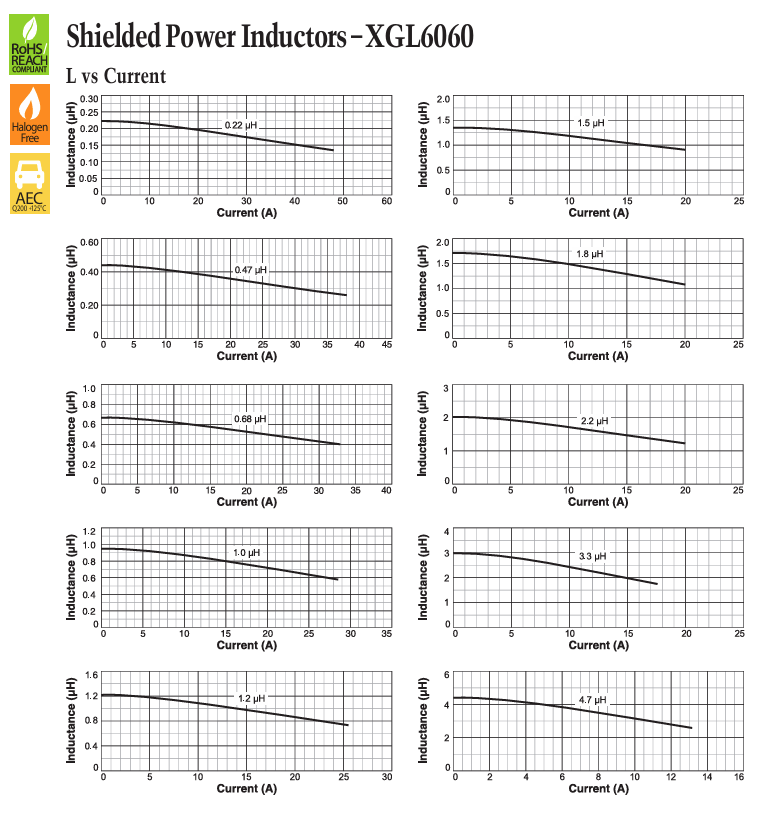

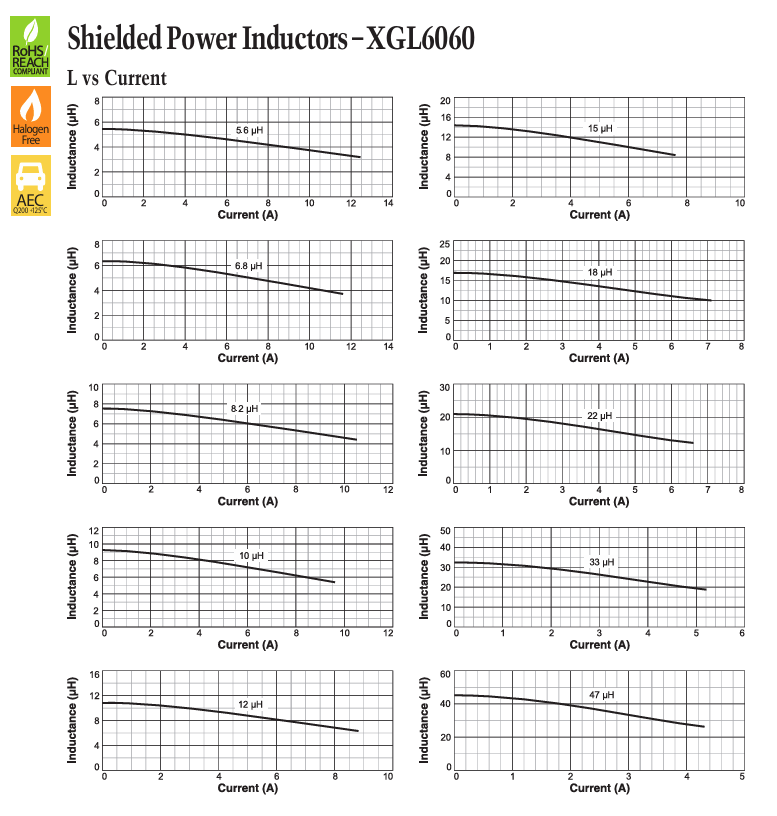

Superior current handling with soft saturation characteristics
AEC-Q200 Grade 1 (−40°C to +125°C)
Wide inductance range up to 47 µH
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
COTS Plus tin-silver-copper and tin-lead terminations available
|

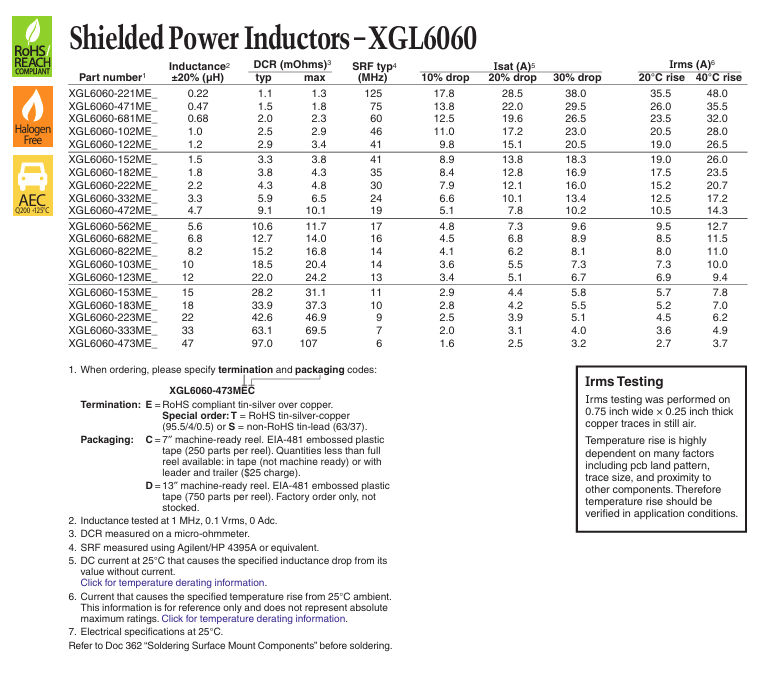

Inductance |
1 µH |
|
Tolerance |
±20% |
|
Current Rating (Amps) |
22 A |
|
Current - Saturation (Isat) |
23A |
|
Shielding |
Shielded |
|
DC Resistance (DCR) |
2.9mOhm Max |
|
Frequency - Self Resonant |
46MHz |
|
Operating Temperature |
-40°C ~ 165°C |
|
Inductance Frequency - Test |
1 MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
Nonstandard |
|
Size / Dimension |
0.264" L x 0.256" W (6.71mm x 6.51mm) |
|
Height - Seated (Max) |
0.240" (6.10mm) |
Similar Models：
XGL6060-221MEC XGL6060-471MEC XGL6060-681MEC XGL6060-102MEC XGL6060-122MEC XGL6060-152MEC XGL6060-182MEC XGL6060-222MEC XGL6060-332MEC XGL6060-472MEC XGL6060-562MEC XGL6060-682MEC XGL6060-822MEC XGL6060-103MEC XGL6060-123MEC XGL6060-153MEC XGL6060-183MEC XGL6060-223MEC XGL6060-333MEC XGL6060-473MEC
