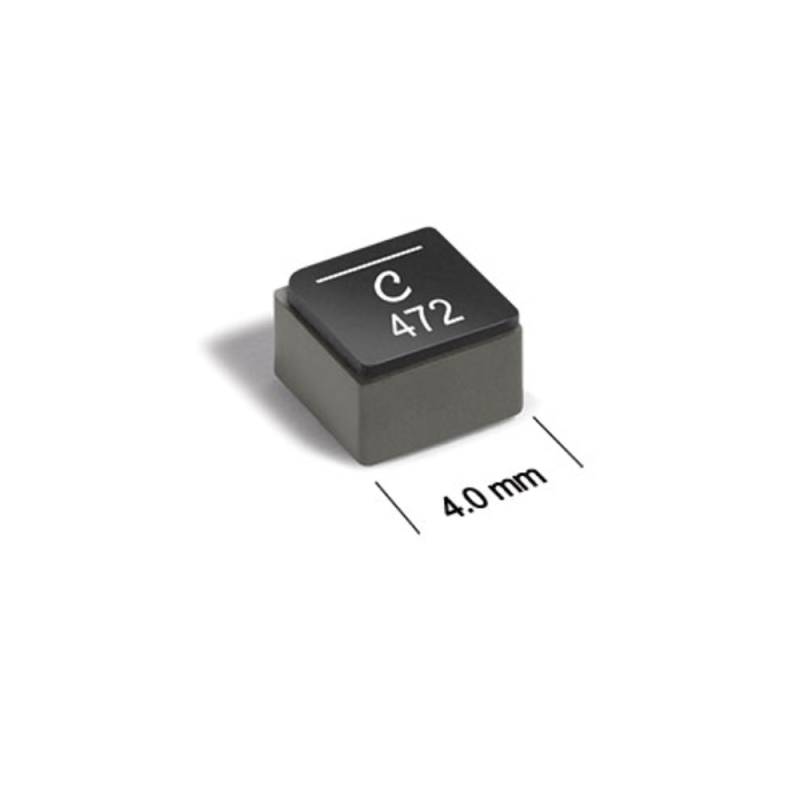

6.8 µH Shielded Molded Inductor 4.7 A 47.9mOhm Max 1616 (4040 Metric)

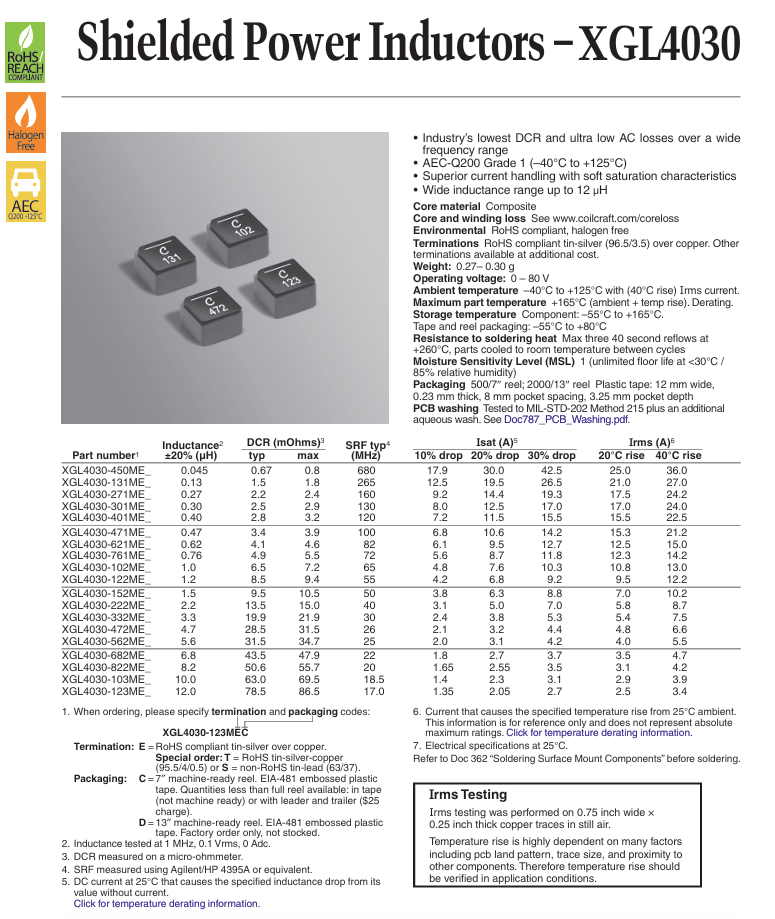

Features：
The XGL4030 Series showcases Coilcraft's lowest DC losses and exceptionally low AC losses, catering to diverse DC-DC converters. Experience extensive performance enhancements with an expanded range of inductance values and improved Irms current ratings. This series empowers engineers with unparalleled efficiency, reliability, and flexibility, ensuring optimal power conversion system designs.
Industry's lowest DCR and ultra low AC losses over a wide frequency range
Superior current handling with soft saturation characteristics
AEC-Q200 Grade 1 (−40°C to +125°C)
Wide inductance range up to 12 µH
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
COTS Plus tin-silver-copper and tin-lead terminations available
|

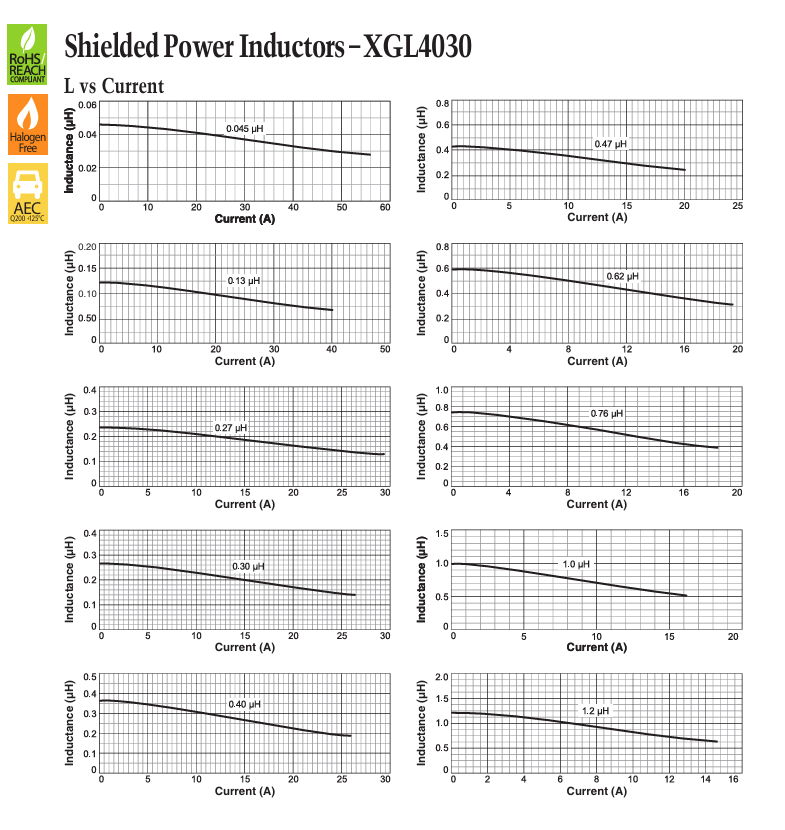

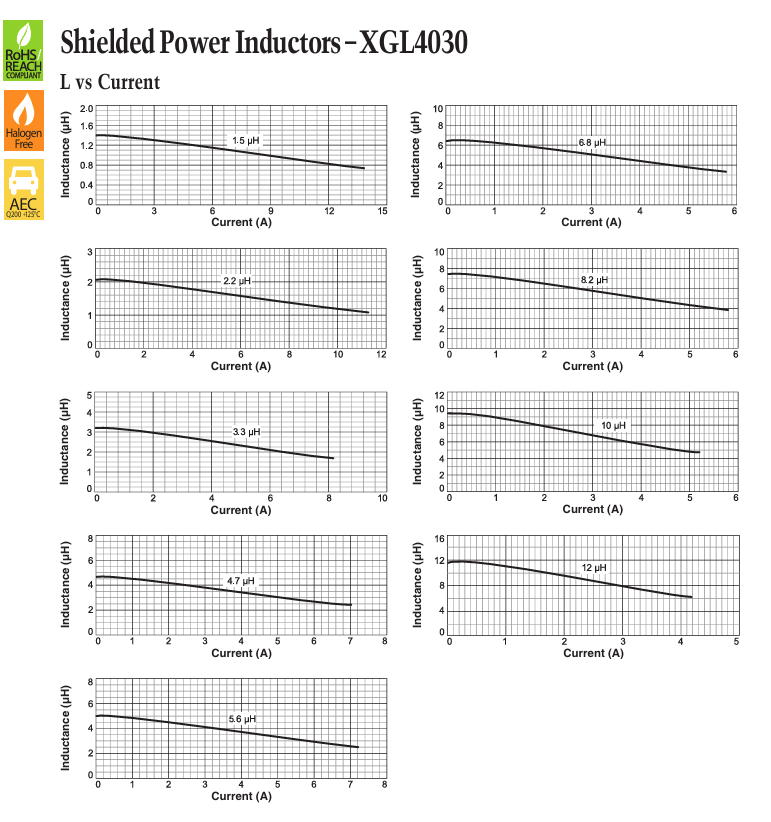

Inductance |
6.8 µH |
|
Tolerance |
±20% |
|
Current Rating (Amps) |
|
|
Current - Saturation (Isat) |
3.65A |
|
Shielding |
Shielded |
|
DC Resistance (DCR) |
47.9mOhm Max |
|
Frequency - Self Resonant |
22MHz |
|
Ratings |
AEC-Q200 |
|
Operating Temperature |
-40°C ~ 165°C |
|
Inductance Frequency - Test |
1 MHz |
|
Mounting Type |
Surface Mount |
|

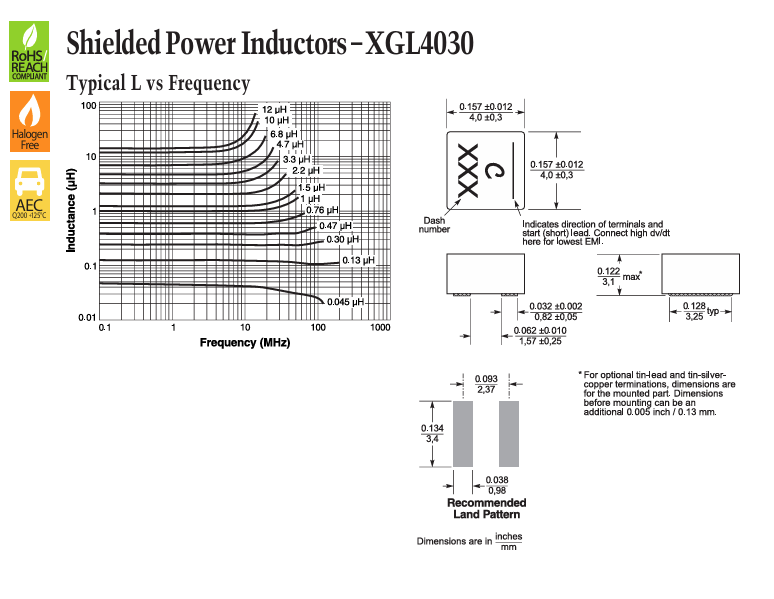

Size / Dimension |
0.157" L x 0.157" W (4.00mm x 4.00mm) |
|
Height - Seated (Max) |
0.122" (3.10mm) |
Similar Models：
XGL4030-450MEC XGL4030-131MEC XGL4030-271MEC XGL4030-301MEC XGL4030-401MEC XGL4030-471MEC XGL4030-621MEC XGL4030-761MEC XGL4030-102MEC XGL4030-122MEC XGL4030-152MEC XGL4030-222MEC XGL4030-332MEC XGL4030-472MEC XGL4030-562MEC XGL4030-682MEC XGL4030-822MEC XGL4030-103MEC XGL4030-123MEC
