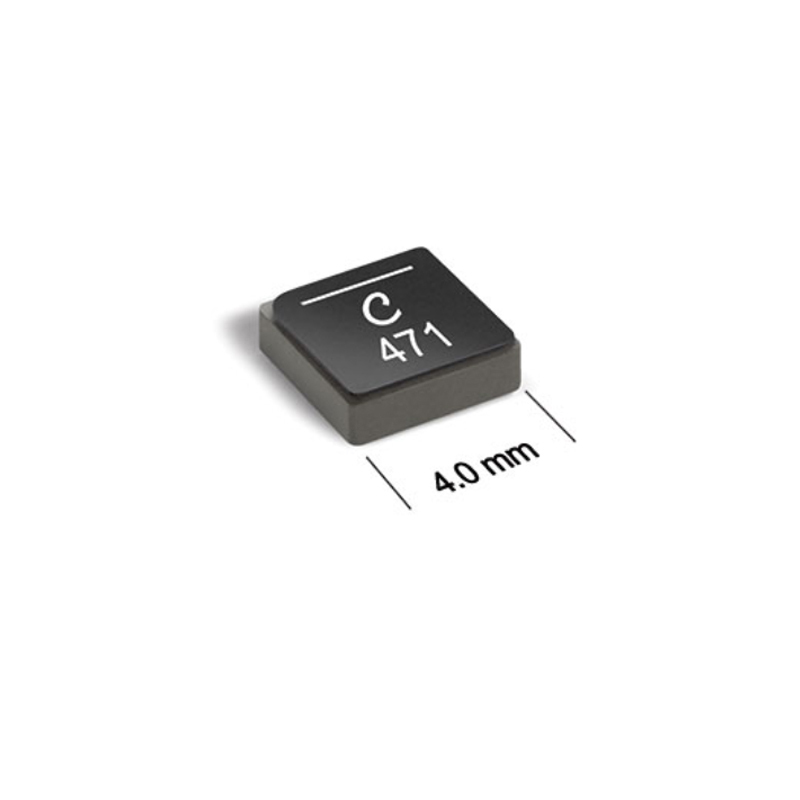

120 nH Shielded Molded Inductor 14.8 A 2.8mOhm Max 1616 (4040 Metric)

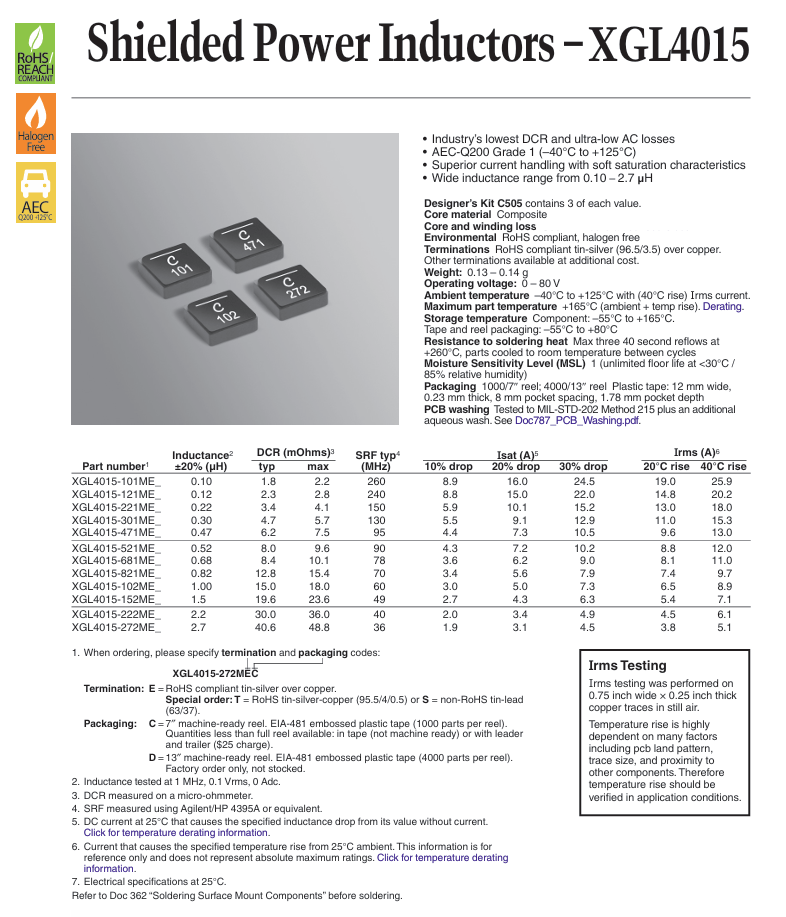

Features：
The revolutionary XGL4015 Series by Coilcraft is the epitome of excellence in power inductors. Engineered with cutting-edge technology, these molded power inductors redefine industry standards. With our lowest DC losses and shallow AC losses, they are the ultimate solution for a wide range of DC-DC converters.
The XGL4015 has a wider range of inductance values and improved Irms current ratings. This empowers you to optimize power conversion efficiency and achieve unparalleled reliability. The XGL4015 Series is designed to meet the ever-evolving demands of modern electronic systems, offering unrivaled versatility and adaptability.
These power inductors embody Coilcraft's commitment to innovation, ensuring the highest levels of performance and efficiency.
Industry's lowest DCR and ultra-low AC losses
Superior current handling with soft saturation characteristics
Wide inductance range from 0.10 – 2.7 µH
AEC-Q200 Grade 1 (-40°C to +125°C)
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
|
Inductance |
120 nH |
|
Tolerance |
±20% |
|

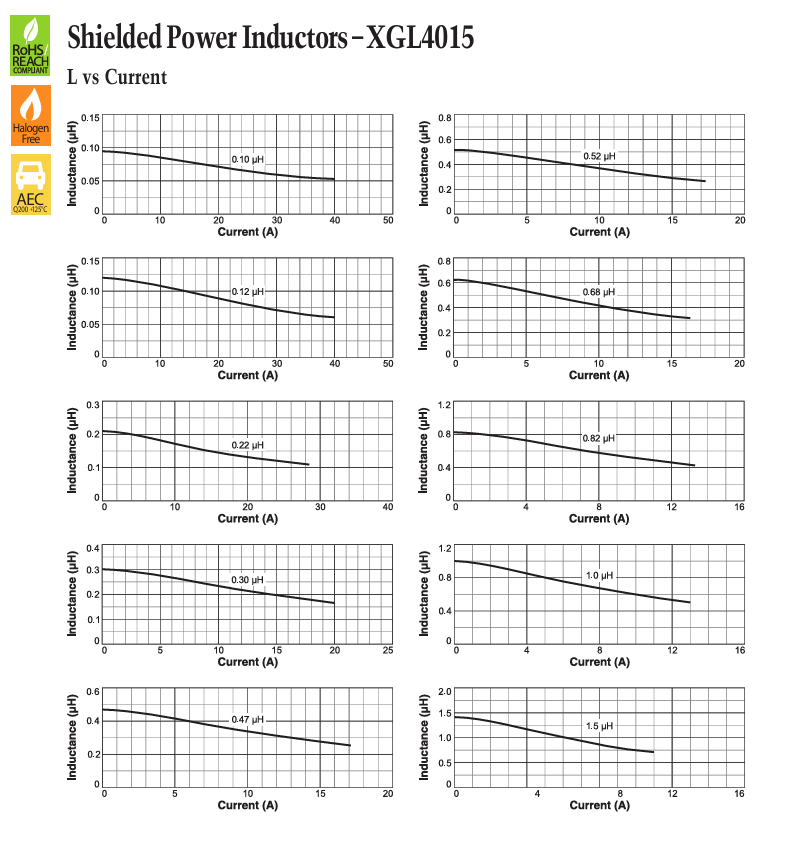

Current Rating (Amps) |
14.8 A |
|
Current - Saturation (Isat) |
22A |
|
Shielding |
Shielded |
|
DC Resistance (DCR) |
2.8mOhm Max |
|
Frequency - Self Resonant |
240MHz |
|
Operating Temperature |
-40°C ~ 125°C |
|
Inductance Frequency - Test |
1 MHz |
|

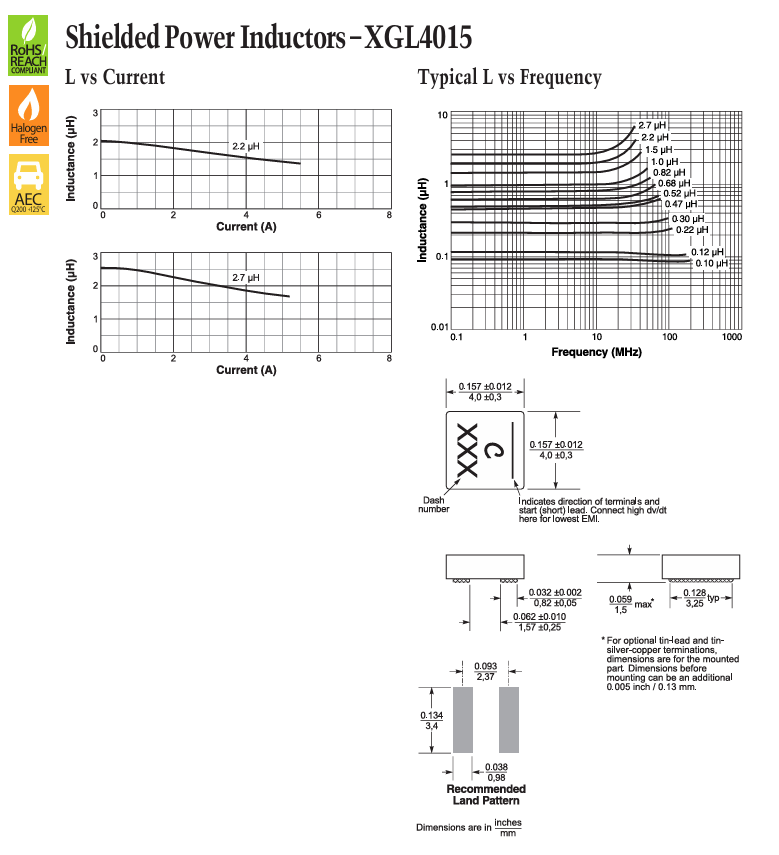

Size / Dimension |
0.157" L x 0.157" W (4.00mm x 4.00mm) |
|
Height - Seated (Max) |
0.059" (1.50mm) |
