| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 1500pcs |

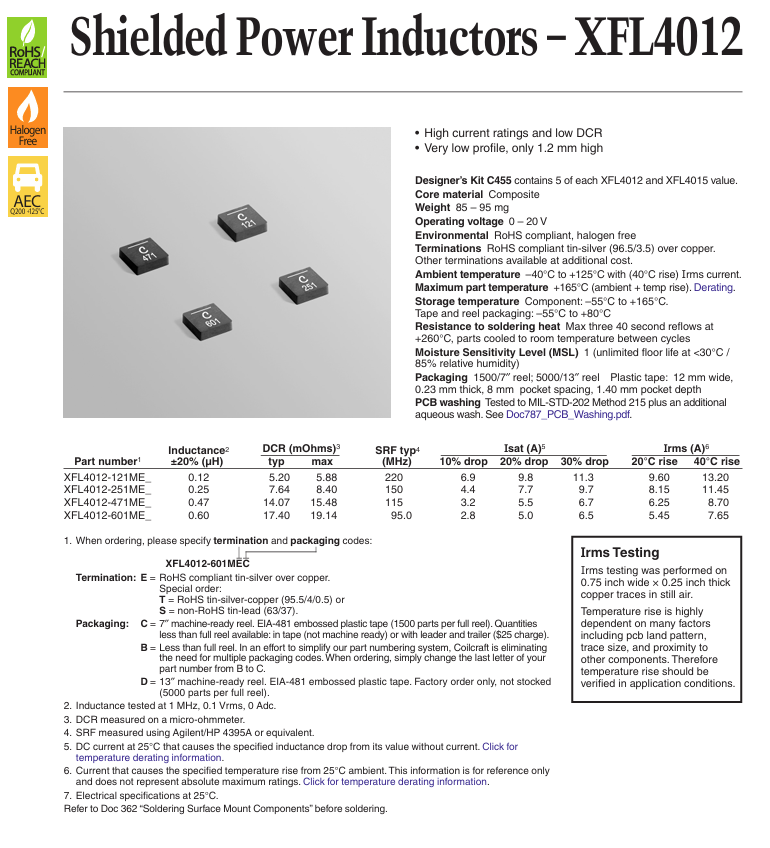

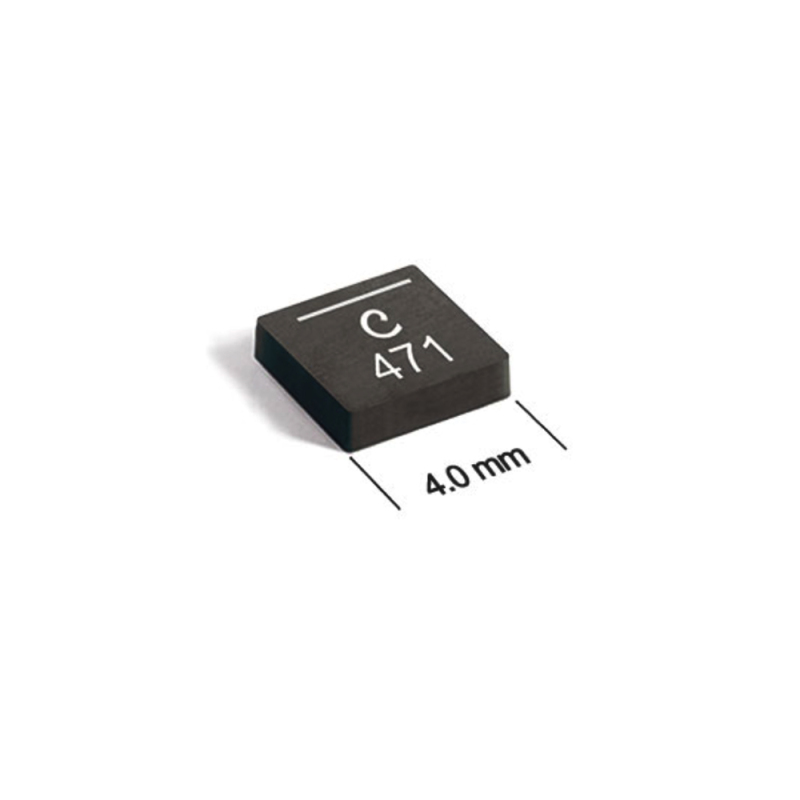

Power Inductors - SMD 250nH Shld 11.45A 8.4mOhm AECQ2
Features：
XFL4012 power inductors have the lowest profiles of our molded power inductors. They provide high current handling with low DCR and low AC losses.
Low profile with traditional saturation
High current handling with low DCR
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal-aging and perfect for high-temperature applications
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C maximum part temperature
|
Product Attribute |
Attribute Value |
|
Inductance: |
250 nH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
11.45 A |
|
Maximum DC Resistance: |
8.4 mOhms |
|
Saturation Current: |
9.7 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 125℃ |
|
Self Resonant Frequency: |
150 MHz |
|
Termination: |
Standard |
|
Length: |
4 mm |
|
Width: |
4 mm |
|
Height: |
1.2 mm |
|
Core Material: |
Composite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
1 MHz |
|
Unit Weight: |
95 mg |
Similar Models：
XFL4012-121MEC XFL4012-251MEC XFL4012-471MEC XFL4012-601MEC
