| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

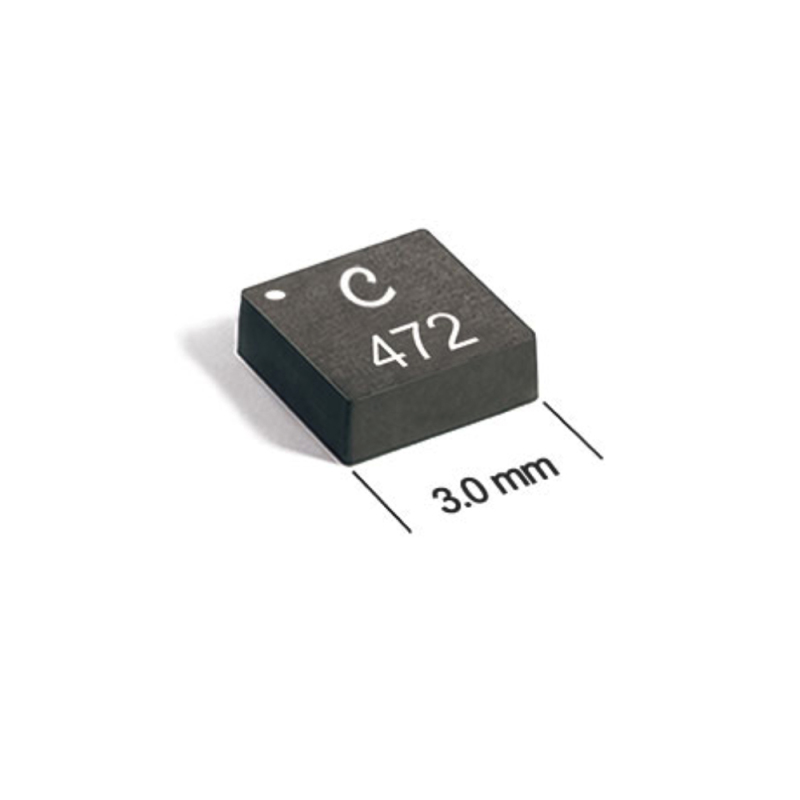

Power Inductors - SMD 39Uh Shld 540mA 985mOhms AECQ2
Features：

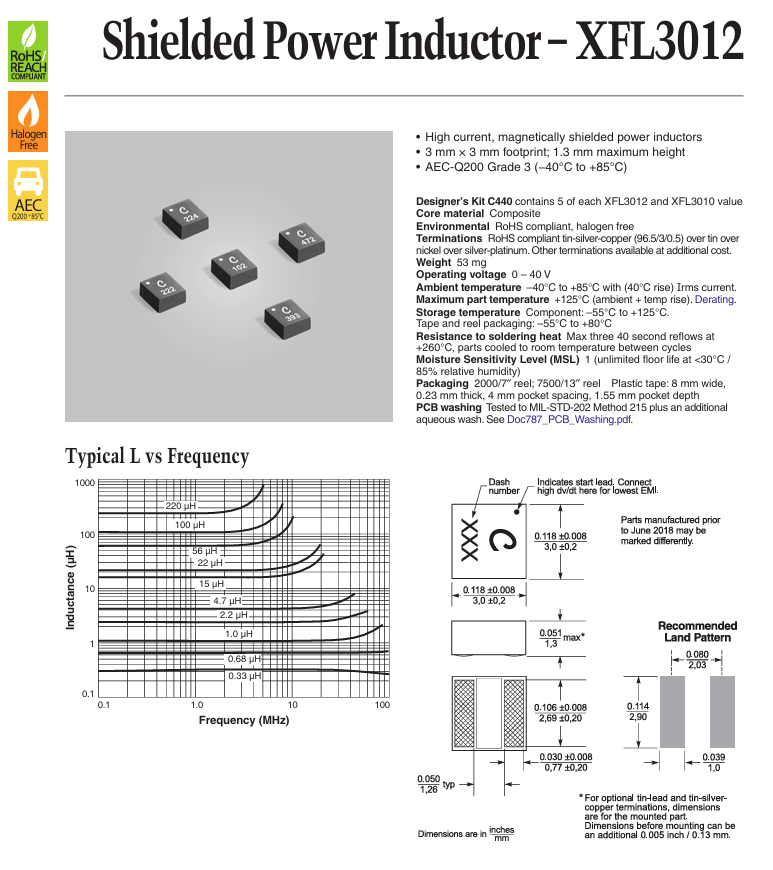

XFL3012 power inductors have the lowest profiles of our molded power inductors. They provide high current handling with low DCR and low AC losses.
Low profile with traditional saturation
High current handling with low DCR
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal-aging and perfect for high-temperature applications
AEC-Q200 Grade 3 qualified (−40°C to +85°C ambient)
|

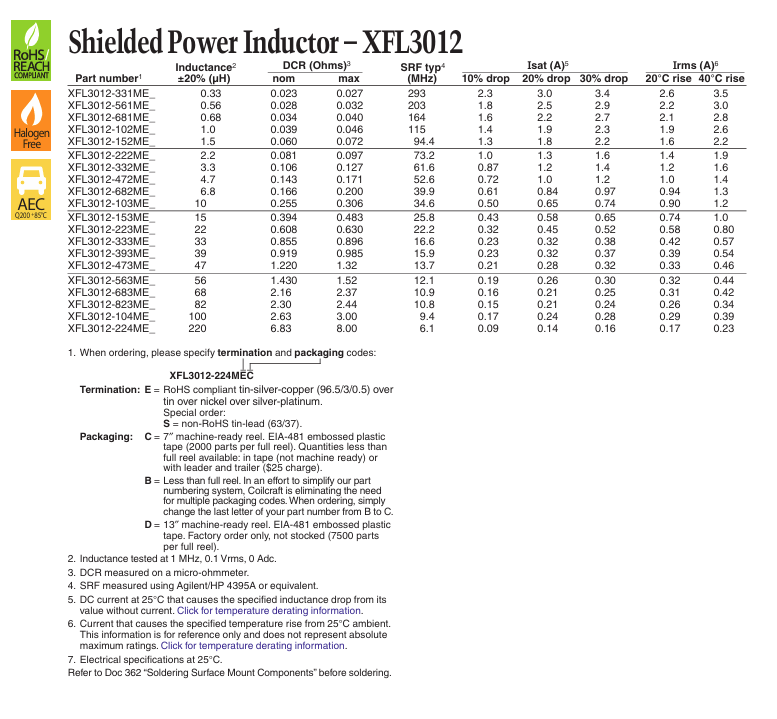

Product Attribute |
Attribute Value |
|
Shielding: |
Shielded |
|
Inductance: |
39 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
540 mA |
|
Maximum DC Resistance: |
985 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
15.9 MHz |
|
Termination: |
Standard |
|
Length: |
3.2 mm |
|
Width: |
3.2 mm |
|
Height: |
1.3 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
38 mg |
Similar Models：
XFL3012-331MEC XFL3012-561MEC XFL3012-681MEC XFL3012-102MEC XFL3012-152MEC XFL3012-222MEC XFL3012-332MEC XFL3012-472MEC XFL3012-682MEC XFL3012-103MEC XFL3012-153MEC XFL3012-223MEC XFL3012-333MEC XFL3012-393MEC XFL3012-473MEC XFL3012-563MEC XFL3012-683MEC XFL3012-823MEC XFL3012-104MEC XFL3012-224MEC
