| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

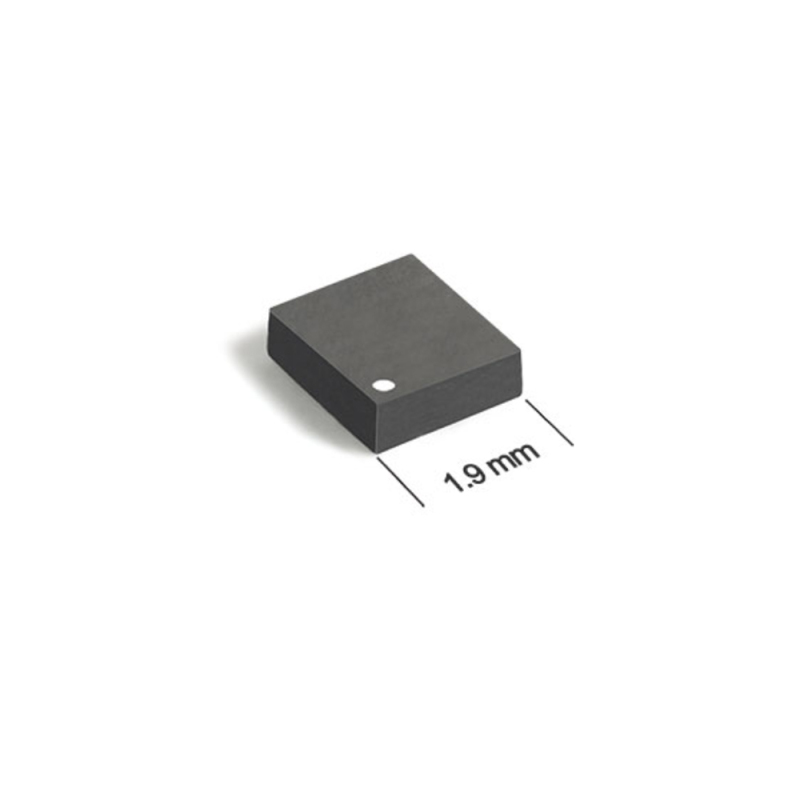

Power Inductors - SMD 2.2uH Shld 20% 950mA 306mOhms
Features：

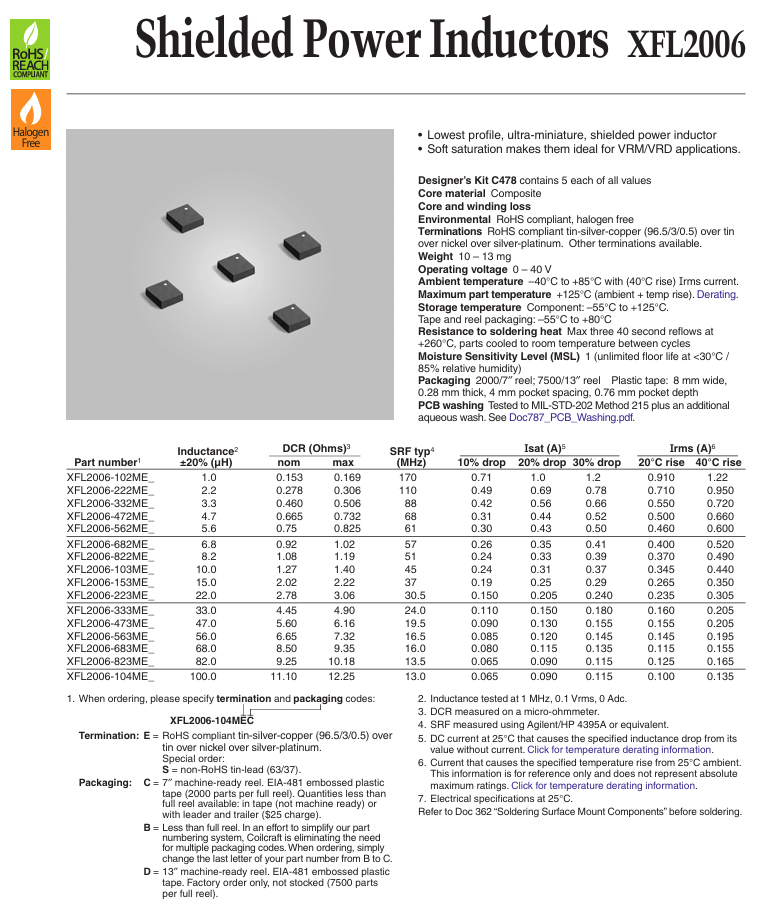

XFL2006 power inductors have the lowest profiles of our molded power inductors. They provide high current handling with low DCR and low AC losses.
Low profile with traditional saturation
High current handling with low DCR
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal-aging and perfect for high-temperature applications
|
Product Attribute |
Attribute Value |
|
Inductance: |
2.2 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
950 mA |
|
Maximum DC Resistance: |
306 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
110 MHz |
|
Termination: |
Standard |
|
Length: |
2.2 mm |
|
Width: |
2.1 mm |
|
Height: |
0.6 mm |
|
Core Material: |
Composite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
Similar Models：
XFL2006-102MEC XFL2006-222MEC XFL2006-332MEC XFL2006-472MEC XFL2006-562MEC XFL2006-682MEC XFL2006-822MEC XFL2006-103MEC XFL2006-153MEC XFL2006-223MEC XFL2006-333MEC XFL2006-473MEC XFL2006-563MEC XFL2006-683MEC XFL2006-823MEC XFL2006-104MEC
