| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 400pcs |

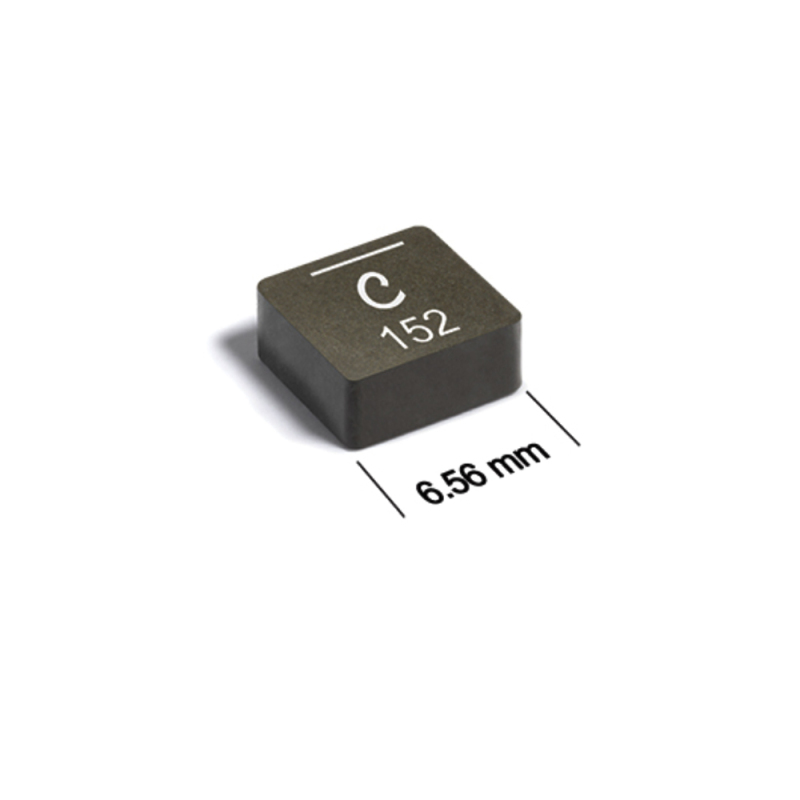

Power Inductors - SMD 3.3uH Shld 20% 8A 20.81mOhms AECQ2
Features：

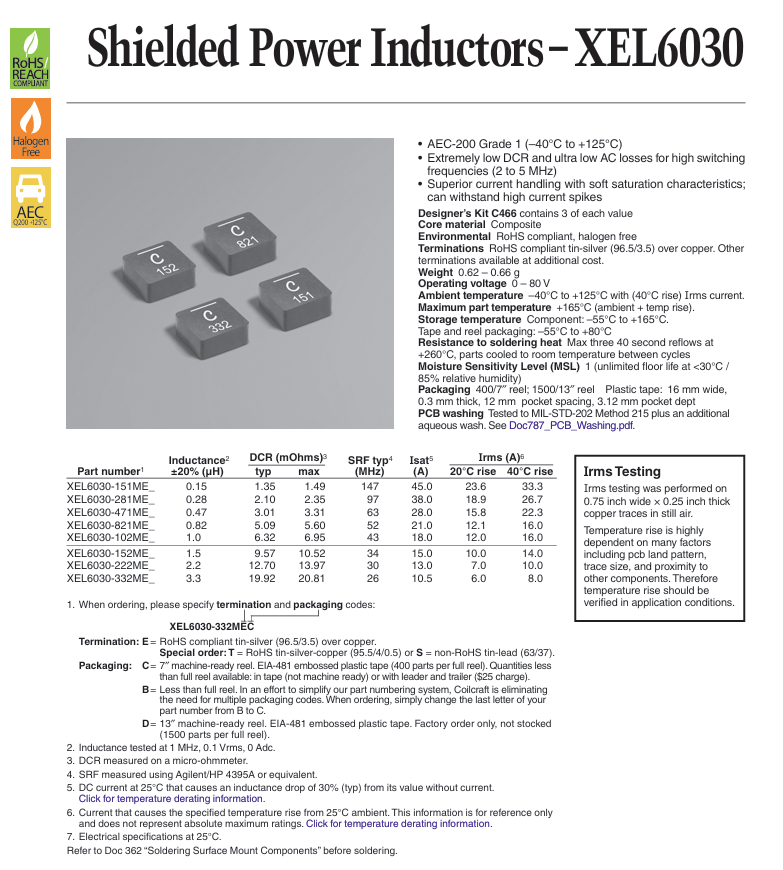

XEL6030 high-performance molded power inductors feature very low AC losses at high frequencies and very low DCR. These rugged inductors are magnetically shielded for high-density power applications and exhibit soft saturation to withstand high peak current.
Low inductance values for high-frequency applications
Very low AC losses at high frequency and very low DCR
Soft saturation to withstand high current spikes
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal aging – perfect for high-temperature applications
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature
|
Product Attribute |
Attribute Value |
|
Package / Case: |
6.36 mm x 3.1 mm x 6.56 mm |
|
Shielding: |
Shielded |
|
Inductance: |
3.3 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
8 A |
|
Maximum DC Resistance: |
20.81 mOhms |
|
Saturation Current: |
10.5 A |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Self Resonant Frequency: |
26 MHz |
|
Termination: |
Standard |
|

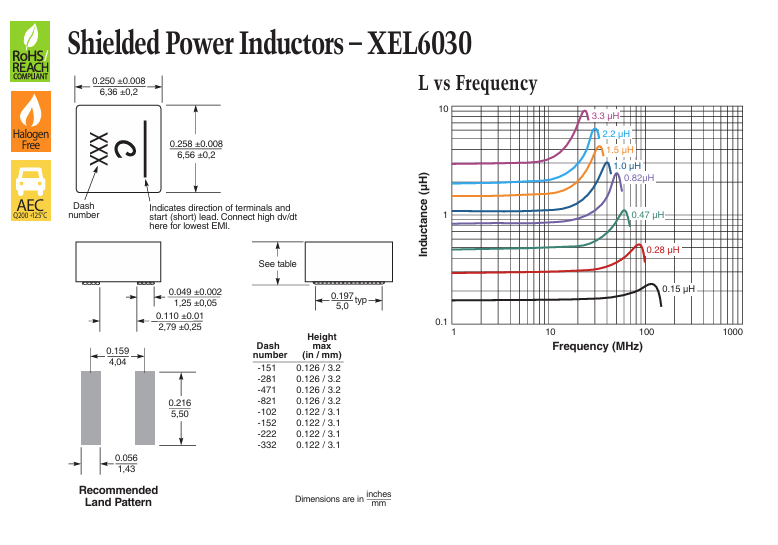

Length: |
6.56 mm |
|
Width: |
6.36 mm |
|
Height: |
3.1 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
1 MHz |
|
Unit Weight: |
620 mg |
Similar Models：
XEL6030-151MEC XEL6030-281MEC XEL6030-471MEC XEL6030-821MEC XEL6030-102MEC XEL6030-152MEC XEL6030-222MEC XEL6030-332MEC
