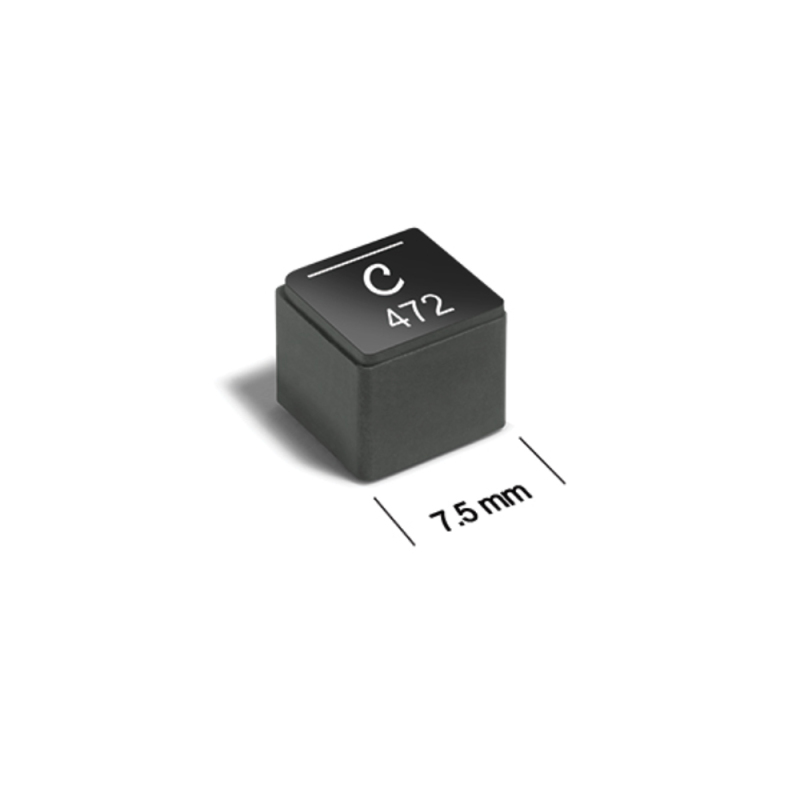

Power Inductors - SMD 300nH Shld 20% 33.4A 1.17mOhms AECQ2

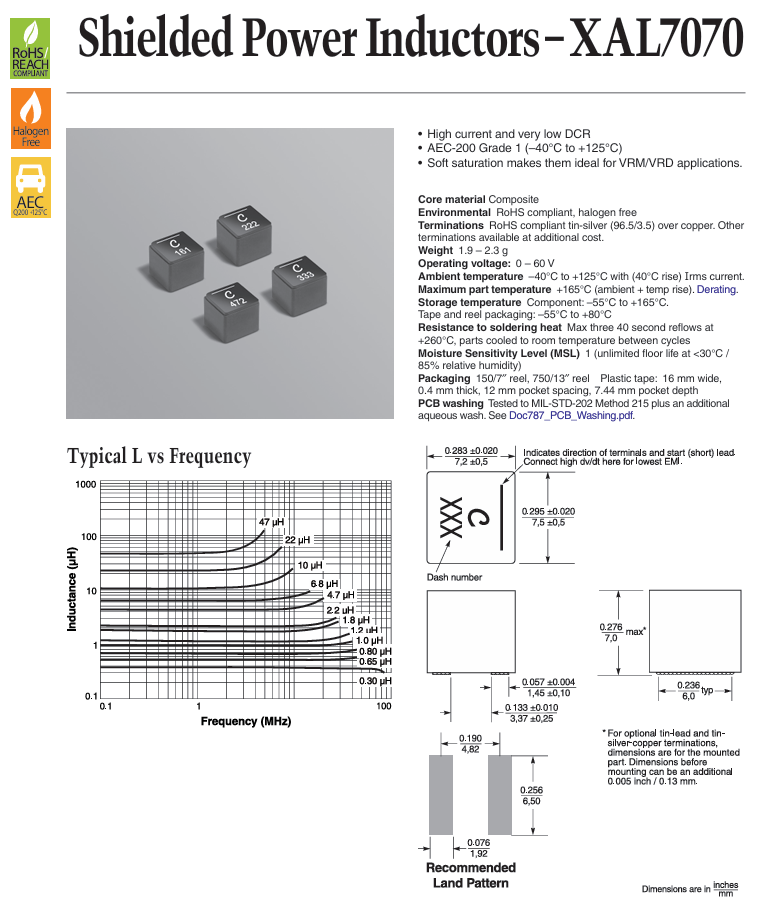

Features：
XAL7070 high-performance molded power inductors are mechanically rugged and magnetically shielded for use in high-density power converter circuits. They offer high current ratings and are ideal for high switching frequencies with low AC losses.
Excellent current handling
Low power losses (AC and DC)
Soft saturation characteristic to withstand high current spikes
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal aging – perfect for high temperature applications
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature
|
Product Attribute |
Attribute Value |
|
Package / Case: |
7.2 mm x 7 mm x 7.5 mm |
|
Shielding: |
Shielded |
|
Inductance: |
300 nH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
33.4 A |
|
Maximum DC Resistance: |
1.17 mOhms |
|
Saturation Current: |
55.6 A |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 125°C |
|
Self Resonant Frequency: |
135 MHz |
|
Termination: |
Standard |
|
Length: |
7.5 mm |
|
Width: |
7.2 mm |
|
Height: |
7 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
1 MHz |
|
Unit Weight: |
2.100 g |

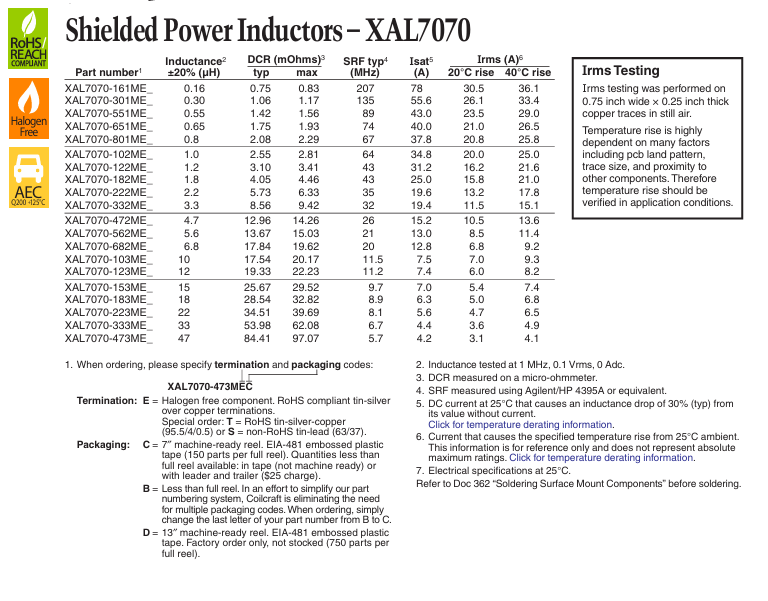

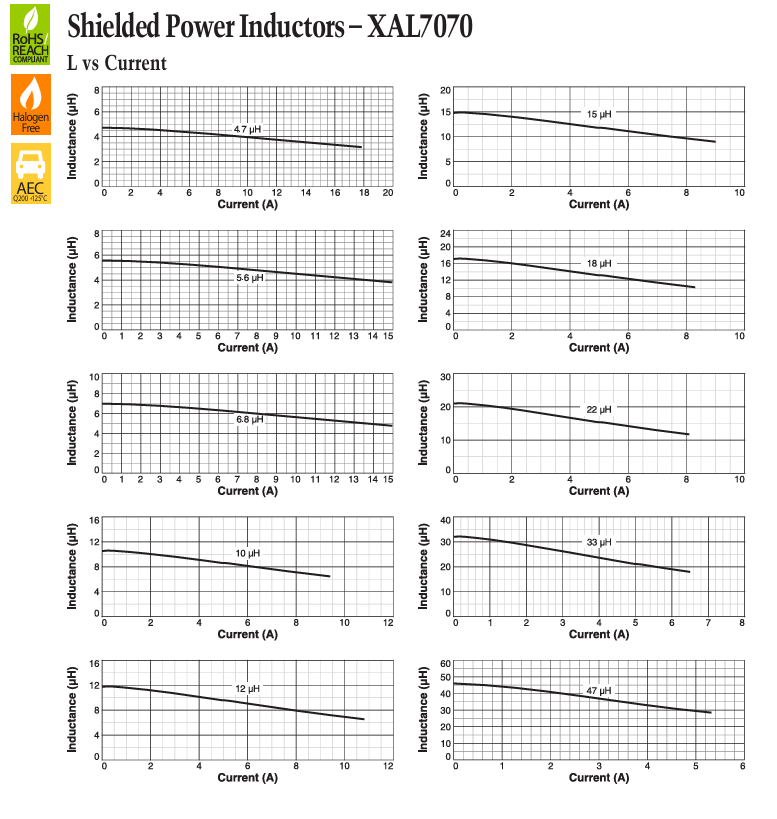

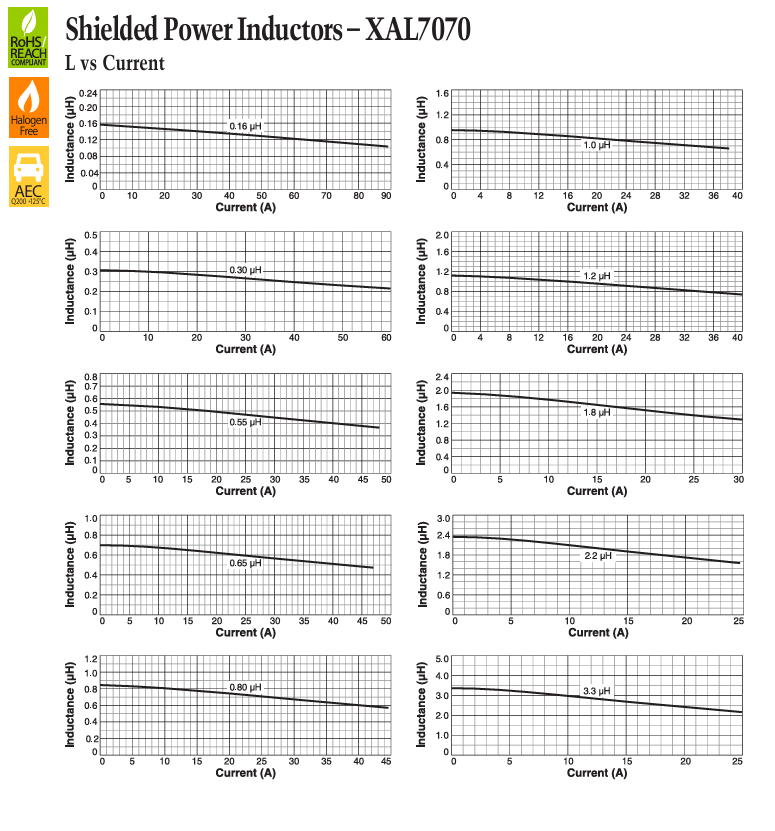

Similar Models：
XAL7070-161MEC XAL7070-301MEC XAL7070-551MEC XAL7070-651MEC XAL7070-801MEC AL7070-102MEC XAL7070-122MEC XAL7070-182MEC XAL7070-222MEC XAL7070-332MEC XAL7070-472MEC XAL7070-562MEC XAL7070-682MEC XAL7070-103MEC XAL7070-123MEC XAL7070-153MEC XAL7070-183MEC XAL7070-223MEC XAL7070-333MEC XAL7070-473MEC
