| Brand | Coilcraft |
| Date Code | 1838 |
| Packing | Reel |
| Package | SMD |
| Minimum Packing | 400pcs |

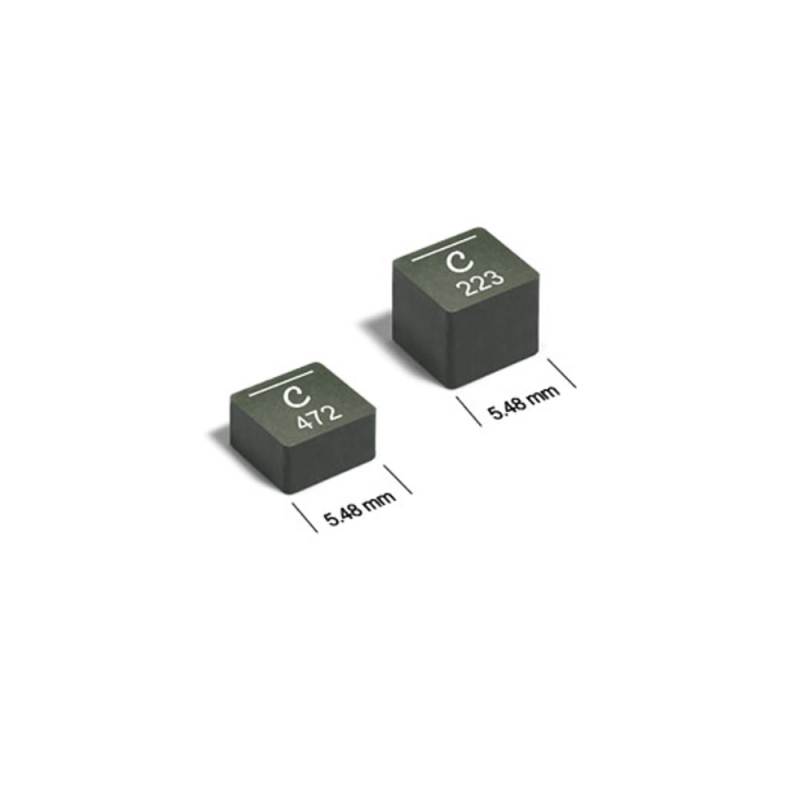

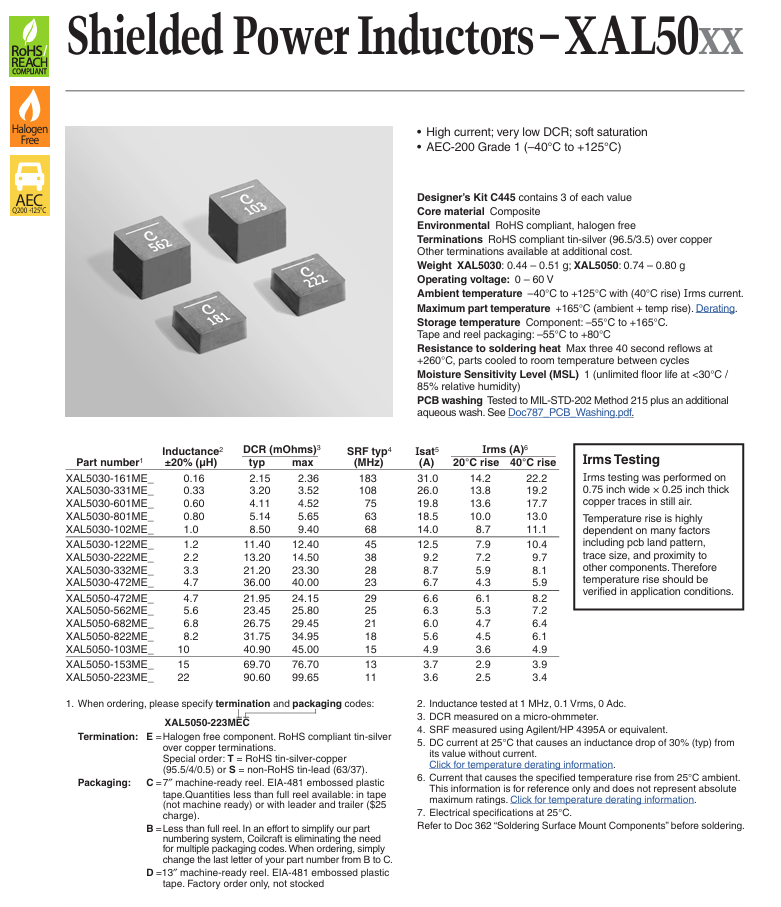

Power Inductors - SMD 2.2uH Shld 20% 9.2A 14.5mOhms AECQ2
Features：
XAL50xx high-performance molded power inductors are mechanically rugged and magnetically shielded for use in high-density power converter circuits. They offer high current ratings and are ideal for high switching frequencies with low AC losses.
Low power losses (AC and DC)
Soft saturation characteristic to withstand high current spikes
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal aging – perfect for high temperature applications
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature
|
Product Attribute |
Attribute Value |
|

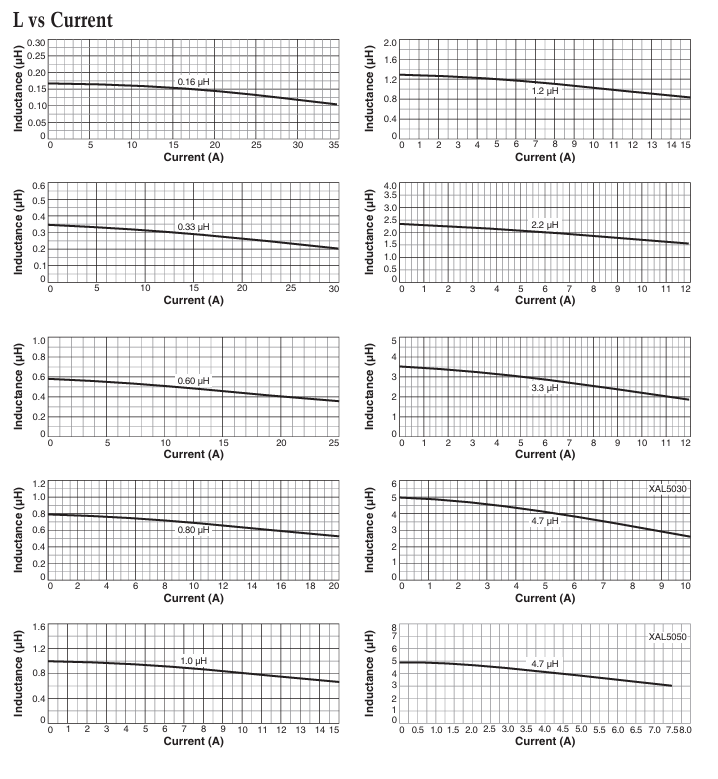

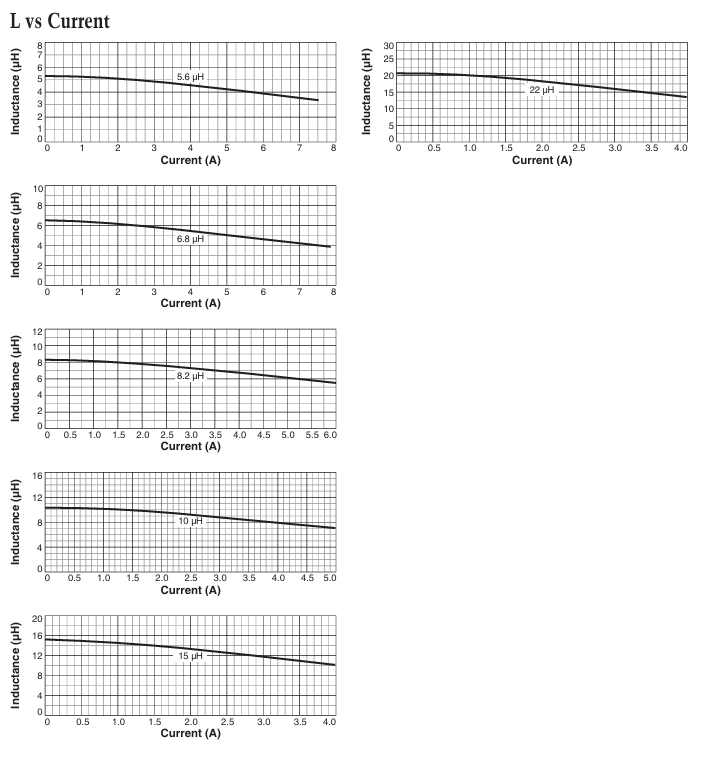

Inductance: |
2.2 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
9.7 A |
|
Maximum DC Resistance: |
14.5 mOhms |
|
Saturation Current: |
9.2 A |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Self Resonant Frequency: |
38 MHz |
|
Termination: |
Standard |
|

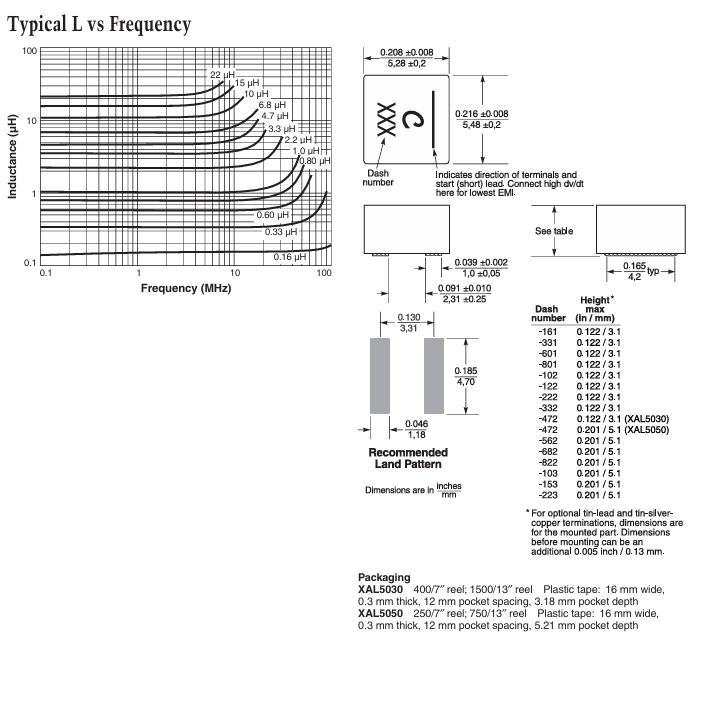

Length: |
5.48 mm |
|
Width: |
5.28 mm |
|
Height: |
3.1 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
1 MHz |
|
Unit Weight: |
80 mg |
Similar Models：
XAL5030-161MEC XAL5030-331MEC XAL5030-601MEC XAL5030-801MEC XAL5030-102MEC XAL5030-122MEC XAL5030-222MEC XAL5030-332MEC XAL5030-472MEC XAL5050-472MEC XAL5050-562MEC XAL5050-682MEC XAL5050-822MEC XAL5050-103MEC XAL5050-153MEC XAL5050-223MEC
