| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 300pcs |

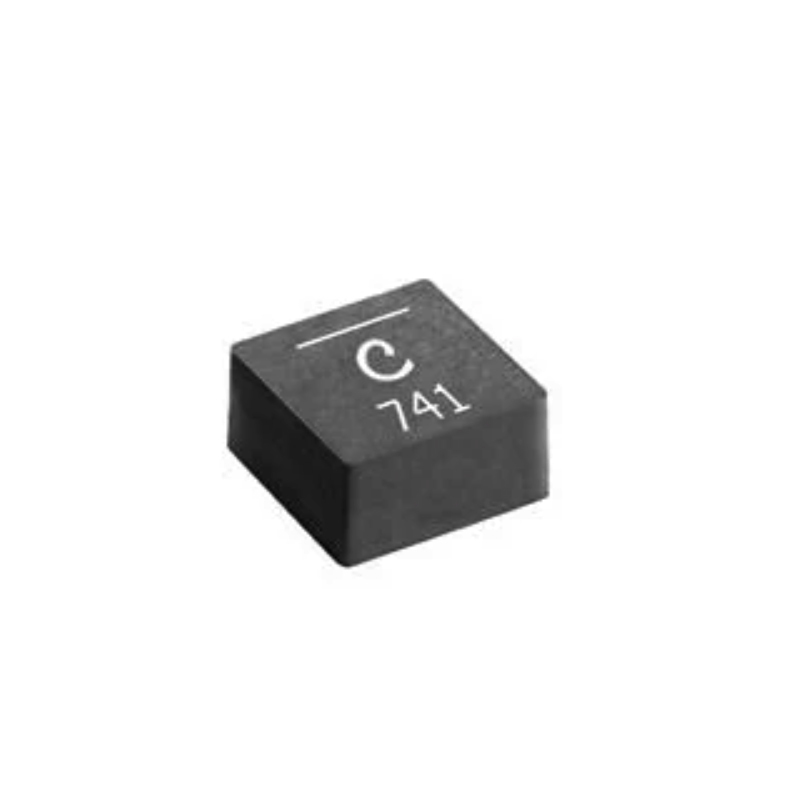

Power Inductors - SMD 4.5uH Shld 20% 27A 4.58mOhms AECQ2
Features：

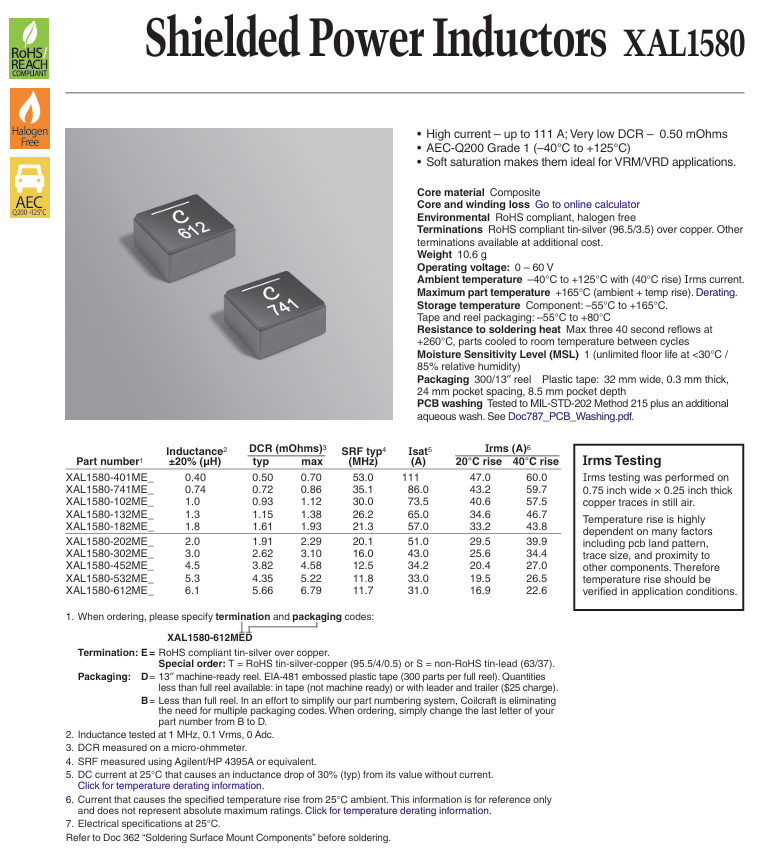

XAL1580 high-performance molded power inductors are mechanically rugged and magnetically shielded for use in high-density power converter circuits. They offer high current ratings and are ideal for high switching frequencies with low AC losses.
Low power losses (AC and DC)
Soft saturation characteristic to withstand high current spikes
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal aging – perfect for high temperature applications
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part temperature
|
Product Attribute |
Attribute Value |
|
Inductance: |
4.5 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
27 A |
|
Maximum DC Resistance: |
4.58 mOhms |
|
Saturation Current: |
34.2 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 165℃ |
|
Self Resonant Frequency: |
12.5 MHz |
|
Termination: |
Standard |
|

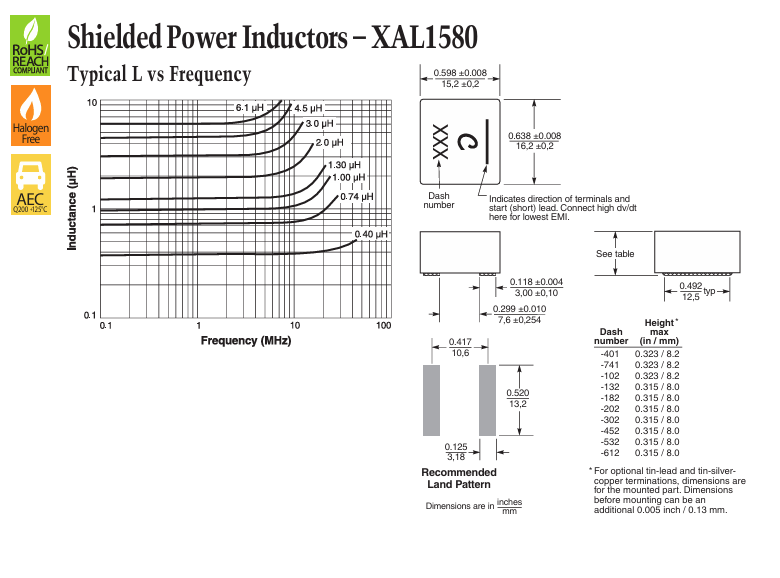

Length: |
16.4 mm |
|
Width: |
15.4 mm |
|
Height: |
7.5 mm |
|
Core Material: |
Composite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
Similar Models：
XAL1580-401MED XAL1580-741MED XAL1580-102MED XAL1580-132MED XAL1580-182MED XAL1580-202MED XAL1580-302MED XAL1580-452MED XAL1580-532MED XAL1580-612MED
