| Brand | ADI |
| Date Code | 24+ |
| Packing | Tray |
| Package | FCQFN-16 |
| Minimum Packing | 490pcs |
Switching Voltage Regulators 55A, 12V SWITCHING REGULATOR, SMART SLAV
Features：
High Per-Phase Current Capability
Footprint < 1600mm2 for a 150A VR
Precise Temperature Monitoring and Reporting through a Master Controller IC SMBus
Accurate Per-Phase Current Reporting Using a Master Controller IC
Top-side Cooling Allows Improved Heat Transfer to Ambient

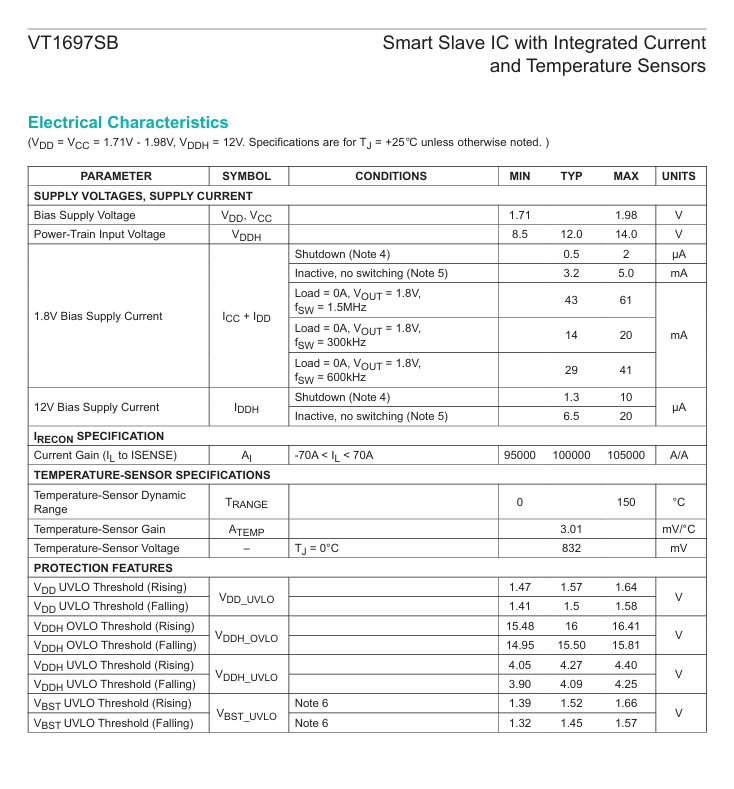

Supplies UVLO/OVLO, Bootstrap Voltage UVLO, VX Short Protection

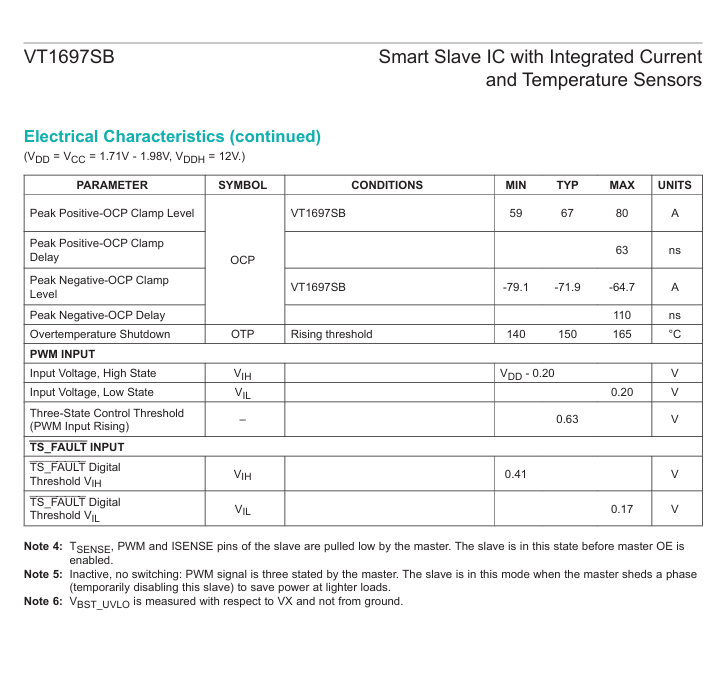

Overcurrent Protection
Overtemperature Protection—Fast Shutdown
Switching Frequency 300KHz—1.3MHz
Compatible With Coupled Inductor

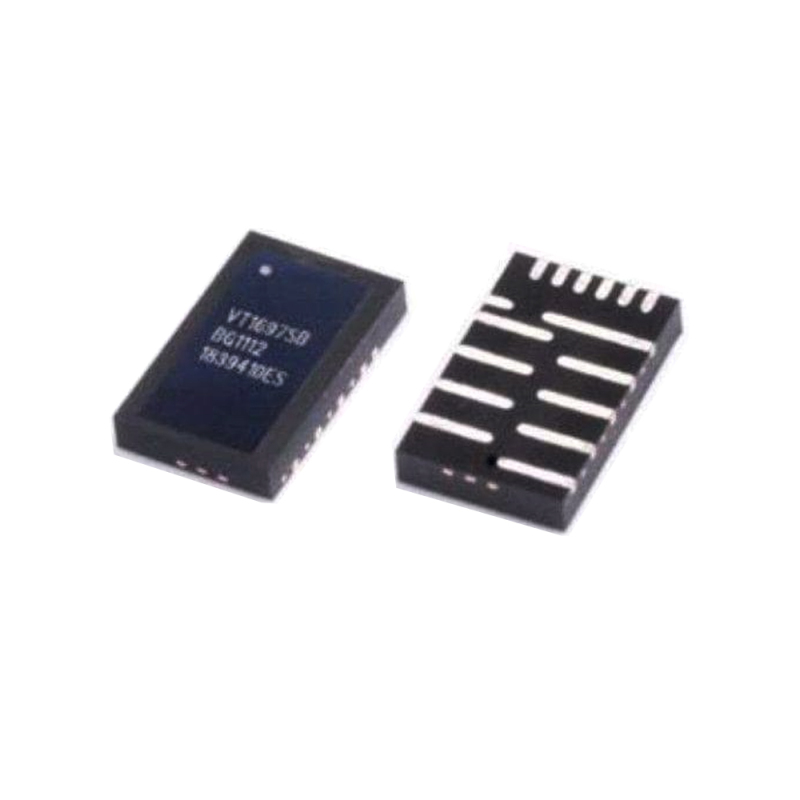

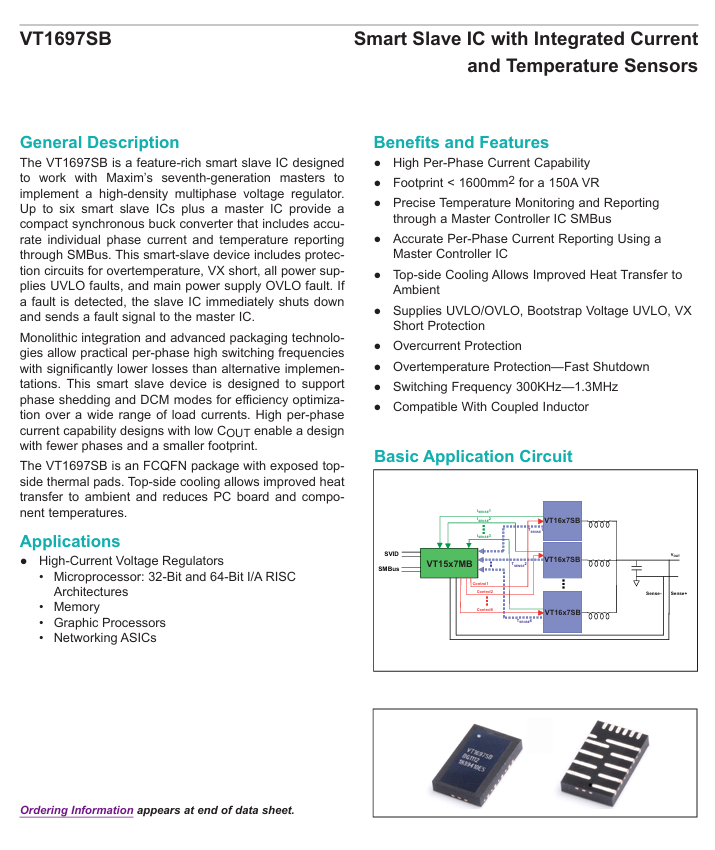

The VT1697SB is a feature-rich smart slave IC designed to work with Maxim’s seventh-generation masters to implement a high-density multiphase voltage regulator. Up to six smart slave ICs, plus a master IC, provide a compact synchronous buck converter that includes accurate individual phase-current and temperature reporting via SMBus/PMBus. This smart slave device includes protection circuits for overtemperature, VS short, all power supplies UVLO faults and main power supply OVLO fault. If a fault is detected, the slave IC will immediately shut down and send a fault signal to the master IC.
Monolithic integration and advanced packaging technologies allow practical per-phase, high switching frequencies with significantly lower losses than alternative implementations. Smart slave devices are designed to support phase-shedding and DCM modes for efficiency optimization over a wide range of load currents. High per-phase current-capability designs with low COUT enable a design with fewer phases and a smaller footprint.

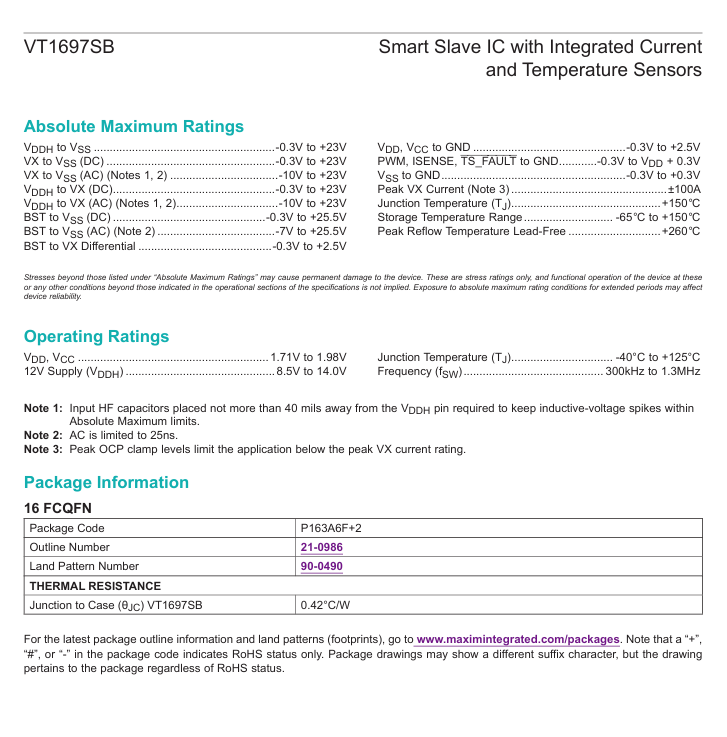

The VT1697SB is packaged in a QFN package with exposed top-side thermal pads. Top-side cooling allows improved heat transfer to ambient and reduces PC board and component temperatures.
Applications
High-Current Voltage Regulators
Microprocessor: 32-Bit and 64-Bit I/A RISC Architectures
Memory
Networking ASICs
Graphic Processors
