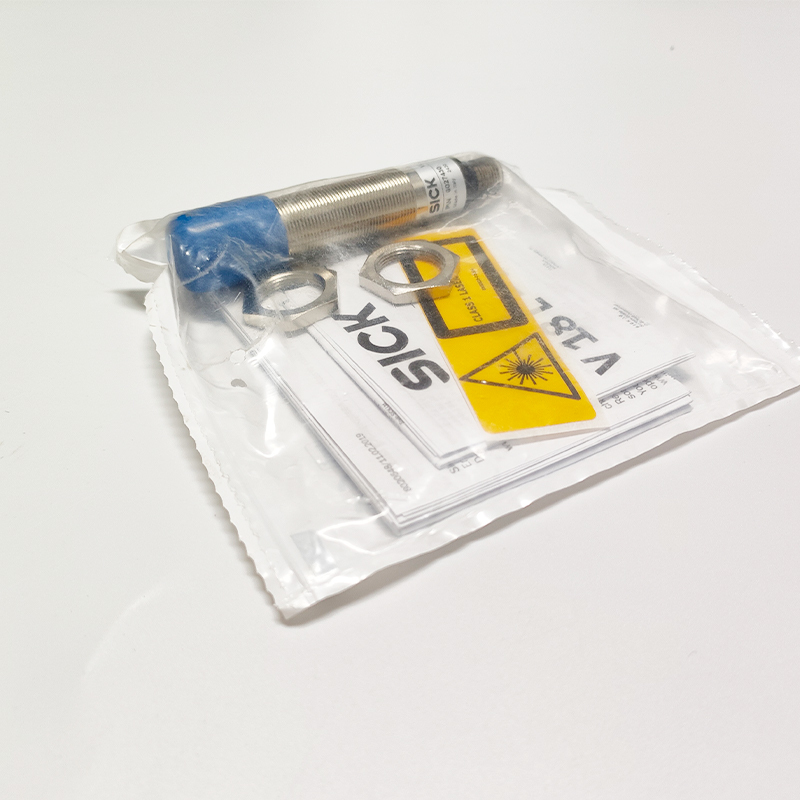

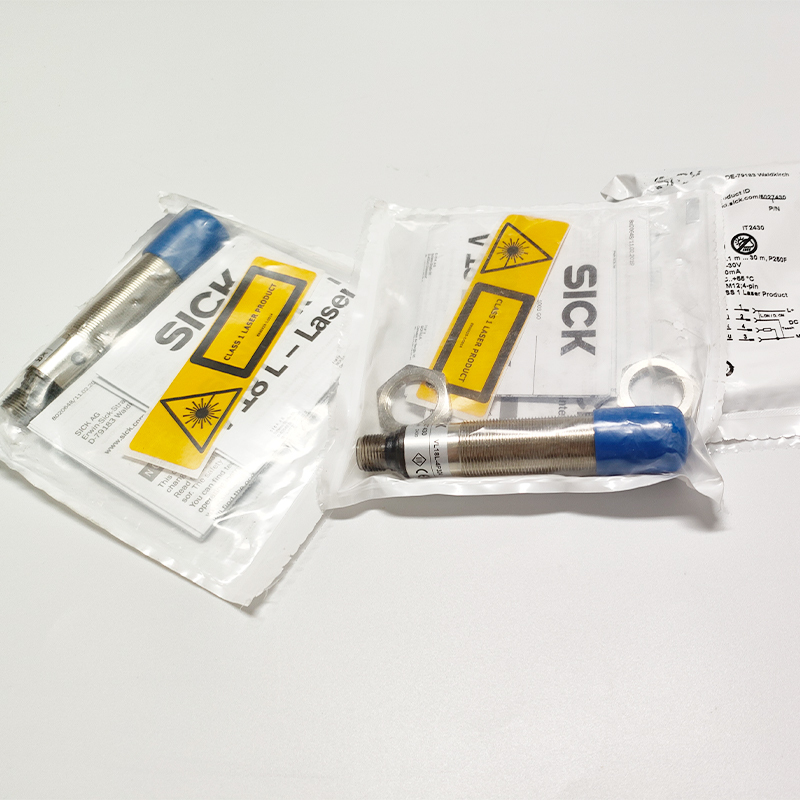

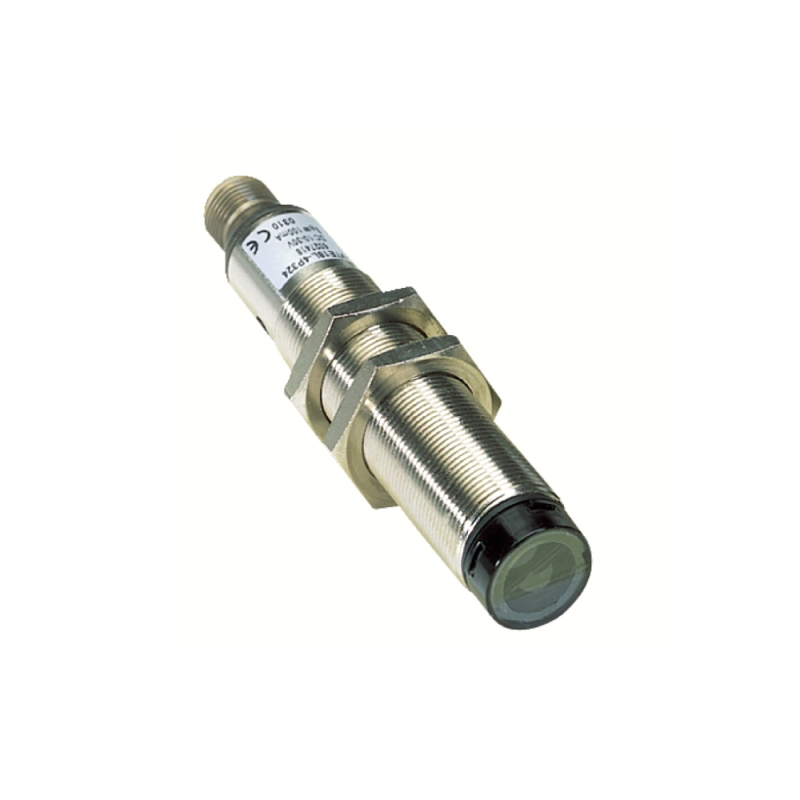

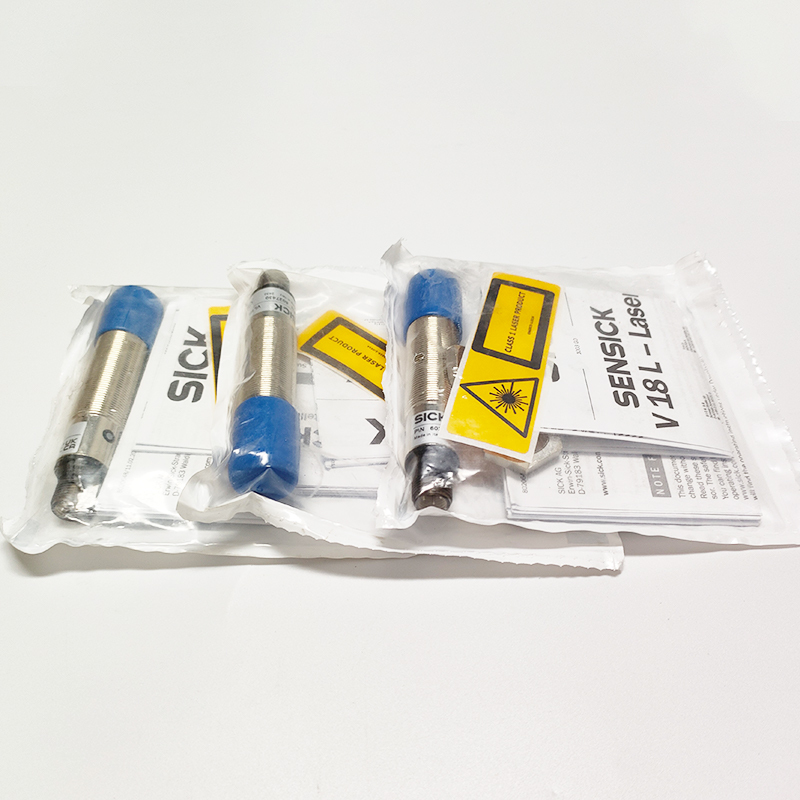

In Stock ! SICK Photoelectric sensors VL18L-4P324

Part no.: 6027430

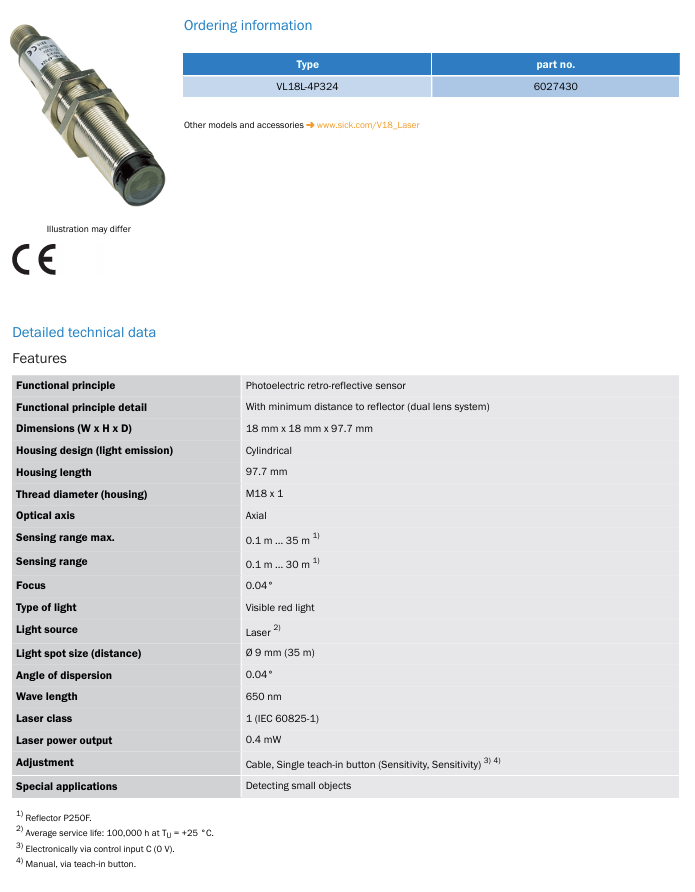

Features：

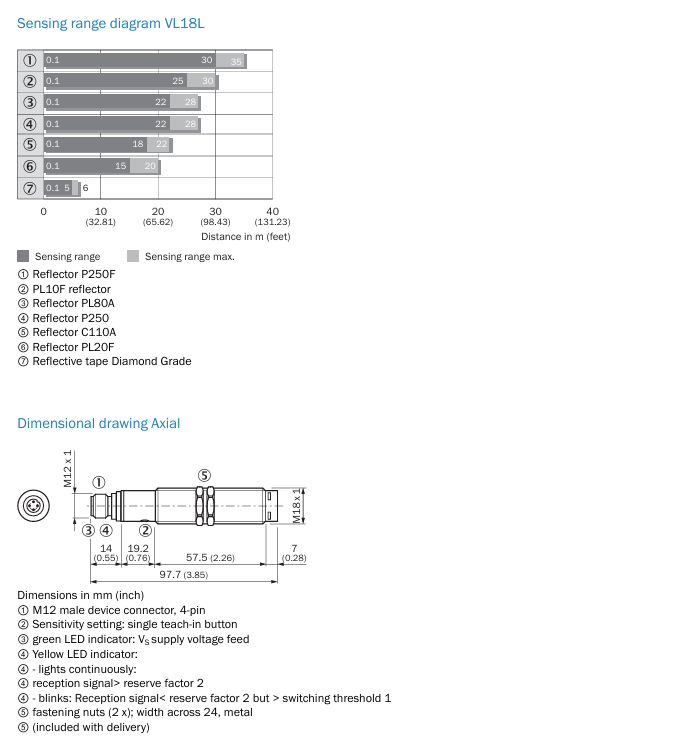

Dimensions (W x H x D)：18 mm x 18 mm x 97.7 mm

Housing design (light emission)：Cylindrical

Housing length：97.7 mm

Thread diameter (housing)：M18 x 1

Optical axis：Axial

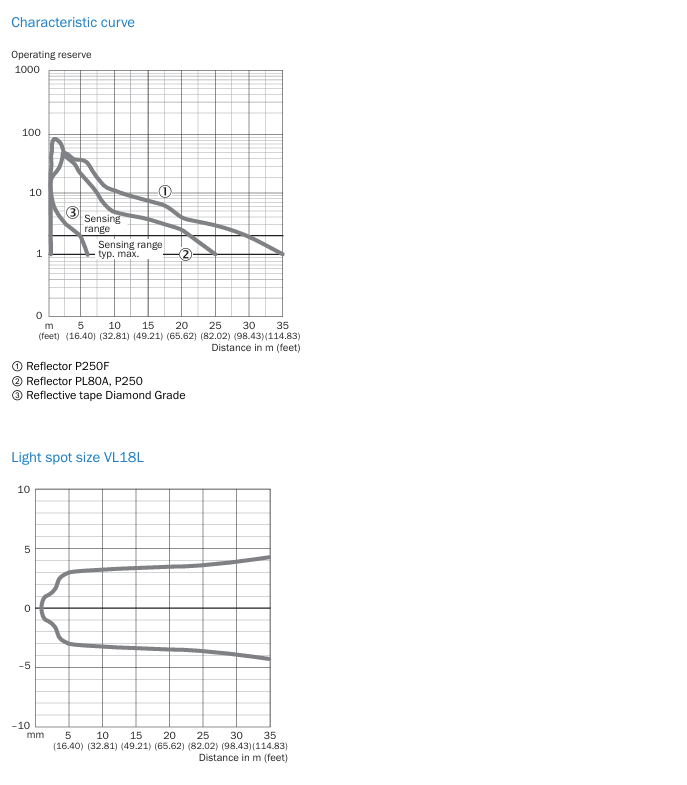

Sensing range max.：0.1 m ... 35 m

Sensing range：0.1 m ... 30 m

Focus：0.04°

Type of light：Visible red light

Light source：Laser

Light spot size (distance)：Ø 9 mm (35 m)

Angle of dispersion：0.04°

Wave length：650 nm

Laser class：1 (IEC 60825-1)

Laser power output：0.4 mW

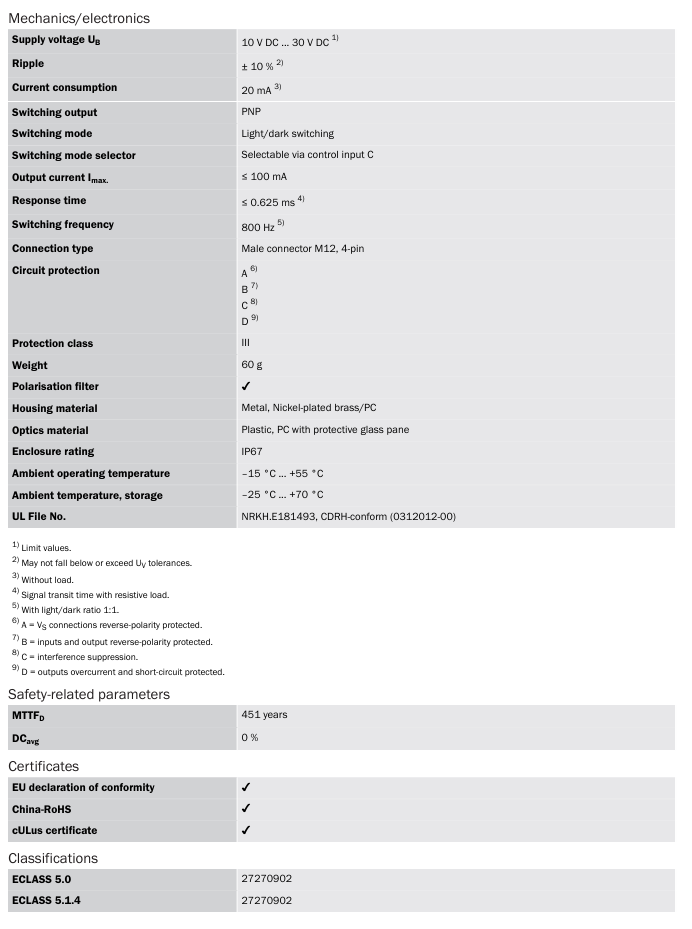

Supply voltage UB：10 V DC ... 30 V DC

Ripple：± 10 %

Current consumption：20 mA

Switching output：PNP

Switching mode：Light/dark switching

Switching mode selector：Selectable via control input C

Output current Imax.：≤ 100 mA

Response time：≤ 0.625 ms

Switching frequency：800 Hz

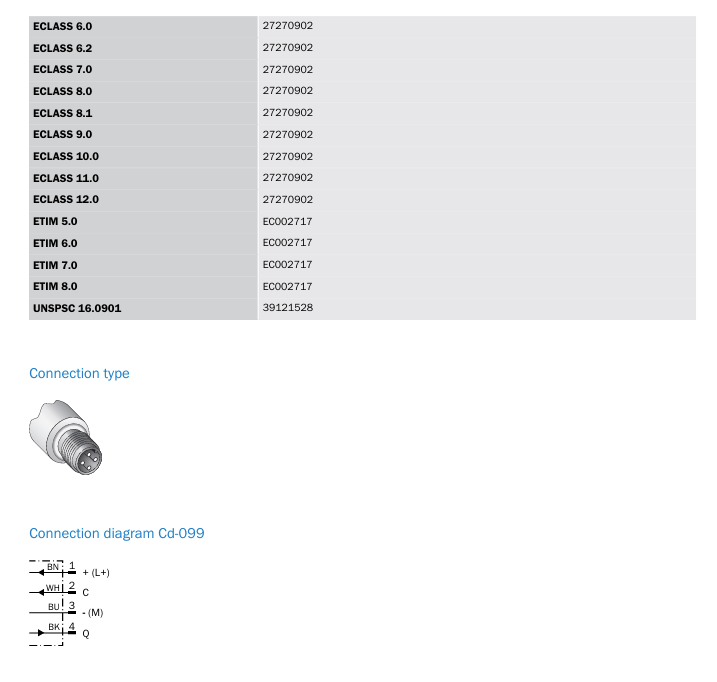

Connection type：Male connector M12, 4-pin

Protection class：III

Weight：60 g

Photoelectric sensors

V18 Laser

Laser sensor in cylindrical M18 housing

The V18 Laser family of photoelectric sensors offers modern laser technology with a small, highly visible light spot that detects small parts and offers precise sensing. These laser class 1 sensors provide long sensing distances and short response times.

Yellow and green indicator LEDs ensure easy mounting, commissioning, adjustment and maintenance. Sensitivity can be set in several ways - either manually via a teach-in pushbutton or electronically using control input C.

Similar models:

VL18L-4P324 6027430 VSE18L-4P324 6027931 VL18L-4P344 6027434 VSE18L-4P344 6027935 VTE18L-4P324 6027418 VL18L-3F324 6034330 VTE18L-4N324 6027420 VSE18L-4N344 6027937 VL18L-3P324 6027596 VL18L-4P324S01 6065093 VTE18L-4N344 6027424 VL18L-4N344 6027436 VL18L-4P322 6027429 VL18L-4P342 6027433 VL18L-4N324 6027432 VSE18L-4N324 6027933 VTE18L-4P344 6027422
