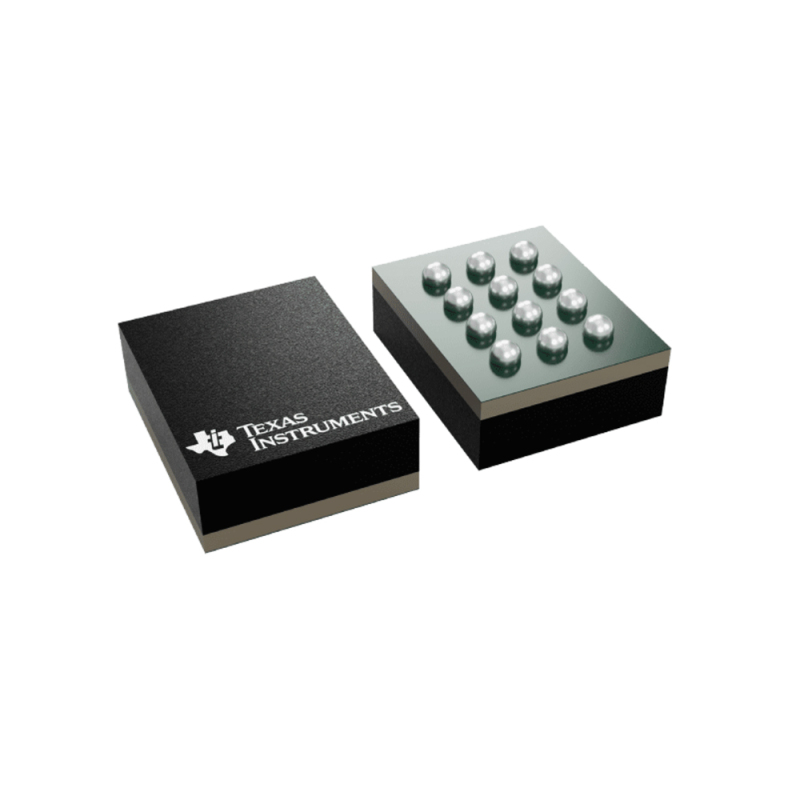

| Brand | Texas Instruments |
| Date Code | 22+ |
| Packing | Reel |
| Package | NFBGA-12 |
| Minimum Packing | 2500pcs |
Four-bit bidirectional voltage-level shifter for open-drain and push-pull applications
Features：
Quality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialSNAGCU |
|
MSL rating / Peak reflowLevel-2-260C-1 YEAR |
Packaging information
|
Package | PinsNFBGA (NMN) | 12 |
|
Operating temperature range (°C)-40 to 85 |
|
Package qty | Carrier2,500 | LARGE T&R |

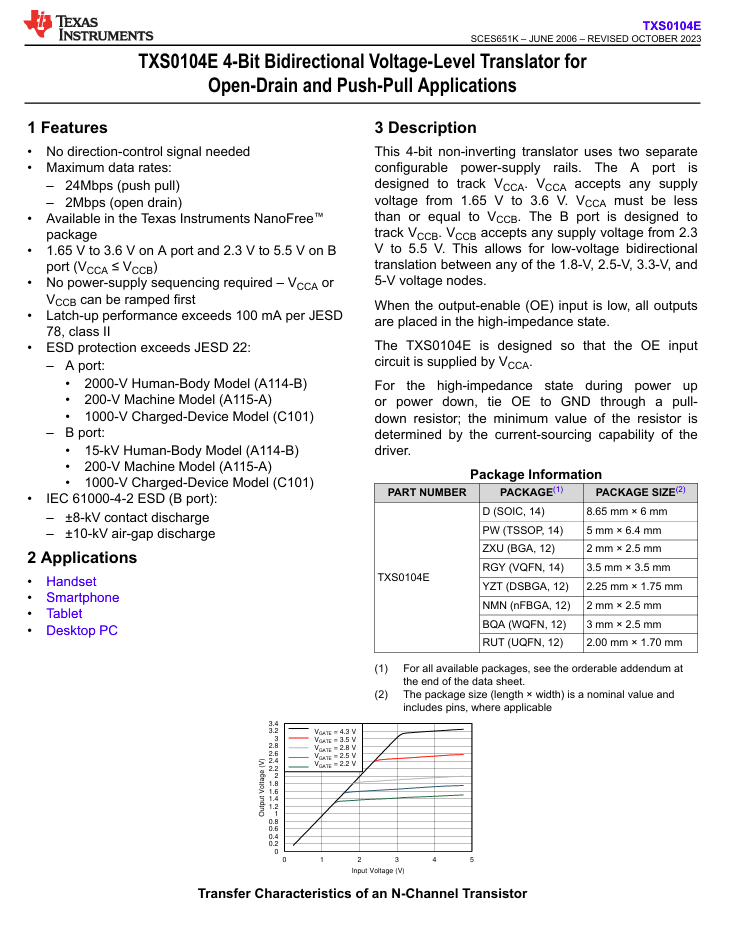

Features for the TXS0104E
No direction-control signal needed
Maximum data rates:
24Mbps (push pull)
2Mbps (open drain)
Available in the Texas Instruments NanoFree™ package
1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (V CCA ≤ V CCB)
No power-supply sequencing required – V CCA or V CCB can be ramped first
Latch-up performance exceeds 100 mA per JESD 78, class II
ESD protection exceeds JESD 22:
A port:
2000-V Human-Body Model (A114-B)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
B port:
15-kV Human-Body Model (A114-B)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
IEC 61000-4-2 ESD (B port):
±8-kV contact discharge
±10-kV air-gap discharge
Description for the TXS0104E
This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track V CCA. V CCA accepts any supply voltage from 1.65 V to 3.6 V. V CCA must be less than or equal to V CCB. The B port is designed to track V CCB. V CCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
The TXS0104E is designed so that the OE input circuit is supplied by V CCA.
For the high-impedance state during power up or power down, tie OE to GND through a pull-down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
