| Brand | Texas Instruments |
| Date Code | 18+ |
| Packing | Reel |
| Package | SOT23-5 |
| Minimum Packing | 3000pcs |

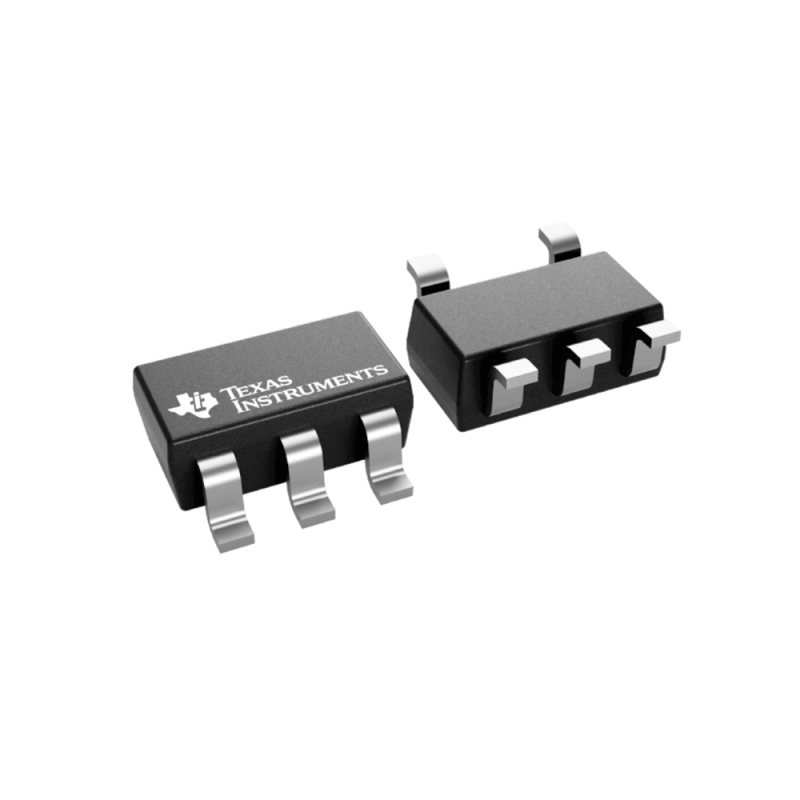

150-mA, 30-V, ultra-low-IQ, low-dropout voltage regulator with reverse current protection and enable
Features：
Quality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialSN | NIPDAU | NiPdAu |
|
MSL rating / Peak reflowLevel-1-260C-UNLIM |
|
Quality, reliability View or download |
Packaging information
|
Package | PinsSOT-23 (DBV) | 5 |
|
Operating temperature range (°C)-40 to 125 |
|
Package qty | Carrier3,000 | LARGE T&R |

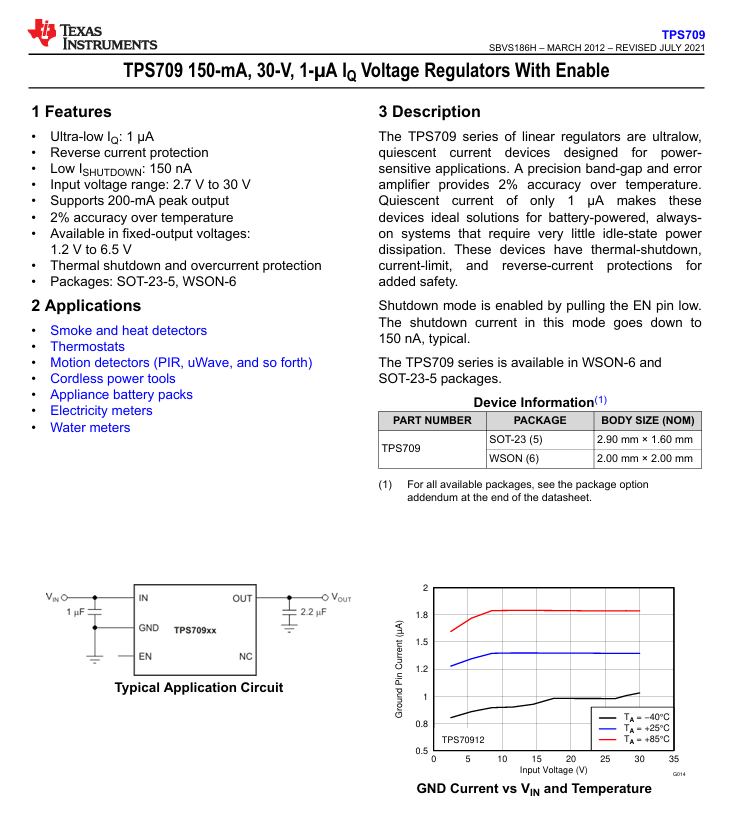

Features for the TPS709
Ultra-low IQ: 1 µA
Reverse current protection
Low ISHUTDOWN: 150 nA
Input voltage range: 2.7 V to 30 V
Supports 200-mA peak output
2% accuracy over temperature
Available in fixed-output voltages: 1.2 V to 6.5 V
Thermal shutdown and overcurrent protection
Packages: SOT-23-5, WSON-6
Description for the TPS709
The TPS709 series of linear regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety.
Shutdown mode is enabled by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical.
The TPS709 series is available in WSON-6 and SOT-23-5 packages.
