2.4-V to 5.5-V input, 3-A step-down converter with 1% accuracy in 1.5-mm x 2-mm VSON-HR package

Features：

Quality information

Packaging information

Features for the TPS62823

• DCS-Control™ topology

• 26-mΩ/25-mΩ internal power switches (TPS62823)

• Up to 3-A output current (TPS62823)

• Very low quiescent current of 4 µA

• Switching frequency of typically 2.2 MHz

• 1% feedback voltage accuracy (full temp. range)

• Enable (EN) and power good (PG)

• Adjustable output voltage from 0.6 V to 4 V

• 100% duty-cycle mode

• Internal soft-start circuitry

• Seamless power save mode transition

• Undervoltage lockout

• Active output discharge

• Cycle-by-cycle current limit

• HICCUP short-circuit protection

• Over temperature protection

• CISPR11 class B compliant

• Create a custom design using the TPS62822 with the WEBENCH® Power Designer

Description for the TPS62823

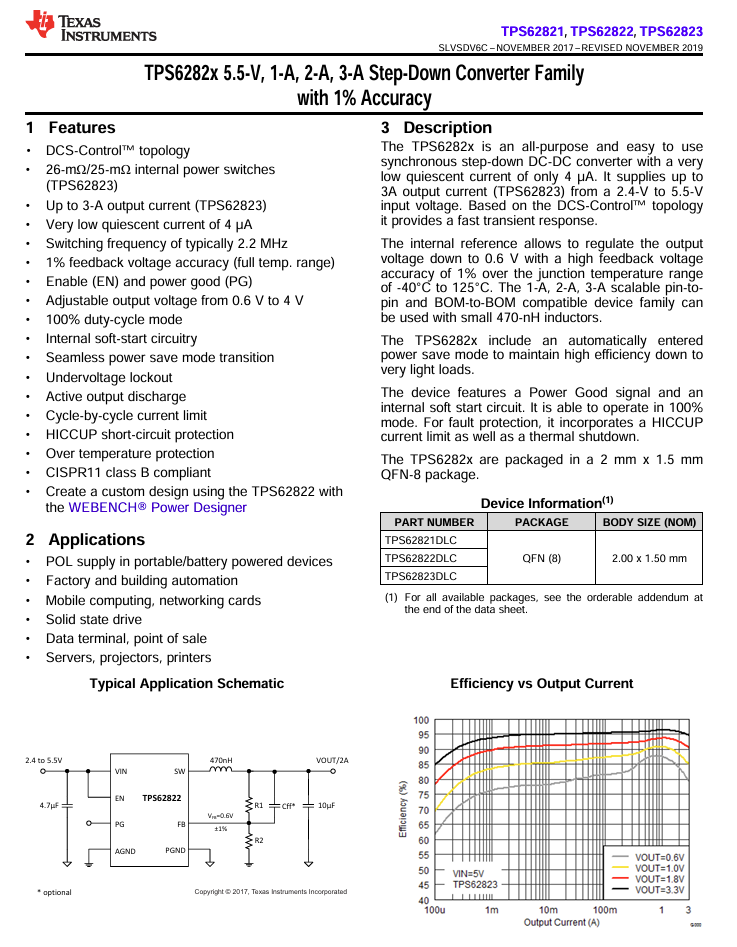

The TPS6282x is an all-purpose and easy to use synchronous step-down DC-DC converter with a very low quiescent current of only 4 µA. It supplies up to 3A output current (TPS62823) from a 2.4-V to 5.5-V input voltage. Based on the DCS-Control™ topology it provides a fast transient response.

The internal reference allows to regulate the output voltage down to 0.6 V with a high feedback voltage accuracy of 1% over the junction temperature range of -40°C to 125°C. The 1-A, 2-A, 3-A scalable pin-to-pin and BOM-to-BOM compatible device family can be used with small 470-nH inductors.

The TPS6282x include an automatically entered power save mode to maintain high efficiency down to very light loads.

The device features a Power Good signal and an internal soft start circuit. It is able to operate in 100% mode. For fault protection, it incorporates a HICCUP current limit as well as a thermal shutdown.

The TPS6282x are packaged in a 2 mm x 1.5 mm QFN-8 package.
